Question 1

Does this hard drive work with Intel?

Accepted Answer

Vague question.  Intel is a large multinational corporation with decades of history and thousands of products on the market, from CPU to bus controllers to network to graphics and so on.  Some combinations of products likely work fine, others may have bugs or glitches, others may be incompatible.  Even if a given combination of Intel chips ought to work, some mainboard manufacturers may have buggy BIOS or other firmware.  The same can be said of AMD or any of the PCIe chipset manufacturers, like ASMedia.  If you want a specific answer, ask a specific question.  Gor example, will this ABC mainboard work with this Seagate FireCuda 520 SSD?

Question 2

I do not see a Heat shield ? Does it need iit?

Accepted Answer

It does not have a heat shield. It could use one but it is not required. The branding is a label that can be peeled off which is what I did when I installed my heat shield from my motherboard.

Question 3

What is the TBW for the warranty?

Accepted Answer

The TBW (Terabytes Written) for the warranty is 3600TB.

Question 4

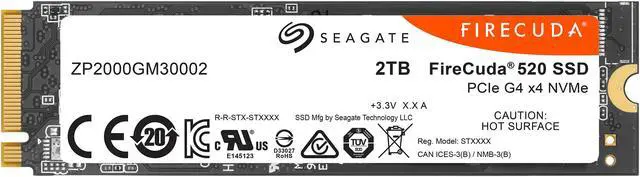

will this SSD fit in a normal NVme - slot of  a thinkpad laptop? ((the picture of this SSD seems to show IC on both sides))

Accepted Answer

The Seagate FireCuda 520 SSD has a form factor of M.2 2280, which is a common size for NVMe slots in laptops, including ThinkPads. However, compatibility can depend on the specific model of your ThinkPad, as some laptops may have size or clearance limitations if the SSD has components on both sides.

Question 5

I know that this product is tuned for the AMD chip, but what I want to know is will there be performance issues with the I9 extreme?

Accepted Answer

It is not tuned for AMD. It requires PCIe 4 for maximum performance, but can work with PCIe 3 as well, just transfer speeds will be lower because the PCIe 3 bus is slower.

Question 6

DOES THIS WORK WITH PS5 CONSLE ?

Accepted Answer

as of right now PS5 doesn't support expansion SSD as of yet. But looking at the speeds id say yes but we would have to see until SONY makes an official announcement which is rumor to be around summer

Question 7

Are their SSDs any better then their mech. hd's?  Cause they really suck..

Accepted Answer

The Seagate FireCuda 520 2TB SSD receives positive reviews for its fast and reliable performance. Users appreciate its speed and storage capacity, making it a great upgrade for gaming PCs and laptops. Overall, it is recommended for those looking for a fast and reliable SSD.

Question 8

I'm not sure if I can justify the cost in getting this? How about you?

Accepted Answer

if you have a pciex4 board i would justify it otherwise pay no more than 350 with intent that it will go in a upgraded mb some day.  otherwise you may just as well go pcie3 and save a few bucks.  it uses quality parts ie Toshiba chips coupled with 5 year warrany and good mtbf so those should be factors to consider as well

Brand	Seagate
Series	FireCuda 520
Model	ZP2000GM3A002
Device Type	Internal Solid State Drive (SSD)
Used For	Consumer

Form Factor	M.2 2280
Capacity	2TB
Memory Components	3D TLC
Interface	PCIe Gen4 x4, NVMe 1.3
Controller	E16

Max Sequential Read	Up to 5000 MBps
Max Sequential Write	Up to 4400 MBps
4KB Random Read	Up to 750,000 IOPS
4KB Random Write	Up to 700,000 IOPS
Terabytes Written (TBW)	3600TB
MTBF	1,800,000 hours

Power Consumption (Idle)	25 mW
Power Consumption (Active)	6W
Operating Temperature	0°C ~ +70°C
Storage Temperature	-40°C ~ +85°C
Max Shock Resistance	1500G

Height	3.58mm
Width	22.15mm
Depth	80.15mm
Weight	8.70g

Seagate Firecuda 520 2TB Performance Internal Solid State Drive SSD PCIe Gen4 X4 NVMe 1.3 for Gaming PC Gaming Laptop Desktop - 3-year Rescue Service (ZP2000GM3A002)
