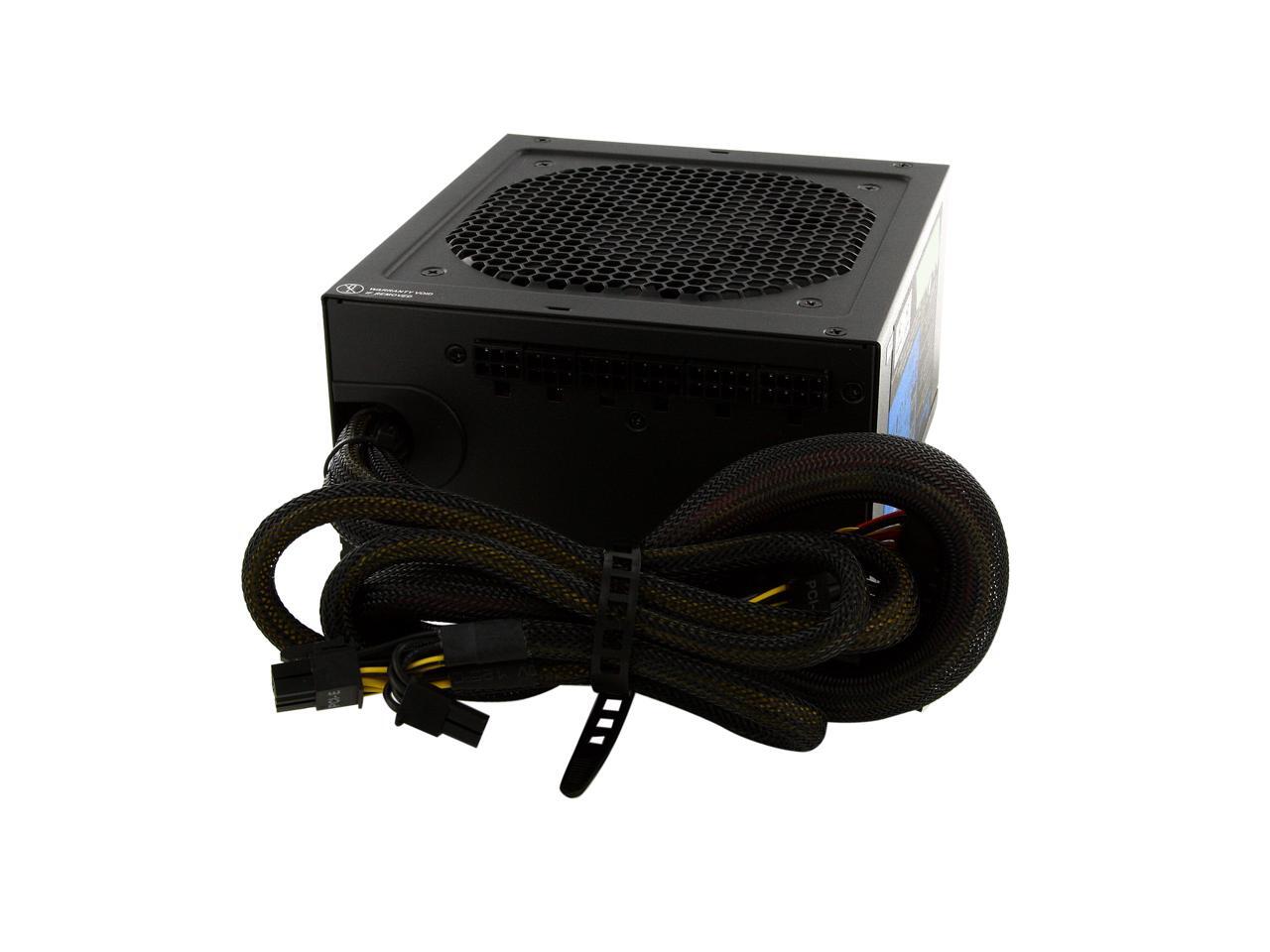

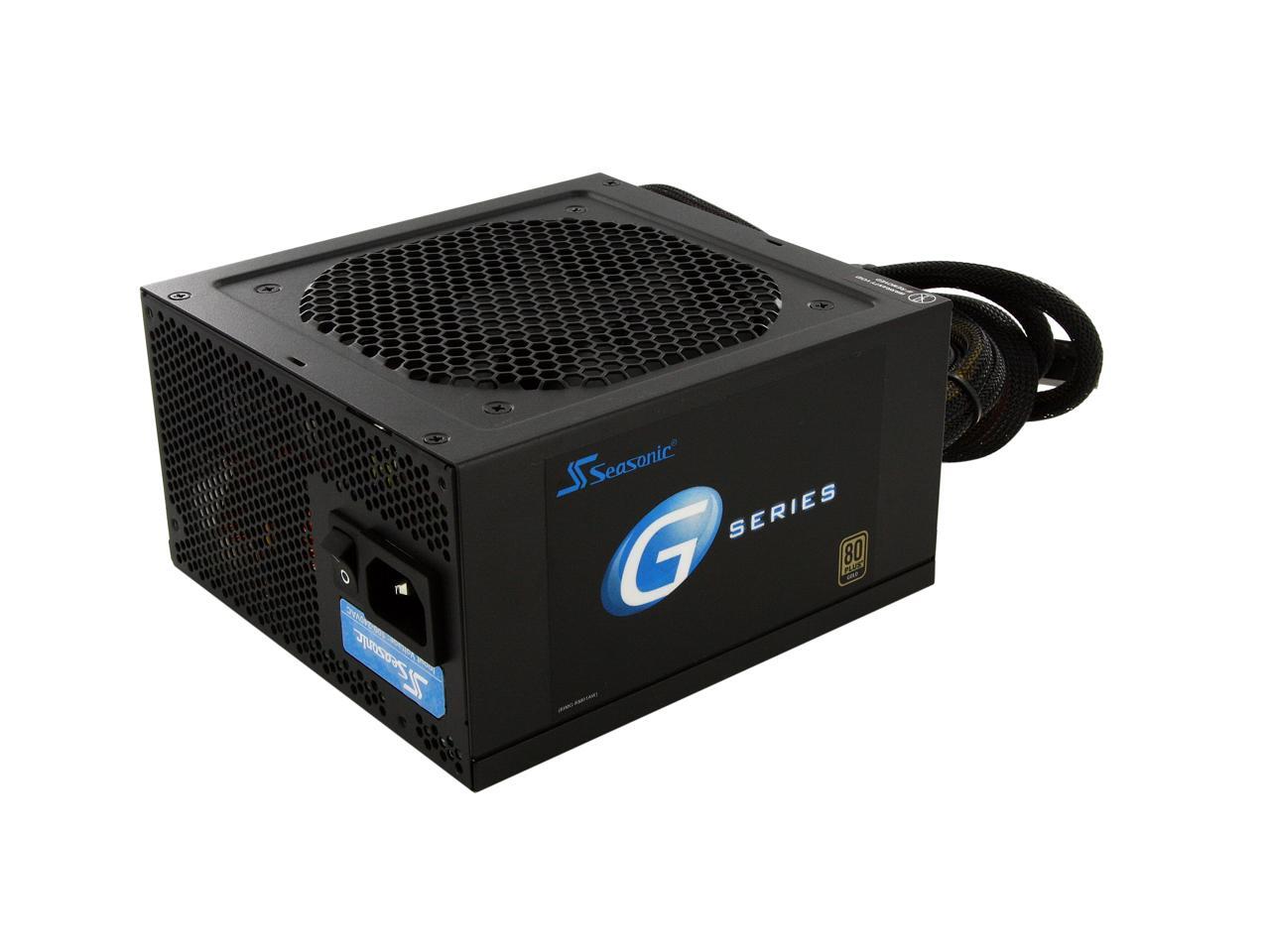

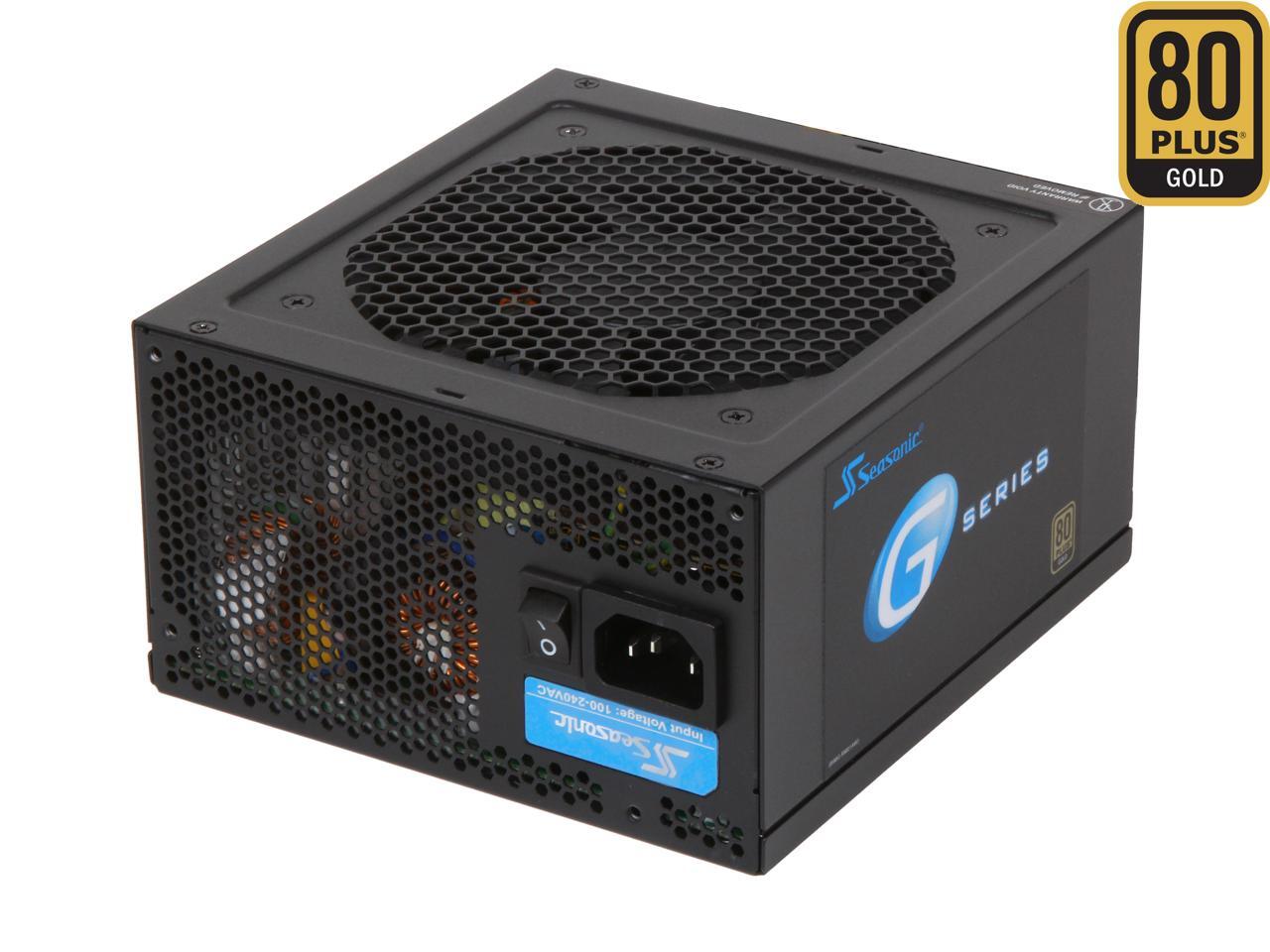

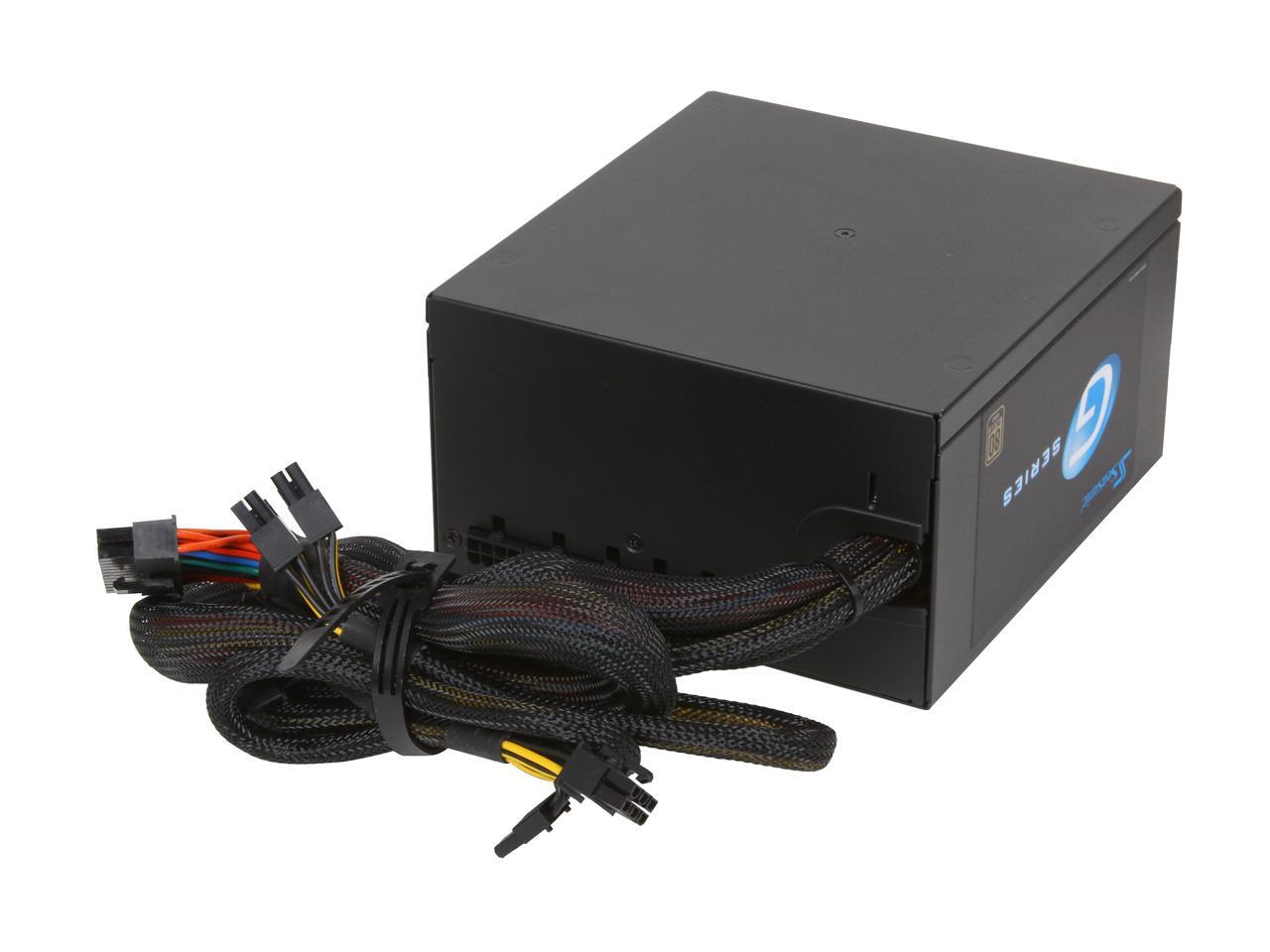

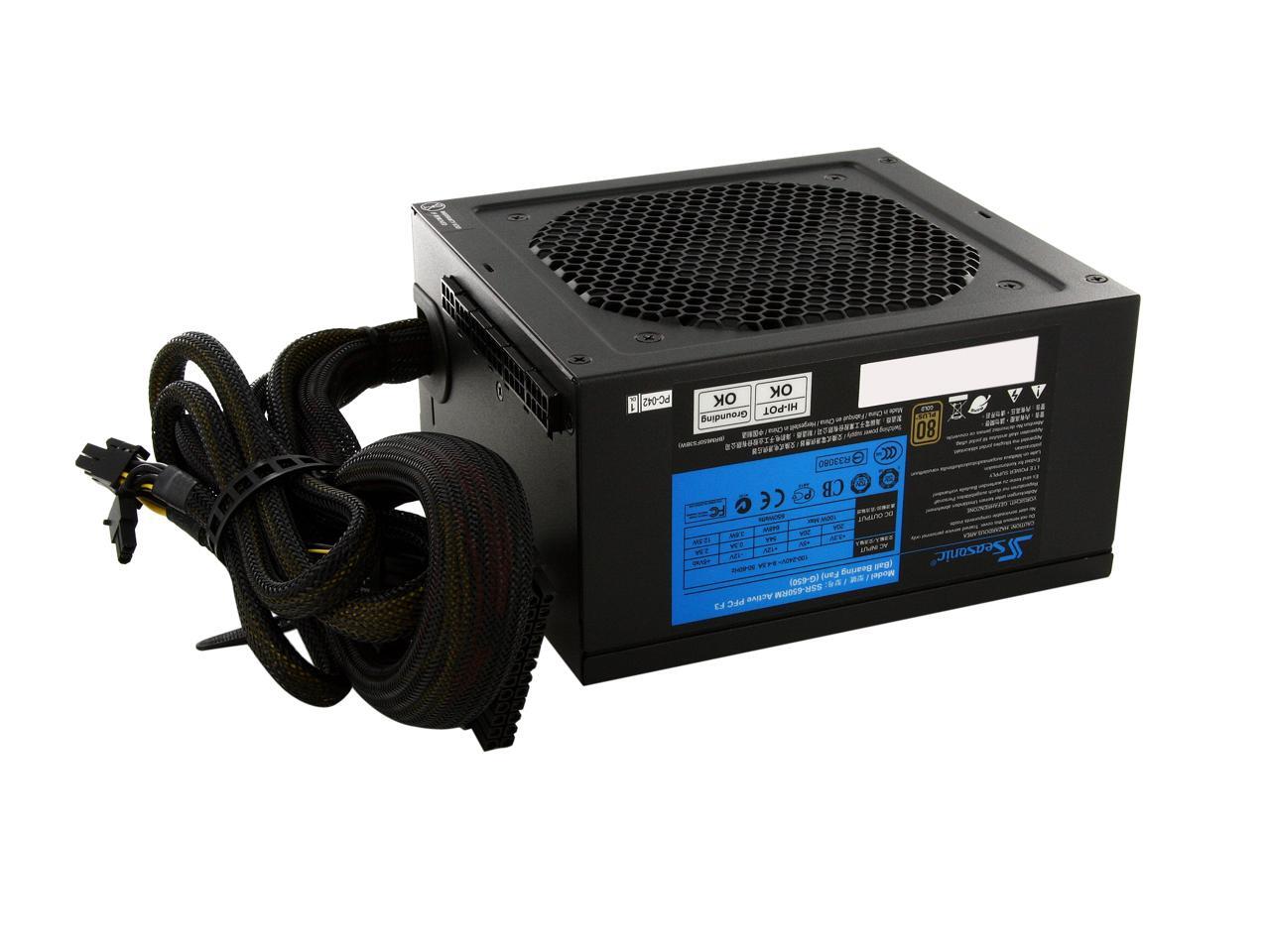

SeaSonic G Series SSR-650RM 650W ATX12V / EPS12V SLI Ready CrossFire Ready 80 PLUS GOLD Certified Modular Active PFC Power Supply New 4th Gen CPU Certified Haswell Ready

360°

SeaSonic G Series SSR-650RM 650W ATX12V / EPS12V SLI Ready CrossFire Ready 80 PLUS GOLD Certified Modular Active PFC Power Supply New 4th Gen CPU Certified Haswell Ready

(335) Write a Review

OUT OF STOCK.

Intel ATX 12 V
Semi-Modular
80 PLUS GOLD Certified
100 - 240 V 50 - 60 Hz
+3.3V@20A, +5V@20A, +12V@54A, -12V@0.5A, +5VSB@2.5A

Overview

Specs

Reviews

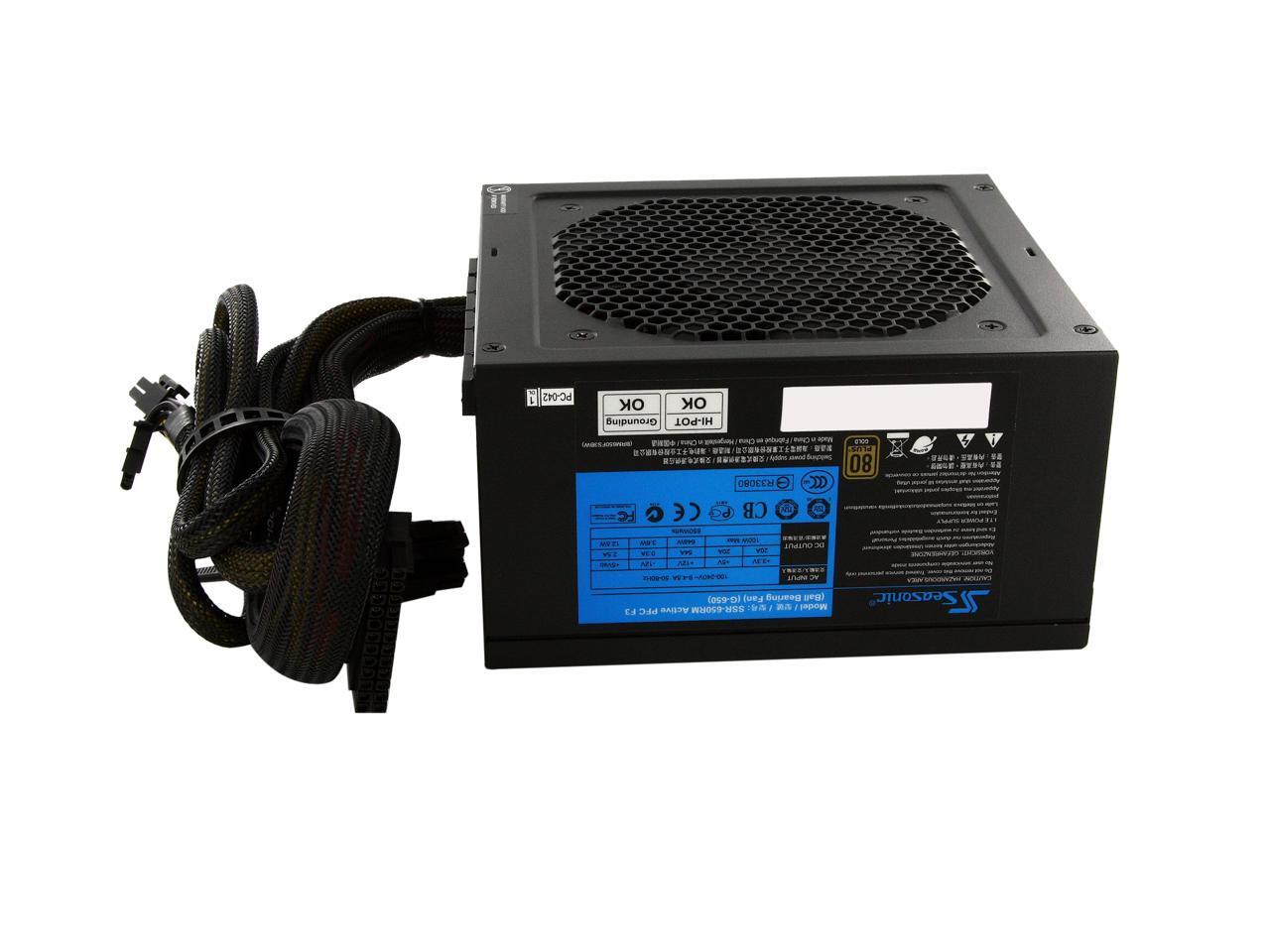

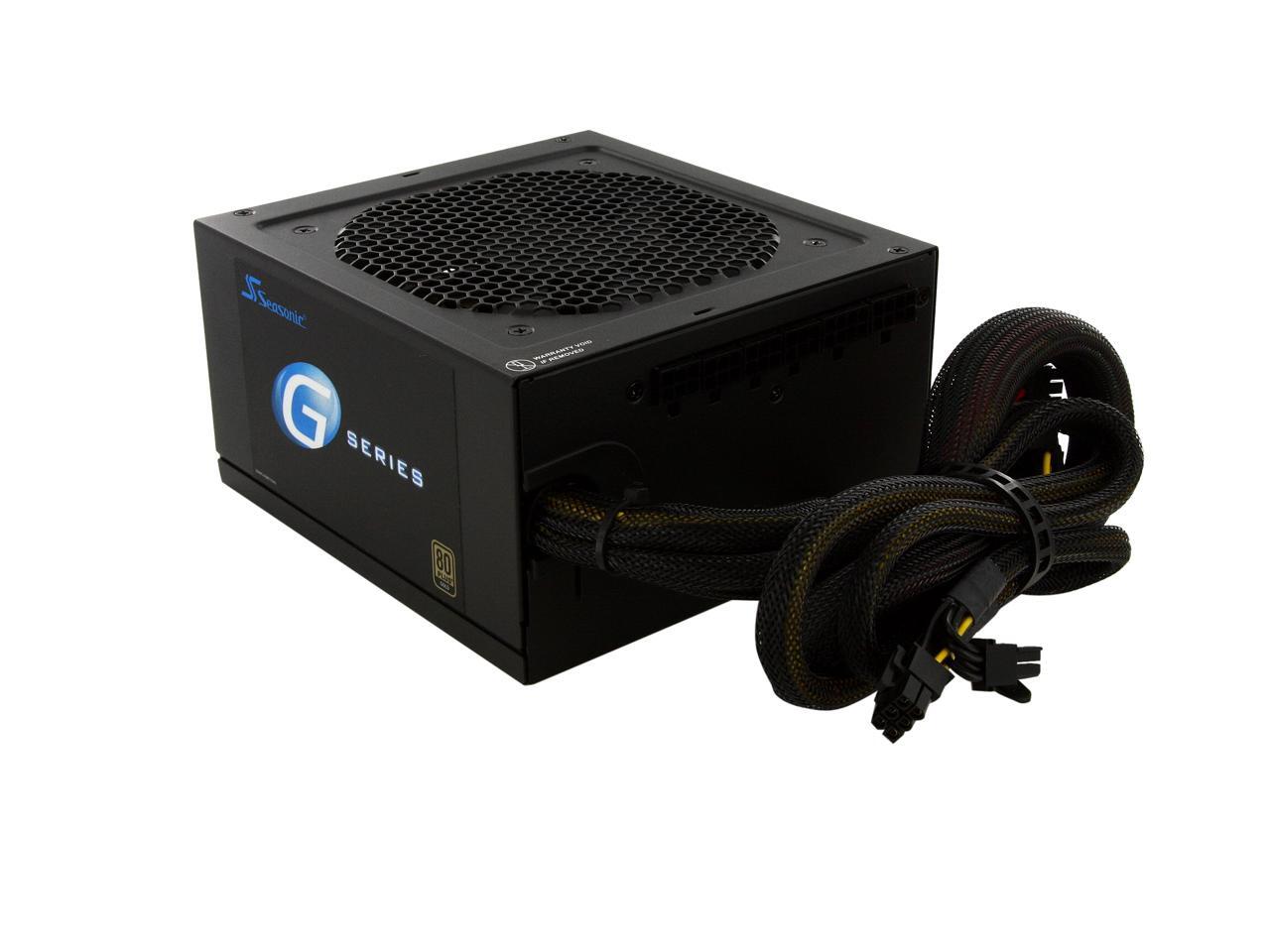

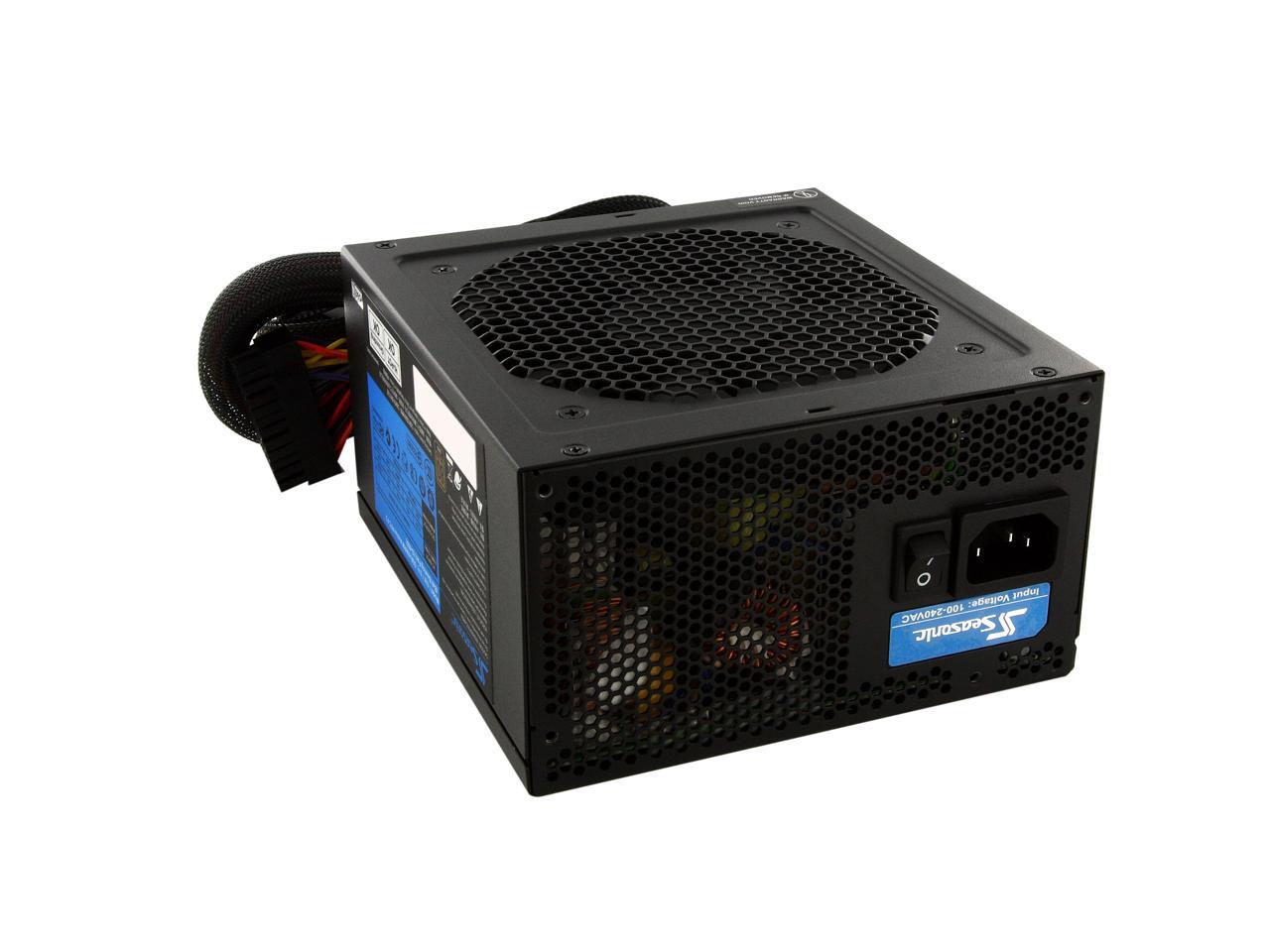

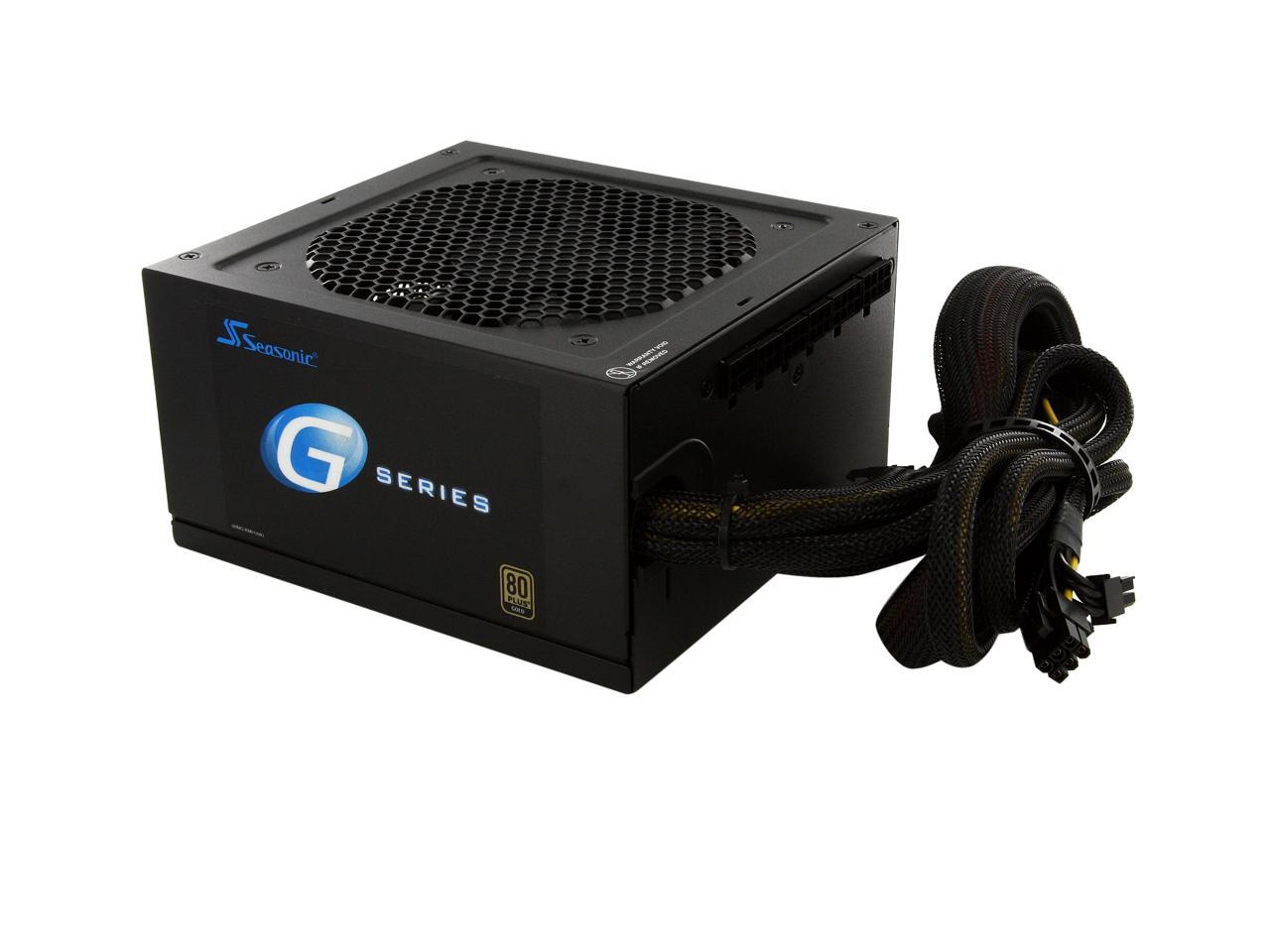

SeaSonic Power Supply - SSR-650RM

Designed with DIY professionals and gaming enthusiasts in mind, the SeaSonic SSR-650RM power supply delivers first-class quality, reliability and stability at a price that won't make you wince. This PSU is 80 PLUS Gold rated and delivers robust power through a DC to DC converter design. Engineered with only premium components, including premium capacitors and heavy-duty protection circuitries, the SSR-650RM maintains continuous output with tight voltage regulation for trouble-free operation in any situation.

Performance is not the entire story. The semi-modular cable design reduces clutter inside the chassis, and the intelligent fan control system perfectly balances noise and cooling, allowing you to game or work hard with full confidence and peace of mind.

Features

80 PLUS Gold Certified
DC-to-DC Converter Design
Tight Voltage Regulation (±3%)
Smart and Silent Fan Control (S2FC)
Conductive Polymer Aluminum Solid Capacitors
Highly Reliable 105°C Aluminum Electrolytic Capacitors

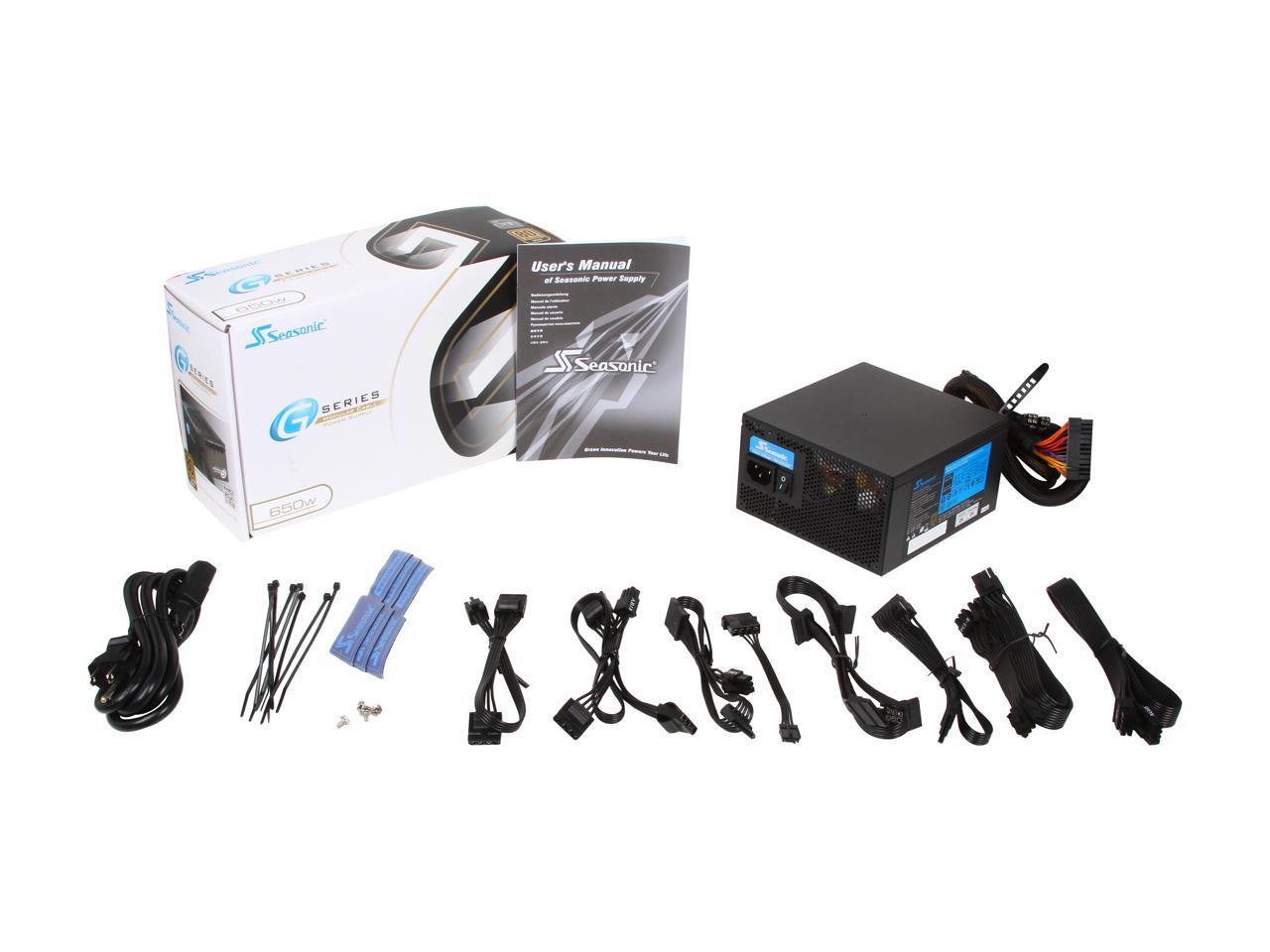

Detachable Modular Cables
High-Current Gold-Plated Terminals

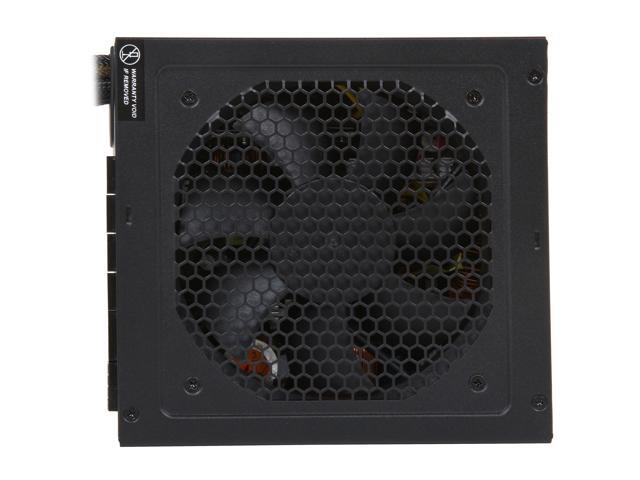

12cm Ball Bearing Cooling Fan
Ultra Ventilation (Honeycomb Structure)
Multi-GPU Technology Support

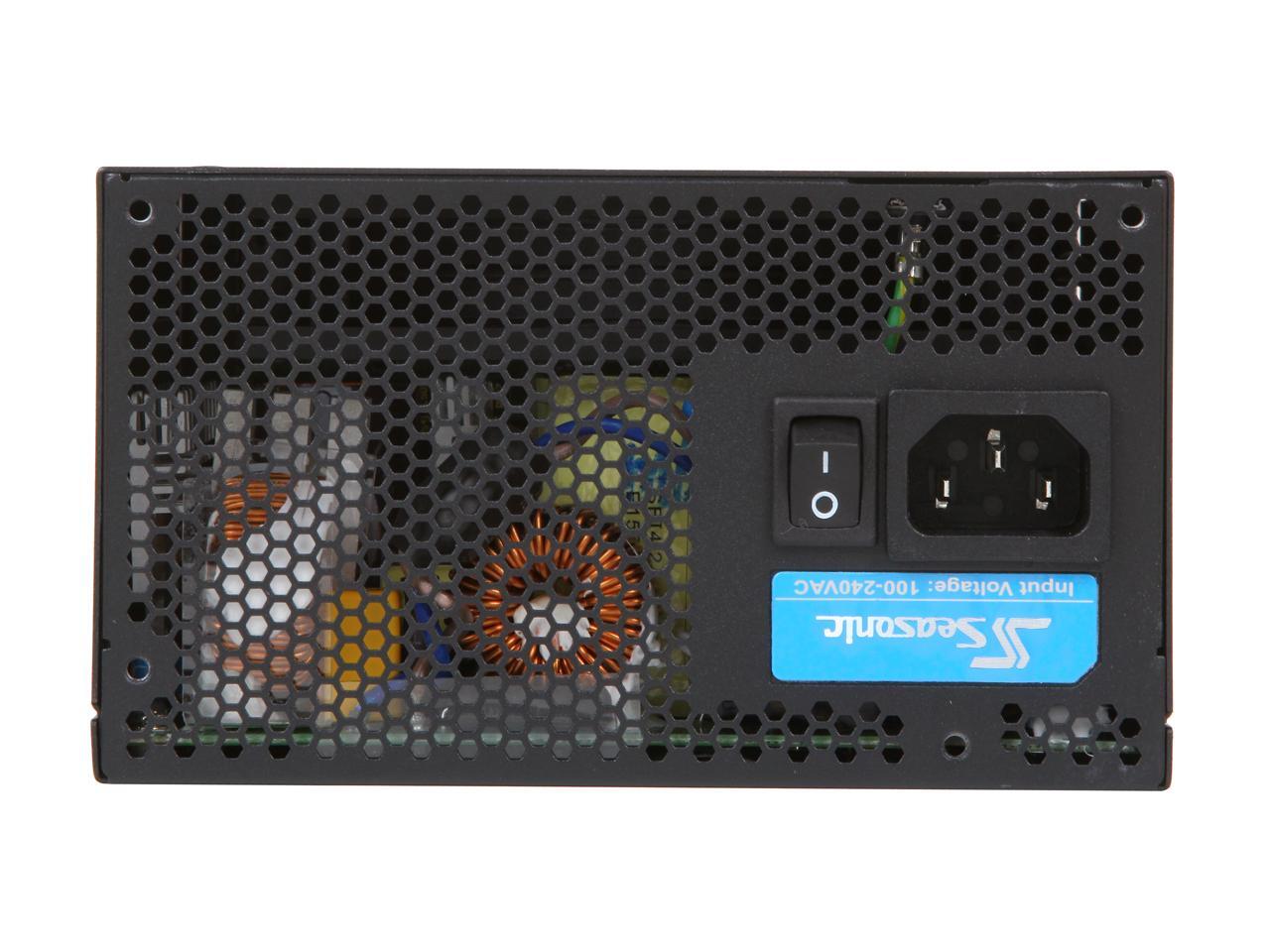

Universal AC Input (Full Range)

Product Information

1. Dimensions (L x W x H): 5.5in. x 6in. x 3.3in. (140mm x 150mm x 86mm)

2. Protection:
Over Power Protection (OPP) / Over Voltage Protection (OVP)
Short Circuit Protection (SCP) / Under Voltage Protection (UVP)
Over Current Protection (OCP) / Over Temperature Protection (OTP)

3. AC Input and DC Output Voltages / Wire Configuration

Model: G-650 (SSR-650RM Active PFC F3)

Safety

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 5 years
Limited Warranty period (labor): 5 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's Standard Return Policy. Read full return policy for details.

Type	Intel ATX 12 V
Maximum Power	650 W
Fans	1 x 120mm Fluid Dynamic Bearing Fan (Seasonic S2FC)
PFC	Active
Main Connector	20+4Pin
+12V Rails	Single
PCI-Express Connector	4 x 6+2-Pin
SATA Power Connector	8
SLI	SLI Ready
Haswell Support	Certified
CrossFire	CrossFire Ready
Modular	Semi-Modular
Energy-Efficient	80 PLUS GOLD Certified
Over Voltage Protection	Yes
Input Voltage	100 - 240 V
Input Frequency Range	50 - 60 Hz
Input Current	8.5 - 4A
Output	+3.3V@20A, +5V@20A, +12V@54A, -12V@0.5A, +5VSB@2.5A
MTBF	150,000 hours MTBF @ 25 degree C, excl. fan
Approvals	cTUVus, TUV, CB, EAC, C-tick, BSMI, CE, FCC, CCC, Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Max PSU Length	160 mm

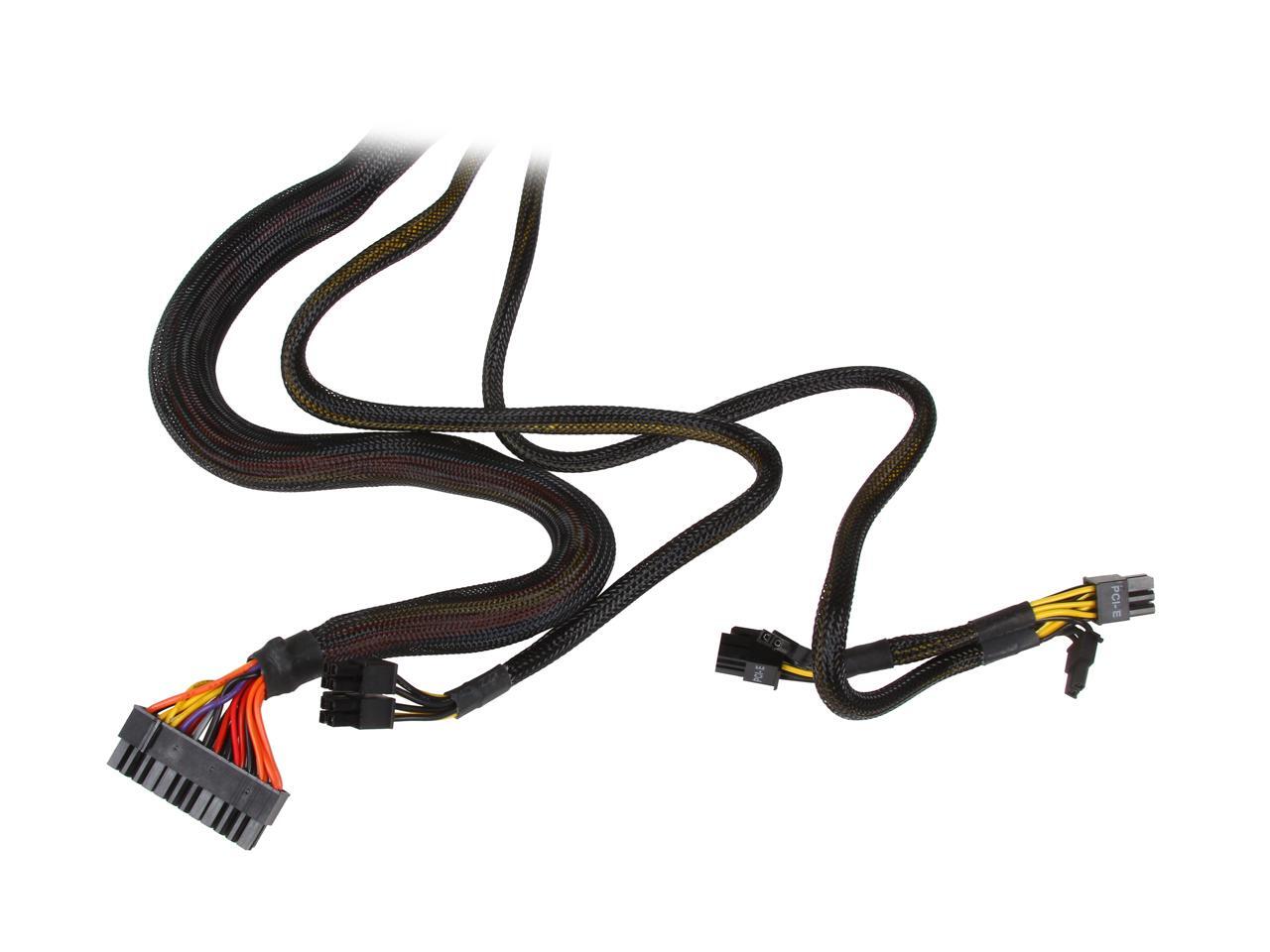

Connectors	1 x 20+4pin Main Connector 1 x 8/4pin CPU 4 x 6+2pin PCI-E 5 x Peripheral 8 x SATA 1 x FDD

Dimensions	3.39" x 5.91" x 6.30"
Weight	6.45 lbs.
