Brand | SeaSonic |
---|---|
Series | M12 |
Model | SS-600HM |
Type | ATX12V V2.3 / EPS12V V2.91 |
---|---|
Maximum Power | 600 W |

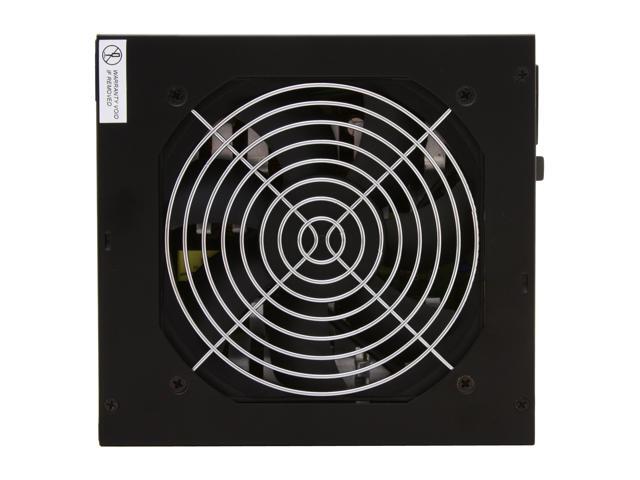

Fans | 12cm & 6cm Double ball bearing fan |
PFC | Active |

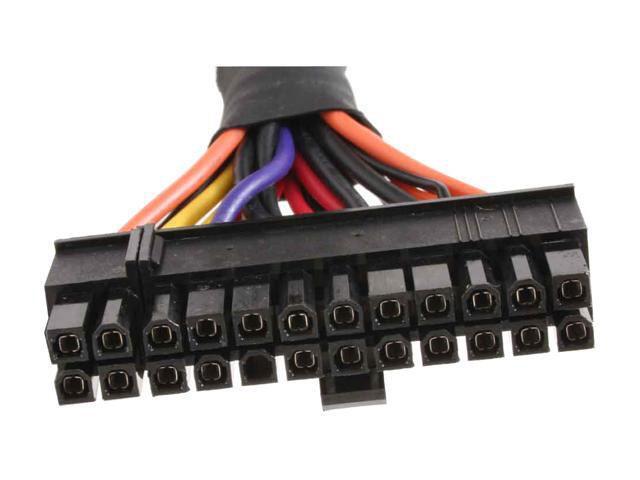

Main Connector | 20+4Pin |
+12V Rails | 4 |

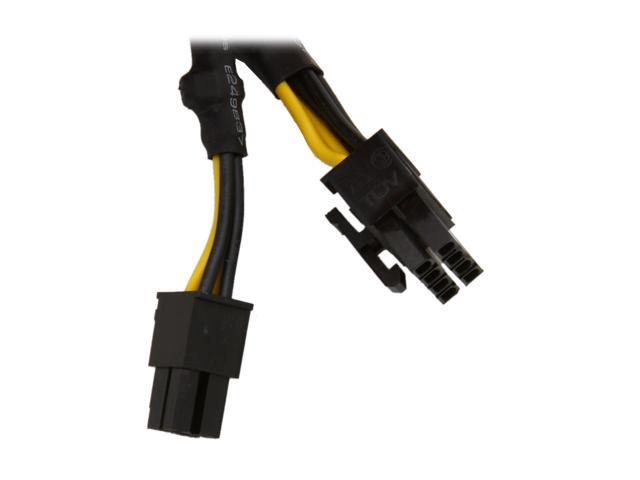

PCI-Express Connector | 2 x 6-Pin, 1 x 6+2-Pin |
SATA Power Connector | 8 |
SLI | SLI Certified |
CrossFire | CrossFire Ready |

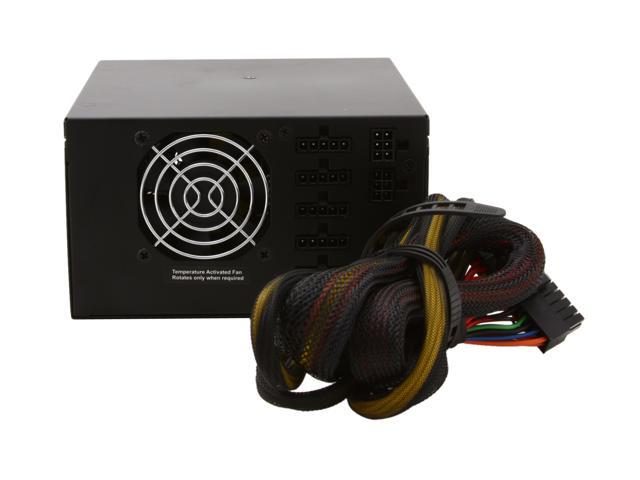

Modular | Modular |
Efficiency | up to 85% |
Energy-Efficient | 80 PLUS Certified |
Input Voltage | 100 - 240 V |
Input Frequency Range | 50/60 Hz |
Input Current | 10A |

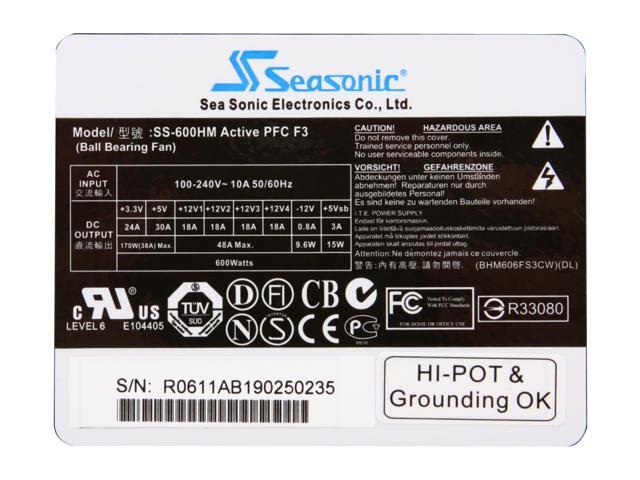

Output | +3.3V@24A,+5V@30A,+12V1@18A,+12V2@18A,+12V3@18A,+12V4@18A,-12V@0.8A,+5VSB@3.0A |
MTBF | 100,000 hours at 25°C under full load |
Approvals | UL, CE, CB, TUV, FCC |

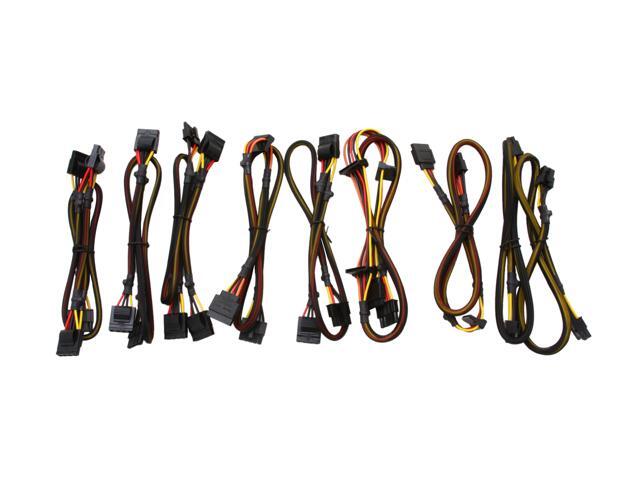

Connectors | 1 x Main connector (20+4Pin) 1 x 12V(P4) 1 x 12V(8Pin) 10 x peripheral 8 x SATA 2 x Floppy 2 x PCI-E |
Features | Dual Magnetic Amplifiers [MagAmp] Double Forward Converter Design High Reliable Aluminum Electrolytic Capacitors Smart and Silent Fan Control [S2FC] Soft-Mounting Rubber Cushions Ultra Ventilation [Honey Comb Structure] All in One DC Cabling Design Easy Swap Connector |
---|
Date First Available | September 25, 2006 |
---|
Pros: First off love the modular design. I was waiting for this to be released because I wanted a neat & tidy computer. Excellent efficiency will save me a few dollars in the long run. Quiet! Has an extra fan that only spins up if and when needed, the previous models dont have that.
Cons: None
Overall Review: No problems what so ever. Using this to power an AMD 64 4800+, 2 gigs OCZ, gigabyte 7800gt with Zalman, Dvd burner, 80 gig hard drive, 4 case fans and a few other goodies.
