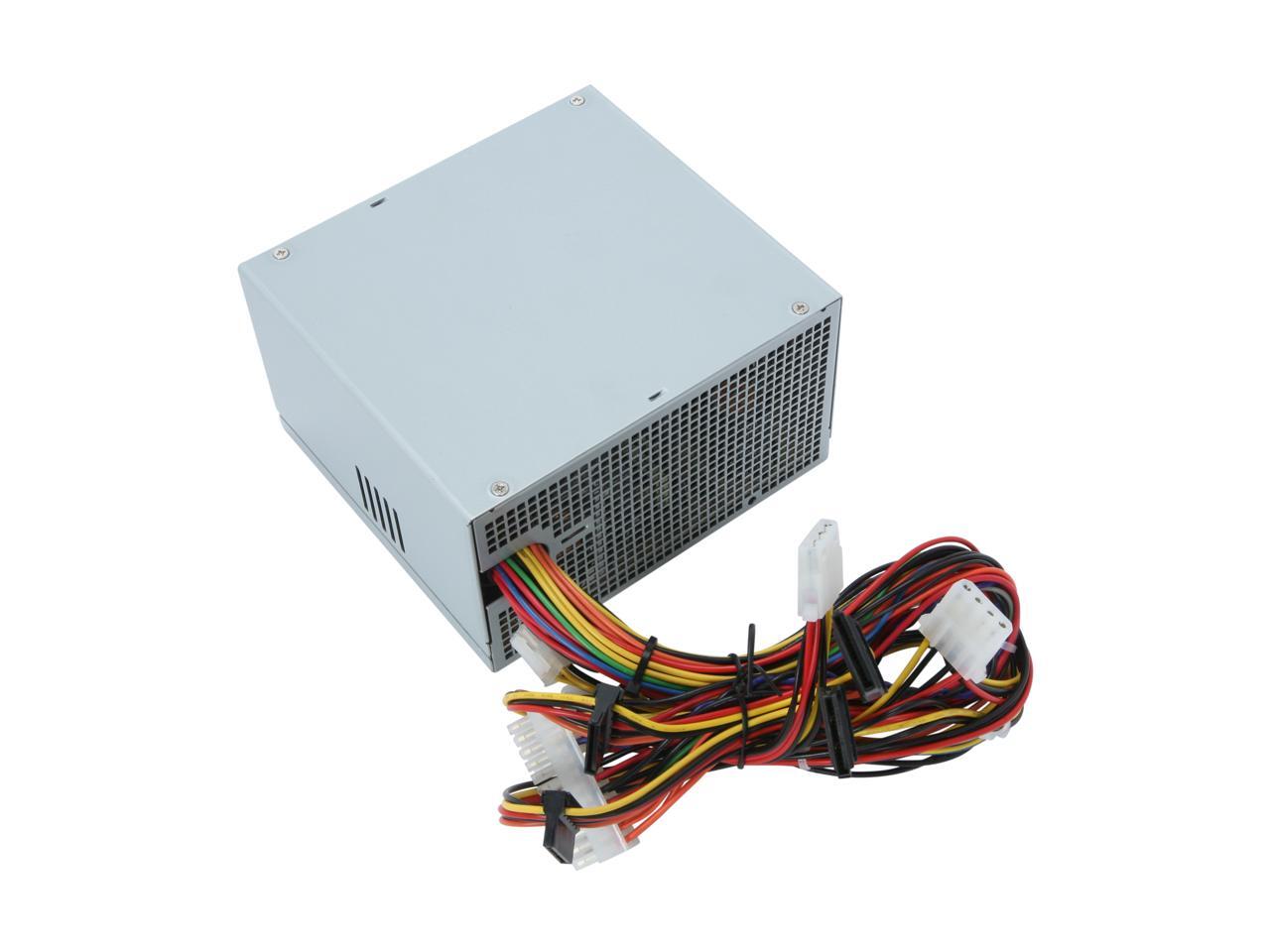

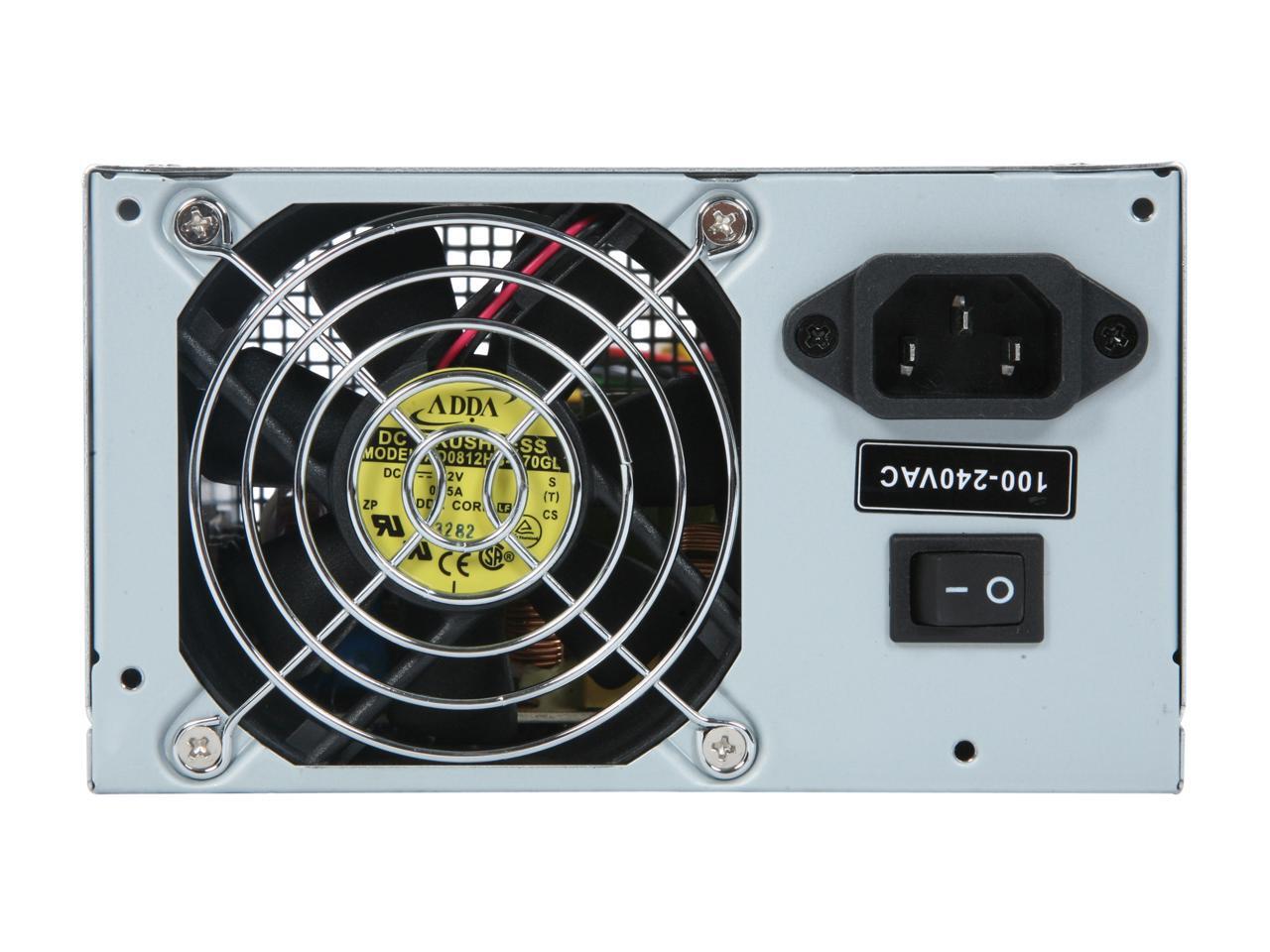

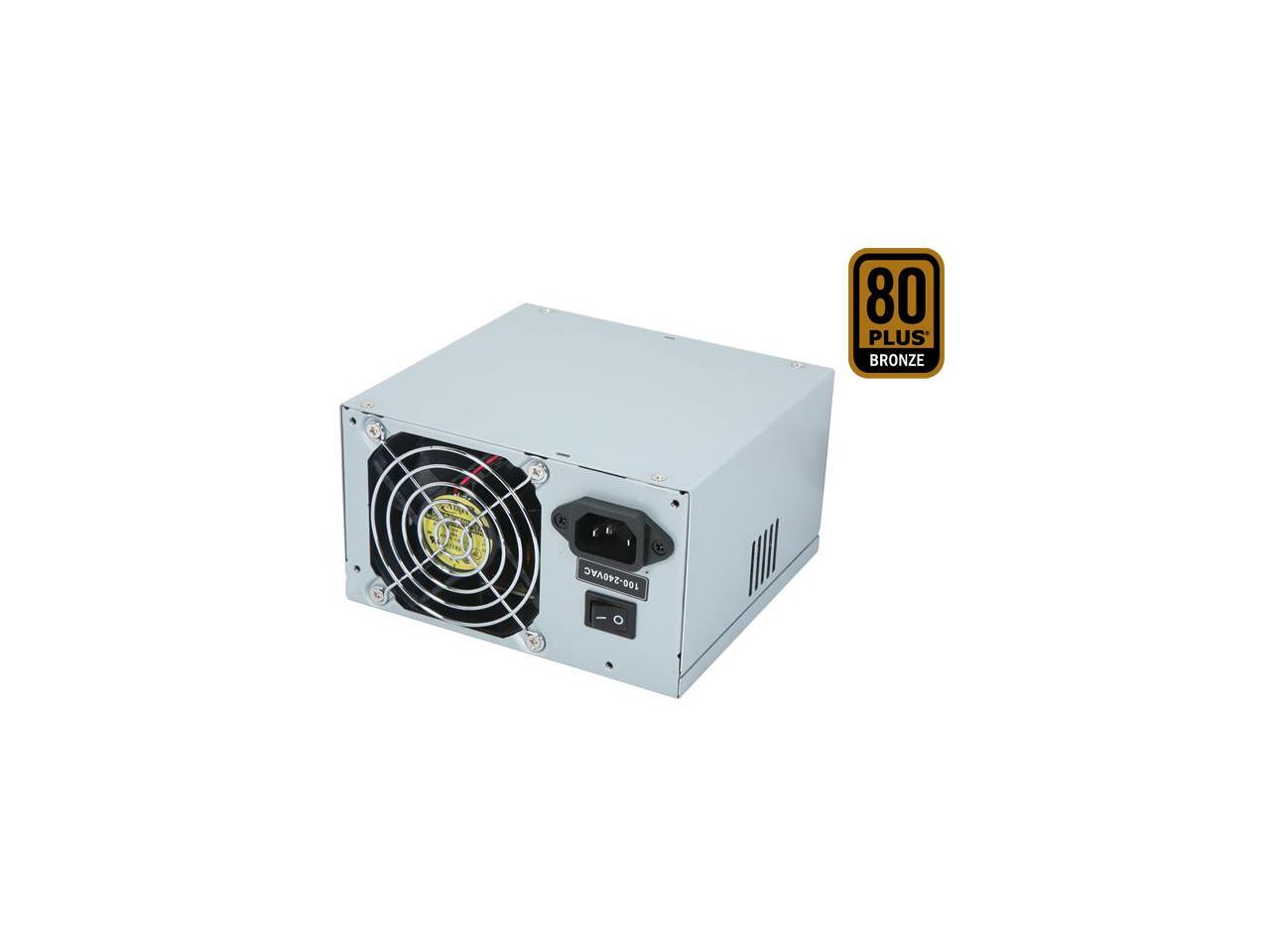

Seasonic SS-350ES Active PFC, 350W ATX compatible with 2U Rackmount, Japanese capacitor, Operating temperature 0-50°C, 80+ Bronze
OUT OF STOCK.
- ATX12V v2.31
- 80 PLUS BRONZE Certified
- 47 - 63 Hz
Overview
Specs
Reviews
Specifications
Mfr Part Number: SS-350ES BRONZE
Features:
Specification compliance: ATX 12V v2.2 & EPS 12V v2.9
Support the latest Intel & AMD Socket
PCI-Express & SATA ready
Double forward converter circuit
High efficiency and reliability
Low ripple & noise
Super low noise fan control
Short circuit protection on all outputs
Over voltage protection
Over power protection
100% hi-pot test
100% burn in- high temperature cycled on/off
Energy-Efficient : 80 PLUS BRONZE Certified
Total Power: 350 W
Input Voltage: 100~240 V
Input Frequency Range: 47 ~ 63 Hz
In-rush Current- Cold Start: 100A max
Hold Up Time- Full Load: 10 ms
Power Factor Correction: Active PFC- 99% typical
Safety: CUL- TUV- CB- CCC
EMI/RFI: CE- FCC- C-tick
Output: +3.3V @ 20A- +5V @ 20A- +12V1 @ 17A- +12V2 @ 17A- -12V @ 0.8A- +5Vsb @ 2.5A
Cooling System: 1x 8cm Double Ball Bearing Fan
Dimension (WxLxH): 5.9 x 5.5 x 3.4 inch / 150 x 140 x 86 mm
RoHS Compliant
Mfr Part Number: SS-350ES BRONZE
Features:
Specification compliance: ATX 12V v2.2 & EPS 12V v2.9
Support the latest Intel & AMD Socket
PCI-Express & SATA ready
Double forward converter circuit
High efficiency and reliability
Low ripple & noise
Super low noise fan control
Short circuit protection on all outputs
Over voltage protection
Over power protection
100% hi-pot test
100% burn in- high temperature cycled on/off
Energy-Efficient : 80 PLUS BRONZE Certified
Total Power: 350 W
Input Voltage: 100~240 V
Input Frequency Range: 47 ~ 63 Hz
In-rush Current- Cold Start: 100A max
Hold Up Time- Full Load: 10 ms
Power Factor Correction: Active PFC- 99% typical
Safety: CUL- TUV- CB- CCC
EMI/RFI: CE- FCC- C-tick
Output: +3.3V @ 20A- +5V @ 20A- +12V1 @ 17A- +12V2 @ 17A- -12V @ 0.8A- +5Vsb @ 2.5A
Cooling System: 1x 8cm Double Ball Bearing Fan
Dimension (WxLxH): 5.9 x 5.5 x 3.4 inch / 150 x 140 x 86 mm
RoHS Compliant
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's Standard Return Policy
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-626-969-9966
- Support Website
- View other products from SeaSonic USA
LOADING...
Pros: Power supply is fine, we have bought dozens of this model over the years. It works well and is quiet, which is important for our application.
Cons: These power supplies are now discontinued, we purchased a few to fulfill existing orders while we search for a suitable replacement. On this order, we purchased 5 of these power supplies: One was DOA (doesn't power on at all), one has a large dent in the top of it, and the fan is noisy (probably because of the large dent), and three were actually usable. All of the cables on all of the power supplies are faded, as if they have been sitting in the sun for years. We have never seen this before on any of the other power supplies we have ordered. I don't expect this to impact performance, but still disconcerting.
Overall Review: Seasonic has been great to work with, I'd recommend their power supplies to anyone. I can't say the same about this seller.
