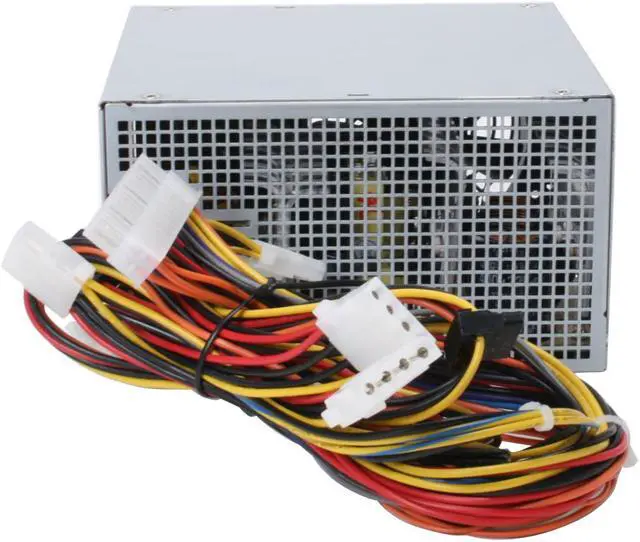

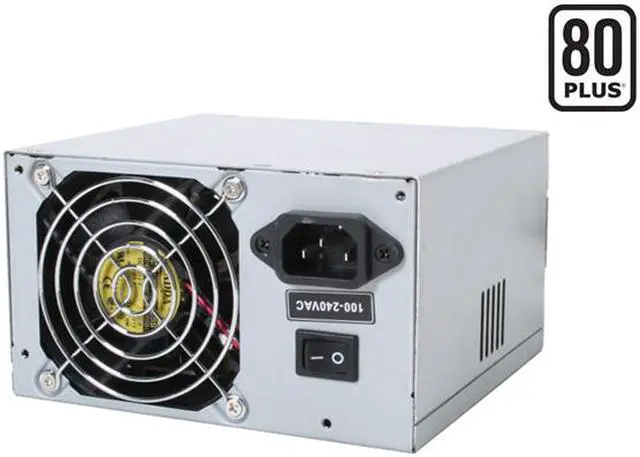

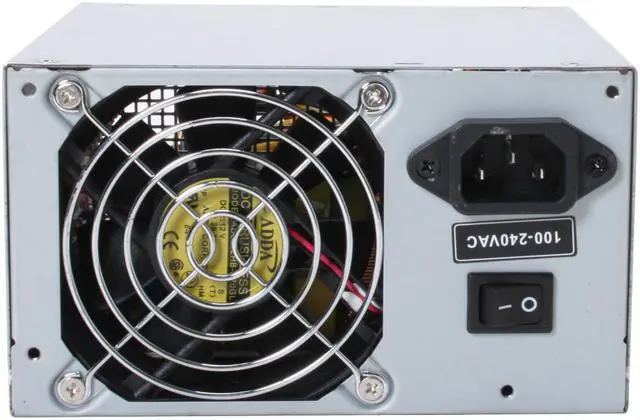

SeaSonic SS-500ES 500W ATX12V 2.2 / EPS12V 2.91 SLI Ready CrossFire Ready 80 PLUS Certified Active PFC Power Supply - OEM

Name: SeaSonic SS-500ES 500 W Power Supply - OEM
Brand: SeaSonic USA
SKU: N82E16817151040
Rating: 4 (50 reviews)

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Specs

Reviews (50)

Learn more about the SeaSonic USA SS-500ES

General
Brand	SeaSonic
Model	SS-500ES

Details
Type	ATX12V 2.2 / EPS12V 2.91
Maximum Power	500 W
Fans	One Double Ball Bearing 8cm fan
PFC	Active

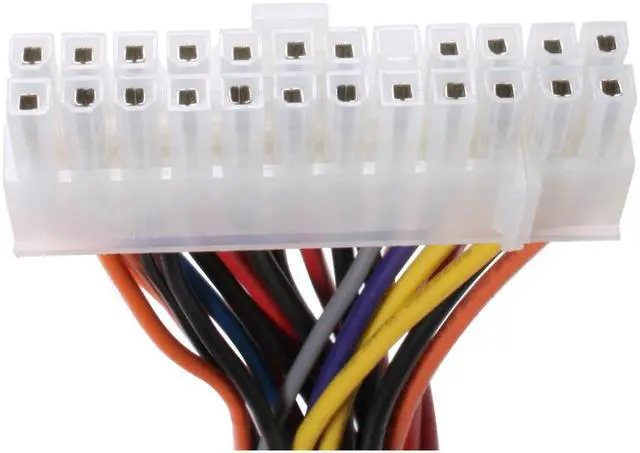

Main Connector	20+4Pin
+12V Rails	2
PCI-Express Connector	2 x 6-Pin
SATA Power Connector	2
SLI	SLI Ready
CrossFire	CrossFire Ready
Modular	No
Power Good Signal	Signal Type: open collector +5DC, TTL compatible. Logic Level: <0.4V while sinking 4 mA. Logic Level High: between 2.4VDC and +5V output while souring 200 uA.
Efficiency	> 80%
Energy-Efficient	80 PLUS Certified
Input Voltage	100 - 240 V
Input Frequency Range	50/60 Hz
Input Current	9A

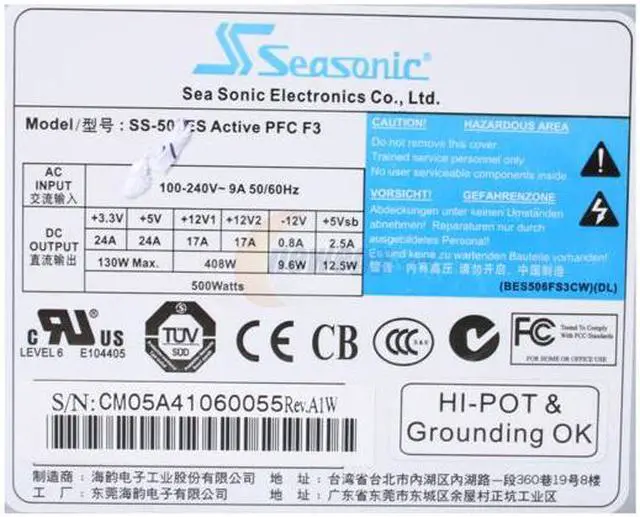

Output	+5V@24A, +3.3V@24A,+12V1@17A, +12V2@17A, -12V@0.8A, +5VSB@2.5A
MTBF	Over 100,000 hours at 25 Deg C. excluding the DC Fan
Approvals	CB, CUL, UL, CCC, DEMKO, FIMKO, NEMKO, SEMKO, TUV

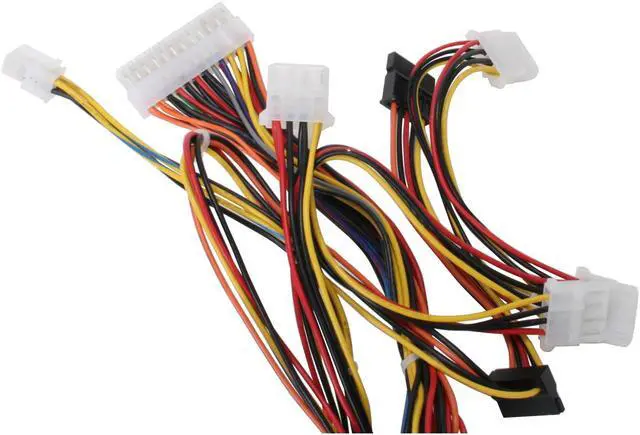

Connectors	1 x Main connector (20+4Pin) 1 x 12V(P4) 1 x 12V(8Pin) 6 x peripheral 2 x SATA 2 x Floppy 2 x PCI-E

Features
Features	PCI Express & Serial ATA ready Double forward converter circuit High efficiency and reliability Low ripple & noise Super low noise fan control Short circuit protection on all outputs Over voltage protection Over power protection 100% hi-pot test 100% burn in, high temperature cycled on/off

Additional Information
First Listed on Newegg	September 21, 2007
