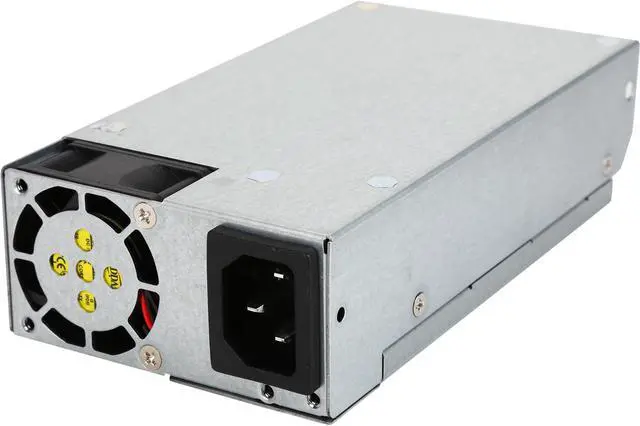

Metal case dimensions (Length x Width x Height) in centimeters: 15.0 x 8.2 x 4.1 The 120V black plastic power receptacle extends 0.4 cm beyond the power supply's metal case. Not shown in Newegg photos is a small metal mounting bracket that attaches to the power supply's metal case with two screws. Two holes for the screws are visible in the metal case on each side of the black 24-pin female power connector. When the bracket is attached, an additional 1 cm is added to the *LENGTH* of the power supply and it accommodates two more screws for mounting the power supply.

does this ship with cables as well?

Yes. 24Pin Motherboard, 4+4 CPU, 3x 15pin sata, 1x 4pin molex, 1x floppy drive,

Would this be a good power supply to replace the dps-220ub a power supply that comes with a lot of small form factor prebuilt computers from the early 2010s?

I think yes. You only need to check the rear dimension of your psu is 80mm * 40mm and mounting screw holes

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list(Found on 3 wish lists)

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

Main image of Seasonic SSP-300SUG Active PFC, 300W Flex/Mini 1U, Intel Haswell ready, Japanese capacitor, Operating temperature 0-50°C, 80+ Gold, Modular wire - OEM

Alt view image 2 of 4 - Seasonic SSP-300SUG Active PFC, 300W Flex/Mini 1U, Intel Haswell ready, Japanese capacitor, Operating temperature 0-50°C, 80+ Gold, Modular wire - OEM

Alt view image 3 of 4 - Seasonic SSP-300SUG Active PFC, 300W Flex/Mini 1U, Intel Haswell ready, Japanese capacitor, Operating temperature 0-50°C, 80+ Gold, Modular wire - OEM

Alt view image 4 of 4 - Seasonic SSP-300SUG Active PFC, 300W Flex/Mini 1U, Intel Haswell ready, Japanese capacitor, Operating temperature 0-50°C, 80+ Gold, Modular wire - OEM

Customer images

Shop All SeaSonic USA Products

Seasonic SSP-300SUG Active PFC, 300W Flex/Mini 1U, Intel Haswell ready, Japanese capacitor, Operating temperature 0-50°C, 80+ Gold, Modular wire - OEM

(11)(1) Write a Review

ATX12V
Full Modular
80 PLUS GOLD Certified
100 - 240 V 50/60 Hz

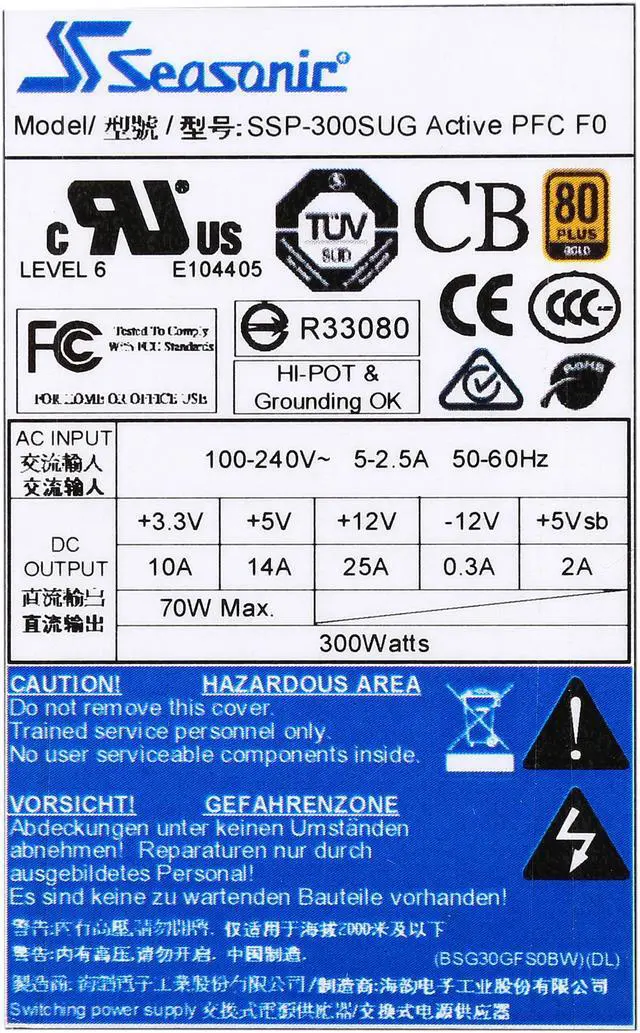

+3.3V@10A, +5V@14A, +12V@25A, [email protected], +5VSB@2A

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Specs

Reviews (11)

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the SeaSonic USA SSP-300SUG

General
Brand	SeaSonic
Model	SSP-300SUG

Details
Type	ATX12V
Maximum Power	300 W
Fans	40 mm Double ball Bearing fan
PFC	Active
Main Connector	24Pin
+12V Rails	Single
SATA Power Connector	3
Haswell Support	Ready
Max PSU Length	150 mm
Modular	Full Modular
Efficiency	87%
Energy-Efficient	80 PLUS GOLD Certified
Over Voltage Protection	Yes
Input Voltage	100 - 240 V
Input Frequency Range	50/60 Hz
Output	+3.3V@10A, +5V@14A, +12V@25A, [email protected], +5VSB@2A
MTBF	>100,000 Hours
Connectors	1 x Main Power (24P) 1 x ATX12V (4+4P) 3 x Peripherals: SATA 1 x 4P mole 1 x FDD

Features
Features	80 PLUS GOLD Certificate Serial ATA ready DC to DC converter design High efficiency and reliability Low ripple & noise Super low noise fan control Short circuit protection on all outputs Over voltage protection & Over power protection 100% hi-pot test 100% burn in, high temperature cycled on/off

Dimension & Weight
Dimensions	1.59" x 3.21" x 5.91"
