| Type | SFX12V |
|---|
| Maximum Power | 750 W |
|---|
| Fans | 1 x 92 mm Fluid Dynamic Bearing Fan |
|---|
| Main Connector | 20+4Pin |
|---|
| +12V Rails | Single |
|---|
| PCI-Express Connector | 4 x 6+2-Pin |
|---|
| SATA Power Connector | 6 |
|---|

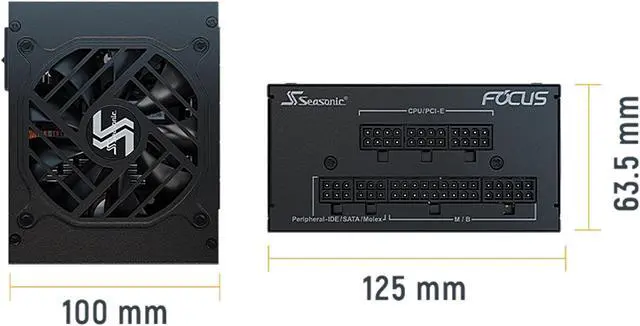

| Max PSU Length | 100 mm |
|---|
| Modular | Full Modular |
|---|
| Energy-Efficient | 80 PLUS PLATINUM Certified |
|---|
| Protection | OPP, OVP, UVP, OCP, OTP, SCP |
|---|
| Input Voltage | 100 - 240 V |
|---|
| Input Frequency Range | 50/60 Hz |
|---|
| Input Current | 10 - 5 A |
|---|
| Output | +3.3V@20A, +5V@20A, +12V@62A, [email protected], +5VSB@3A |
|---|
| MTBF | >100,000 Hours |
|---|
| Approvals | cTUVus, TUV, CB, CCC, BSMI, EAC, CE Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
|---|

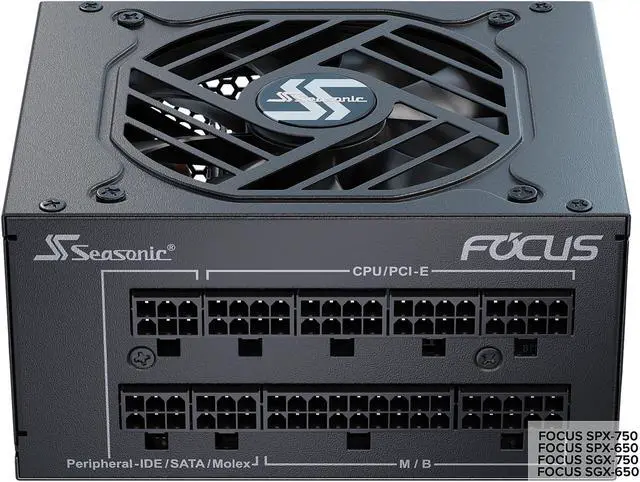

| Connectors | 1 x 24 pin (20+4) ATX 2 x 8 pin (4+4) EPS (CPU) 4 x 8 pin (6+2) PCIe 6 x SATA 3 x 4 pin Peripheral |
|---|

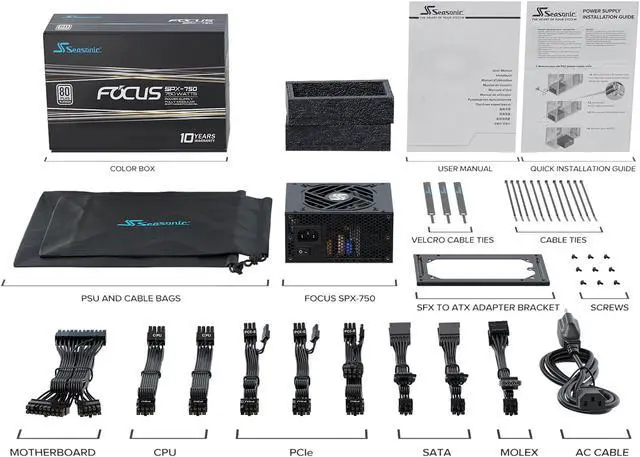

| Cable Spec | 24Pin MB: One cable (350mm) 4+4Pin CPU: Two cables (400mm) 2 x PCI-E 6+2Pin: One cable (500mm) PCI-E 6+2Pin: Two cables (500mm) 3 x SATA: Two cables (600mm) 3 x Molex: One cable (700mm) |
|---|
