Segotep 850W ATX 3.0 Power Supply, Full Modular 80 Plus Gold, PCIe 5.0 12+4PIN port and Dual 6+2Pin ports, Suitable for ALL Graphics Cards, Native 600W 12VHPWR Cable, Silent Fan mode

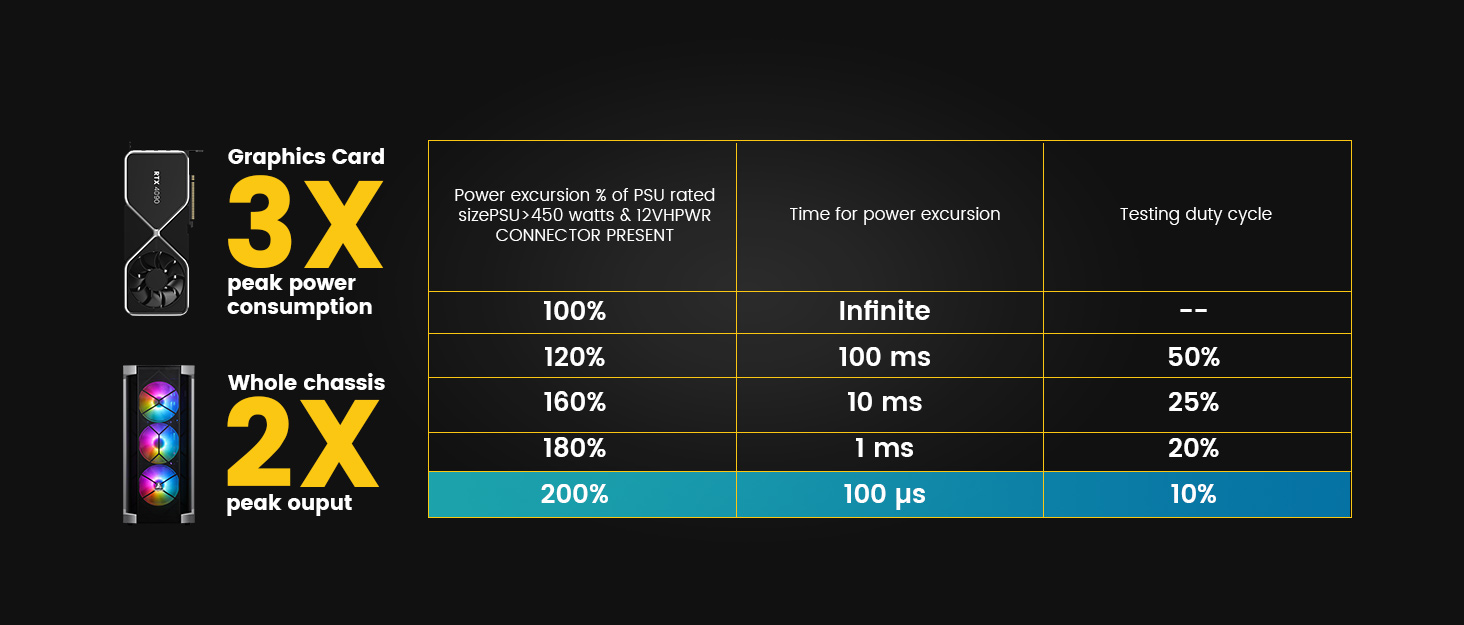

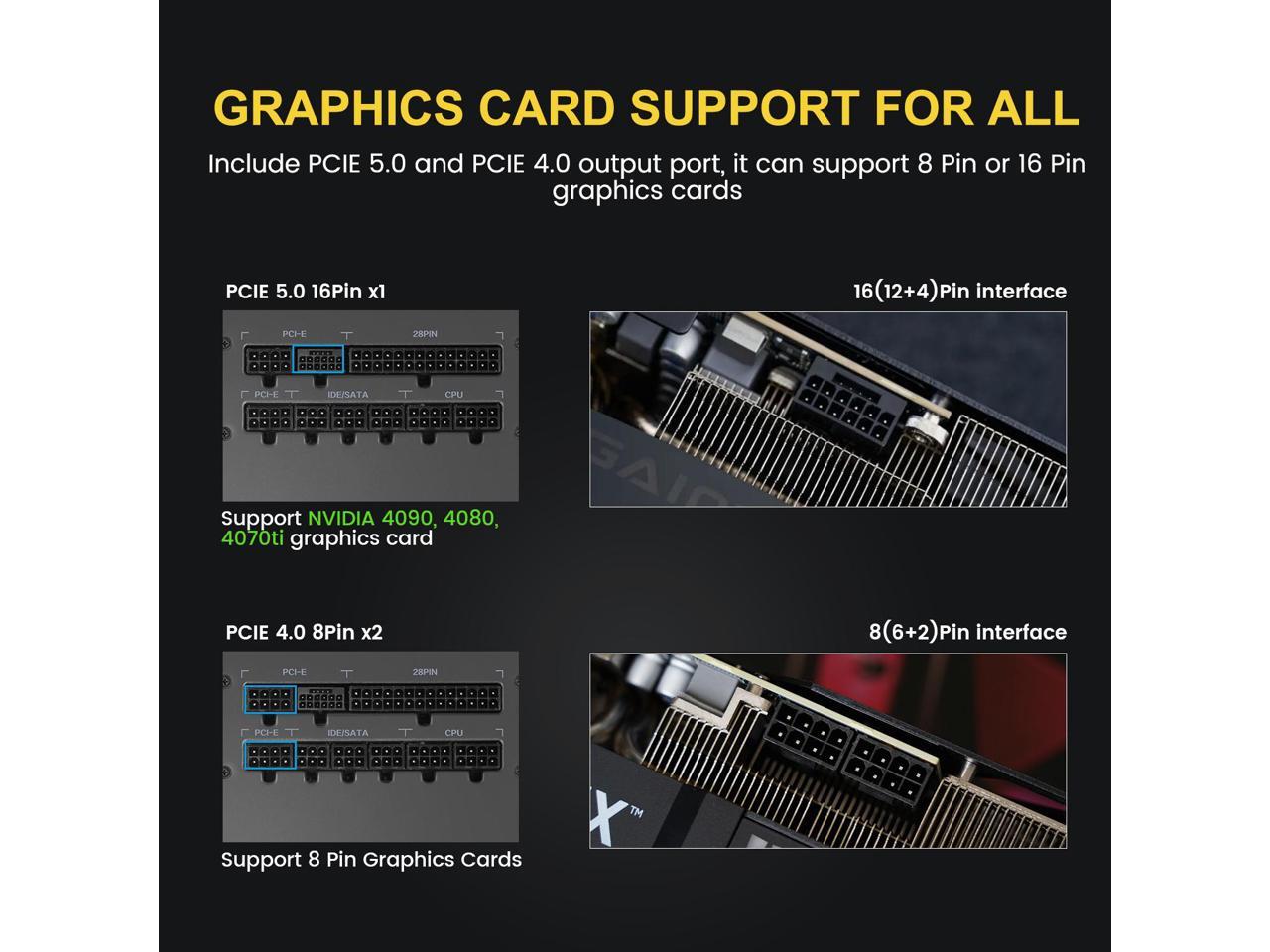

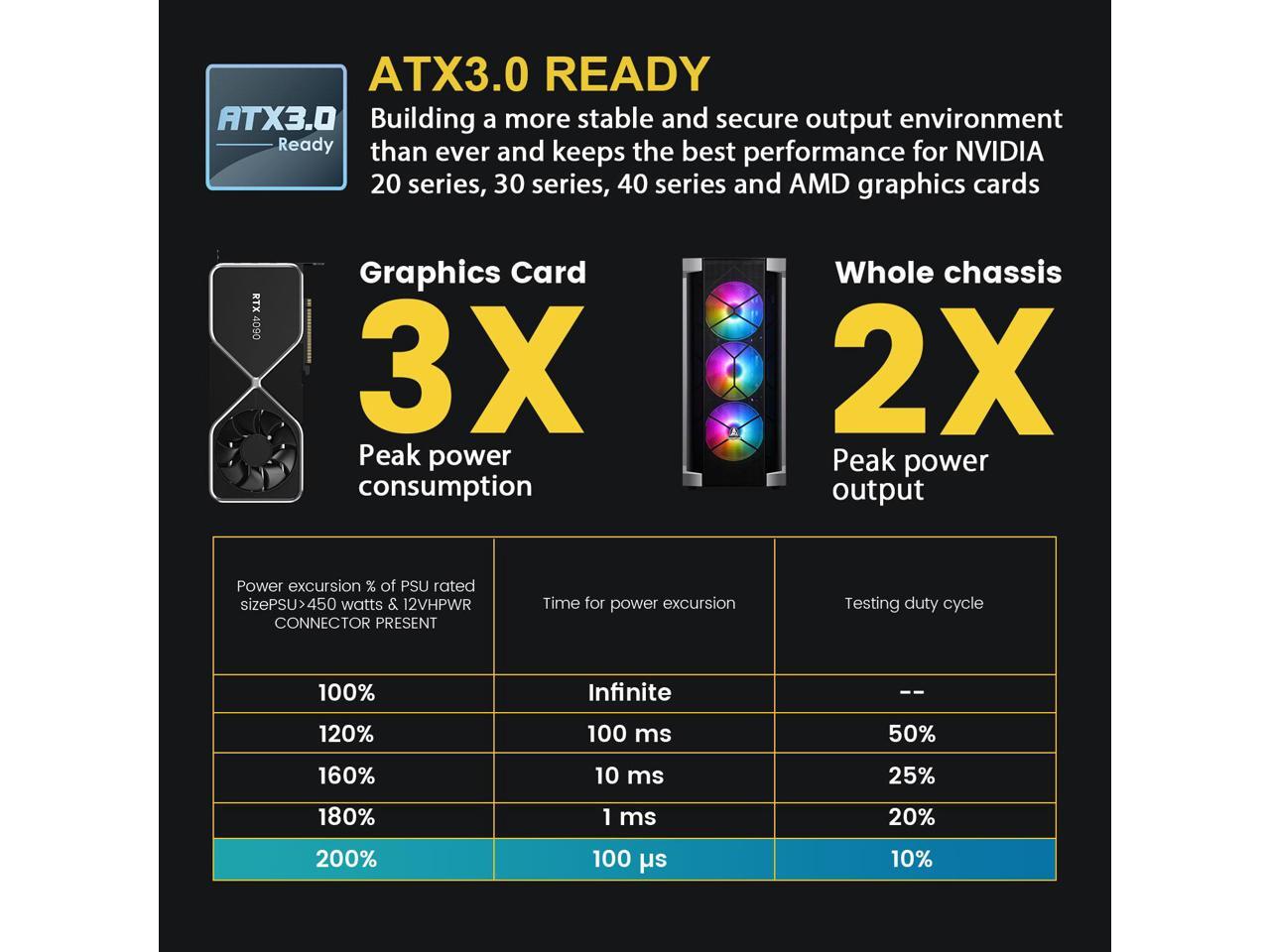

[ATX 3.0 & PCIe 5.0 Ready] The PSU can hold up to 200% total power excursion & 300% GPU power excursion. This power supply comes with 12+4PIN PCIe 5.0 port and dual Regular 6+2PIN PCIe ports for ALL Graphics cards.

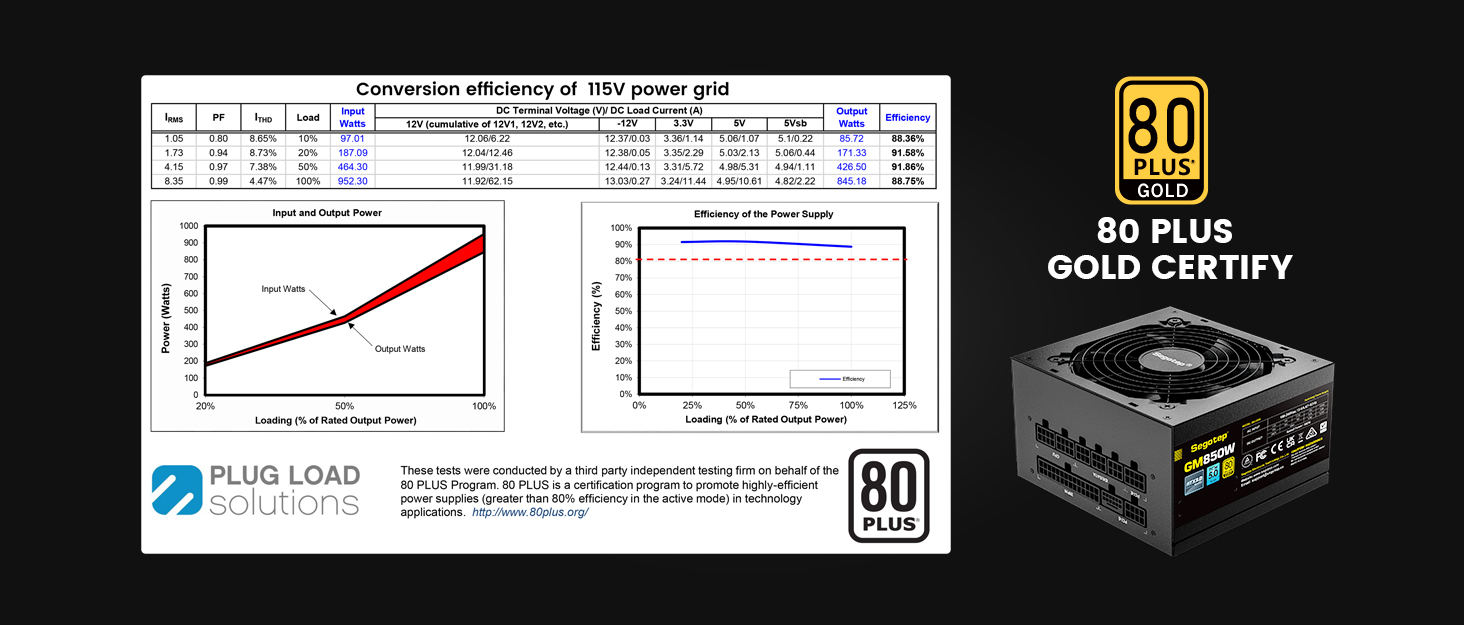

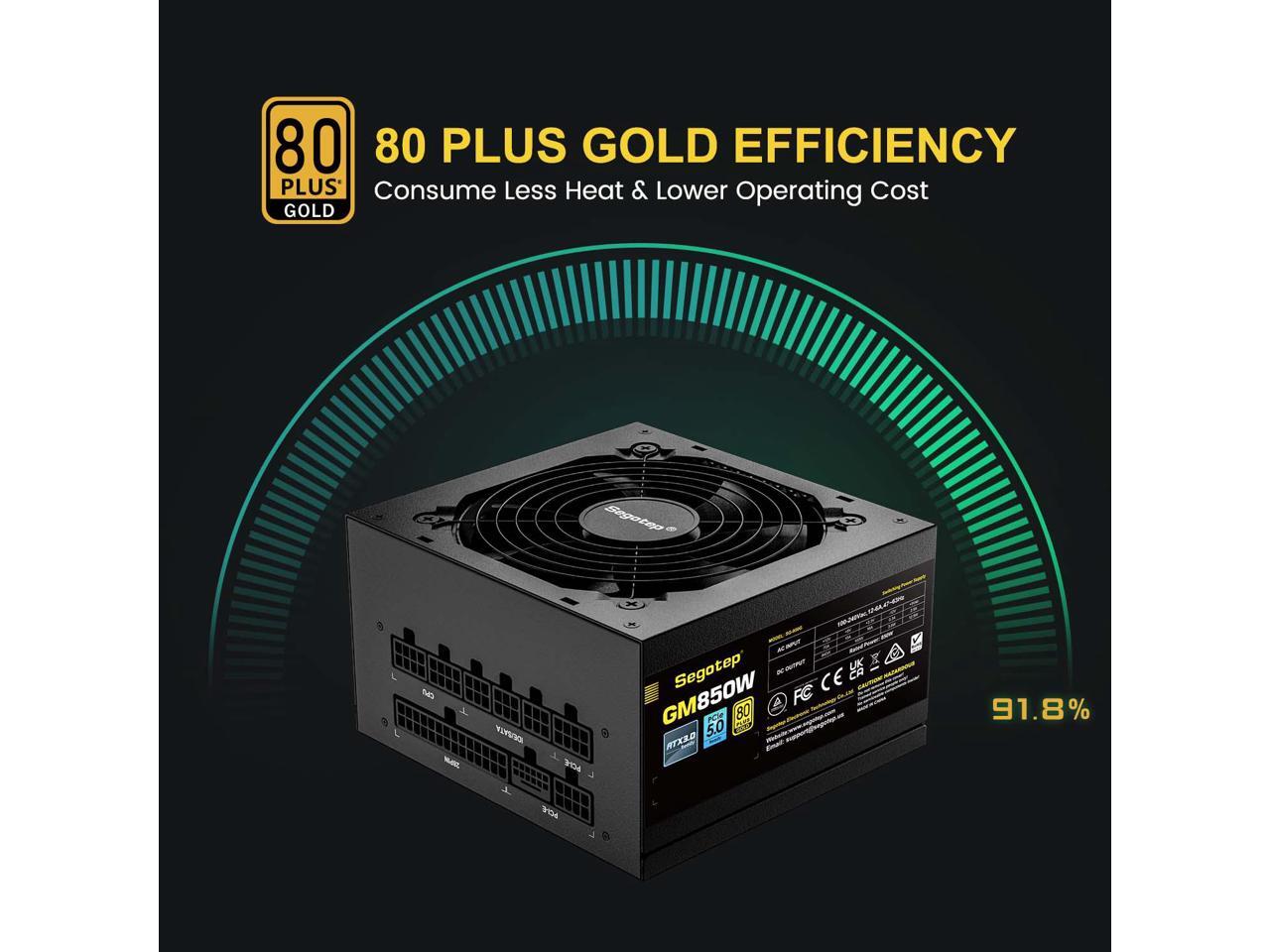

[80 Plus Gold Certified] The 80 PLUS Gold certification promises higher efficiency & lower energy consumption.
[Fully Modular] Full module with flat black cables, improve airflow & strengthen cable management.

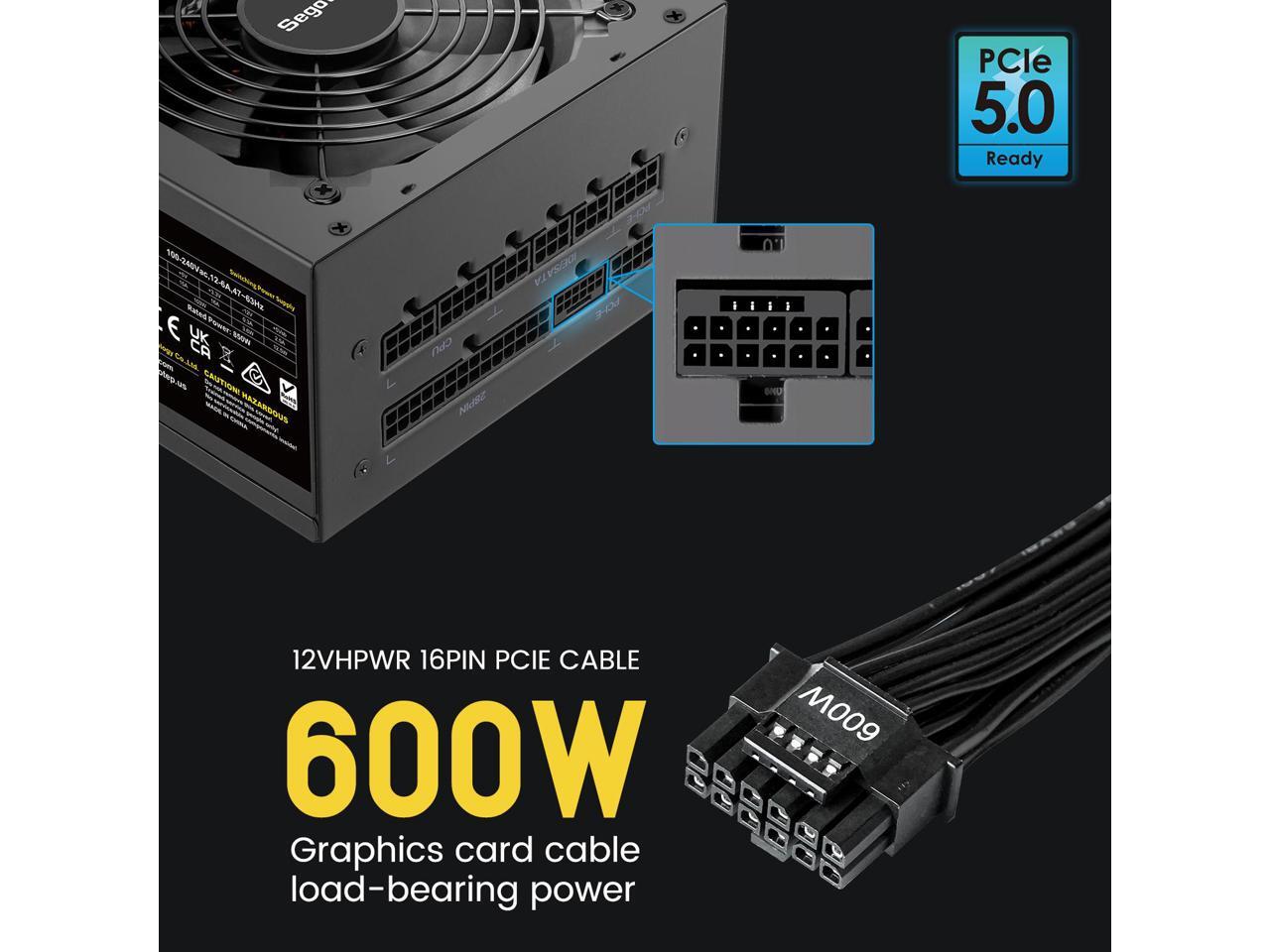

[Native 12VHPWR Cable] It can generate up to 600W of power to PCIe 5.0 graphics cards.
[Stable +12V Output] DC-DC structure, Full Bridge LLC resonance assist, 12V synchronous rectification provide stable & safe output.
Maximize the power of GeForce 5000 series cards with Gen5 NVMe SSD.
Overview
Specs
Reviews (35)
Segotep 850 watt power supply 80 plus gold full modular psu offers great performance to gamers and system builders. With 80 PLUS GOLD certification, these power supplies deliver high efficiency up to 90%. A fully modular design helps reduce cable clutter and facilitate better airflow. A quiet fan keeps the power supply running at peak performance and with inaudible noise. Its comprehensive built-in protection mechanism safeguards your system components against power anomalies, so you can compute and game with full confidence.

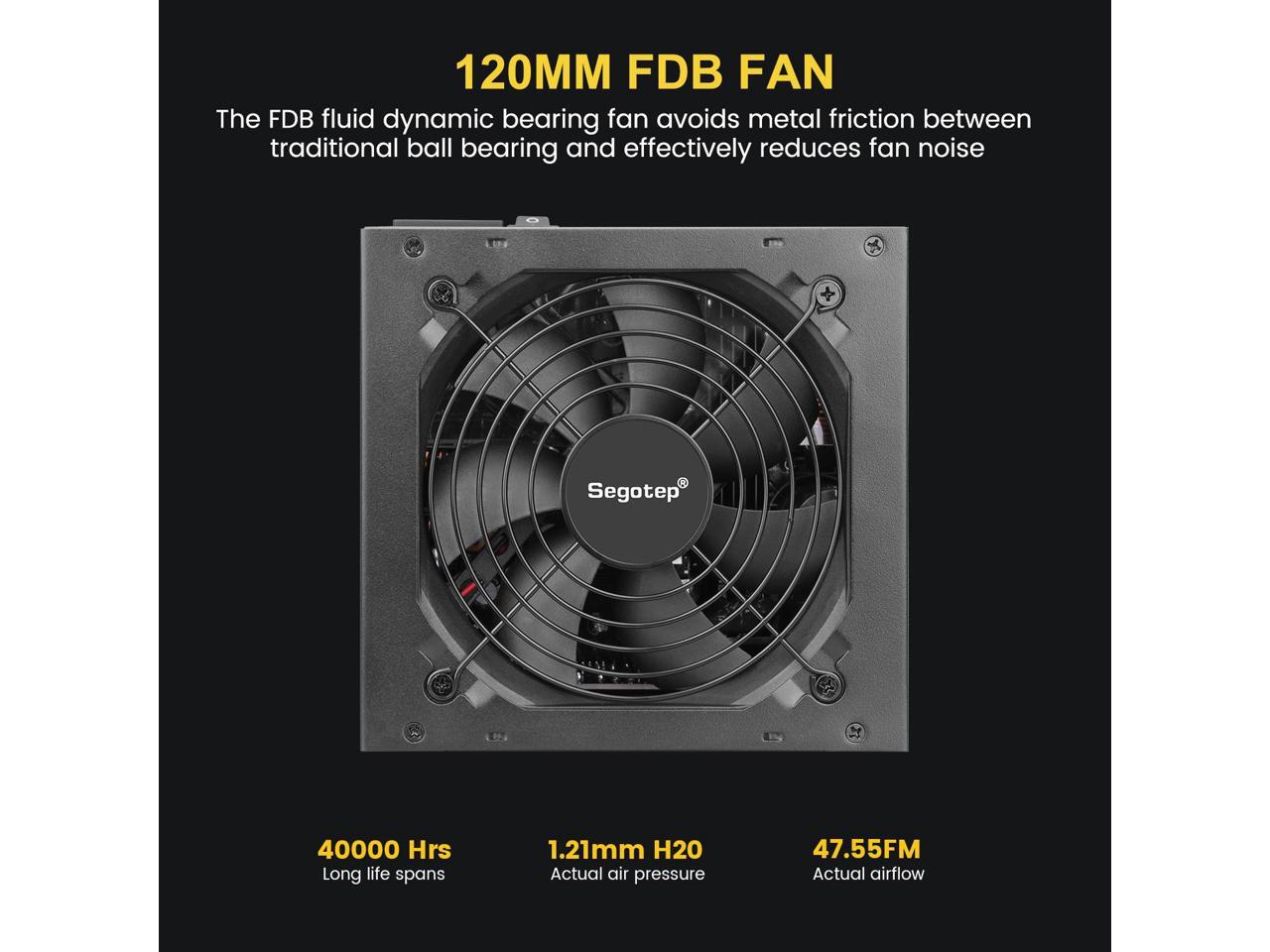

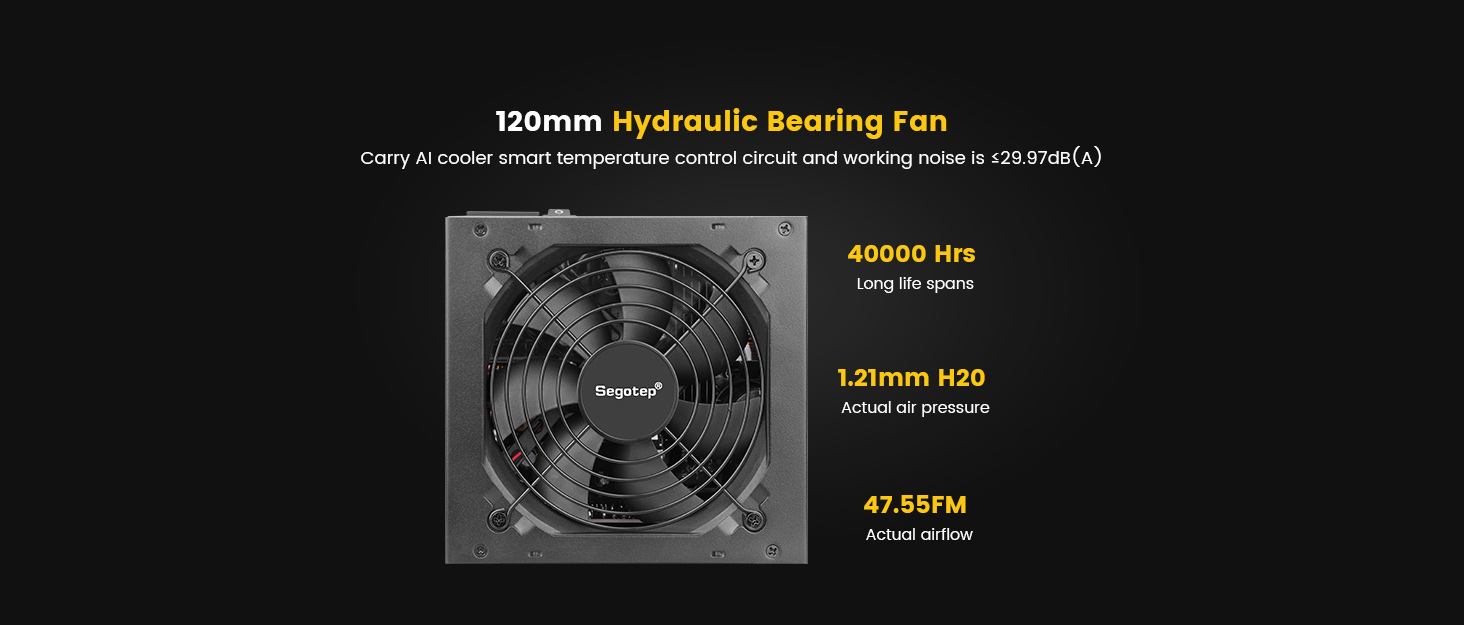

Features: - High-Efficiency: 80 plus Gold certified, with 90% efficiency or higher under typical loads - Fully Modular: The fully modular cable design allows use of only the cables you need for reduced system clutter and improved air flow. - 14cm Ultra Slim Fan: A quiet fan keeps the power supply running at peak performance and with inaudible noise. - Comprehensive Protection: OVP/UVP/OPP/SCP/OCP/OTP

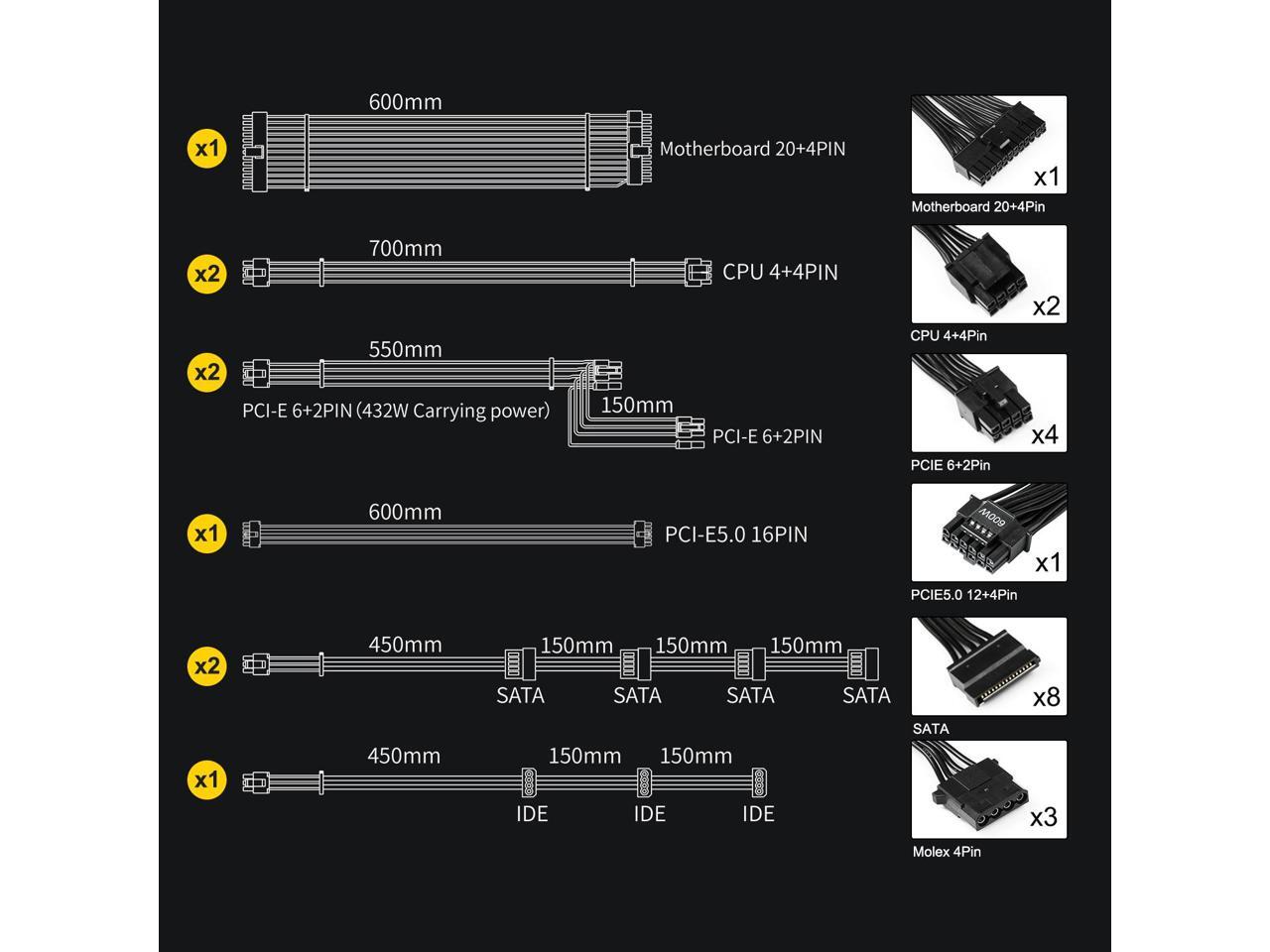

Package Included: 1 x 850W Power Supply 1 x AC Power Cord 13 x Modular Cables 1 x User Manual 4 x Screws 4 x Cable Ties
Learn more about the segotep GM850
General
Brand
Segotep
Model
GM850
Details
Color
Black
Type
ATX 3.0 Compatible
Maximum Power
850 W
Fans
1
PFC
Active
Main Connector
20+4Pin
+12V Rails
Single
SATA Power Connector
8
Max PSU Length
150 mm
Modular
Full Modular
Efficiency
> 90%
Energy-Efficient
80 PLUS GOLD Certified
Over Voltage Protection
OVP, UVP, OPP, SCP, OCP and OTP.
Overload Protection
Yes
Input Voltage
100 - 240 V
Input Frequency Range
47 - 63 Hz
Connectors
1 x 16 pin PCIe
Features
Features
ATX 3.0 PCIe 5.0
Details
Type
ATX 12V / EPS 12V
Power Rating
850W
PFC
Active
Modular
Yes
Input
Input Voltage
100 - 240 V
Frequency Range
47 - 63 Hz
Output
+3.3V Max. Current
16A
+5V Max. Current
15A
+12V1 Max. Current
70A
-12V Max. Current
0.3A
+5VSB Max. Current
2.5A
Connectors
Main Connector
20+4 Pin
Fans
Fans Total Quantity
1
Top Fans Size
120mm
Additional Information
Date First Available
October 27, 2022
