Colorful CVN B560M Motherboard (Intel 11th/10th Gen) GAMING FROZEN V20 (Micro ATX, LGA 1200 Socket, CNVI WIFI /BT Module Slot, DDR4, PCIe 4, M.2, USB 3.2 Gen 2, DP/HDMI Ports, RGB Headers)
- Supports 11th and 10th Gen Intel Core Series Processors for 1200 Socket.
- 4 DIMMs, Dual Channel DDR4 3200/3000/2933/2666/2400/2133MHZ memory, to deliver pure data signals for the best performance and stability.
- CVN Gigabit LAN Protection, effectively protect network stability and avoid network interference by complex circuitand electromagnetic wave.
- Superb PCIE 4.0 direct channel with higher speed. Support Resizable BAR/SAM and help boost performance for some hot game titles.
- Full cover cooling fin and snow-white PCB technology, with high thermal conductive materials to strengthen heat dissipation for power supper, memory and chipset.

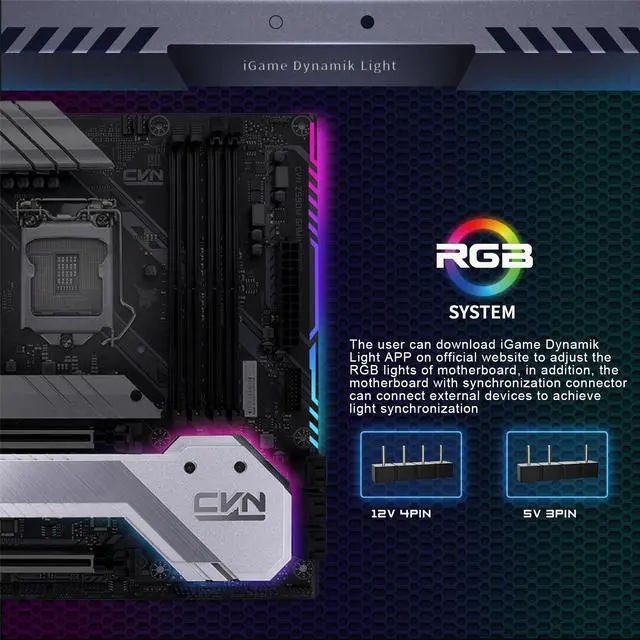

- New iGame Dynamik Light software to help ARGB light control, control 5V ARGB pin light that connected on board, to achiebe synchronization with other hardware.
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

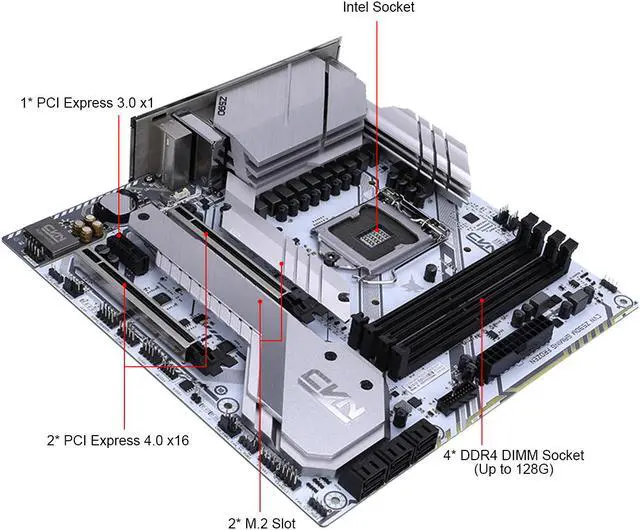

-- Supports 10th Gen and 11th Gen Intel Core Processors (Socket 1200) -- 4*DIMMs, supports Dual Channel DDR4 3200/3000/2933/2666/2400/2133MHZ memory -- 6*SATA 3.0 ports -- 1*CNVI WIFI /BT module slot -- 2*M. 2 slot, supoort 2242/2260/2280 size
SSD -- silk-screen"M2-KEYM2": Support PCIE GEN4 x4

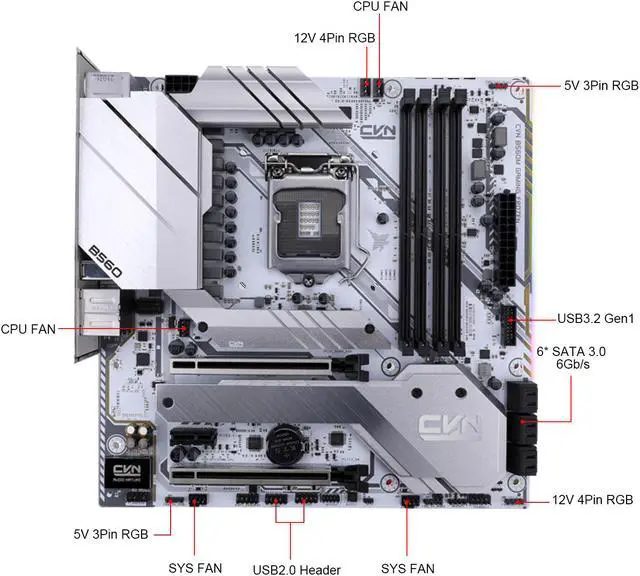

SSD -- silk-screen"M2-KEYM1": support PCIE GEN3 x4 or SATA SSD and support Intel Optane technology -- 1000M LAN -- 8-ch audio chipset -- DP+HDMI ports -- 4*USB 2.0 (2 rear, 2 header) 2*USB 3.2 Gen2 ports(1*TYPE-A+1*TYPE-C) 4*USB 3.2 Gen1 ports(2 rear, 2 header) -- Audio isolated LED light -- 2*4PIN 12V RGB + 2*3PIN 5V RGB headers -- Full cover cooling fin and snow-white PCB technology
SSD -- silk-screen"M2-KEYM2": Support PCIE GEN4 x4
SSD -- silk-screen"M2-KEYM1": support PCIE GEN3 x4 or SATA SSD and support Intel Optane technology -- 1000M LAN -- 8-ch audio chipset -- DP+HDMI ports -- 4*USB 2.0 (2 rear, 2 header) 2*USB 3.2 Gen2 ports(1*TYPE-A+1*TYPE-C) 4*USB 3.2 Gen1 ports(2 rear, 2 header) -- Audio isolated LED light -- 2*4PIN 12V RGB + 2*3PIN 5V RGB headers -- Full cover cooling fin and snow-white PCB technology
