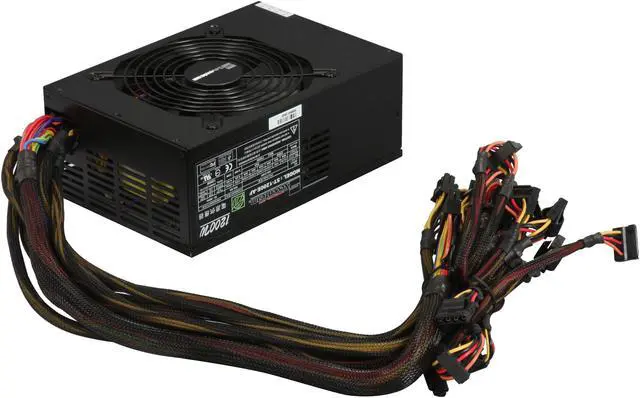

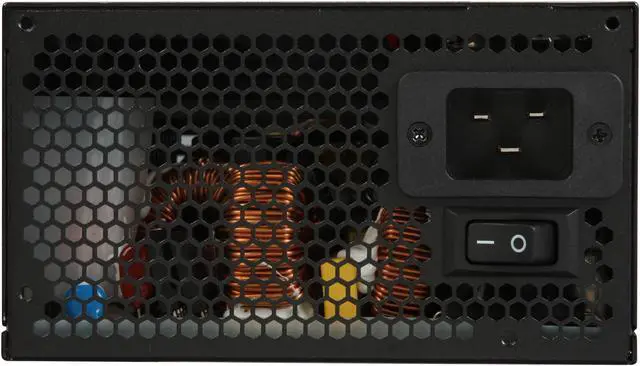

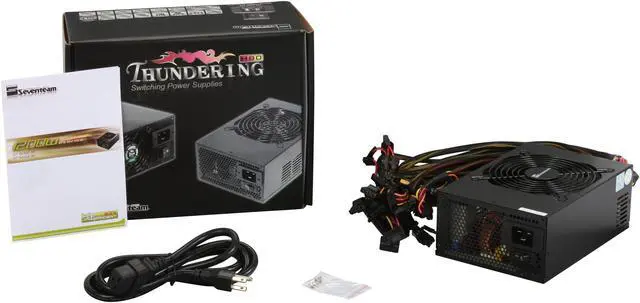

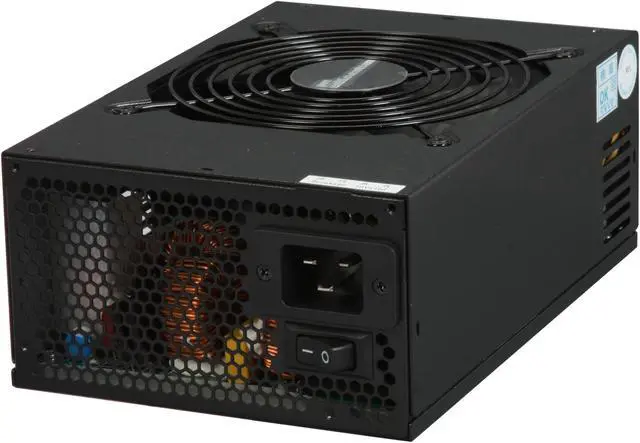

Seventeam ST-1200E-AF 1200 W SSI-EPS 12V V2.91 SLI Ready Active PFC Power Supply
- SSI-EPS 12V V2.91
- 90 - 264 V 50/60 Hz
- +3.3V@40A, +5V@40A, +12V1@20A, +12V2@20A, +12V3@20A, +12V4@30A, [email protected], +5VSB@4A
Specs
Reviews (2)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Seventeam ST-1200E-AF
| Brand | Seventeam |
|---|---|
| Model | ST-1200E-AF |
| Type | SSI-EPS 12V V2.91 |
|---|---|
| Maximum Power | 1200 W |

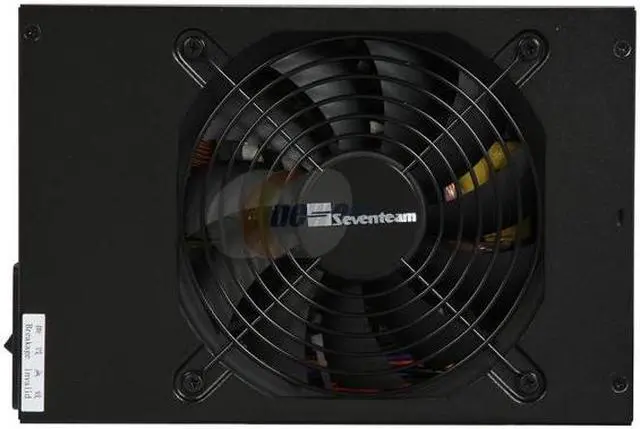

| Fans | 135mm DC Fan |
| PFC | Active |
| Main Connector | 20+4Pin |
| +12V Rails | 4 |
| PCI-Express Connector | 4 x 6+2-Pin |
| SATA Power Connector | 6 |
| SLI | SLI Ready |
| Power Good Signal | 100-500ms |
| Hold-up Time | 16ms min. |
| Efficiency | > 80% |
| Over Voltage Protection | Yes |
| Input Voltage | 90 - 264 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 16A ~ 8A |

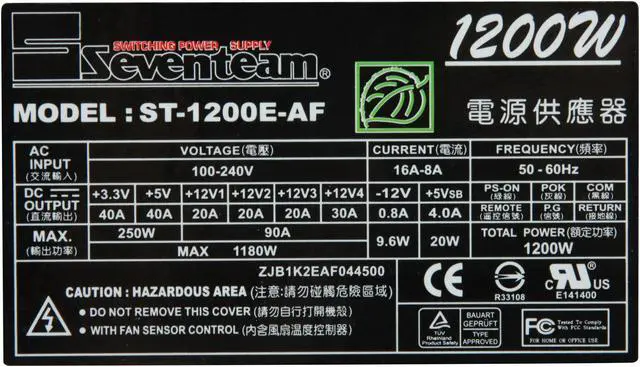

| Output | +3.3V@40A, +5V@40A, +12V1@20A, +12V2@20A, +12V3@20A, +12V4@30A, [email protected], +5VSB@4A |
| MTBF | >100,000 Hours |
| Approvals | CE, TUV, CB, UL, FCC and BSMI |

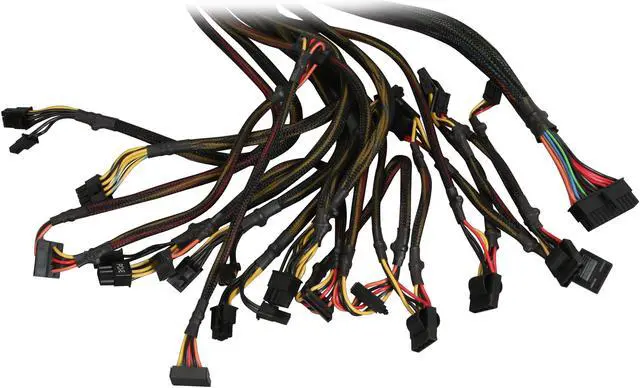

| Connectors | 1 x Main connector (24Pin) 2 x EPS 8Pin 1 x ATX 4Pin 6 x Peripheral 6 x SATA 2 x Floppy 4 x PCI-E |
| Features | Provide Quad +12V rails, for stability and safety Standard compatibility: Support Newest Intel Quad Core and AMD Dual Core CPU Support Nvidia 8800GTX SLI VGA Card Build in STNC fan control 100% Hi-Pot test 135mm Low-Noise Fan Multiple Protections Function:(OCP,OVP,UVP,OPP) |
|---|
| Dimensions | 8.66" x 5.9" x 3.35" |
|---|
| First Listed on Newegg | June 23, 2009 |
|---|
