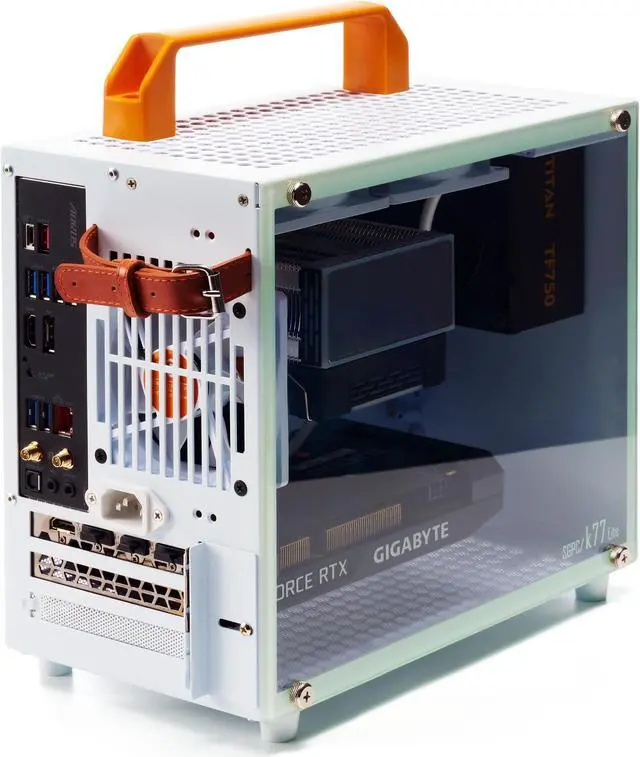

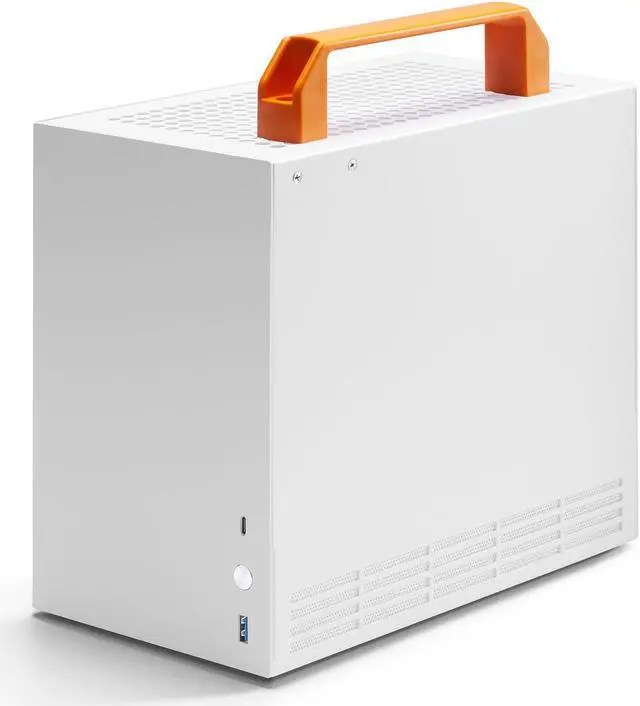

SGPC K77 lite Compact ITX Case/Small White Chassis with Tempered Glass Side Panels / 11.6L / Compatible with ITX/DTX Motherboard and SFX/ATX Power Supply

Limited time offer, ends08/24 By SGPC Mini Case Official

  • Size: 290 x 160 x 250 mm,11.6L. Includes 2 handles (plastic and leather) for easy mobility.
  • Material: The case and side panel are made of 1-1.5mm SPCC steel, 3mm tempered glass side panel .
  • Front I/O: 1 x USB 3.0, 1 x Type-C (connected via a 2-in-1 USB 3.0 19-pin header).
  • PSU & CPU cooler: Supports SFX/SFX-L PSU (125 x 140 x 64 mm) and ATX PSU (150 x 140 x 86 mm ). It accommodates CPU air coolers up to 135 mm in height or a 120 mm AIO water cooling with pump heads up to 50 mm.
  • Motherboard: Supports standard ITX M/B up to 170 x 170 mm. When using an SFX PSU, it can support non-standard mATX M/B up to 225 x 208 mm. When using an ATX PSU, it can support non-standard mATX M/B up to 225 x 186 mm.
  • GPU: Supports GPUs up to 70 mm (2.75") in height. When using a full modular ATX PSU, the maximum supported GPU length is 230 mm (9.0"). With a non-modular ATX or SFX PSU, GPU length can extend up to 280 mm (11").
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Choking Hazard Small parts. Not for children under 3 years.
+
+
Overview
Specs
Reviews (1)
avatar

Any questions? Our AI beta will help you find out quickly.

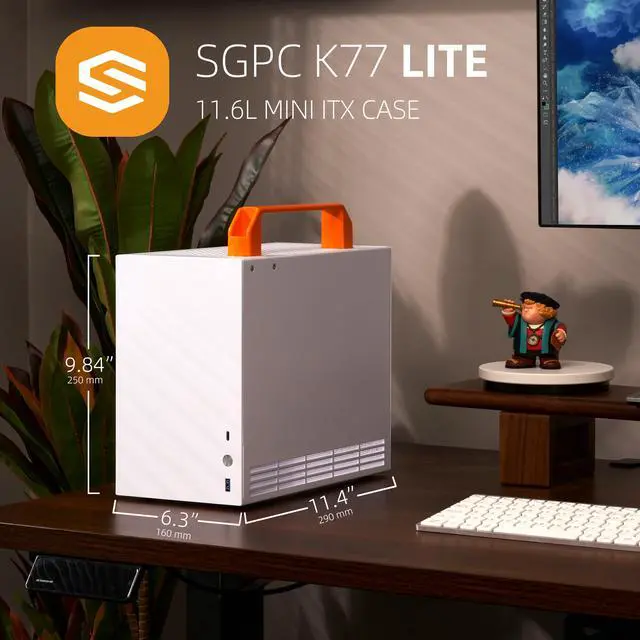

Size: 290 x 160 x 250 mm ( 11.4 x 6.3 x 9.84 inches), 11.6L. Includes 2 handles (plastic and leather) for easy mobility.
Material: The case and side panel are made of 1- 1.5 mm SPCC steel, complemented by a 3mm tempered glass side panel.
Front I/O: 1 x USB 3.0, 1 x Type-C (connected via a 2-in-1 USB 3.0 19-pin header).
Power Compatibility: Supports SFX PSU (125 x 130 x 64 mm / 4.92" x 5.12" x 2.55" ) and ATX PSU (150 x 140 x 86 mm / 5.9" x 5.51" x 3.39" ). It accommodates CPU air coolers up to 135 mm in height or 120 mm AIO water cooling with pump heads up to 50 mm.
Motherboard Compatibility: Supports standard ITX M/B up to 170 x 170 mm. When using an SFX PSU, it can support non-standard mATX M/B up to 225 x 208 mm ( 8.86" x 8.19" ). When using an ATX PSU, it can support non-standard mATX M/B up to 225 x 186 mm ( 8.86" x 7.32" ).

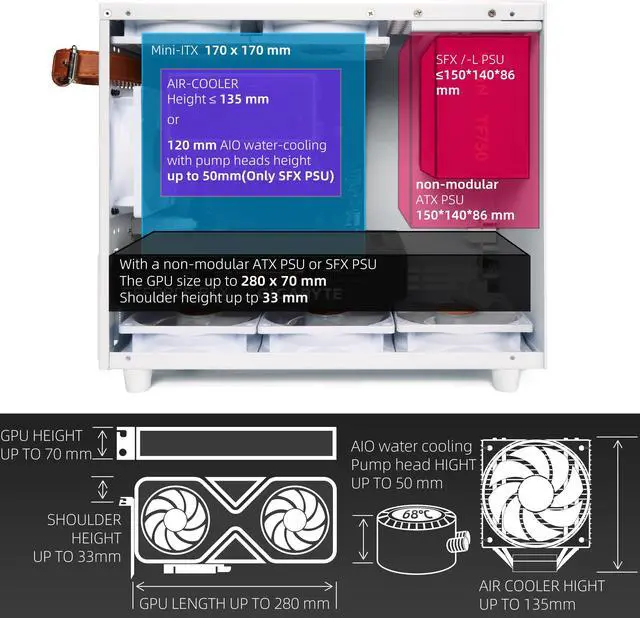

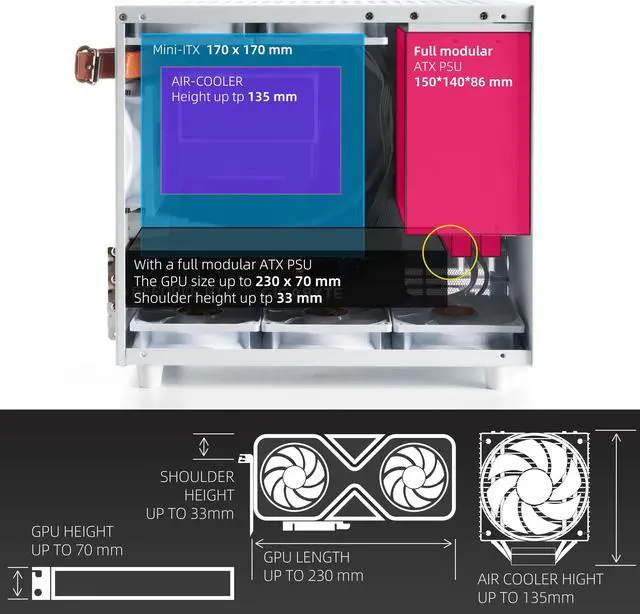

GPU Compatibility: Supports GPUs up to 70 mm ( 2.75" ) in height. When using a full modular ATX PSU, the maximum supported GPU length is 230 mm ( 9.0" ). With a non-modular ATX or SFX PSU, GPU length can extend up to 280 mm (11"). For GPUs longer than 230 mm ( 9.0" ), an SFX PSUis recommended.

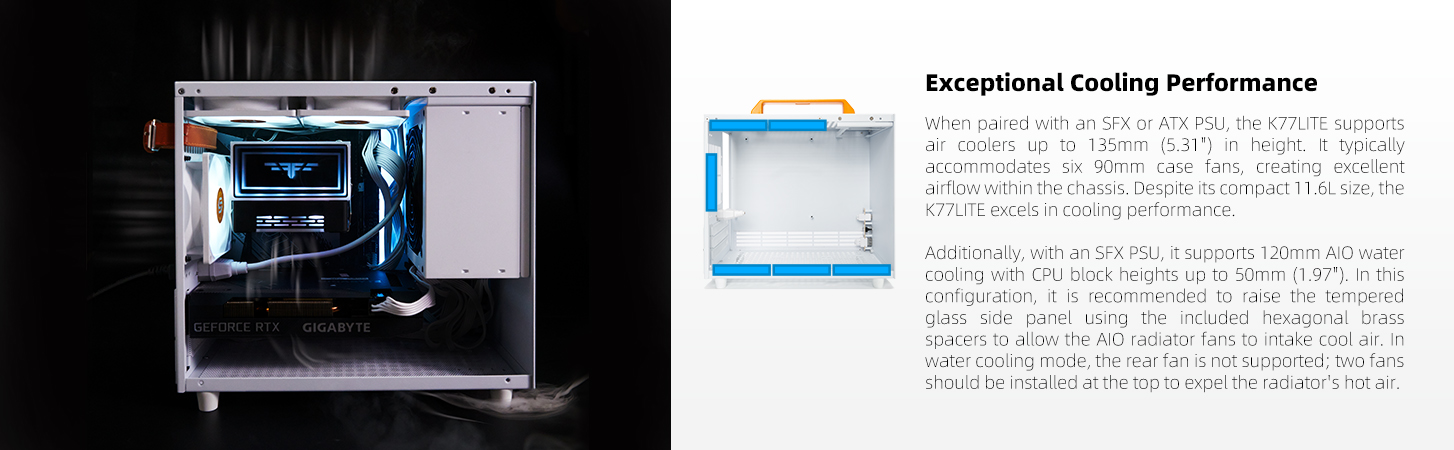

Cooling Performance: Supports the installation of up to2* 92 mm fans at the top. When using air cooling, 1* 92 mm fan can be installed at the rear. Additionally, up to three 92 mm fans can be mounted at the bottom, space permitting.

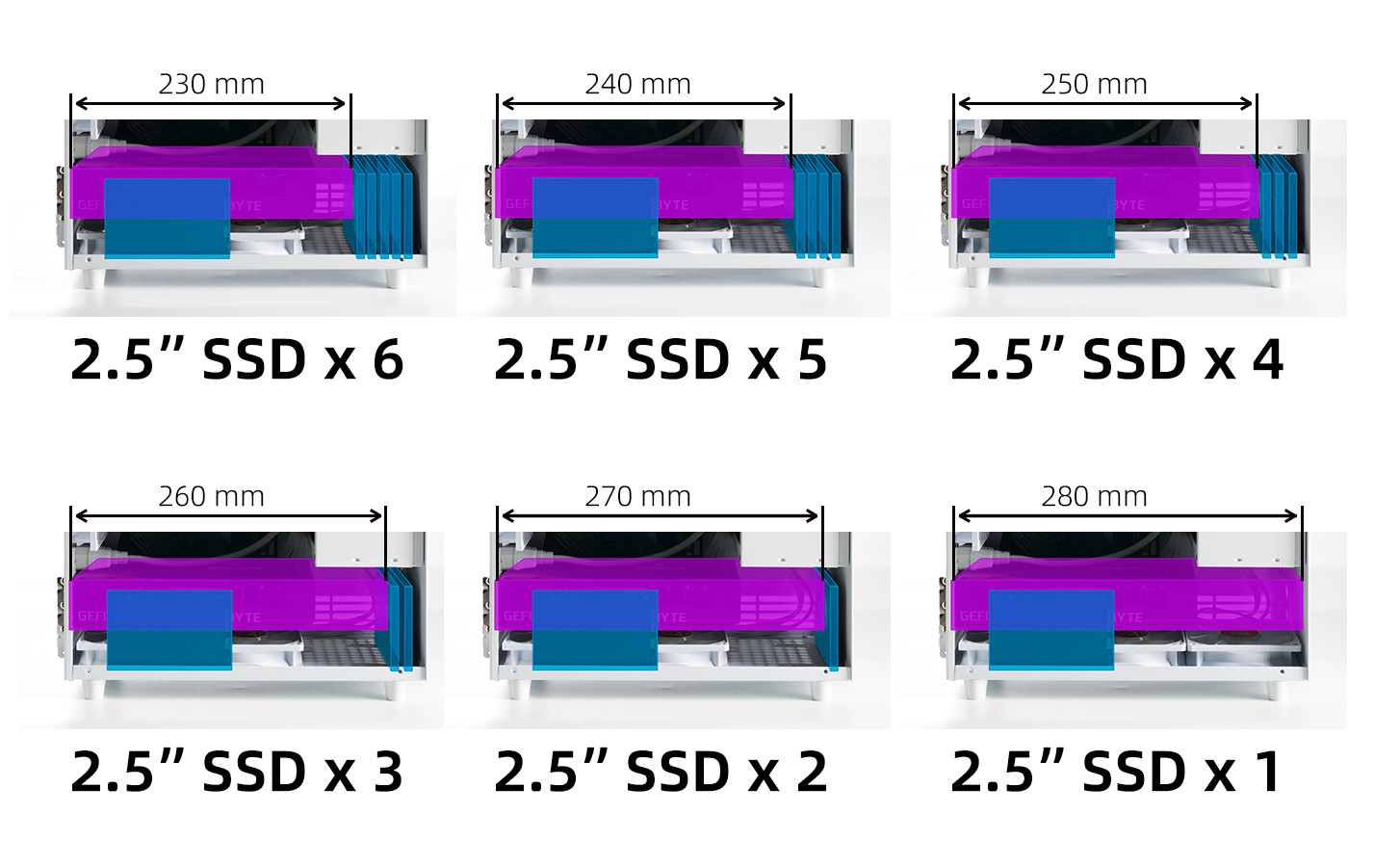

Storage Options: Supports 1-6 x 2.5" SSDs (or HDDs), depending on GPU length, the number of bottom fans, and modular ATX PSU cables. Refer to the diagram for specific configurations.
Desktop Masterpiece

Discover the K77 LITE:

A compact marvel that takes up no more space than a palm on your desk, yet boasts exceptional compatibility and stunning aesthetics.

K66Lite
Installation Tips
K77Lite

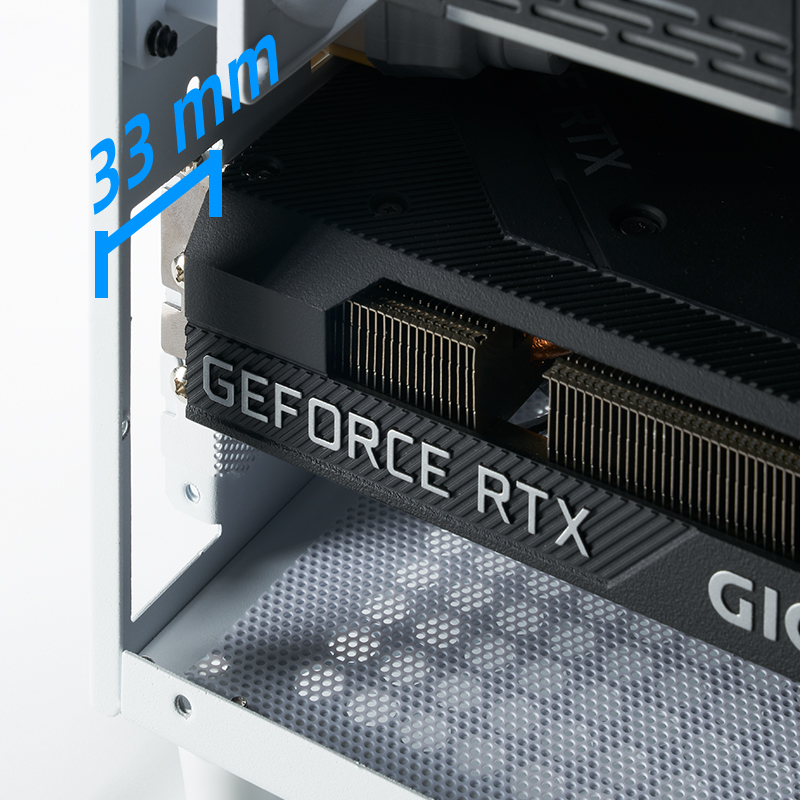

GPU Clearance

The space between the graphics card bezel and the tempered glass side panel measures 33 mm. Please take this into consideration before making your purchase.






K77Lite
Water Cooling Installation

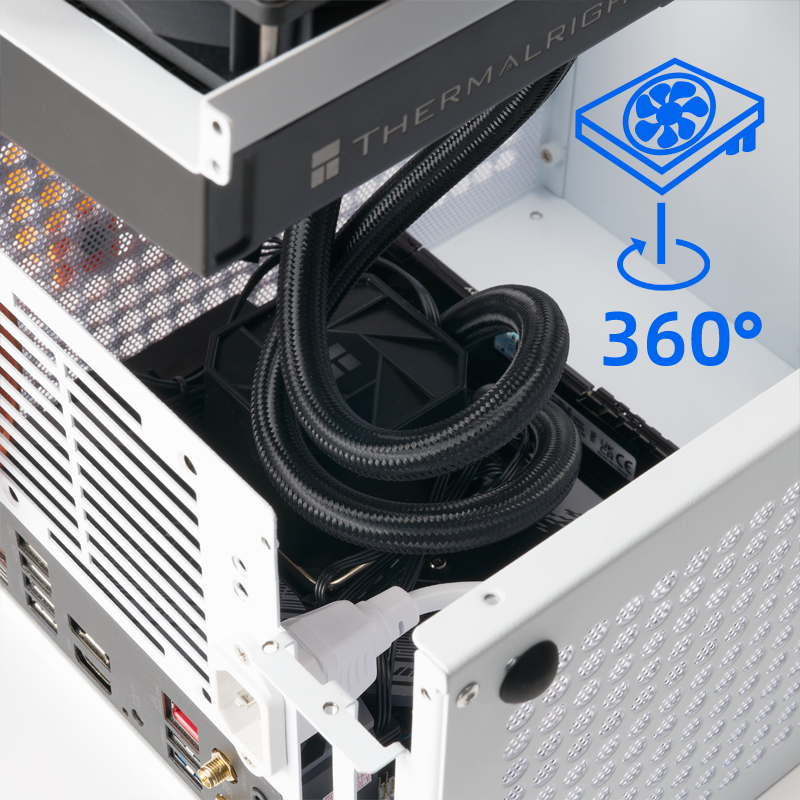

If the water cooling pipes are too long, you can adjust the radiator by rotating it in one direction.






K77Lite
Enhanced Cooling

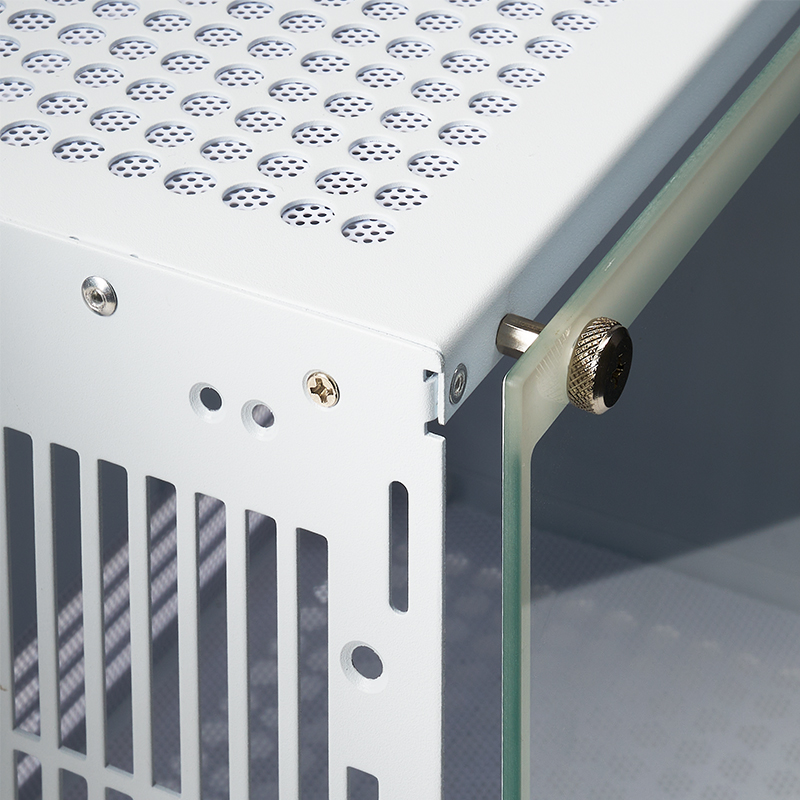

For improved ventilation when using water cooling, consider using hexagonal brass spacer screws to elevate the glass side panel.






K77Lite
K77Lite
FamilyBucket
Products
Size(Inch) 9.76 * 8.86 * 2.95 7.68 * 4.72 * 8.67 12.04 * 5.12 * 6.89 6.3 * 9.6 * 8.4 6.3 * 9.84 * 11.4
weight(kg) 1.91 1.88 3.29 1.6 2.3
Capacity(L) 4 5.1 7.1 8.4 11.6
PSU(mm) FLEX-1U(170 * 80 * 40) FLEX-1U(170 * 80 * 40) SFX(125 * 100 * 64) SFX(125 * 100 * 64) ATX(150*140*86)/SFX(125*100*64)
Mother Board(mm) MATX(240*210)/ITX(170*170) ITX(170 * 170) ITX(170 * 170) ITX(170 * 170) ITX(170 * 170)
GPU Size(mm) without I/O Size / <= 185 * 145 * 40(use 18.5cm Dual Reverse Connectors Riser Cable) <= 300 * 145 * 45(use 18.5cm Dual Reverse Connectors Riser Cable) <= 240 * 120 * 45 <= 280 * 120 * 70
Water Cooling / / / 120 mm 120 mm
CPU Radiator(mm) <= 56 <= 55 <= 56 <= 135 <= 135
Fan(pcs) / / / 92mm fan: 2 ~ 5 92mm fan: 3 ~ 6
HDD/SSD 2.5'*1 2.5'*2 2.5'*1 2.5'*2 2.5'*1 ~ 6
