SHARP XR-10S SVGA (800 x 600) 2000 ANSI Lumens Standard Mode; 1750 ANSI Lumens Low Power Mode DLP Projector 2000:1
- SVGA (800 x 600)
- 2000 ANSI Lumens Standard Mode; 1750 ANSI Lumens Low Power Mode
- 2000:1
- 40" - 300" (diagonal, 4:3)
Specs
Reviews (1)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Sharp XR-10S
| Brand | SHARP |
|---|---|
| Model | XR-10S |
| Cabinet Color | Silver-Black |
|---|---|
| Type | DLP |
| Brightness | 2000 ANSI Lumens Standard Mode; 1750 ANSI Lumens Low Power Mode |
|---|---|
| Native Resolution | SVGA (800 x 600) |
| Aspect Ratio | 4:3 and 16:90 ............................ . |
| Contrast Ratio | 2000:1 |
| Display Size | 40" - 300" (diagonal, 4:3) |
| Horizontal Refresh Rate | 15kHz - 70kHz |
| Vertical Refresh Rate | 45Hz - 85Hz |
| Lens | 1.15x Short Throw Manual Zoom and Focus, F2.4-2.6, F=19.0-21.9mm, Throw Ratio: 1.75-2.0 |
|---|---|
| Throw Distance | 4' 7" (for 40" diagonal, 4:3) up to 39' 8" (for 300" diagonal, 4:3) |
| Lamp | 275 Watt DC (end-user replaceable) - model number AN-XR10LP or AN-XR10LP/1 |
|---|
| Input Video Compatibility | Analog RGB, NTSC 3.58, 4.43 / PAL 50/60, M, N / SECAM, 480i, 480p, 540p, 576i, 576p, 720p, 1035i, 1080i |
|---|---|

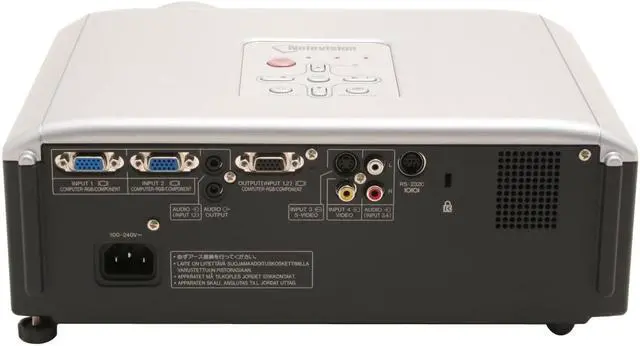

| Input Video Connectors | Component Video (or RGB/Computer) - 15 Pin HD (x2) Independent S-Video - 4-pin DIN Composite Video - RCA pin-type |
| Input Audio Connectors | PC/Component Stereo Audio Input - 3.5mm stereo mini Connector "Video" Stereo Audio Input - 1-pair RCA pin-type |
| Users Controls | PC Control : RS-232C Remote Control : Control with on-screen timer and image "freeze" function. Also includes forward/back presentation control when used with AN-MR2 remote IR receiver |
|---|---|
| Built-in Speakers | 2 Watt monaural audio system with 4cm x 2.85cm oval loudspeaker |
| Features | •2000 ANSI Lumens (1750 ANSI Lumens in Low-Power "eco & quiet" mode) •DDR DLP™ Technology with TrueVision™ (DDP2000) advanced video circuitry •4-segment / 3-speed color wheel with Advanced Condenser Lens Optical System, sRGB, color temperature adjustment and bright boost •Wide Computer and Video Compatibility •Low Power "Economy" Mode •Includes Wireless Remote with Back/Forward PC Control and Image "Freeze" and Break Timer functions •Sealed Optics (air filter is not required) •On-Screen Setup Guide and "Help" Function •Compact and Lightweight Design - with full complement of inputs and outputs |
| Compatibility | Video Compatibility (DTV/HDTV): 480i, 480p, 540p, 576i, 576p, 720p, 1035i, 1080i with 4:3 and 16:9 aspect ratios |
| Panel | 0.55" DDR DLP (Single DMD Digital Micromirror Device) - 12° |
| Power Supply | 100V - 240V AC, 50/60Hz |
|---|---|
| Power Consumption | 350W in "bright" lamp setting and "high" fan mode / 305W in "eco & quiet" lamp setting and "normal" fan mode / 4W standby |
| Dimensions (H x W x D) | 12.4" x 11.6" x 4.7" |
|---|---|
| Weight | 8.6 lbs. |
| Package Contents | XR-10S Projector VGA Cable Power Cable Remote Control User Manual Support Disk |
|---|
| First Listed on Newegg | December 01, 2005 |
|---|
