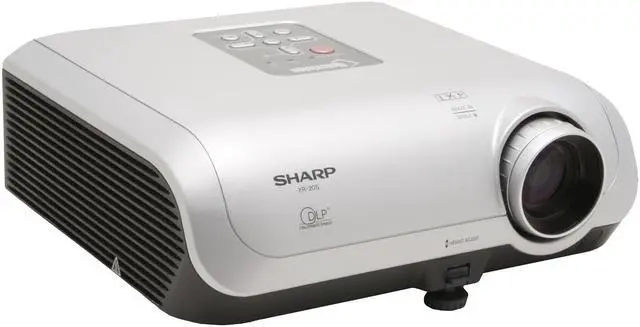

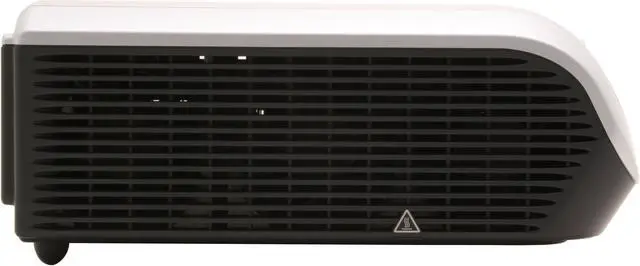

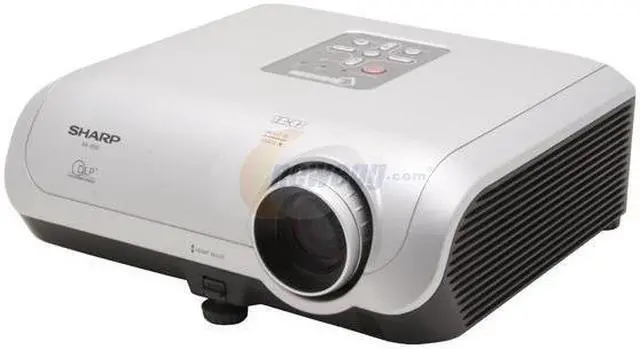

SHARP XR-20S 800 x 600 2300 ANSI Lumens Standard Mode; 2000 ANSI Lumens Low Power Mode DLP Projector 2000:1
- 800 x 600
- 2300 ANSI Lumens Standard Mode; 2000 ANSI Lumens Low Power Mode
- 2000:1
- 40" - 300" (diagonal, 4:3)
Specs
Reviews
Learn more about the Sharp XR-20S
| Brand | SHARP |
|---|---|
| Model | XR-20S |
| Cabinet Color | Silver-Black |
|---|---|
| Type | DLP |
| Brightness | 2300 ANSI Lumens Standard Mode; 2000 ANSI Lumens Low Power Mode |
|---|---|
| Native Resolution | 800 x 600 |
| Aspect Ratio | 4:3 and 16:9 |
| Contrast Ratio | 2000:1 |
| Display Size | 40" - 300" (diagonal, 4:3) |
| Horizontal Refresh Rate | 15kHz - 70kHz |
| Vertical Refresh Rate | 45Hz - 85Hz |
| Lens | 1.15x Short Throw Manual Zoom and Focus, F2.4-2.6, F=19.0-21.9mm, Throw Ratio: 1.75-2.0 |
|---|
| Lamp | 275 Watt DC (end-user replaceable) - model number AN-XR20LP or AN-XR20LP/1 |
|---|
| Input Video Compatibility | NTSC 3.58, 4.43 / PAL 50/60, M, N / SECAM |
|---|---|

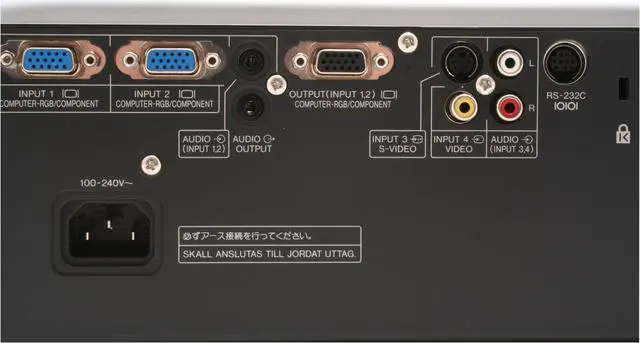

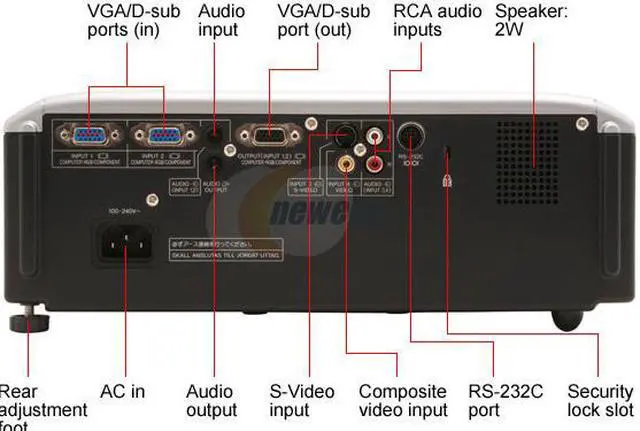

| Input Video Connectors | Component Video (or RGB/Computer) - 15 Pin HD (x2) Independent S-Video - 4-pin DIN Composite Video - RCA pin-type |
| Input Audio Connectors | PC/Component Stereo Audio Input - 3.5mm stereo mini Connector "Video" Stereo Audio Input - 1-pair RCA pin-type |
| Users Controls | PC Control: RS-232C Remote Control |
|---|---|
| Built-in Speakers | 2 Watt monaural audio system with 4cm x 2.85cm oval loudspeaker |
| Features | Short-throw zoom lens allows for a large projected image from a "short" throw distance; sealed optical system 33dB in standard mode; 30dB in low-power (economy) mode |
| Compatibility | Data Compatibility: PC, Mac, Workstation. Video Compatibility (DTV/HDTV): 480i, 480p, 540p, 576i, 576p, 720p, 1035i, 1080i with 4:3 and 16:9 aspect ratios |
| Panel | 0.55" DDR DLP (Single DMD Digital Micromirror Device) - 12 |
| Power Supply | 100V - 240V AC, 50/60Hz |
|---|---|
| Power Consumption | 350W in "bright" lamp setting and "high" fan mode / 305W in "eco & quiet" lamp setting and "normal" fan mode / 4W standby |
| Dimensions (H x W x D) | 12.4" x 4.7" x 11.6" |
|---|---|
| Weight | 8.6 lbs. |

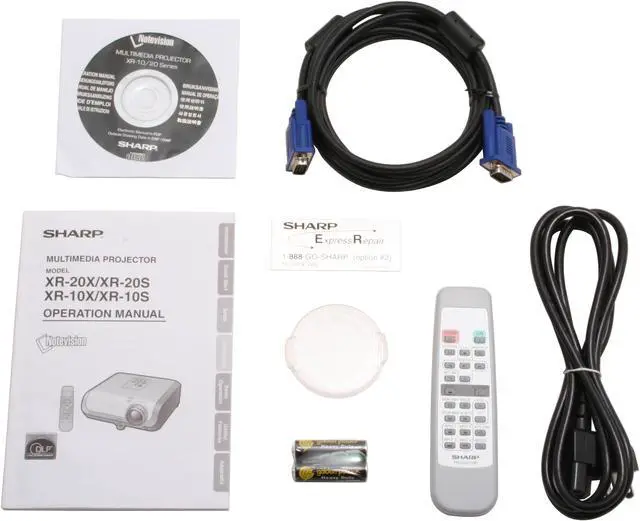

| Package Contents | XR-20S Projector VGA Cable Power Cable Remote Control User Manual Support Disk R-6 Battery x 2 Lens Cap |
|---|
| First Listed on Newegg | October 03, 2005 |
|---|
