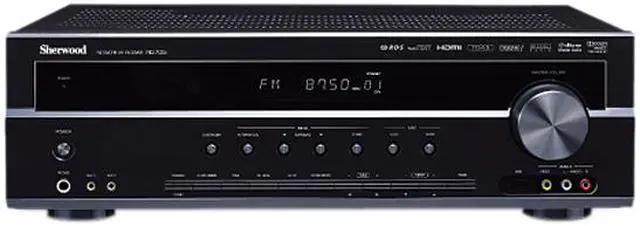

Sherwood RD-705i 7.1-Channel Network AV Receiver with HD Audio Decoding

Be the first to review this product...

7.1 channel,80W x 2 @ 6 Ohms, 40Hz~20kHz, 0.2% THD in Stereo Mode
110W x 7 (1kHz, THD 1%) @ 6 Ohms / Only Channel
3 HDMI/3D passthrough
DLNA Wireless Connectivity

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Today's multi component home theater system must excel at working with components including DVD and CD players, cassette decks, VCR, and satellite or cable inputs not to mention radio programming . Sherwood A/V Receivers are star performers, easily switching between inputs and encoding formats to produce brilliant, accurate sound.

Model
Brand	Sherwood
Model	RD-705i

Details
Color	Walnut
Channels	7.1-Channel
Remote Control	Yes

Processing
Power Output	80W x 2 @ 6 Ohms, 40Hz~20kHz, 0.2% THD in Stereo Mode 110W x 7 (1kHz, THD 1%) @ 6 Ohms / Only Channel
Frequency Response	Line (CD, AUX, VIDEO), 10 Hz ~ 90 kHz
THD	0.02% at -3 dB, 6 Ohms, 1 kHz
Decoder	HD Audio Decoding for Blu-Ray DTS-HD (Master Audio / High Resolution Audio) Dolby TrueHD, Dolby Digital Plus Legacy Audio Decoding DTS-ES (Discrete / Matrix) DTS 96/24, DTS Neo 6 (Cinema / Music) Dolby Digital, Dolby Digital EX, Dolby Prologic llz
D/A Converter	192kHz / 24 Bit D/A Converter (All Channels)
Audio	Amplifier Feature - 80W x 2@6ohms, 40Hz~20kHz, 0.2% THD in Stereo Mode - 110W x 7 (1kHz, THD 1%)@6ohms / Only Channel - Heavy Duty Speaker Binding Post - Assignable 2 Channel Power Amp(Surround Back L/R, Room2, Bi-Amp or Front Height)
Video	Video Format: NTSC Input Sensitivity (=Output level), 75 Ohms, Video (Composite (normal)): 1 Vp-p HDMI Connector: 19 pin

Radio
FM/AM Tuner	30 Stations Presets FM Tuner Section - Tuning Frequency Range: 87.5~108 MHz - Usable Sensitivity, S/N 30 dB: - 4 dBu - Signal to Noise Ratio, Mono/Stereo: 70 / 60 dB - Total Harmonic Distortion, 1 kHz, Mono/Stereo: 0.05 / 1.4 % - Frequency Response: 17 Hz~12 kHz +/-3 dB - Stereo Separation, 1 kHz: 40 dB - IF Rejection Ratio: 130 dB AM Tuner Section - Tuning Frequency Range: 520~1710 kHz - Usable Sensitivity, S/N = 20 dB: 54 dBu/m - Signal to Noise Ratio: 40 dB - Selectivity: 50 dB
Internet Radio Ready	Yes

Connectivity
HDMI	3 In / 1 Out
Digital Optical Audio	2 In
Digital Coaxial Audio	2 In
Headphone Jack	1
USB Port	1
Network Ready	Yes
Wireless Connectivity	DLNA
iPod Compatibility	iPod Connectivity with DS-10
Other Connectors	3 In / 2 Out Composite Video

Power
Power Supply	120V 60Hz / 230V 50Hz
Consumption	2.5 A

Features
Features	Wi-Fi Dongle DLNA / UPnP Stack to Play Music from PC to Multiple Device Multi-Channel PCM Decoding 7 DSP Mode (Theater, Hall, Stadium, Room, Panorama, Classic, Multi Ch Stereo) One Touch Automatic Speaker Setup Room Acoustic Calibration with EQ Audio Streaming 2 Zone Multi Room / Multi Source for Audio Heavy Duty Speaker Binding Post Assignable 2 Channel Power Amp (Surround Back L/R, Room2, Bi-Amp or Front Height) Color Coded Terminal Quartz Synthesized Digital Tunning 192kHz / 24 Bit D/A Converter (All Channels) Internet Radio iPod Connectivity with DS-10 3 In / 2 Out Composite Video

Dimensions & Weight
Dimensions	17.13" x 5.55" x 12.99" (W x H x D)
Weight	20.3 lbs.

Additional Information
First Listed on Newegg	April 18, 2012

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.
