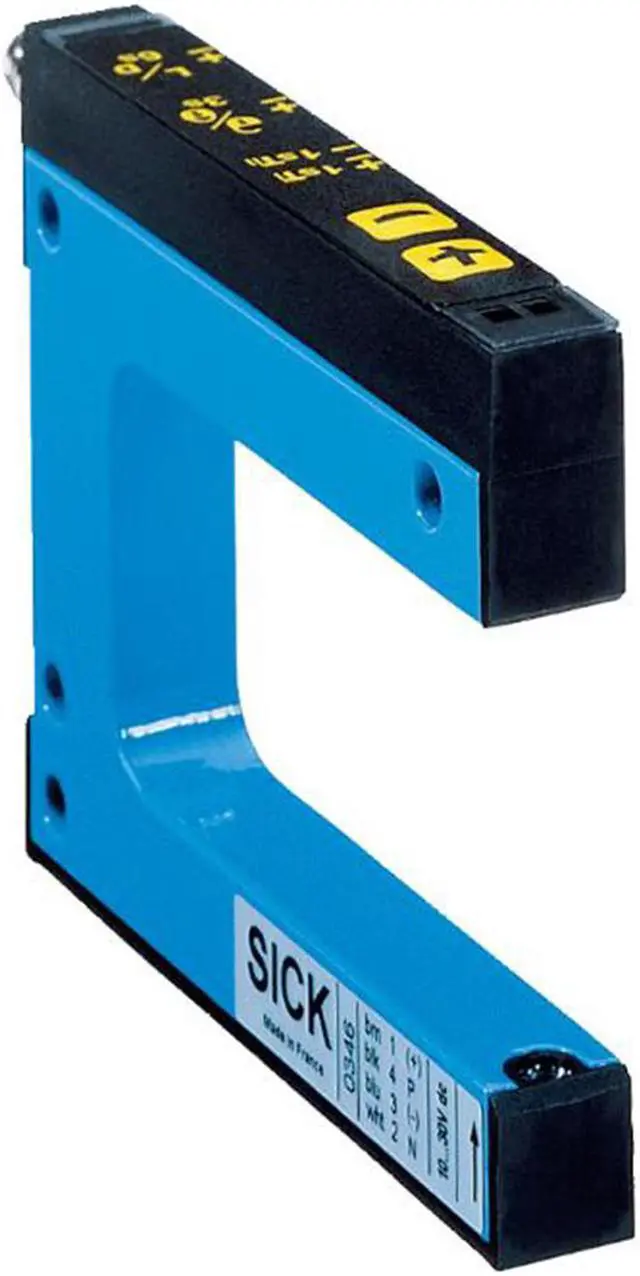

SICK WF5-60B416 Optical Detection Principle ,NPN ,PNP,New

FEATURES
Functional principle Optical detection principle

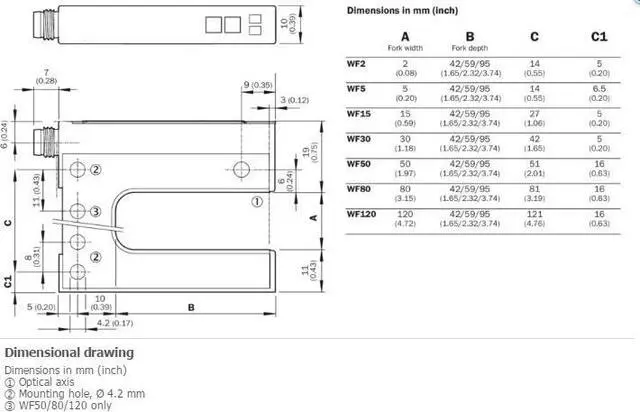

Dimensions (W x H x D) 10 mm x 35 mm x 74 mm
Housing design (light emission) Fork shaped
Fork width 5 mm
Fork depth 59 mm
Minimum detectable object (MDO) 0.2 mm
Light source LED, Infrared light
Adjustment Plus/minus button (Teach-in, sensitivity, light/dark switching, key lock)
Teach-in mode 2-point teach-in
Output function Light/darkswitching, selectable via button

MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple < 10 % 2)
Switching frequency 10 kHz 3)
Response time 100 µs
Stability of response time ± 20 µs
Jitter 40 µs
Switching output PNP/NPN
Switching output (voltage)
PNP: HIGH = VS– = 2 V / LOW approx. 0 V
NPN: HIGH = approx. VS / LOW = 2 V
Switching output Light/dark switching
Output current Imax. 100 mA
Connection type Male connector M8, 4-pin
Ambient light immunity Sunlight: = 10,000 lx
Protection class III 4)
Circuit protection
UV connections, reverse polarity protected
Output Q short-circuit protected
Interference pulse suppression
Enclosure rating IP65
Weight Approx. 36 g ... 160 g 5)
Housing material Aluminum
