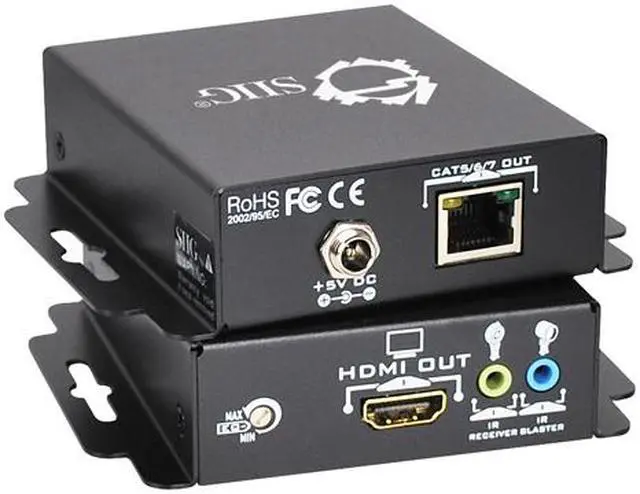

SIIG HDMI Extender over Single CAT5/6 with 3DTV & Bi-Directional IR Support CE-H20M11-S1

Be the first to review this product...

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

SIIG's HDMI Extender over Single CAT5/6 with 3DTV & Bi-Directional IR Support is designed to boost audio/video transmission from HDMI source to HDMI display device over a cost-effective CAT5e/6 cable. It extends transmission distances of up to 60m (200ft) @1080i, 40m (130ft) @1080p with 24-bit, and 20m (65ft) @ 1080p with 36-bit HDTV formats. This HDMI extender features adjustable 8-level equalization control to minimize cable skew, uncompressed 7.1ch or stereo digital audio, and DTS-HD Master Audio and Dolby TrueHD Audio. This cost-effective HDMI Extender solution enables you to transmit high quality video and audio from DVD players, Blu-ray Disc player, PS3, PC, and more to a distant display device at minimal cost.

The HDMI Extender over Single CAT5/6 with 3DTV & Bi-Directional IR Support is fully compliant with HDMI 1.4a, HDCP 1.1, RoHS, and is backed by SIIG's limited 3-year warranty.

SIIG CE-H20M11-S1. Brand NewIncludes 3 Year Limited Warranty. . Product # CE-H20M11-S1. . SIIG's HDMI Extender over Single CAT5/6 with 3DTV & Bi-Directional IR Support is designed to boost audio/video transmission from HDMI source to HDMI display device over a cost-effective CAT5e/6 cable. It extends transmission distances of up to 60m (200ft) @1080i, 40m (130ft) @1080p with 24-bit, and 20m (65ft) @ 1080p with 36-bit HDTV formats. This HDMI extender features adjustable 8-level equalization control to minimize cable skew, uncompressed 7.1ch or stereo digital audio, and DTS-HD Master Audio and Dolby TrueHD Audio. This cost-effective HDMI Extender solution enables you to transmit high quality video and audio from DVD players, Blu-ray Disc player, PS3, PC, and more to a distant display device at minimal cost.The HDMI Extender over Single CAT5/6 with 3DTV & Bi-Directional IR Support is fully compliant with HDMI 1.4a, HDCP 1.1, RoHS, and is backed by SIIG's limited 3-year warranty.. . CE-H20M11-S1

Model
Brand	SIIG
Model	CE-H20M11-S1

Power
Power Supply	Input: 100-240VAC, 50/60 Hz Output: 5V DC, 2A

Specification
Specification	HDMI and HDCP 1.1 compliant 8-level equalization control to adjust cable skew Supports uncompressed 7.1-channel or stereo digital audio Video bandwidth: Single-link 225MHz (6.75Gb/s) Input TMDS signal: 1.2V (peak-to-peak) Input DDC signal: 5V (peak-to-peak, TTL) Supports full frequency IR signal from 20KHz to 60KHz Allows cascading Metal housing with wall mount design Power consumption: 3 Watts Transmitting unit (TX): Input: 1 x HDMI (Type A, 19-pin female) 1 x 3.5mm jack Output: 1 x RJ45 (WE/SS 8P8C with 2 LED indicators) 1 x 3.5mm jack Receiving unit (RX): Input: 1 x RJ45 (WE/SS 8P8C with 2 LED indicators) 1 x 3.5mm jack Output: 1 x HDMI (Type A, 19-pin female) 1 x 3.5mm jack Transmission: 720p/1080i (HD @ 24-bit): up to 200ft (CAT6) 1080p (full HD @ 24-bit): up to 130ft (CAT6) 1080p (full HD @ 36-bit): up to 65ft (CAT6) Environmental: - Operating temperature: 0 to 40 degrees C (32 to 104 degrees F) - Storage temperature: -20 to 60 degrees C (-4 to 140 degrees F) - Relative humidity: 20% to 90% RH (non-condensing) Certifications: FCC, CE, WEEE, RoHS

Feature
Feature	Extends HDMI signals up to 200ft over one CAT5/5e/6 cable Supports HDMI with 3D TV Supports Bi-Directional IR pass-through Supports DTS-HD and Dolby True HD high bit rate audio support HDMI and HDCP compliant

Dimensions & Weight
Dimensions	Transmitting unit (TX): Dimensions: 3.75" (W) x 4.15" (H) x 1.10" (D) Receiving unit (RX): Dimensions: 3.75" (W) x 4.15" (H) x 1.10" (D)
Weight	Transmitting unit (TX): Weight: 0.55 lbs Receiving unit (RX): Weight: 0.55 lbs

Package Contents
Package Content	HDMI Extender over Single CAT5/6 with 3DTV Support (TX & RX units) Power adapter 2 x IR cable modules (IR blaster & IR receiver) Installation kit User's manual

Additional Information
First Listed on Newegg	February 03, 2012
