SIIG CN2508 PCI SATA USB 2.0 +1394 +SATA +Ultra ATA combo card

Be the first to review this product...

1 internal Serial ATA port 1 internal Ultra ATA port Internal Connectors
Supports Serial ATA data transfer rate of 150MB/s (1.5Gb/s) and Ultra ATA data transfer rates up to 133MB/s

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Combo card design adds hi-speed USB 2.0, FireWire (1394a), SATA and Ultra ATA (Parallel ATA) interfaces into your computer at once

Supports various types of USB 2.0/1.1, FireWire (1394a), SATA and Ultra ATA devices including digital cameras, CD-ROMs/DVD-ROMs, printers, scanners, memory card reader/writers, PDAs, hubs, DV-camcorders, hard disk drives and more

Model
Brand	SIIG
Model	CN2508

Details
Type	SATA
Internal Connectors	1 internal Serial ATA port 1 internal Ultra ATA port
Interface	PCI
Transfer Rate	Supports Serial ATA data transfer rate of 150MB/s (1.5Gb/s) and Ultra ATA data transfer rates up to 133MB/s
Operating Systems Supported	Windows 98SE/ME/2000/XP

Features

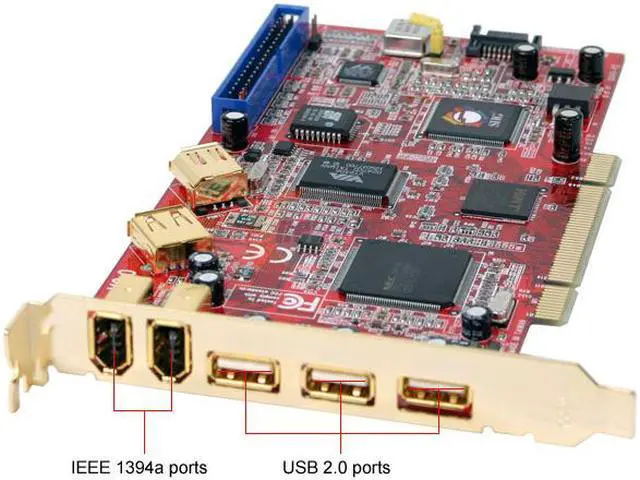

Features	Port type 1: 3 external and 1 internal USB 2.0 ports Port type 2: 2 external and 1 internal FireWire (1394a) ports USB 2.0 interface: Compliant with USB specification rev. 2.0 Four USB 2.0 ports support hi-speed (480Mbps), full-speed (12Mbps) and low-speed (1.5Mbps) data transfer modes for simultaneous operation of multiple USB 2.0/1.1 devices Works with USB 2.0/1.1 devices including hubs, PC video cameras, printers, CD-RW/DVD-ROMs, memory card reader/writers, USB flash drives, digital cameras and more FireWire (1394a) interface: Compliant with IEEE 1394-1995, P1394a-2000 and OHCI 1.1 standards Three FireWire (1394a) ports support multiple device connections for up to 63 devices Supports serial bus data transfer rates of 100, 200 and 400Mbps Works with FireWire (1394a) devices including hard drives, scanners, CD-RW/DVD-ROM drives, DV camcorders, removable drives and other audio/video devices such as set-top box Serial ATA and Ultra ATA interface: Compliant with Serial ATA Specification, revision 1.0 Breaks the 137GB barrier. Supports various brands of large capacity Serial ATA and Ultra ATA hard disk drives Provides two independent channels for connecting one Serial ATA hard drive and one Ultra ATA hard drive Supports Serial ATA data transfer rate of 150MB/s (1.5Gb/s) and Ultra ATA data transfer rates up to 133MB/s Backward compatible with existing Ultra ATA 133/100/66 hard disk drives Features independent 256-byte FIFOs per channel for host reads and writes Features Watch Dog timer for fault resiliency System Requirements: Pentium II or equivalent PC computer with one available PCI slot Windows 98SE/ME/2000/XP Recommended system for Digital Video creating/editing: Pentium II 400 MHz computer 64MB RAM and CD-ROM drive 1 GB of available hard disk space Video card with 4MB RAM Windows 98SE or later

Package Contents

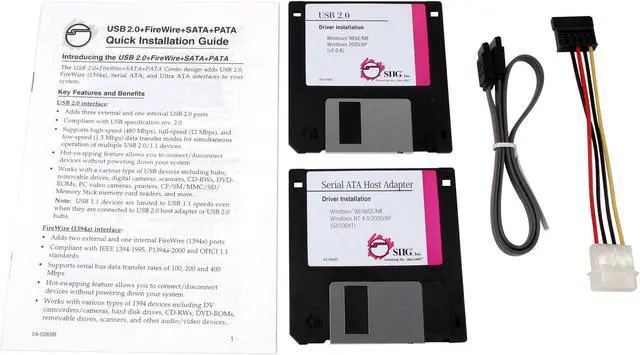

Package Contents	CN2508 User Manual 2 x Floppy Disk SATA Cable Power Cable

Additional Information
First Listed on Newegg	December 08, 2004
