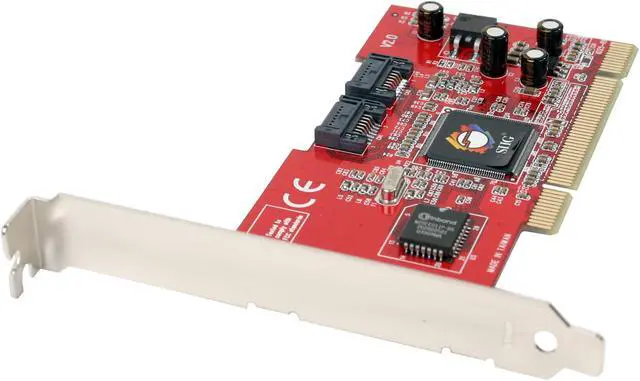

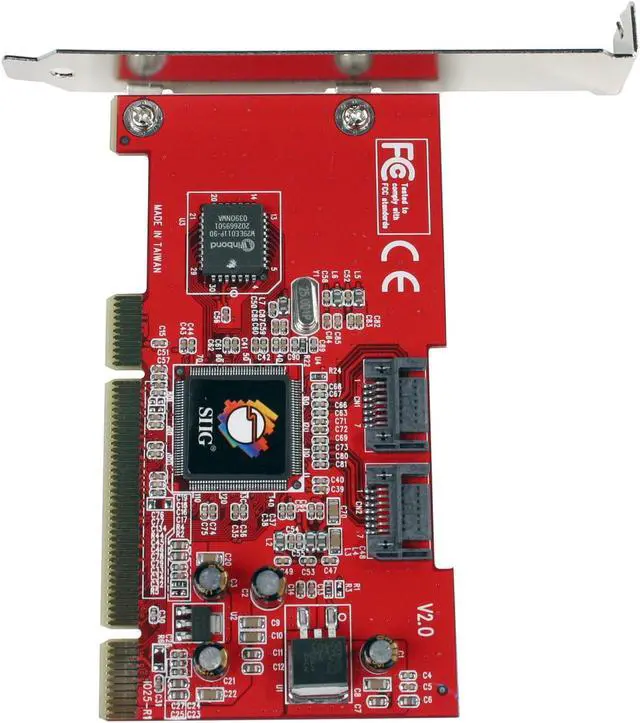

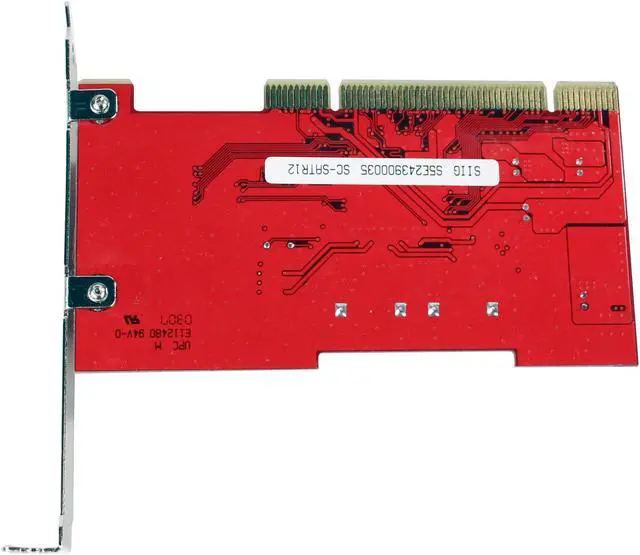

SIIG SC-SATR12 32-bit PCI SATA High-speed dual-channel PCI-to-Serial ATA RAID controller

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Supports RAID 0 (stripping) for performance and RAID 1 (mirroring) for reliability

The thin, flexible Serial ATA cable is easier to route inside a PC

Breaks the 137GB barrier! Supports various brands of large capacity Serial ATA hard disk drives

Model
Brand	SIIG
Model	SC-SATR12

Details
Type	SATA
Internal Connectors	2 x SATA 150
Interface	32-bit PCI
Transfer Rate	Up to 150 MB/s
RAID	RAID 0/1
Operating Systems Supported	Windows 98/98SE/ME/XP/NT4.0/2000

Features
Features	Compliant with Serial ATA Specification, revision 1.0 Compliant with PCI Specification, revision 2.2 Provides two independent channels to support up to two Serial ATA drives. Features independent 256-byte FIFOs per channel for host reads and writes Co-exists with on-board Ultra ATA controller Features Watch Dog timer for fault resiliency Supports 32-bit wide PCI bus at 66MHz Supports RAID 0 (stripe) and RAID 1 (mirror) modes Acts as a conventional Serial ATA hard disk controller when RAID is not configured Lower pin count and voltage requirement, plus better cabling over traditional Parallel ATA make Serial ATA the controller of the future

Package Contents

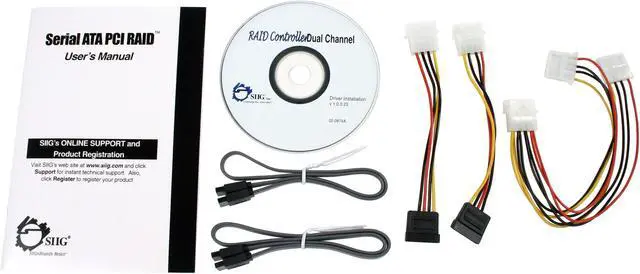

Package Contents	SC-SATR12 User Manual Driver Disk 2 x SATA Cable 3 x Power Cable

Additional Information
Date First Available	December 03, 2004
