FEATURES
- COMPACT ATX MID-TOWER

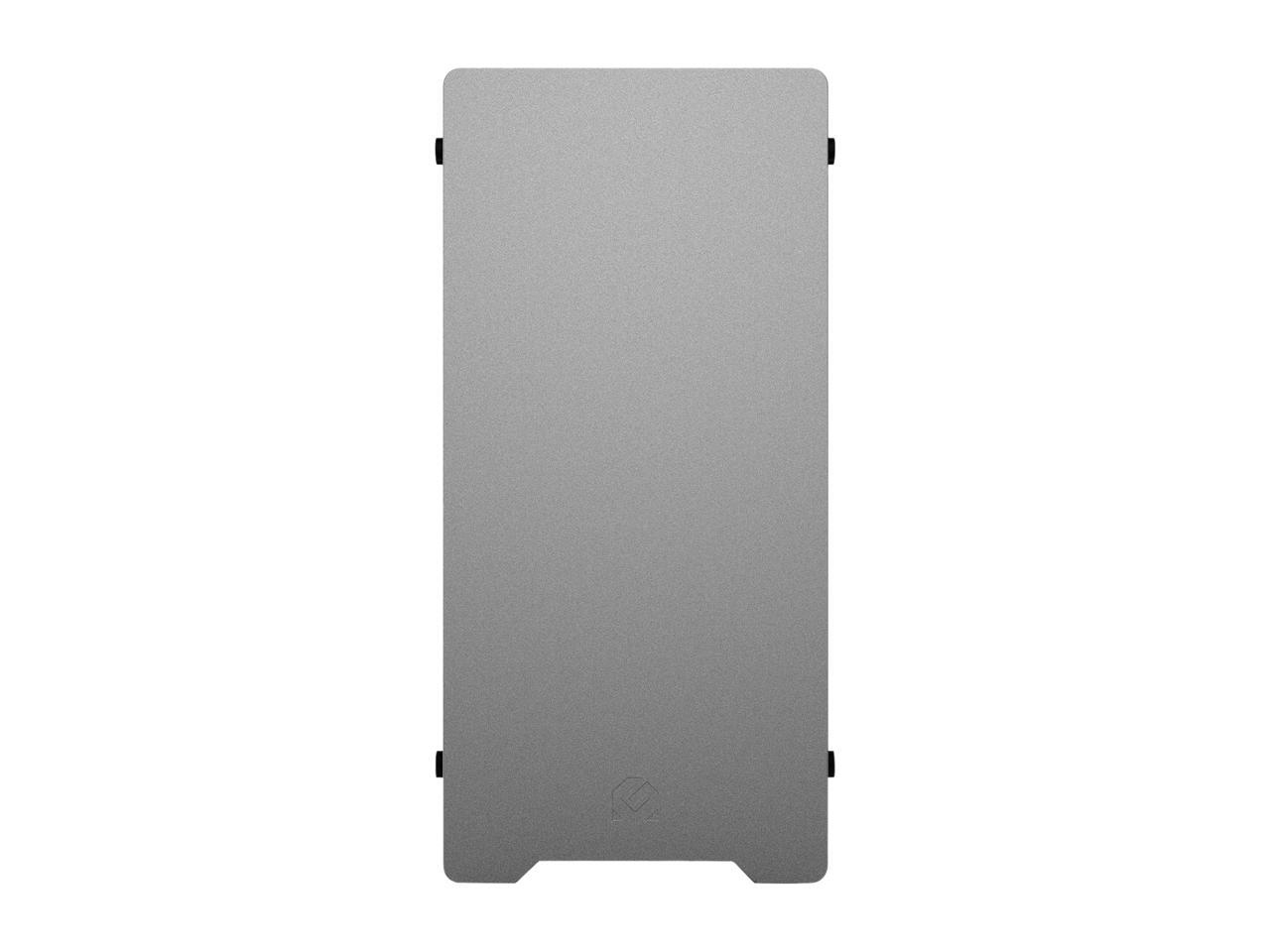

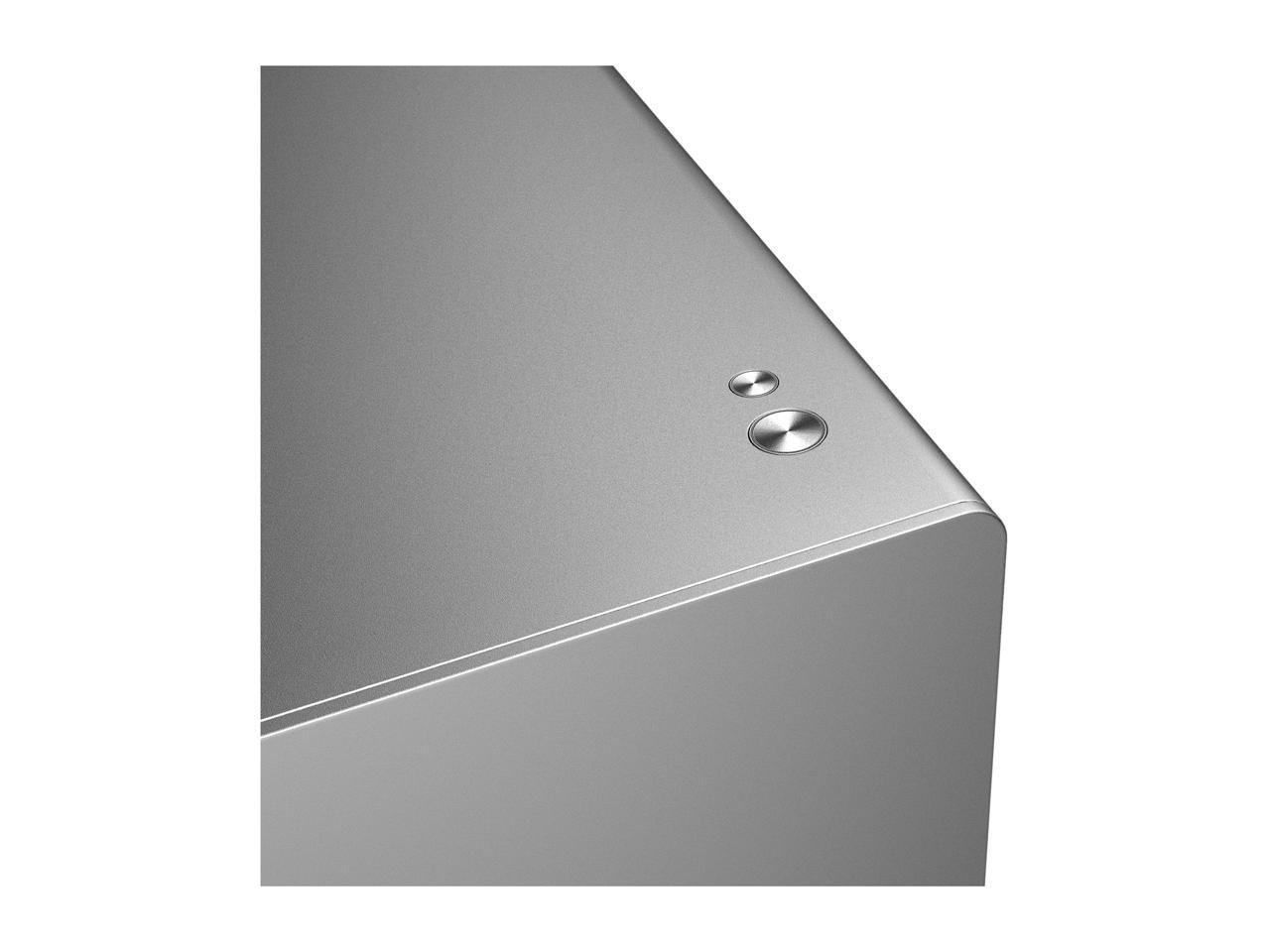

- SANDBLASTED ALUMINUM EXTERIOR

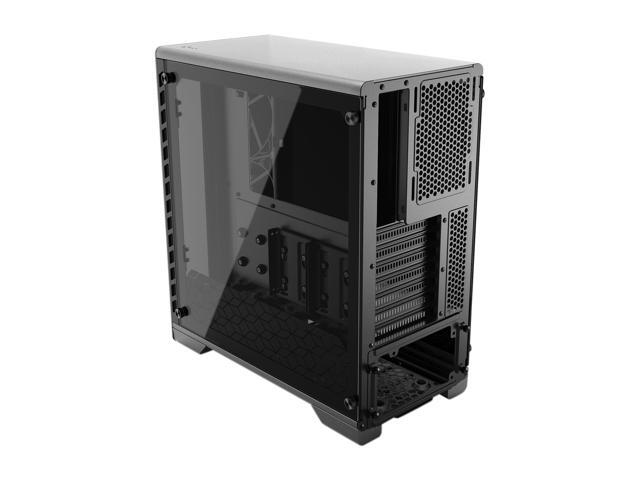

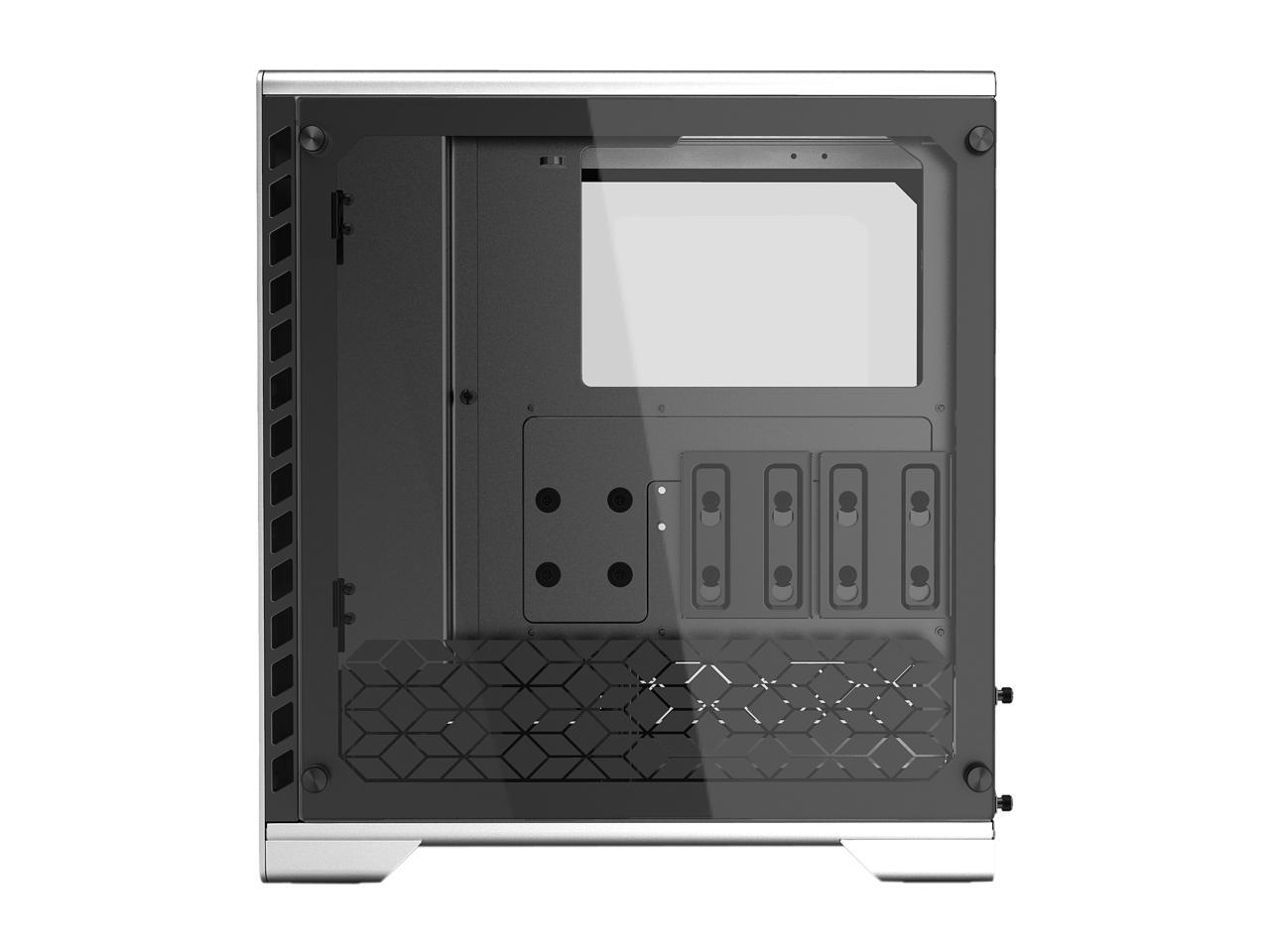

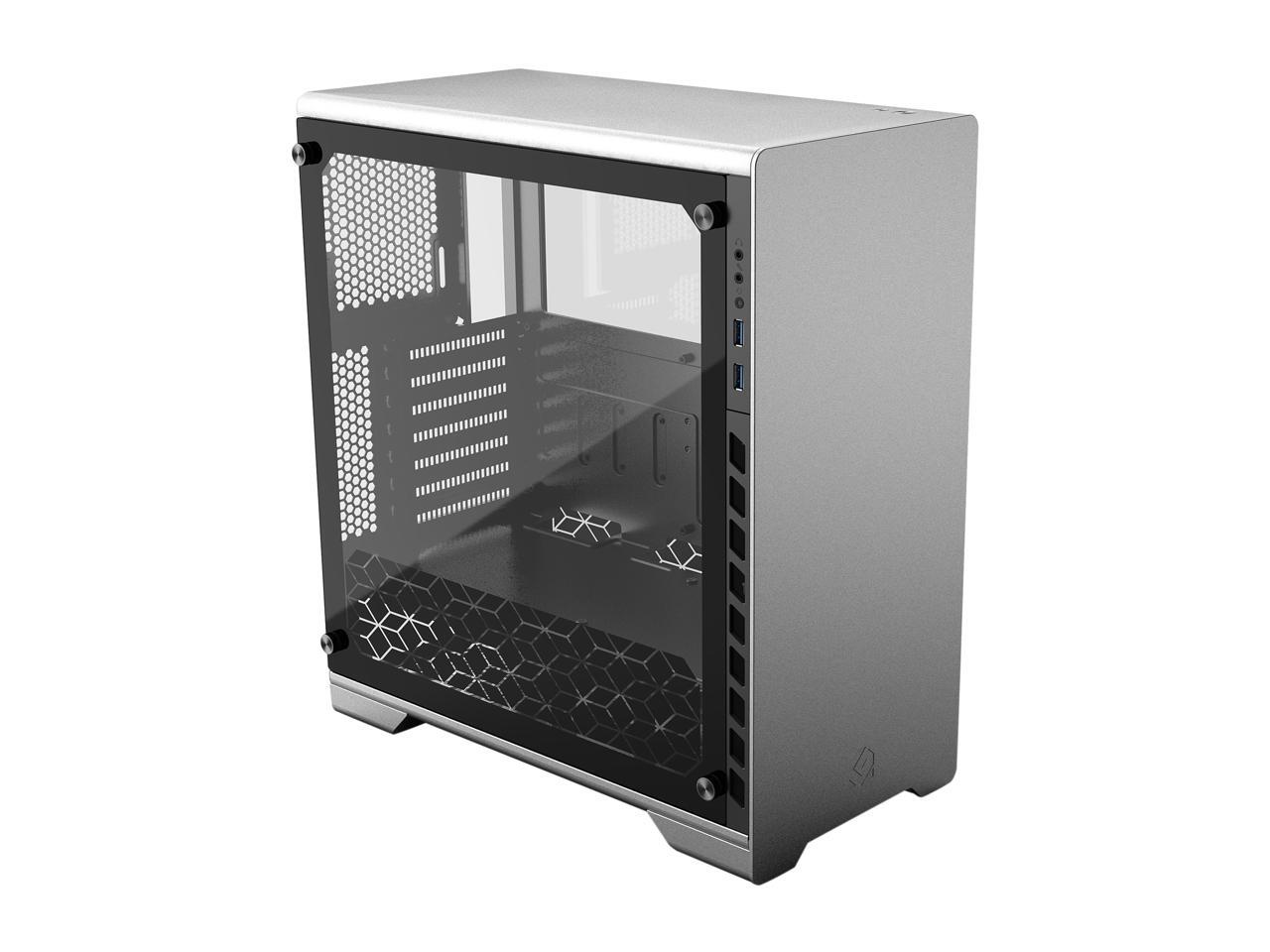

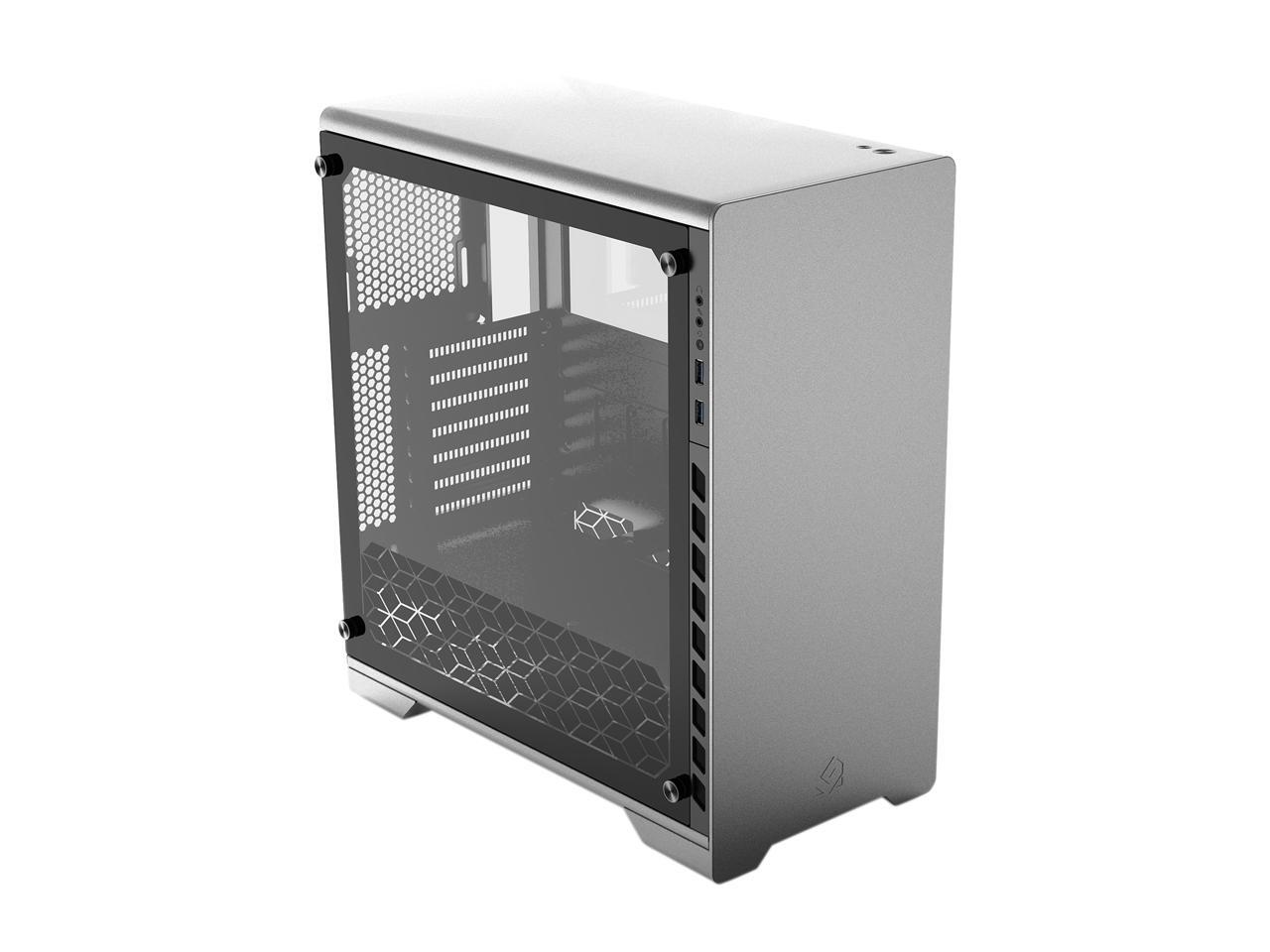

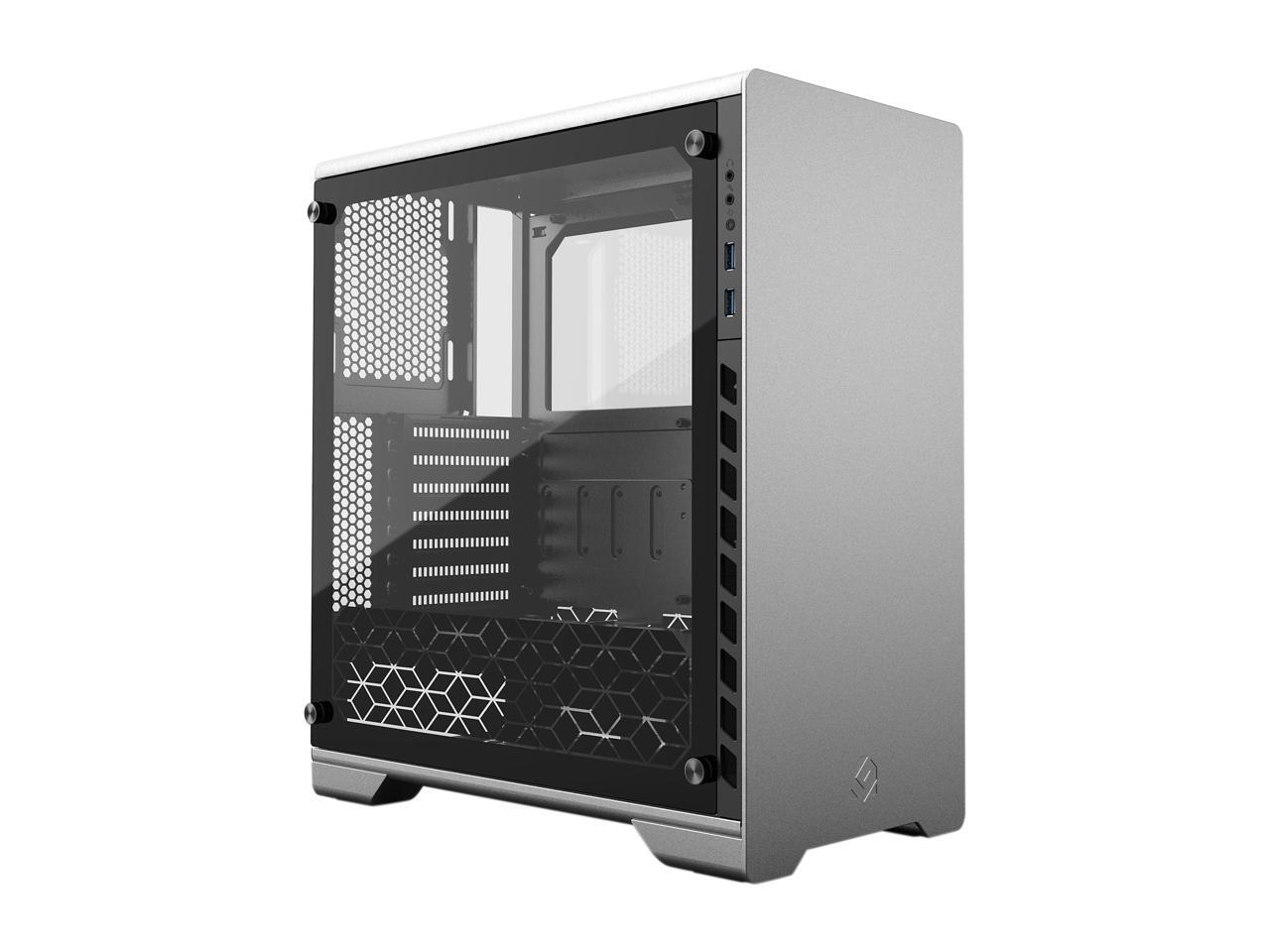

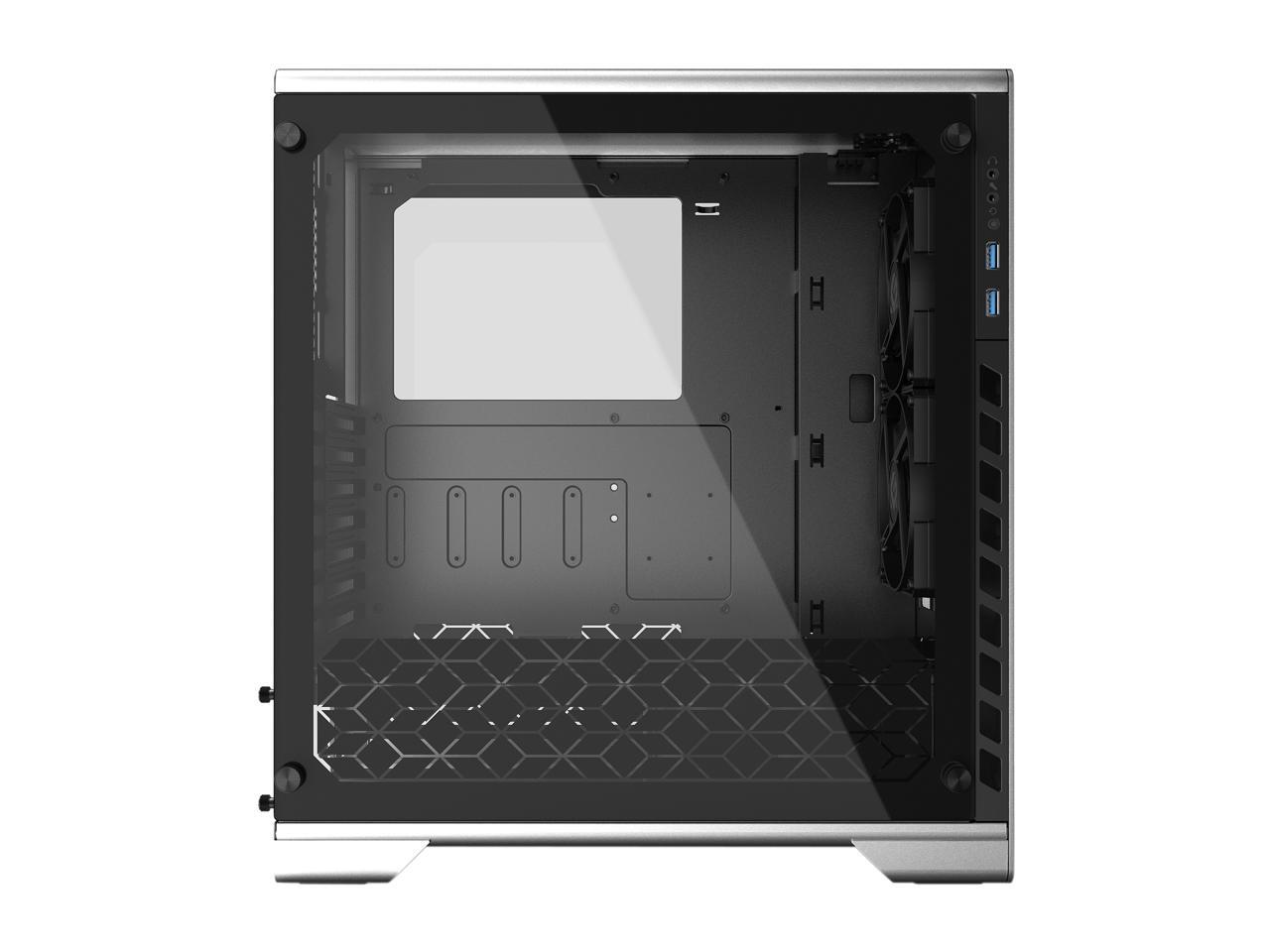

- DUAL TEMPERED GLASS SIDE PANELS
- CLEAN CABLE MANAGEMENT
- WATER-COOLING READY (UP TO 280 MM AIO)
- RGB LIGHTING INTEGRATION
COLORS

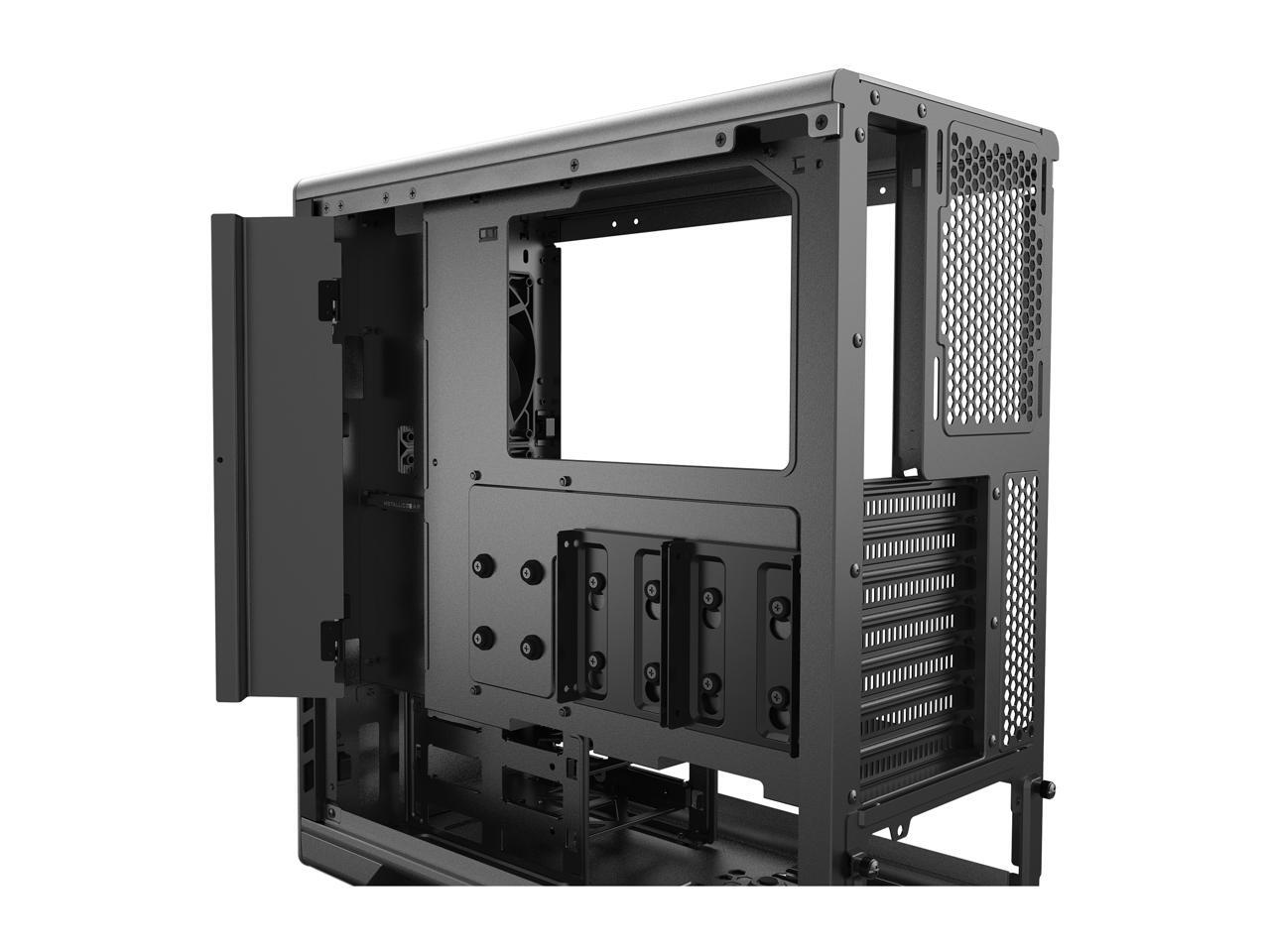

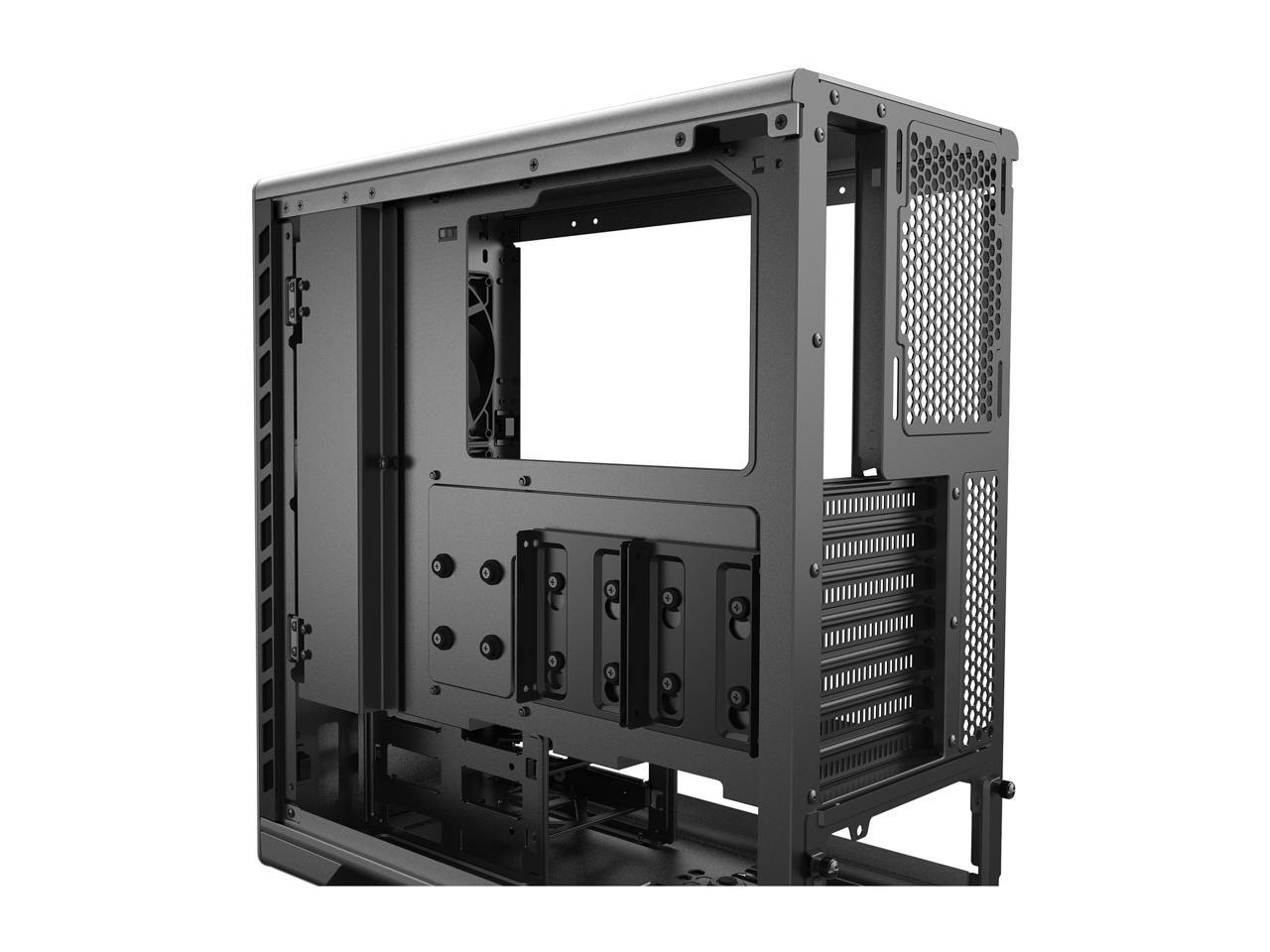

CLEAN CABLE MANAGEMENT
Cable management is easy with plenty of space and velcro straps. Closing the integrated cable cover keeps the interior and exterior clean and tidy.

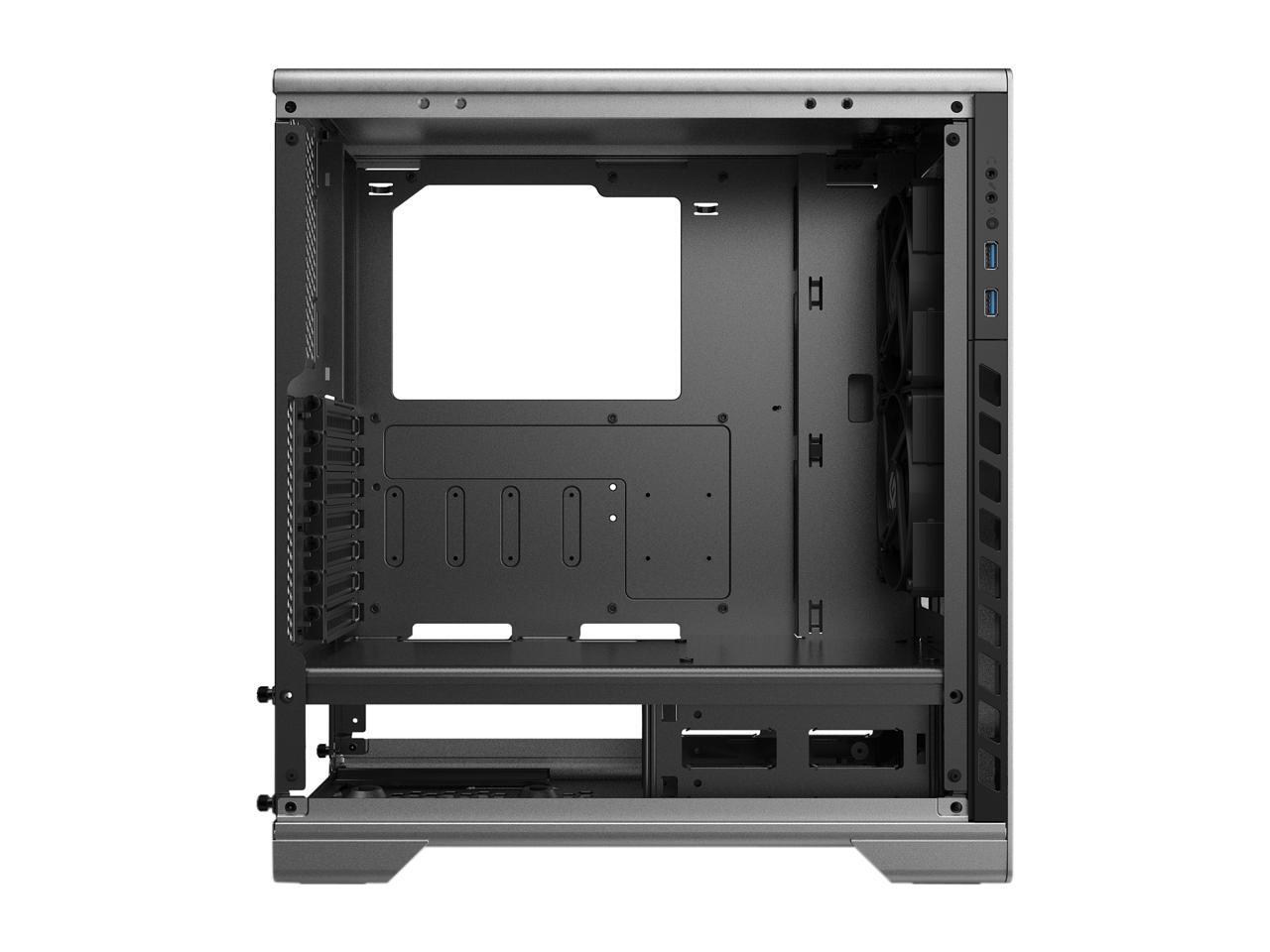

SPACE EFFICIENT DESIGN
While maintaining a compact mid-tower size, the NEO offers plenty of storage and full size hardware support thanks to its space efficient interior design.
| CASE SPECIFICATIONS | |||
| Dimension | 210 mm x 450 mm x 400 mm (W x H x D) 8.3 in x 17.7 in x 15.7 in |
||
| Form Factor | Mini-tower | ||
| Materials | Sandblasted Aluminum, Steel chassis, Tempered Glass | ||
| Motherboard Support | ATX, Micro-ATX, Mini ITX | ||
| Front I/O | 2x USB 3.0, Mic, Headphone, Reset Button, RGB LED SW | ||
| Side Window | Yes, Dual Tempered Glass | ||
| PCI SLOTS & DRIVE BAYS | |||

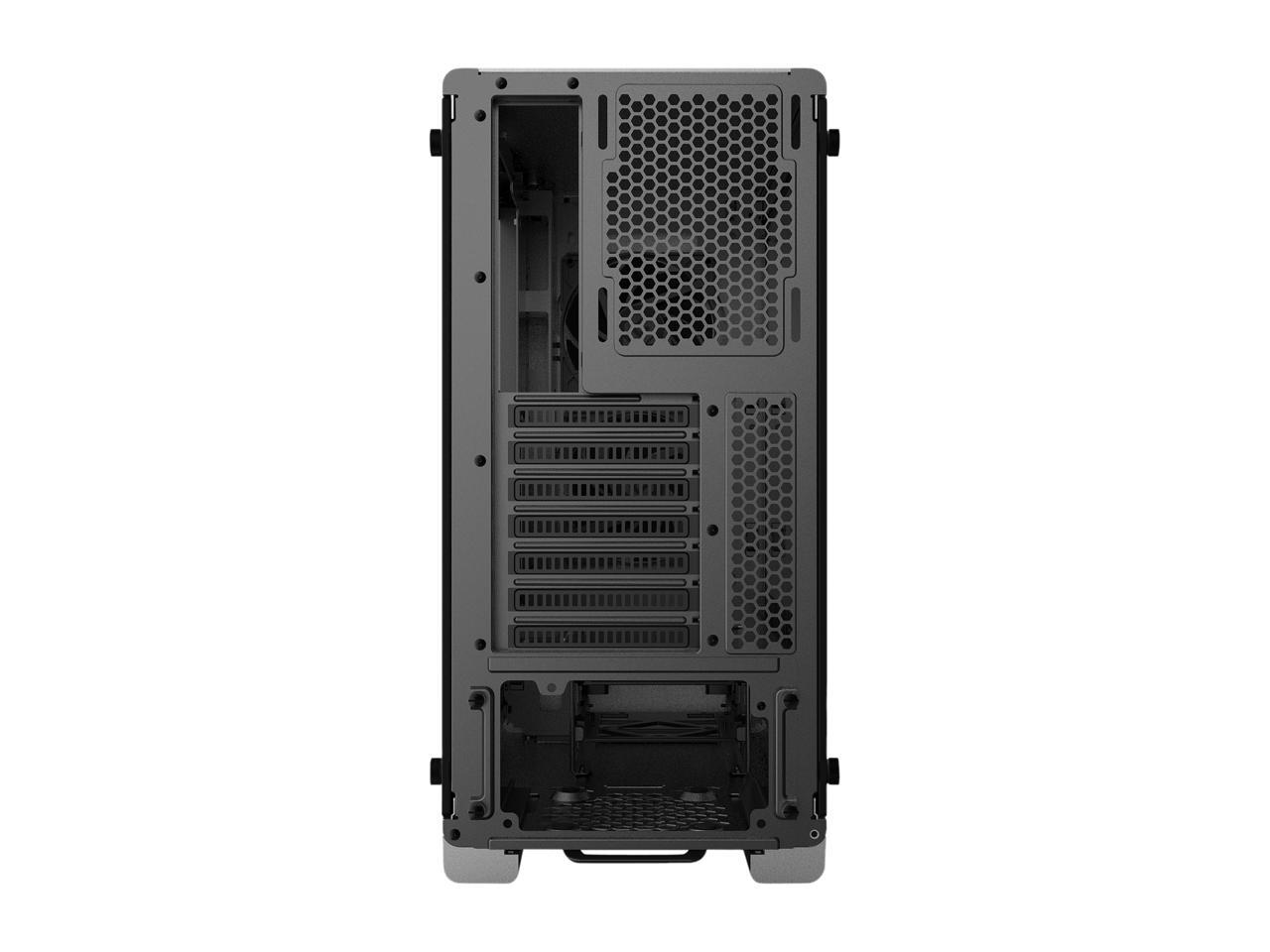

| PCI slots | 7x | ||

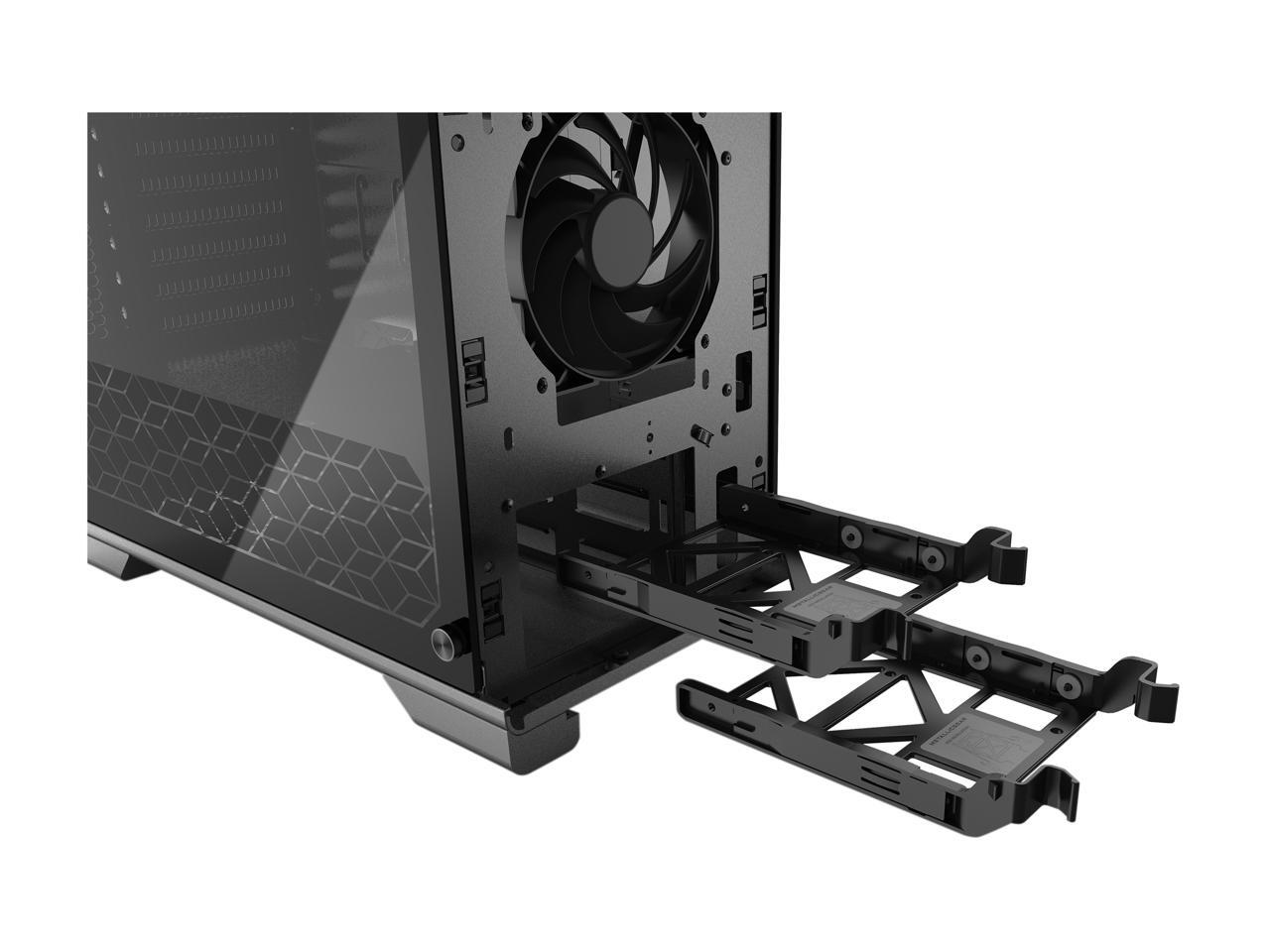

| Internal 3.5" | 2x (2 included) | ||
| Internal 2.5" | 2x (2 included) | ||
| FAN | 120mm fan | 140mm fan | |
| Front | 2x (1 included) | 2x | |
| Rear | 1x | - | |
| RADIATOR | 120mm radiator | 140mm radiator | |
| Front | Up to 240 | Up to 280 | |
| Rear | 120 | - | |
| INCLUDED ACCESSORIES | |||
| 120 mm Fan | 2x | ||
| 2.5" SSD Bracket | 2x | ||
| CLEARANCE | |||
| CPU Cooler | 170 mm (6.7 in) | ||
| Cable Management | 36 mm (1.4 in) | ||
| Graphics Card | 360 mm (12.6 in) | ||
| Power Supply (incl. cables) | 195 mm (8.5 in) | ||
| Packaging Information | |||
| Model | MG-NE510_BK01 MG-NE510_SR01 |
||
| Net Weight | 8 KG (17.6 lbs) | ||
| Gross Weight | 9 KG (19.8 lbs) | ||
| Package Dimension | 510 mm x 295 mm x 490 mm 20 in x 11.6 in x 19.3 in |
||
| Warranty | |||
| Length | 5 years* | ||

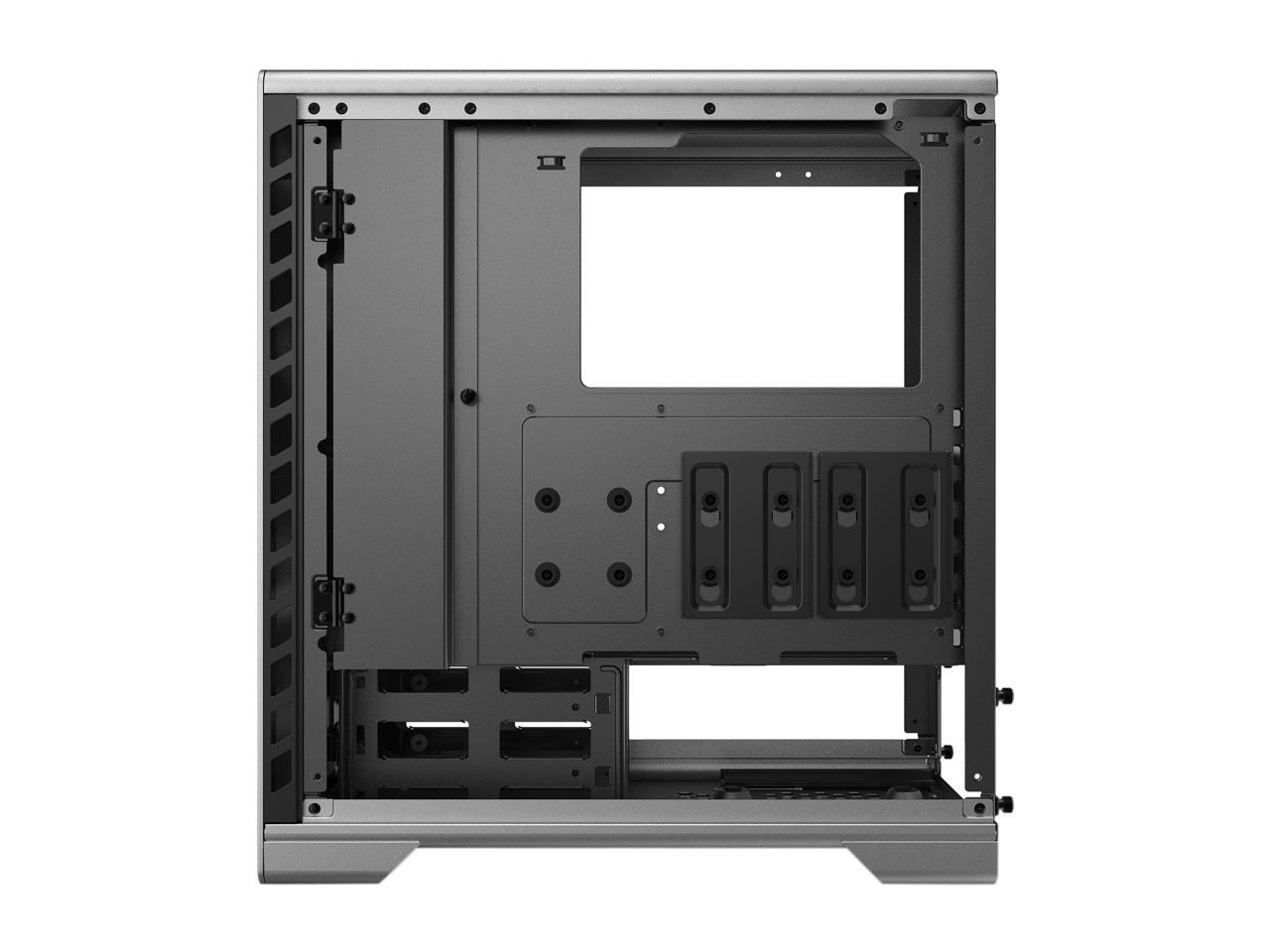

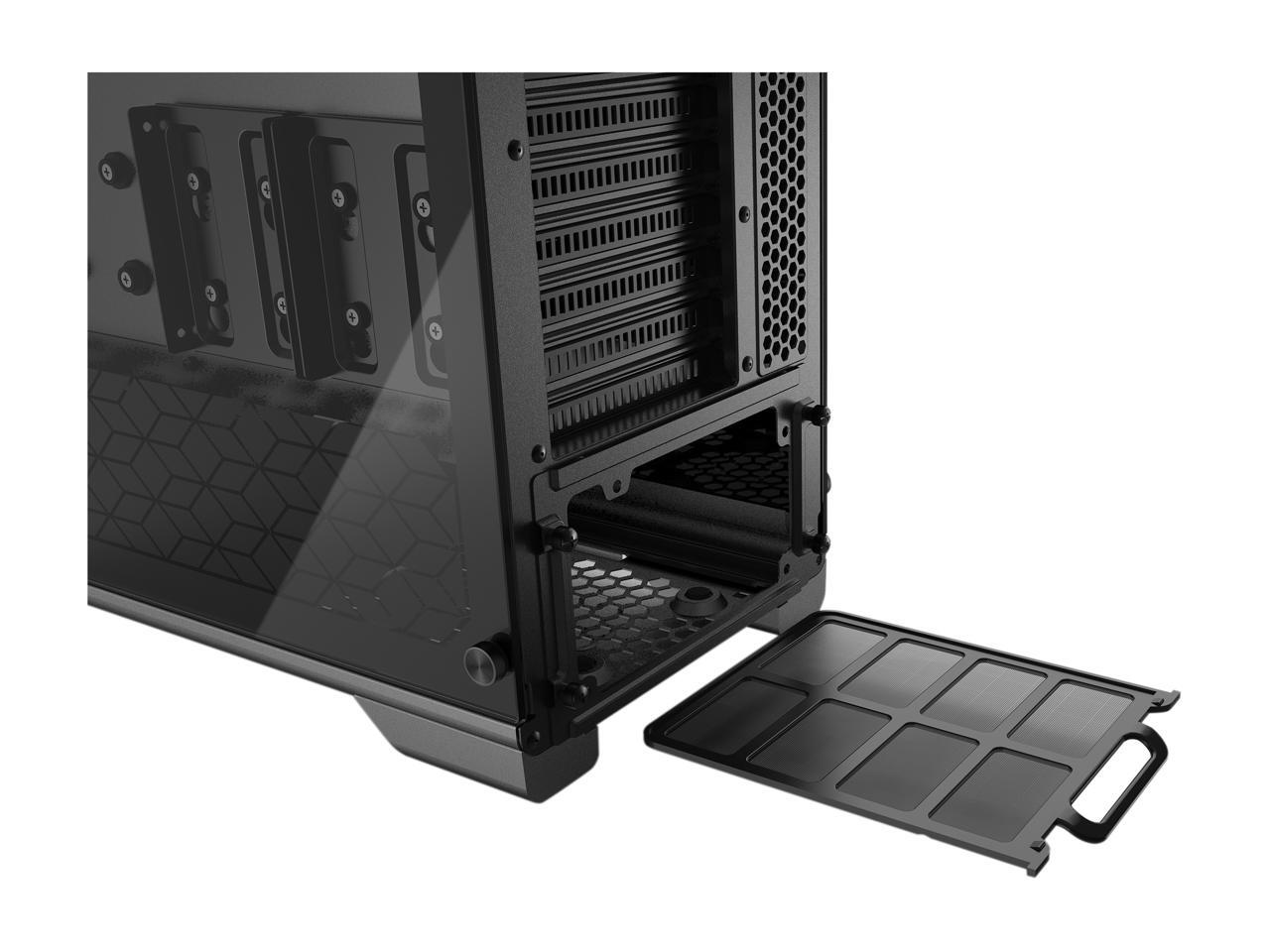

Pros: The case is very attractive. The panels are easy to remove so you have access to the back of the motherboard for cooler installations. The pattern hiding the power supply is genius. Most thumb screws were easy to remove without tools.
Cons: Cable management is TIGHT. The channels are barely big enough for just the power supply cable. As other reviewers have stated, the case would be excellent if it were just a bit wider.
Overall Review: - If you get this case, I recommend keeping the setup simple. Use M.2 drives if your motherboard supports them, and you'll gain some space around the SSD drive cage to zip-tie cables. - Most full-length graphics cards will fit, though you will not have enough space for a front 240mm radiator if your card is longer than 280mm. The radiator will still fit on the side with the longer graphics card, so it's not a big problem unless you were planning on using the area for a HDD. - There is an RGB LED at the front of the case, with a button on the side that controls it. It has a 12V connector, which will not work on 5V Addressable RGB connectors.
