SilverStone PS-ST1500-TI 1500 W ATX12V 80 PLUS TITANIUM Certified Active PFC Power Supply
- Top-level efficiency with 80 PLUS Titanium certification
- All Japanese capacitors

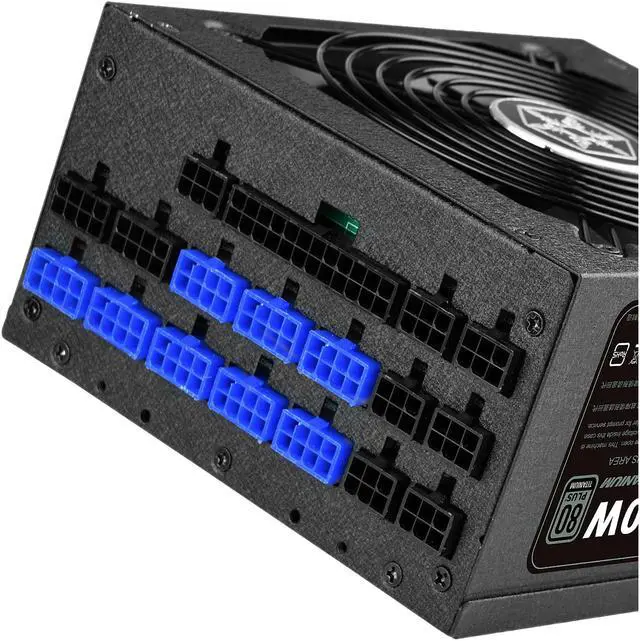

- 100% modular cables
- 24/7 continuous power output with 50 degree C operating temperature
- Class-leading single +12V rail
- Strict +/- 3% voltage regulation and low ripple & noise

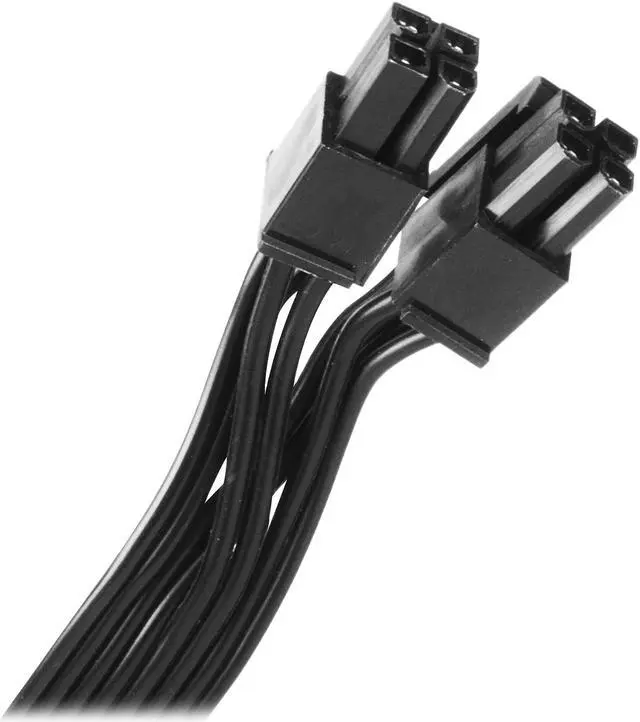

- Dual EPS 8pin with multiple PCI-E 8 / 6pin connectors support

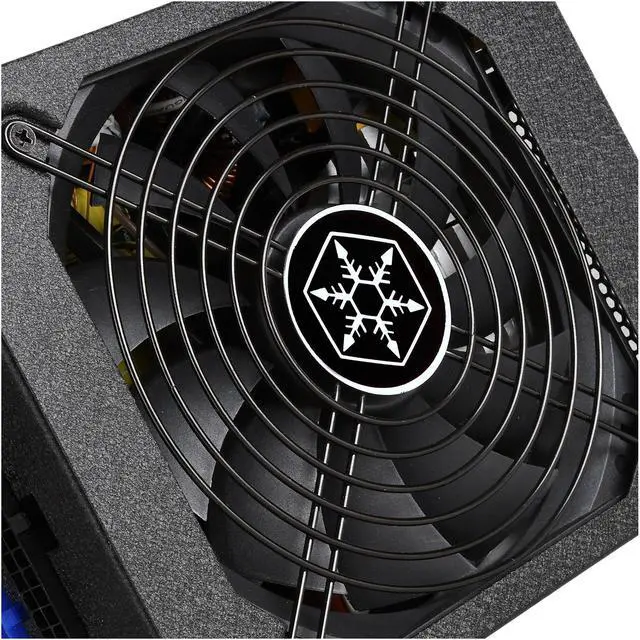

- Ultra silent 135mm fan with intelligent semi-fanless operation
+
+
Specs
Reviews (7)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Silverstone PS-ST1500-TI
| Brand | SilverStone |
|---|---|
| Model | PS-ST1500-TI |
| Type | ATX12V |
|---|---|
| Maximum Power | 1500 W |
| Fans | 1 x 135mm silent fan |
| PFC | Active |

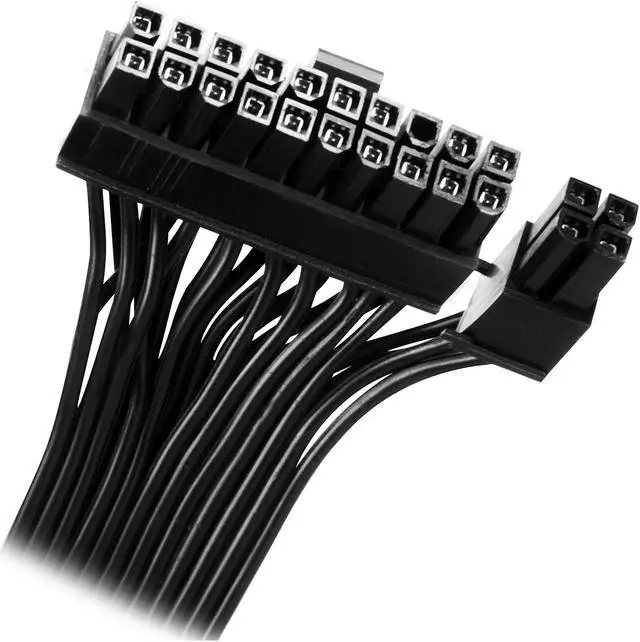

| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 8 x 6+2-Pin |
| SATA Power Connector | 16 |
| Max PSU Length | 180 mm |
| Efficiency | 90% ~ 94% at 10% ~ 100% loading |
| Energy-Efficient | 80 PLUS TITANIUM Certified |
| Over Voltage Protection | Yes |
| Overload Protection | Yes |
| Input Voltage | 90 - 264 V |
| Input Frequency Range | 47 - 63 Hz |
| Output | +3.3V@25A, +5V@22A, +12V1@125A, [email protected], [email protected] |
| MTBF | >100,000 Hours |
| Connectors | 1 x 24 / 20-Pin motherboard connector (550mm) 1 x 8 / 4-Pin EPS / ATX 12V connector (750mm) 1 x 8 / 4-Pin EPS / ATX 12V connector (550mm) 8 x 8 / 6-Pin PCIE connector (550mm x 8) 16 x SATA connector ("600mm / 150mm / 150mm / 150mm" x 4) 6 x 4-Pin Peripheral connector ("600mm / 150mm / 150mm" x 2) 1 x 4-Pin Floppy adapter connector (100mm) |
| Features | Top-level efficiency with 80 PLUS Titanium certification All Japanese capacitors 100% modular cables 24/7 continuous power output with 50 degree C operating temperature Class-leading single +12V rail Strict +/- 3% voltage regulation and low ripple & noise Dual EPS 8pin with multiple PCI-E 8 / 6pin connectors support Ultra silent 135mm fan with intelligent semi-fanless operation Operating temperature: 0 ~ 50 degree C |
|---|

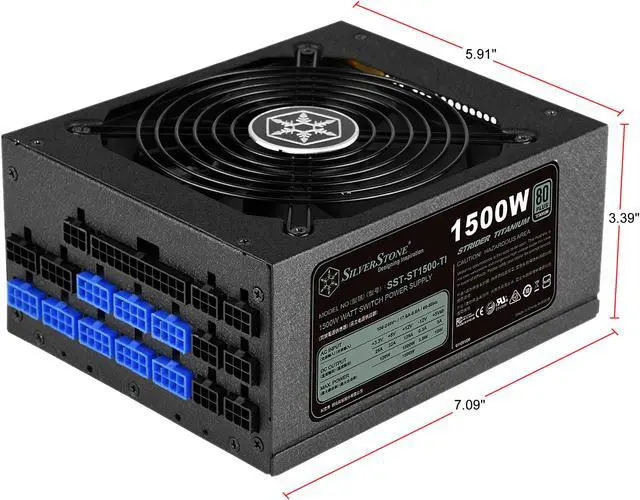

| Dimensions | 5.91" x 3.39" x 7.09" |
|---|---|
| Weight | 8.73 lbs. |
| Date First Available | August 15, 2017 |
|---|
