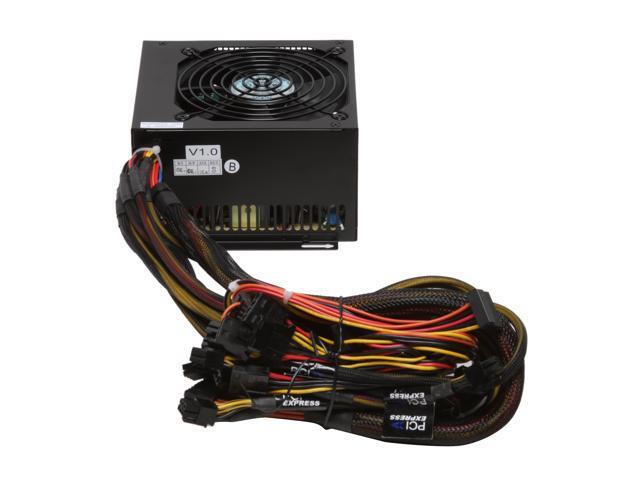

SilverStone ELEMENT ST60EF 600W ATX12V / EPS12V SLI Ready CrossFire Ready 80 PLUS BRONZE Certified Active PFC Power Supply
OUT OF STOCK.
- ATX12V / EPS12V
- 80 PLUS BRONZE Certified
- 100 - 240 V 47 - 63 Hz
- +3.3V@25A, +5V@30A, +12V1@32A, +12V2@32A, -12V@0.5A, +5VSB@3.0A
Specs
Reviews
Learn more about the Silverstone ST60EF
| Brand | SilverStone |
|---|---|
| Series | ELEMENT |
| Model | ST60EF |
| Type | ATX12V / EPS12V |
|---|---|
| Maximum Power | 600W |

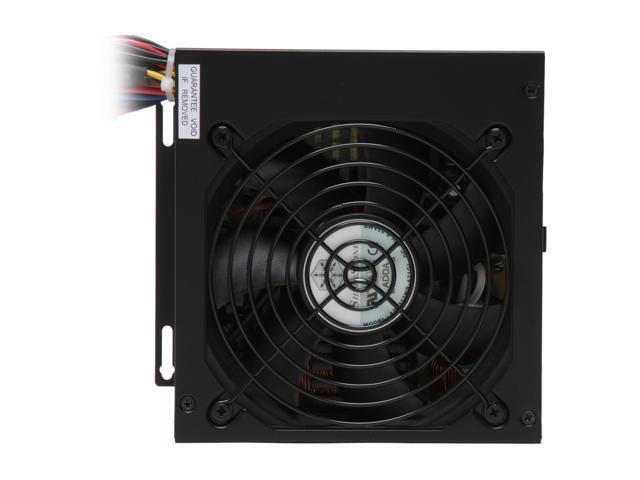

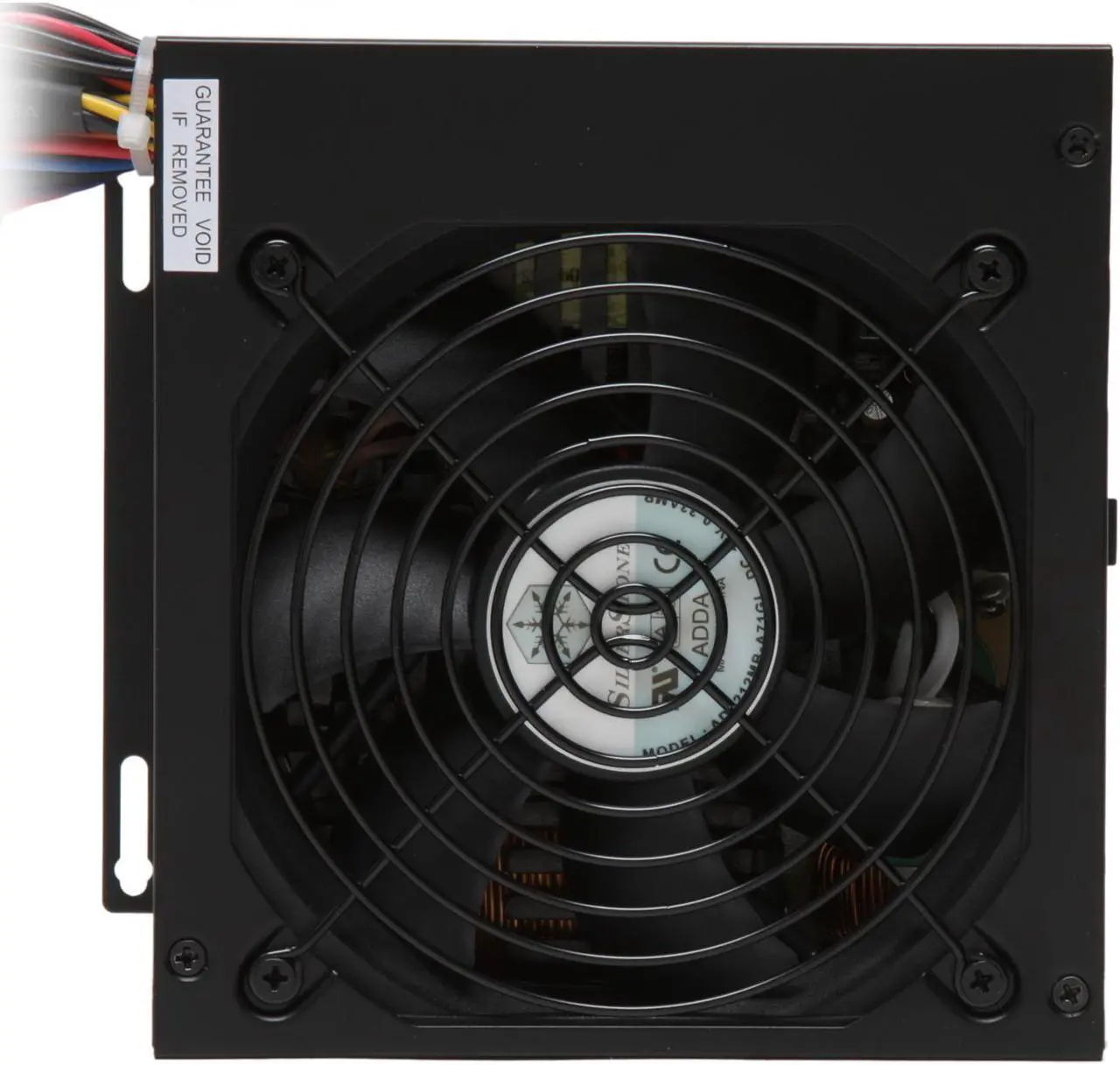

| Fans | Silent 120mm Fan With 19dBA |
| PFC | Active |
| Main Connector | 20+4Pin |
| +12V Rails | 2 |
| PCI-Express Connector | 4 x 6-Pin, 1 x 8-Pin |
| SLI | SLI Ready |
| CrossFire | CrossFire Ready |
| Modular | No |
| Efficiency | 81% ~ 87% Efficiency at 20% ~ 100% Loading |
| Energy-Efficient | 80 PLUS BRONZE Certified |
| Over Voltage Protection | Yes |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 47 - 63 Hz |
| Input Current | 10A @ 115V, 5A @ 230V |

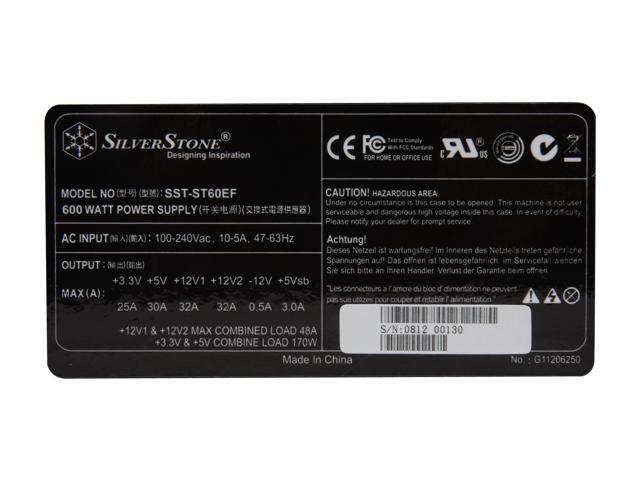

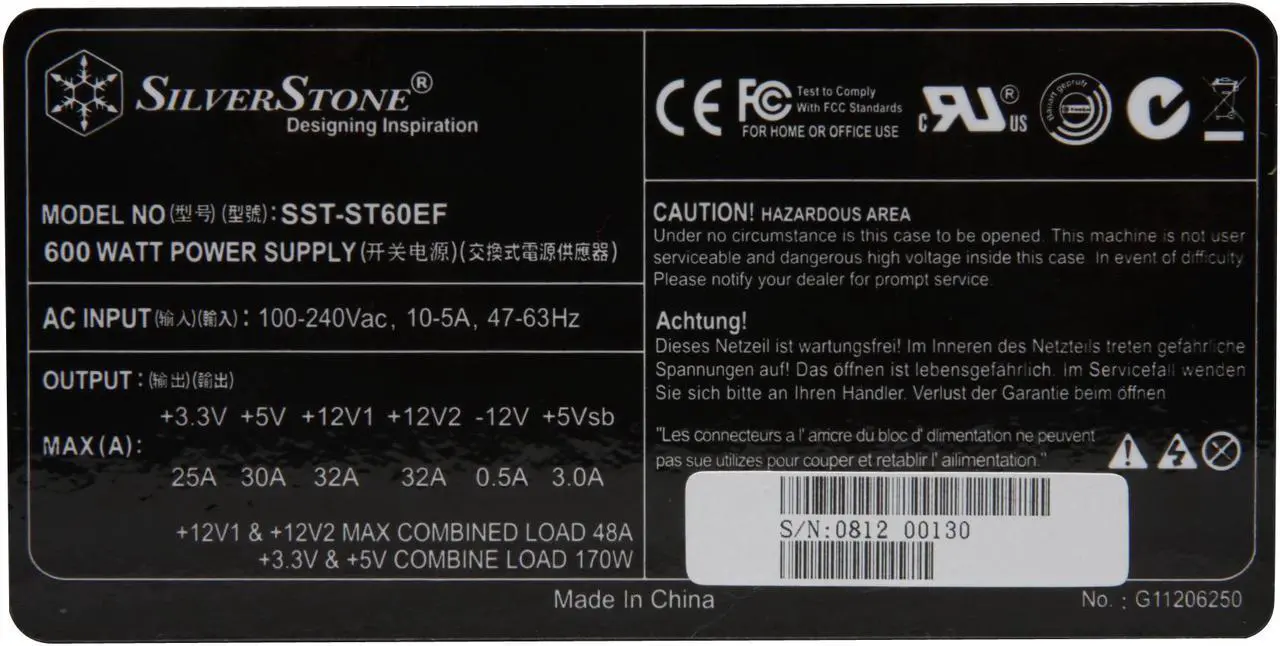

| Output | +3.3V@25A, +5V@30A, +12V1@32A, +12V2@32A, -12V@0.5A, +5VSB@3.0A |
| MTBF | >100,000 Hours |
| Approvals | RoHS, CE, cUL, FCC, TUV |

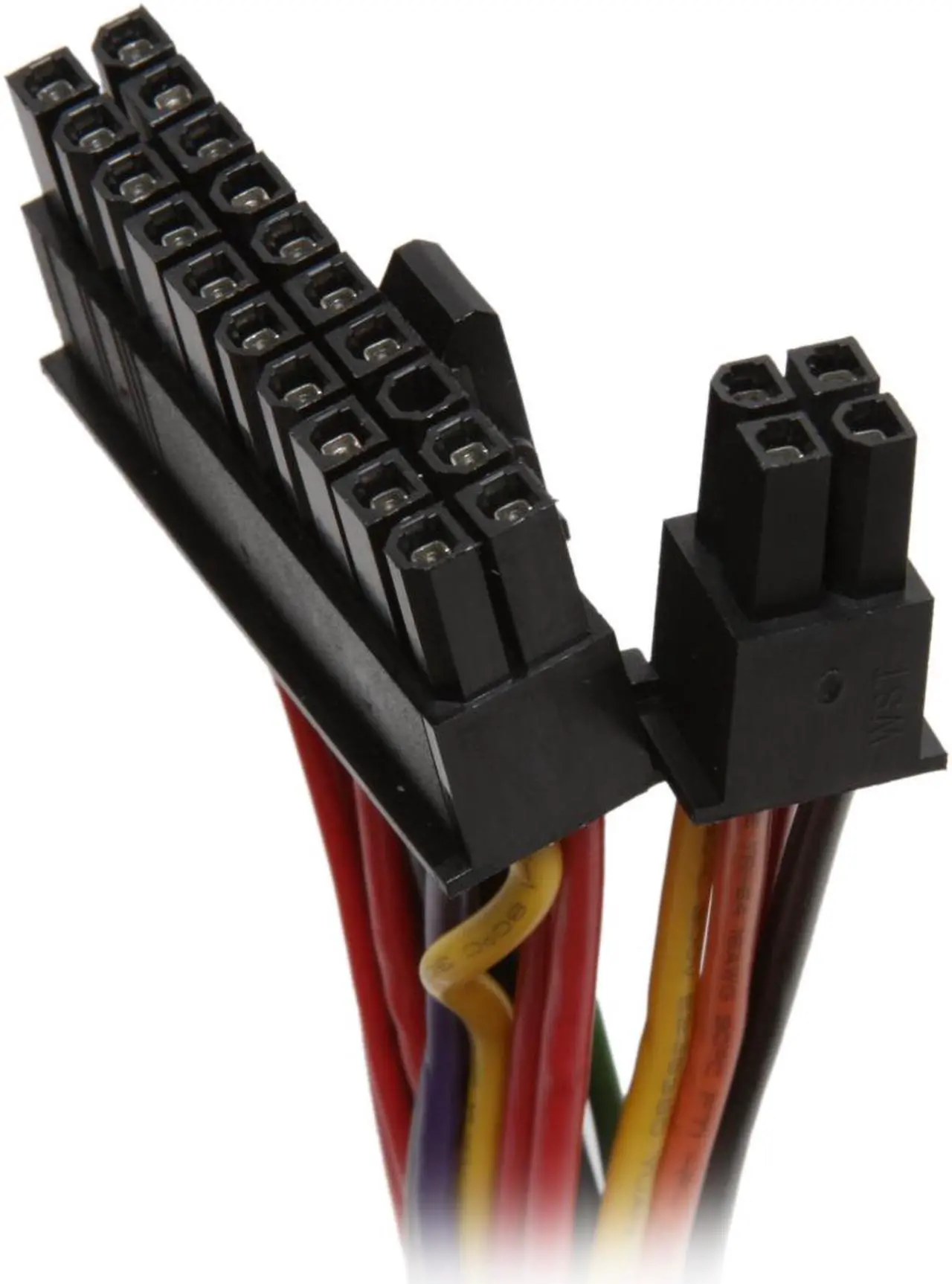

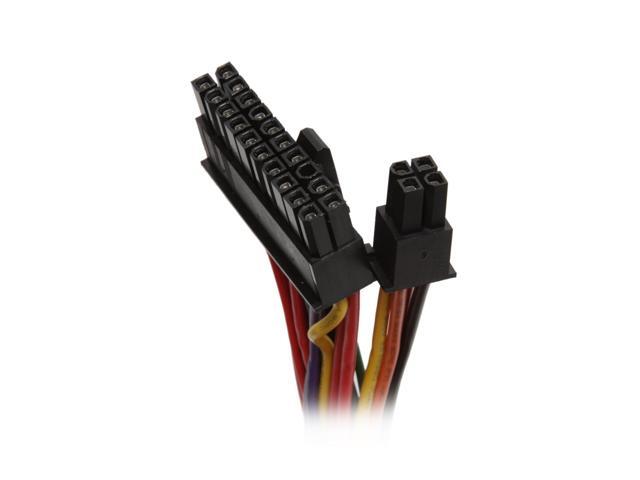

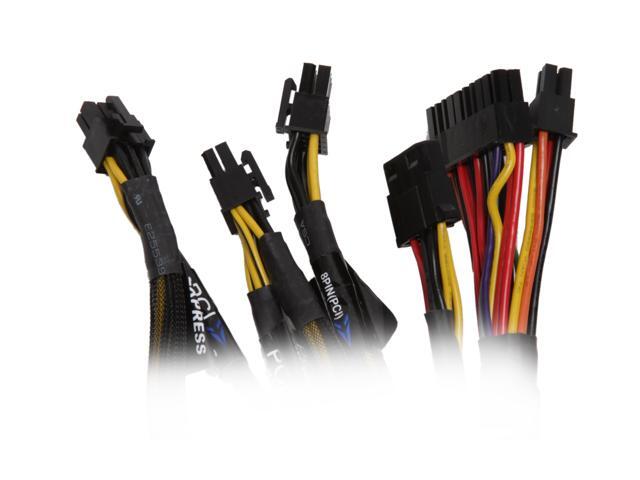

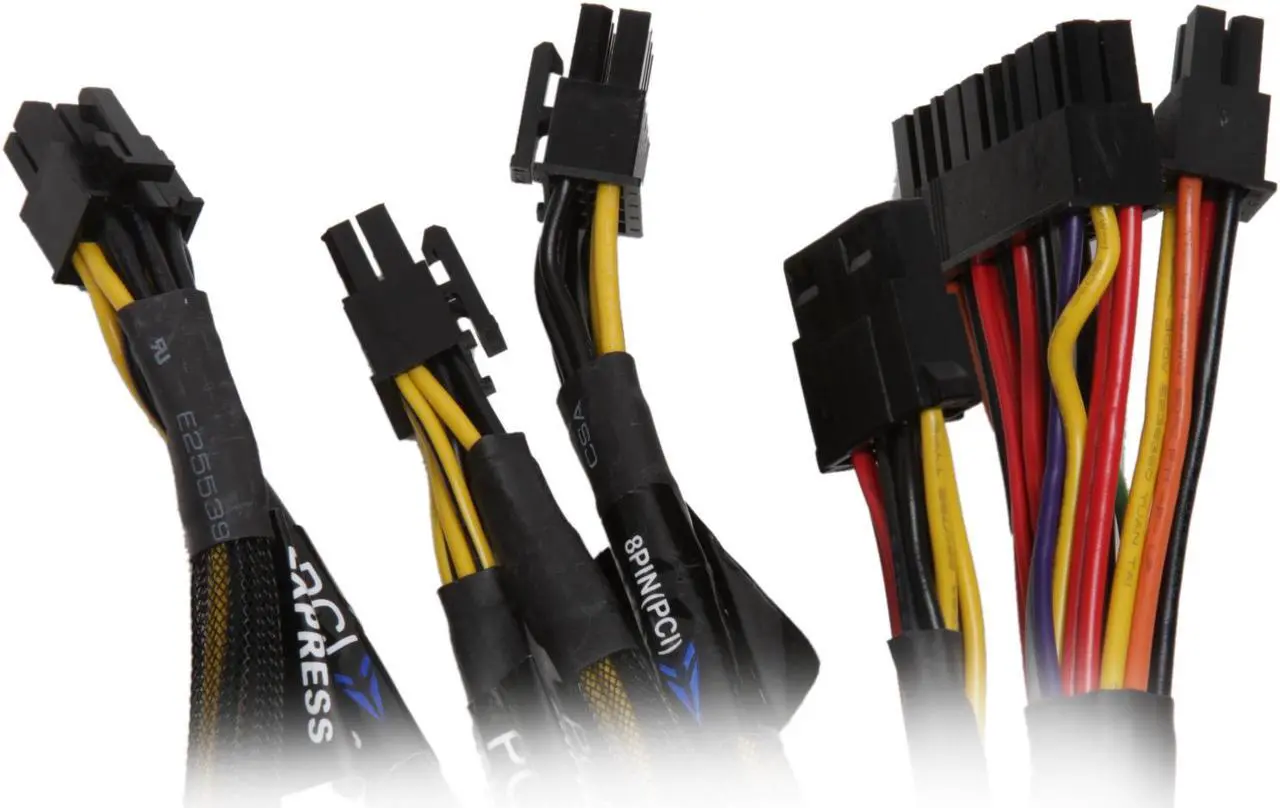

| Connectors | 1 x Main connector (20+4Pin) 1 x 12V(4/8Pin) 6 x peripheral 6 x SATA 2 x Floppy 4 x PCI-E 6Pin 1 x PCI-E 8Pin |
|---|---|
| Features | 81% ~ 87% Efficiency at 20% ~100% Loading. Silent Running 120mm Fan With 19dBA. 600W Continuous Power Output Rated. Dual +12V With Continuous 48A Combined Output. Quad PCI-E 6Pin, Single PCI-E 8Pin. |
| Date First Available | May 29, 2008 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's Standard Return Policy
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: +1-909-465-9596
- Support Email: usasupport@silverstonetek.com
- Support Website
- View other products from Silverstone
LOADING...
Pros: Provided adequate power for system to boot.
Cons: The fan or motor was broken and hitting on the inside of the PSU enclosure.
Overall Review: First time returning a product to Newegg, thank for making it painless.
