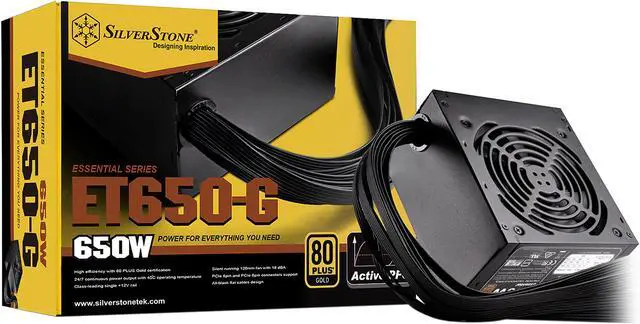

SilverStone Essential Series SST-ET650-G 650 W ATX 80 PLUS GOLD Certified Active PFC(PF > 0.90 at full load) PFC PFC 80 PLUS GOLD Certified 650W Compatible with ATX12V v2.4 Power Supply
- ATX
- 80 PLUS GOLD Certified
- 90 - 264 V 47 - 63 Hz
- Compatible with ATX12V v2.4
- 90 - 264 V
- 80 PLUS GOLD Certified
Specs
Reviews (1)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Silverstone SST-ET650-G
| Brand | SilverStone |
|---|---|
| Series | Essential Series |
| Model | SST-ET650-G |
| Type | ATX |
|---|---|
| Maximum Power | 650 W |

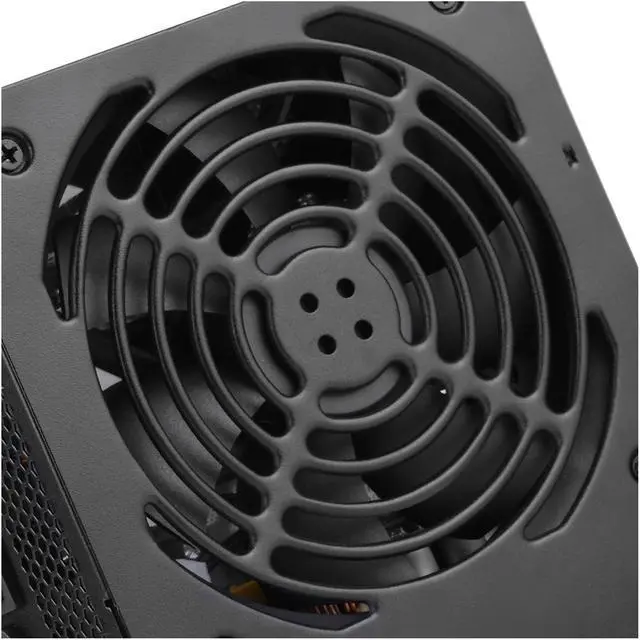

| Fans | Single 120 mm silent fan |
| PFC | Active PFC(PF > 0.90 at full load) |
| Main Connector | 1 x 24 / 20-Pin motherboard connector (500 mm) |
| +12V Rails | Class-leading single +12V rail |

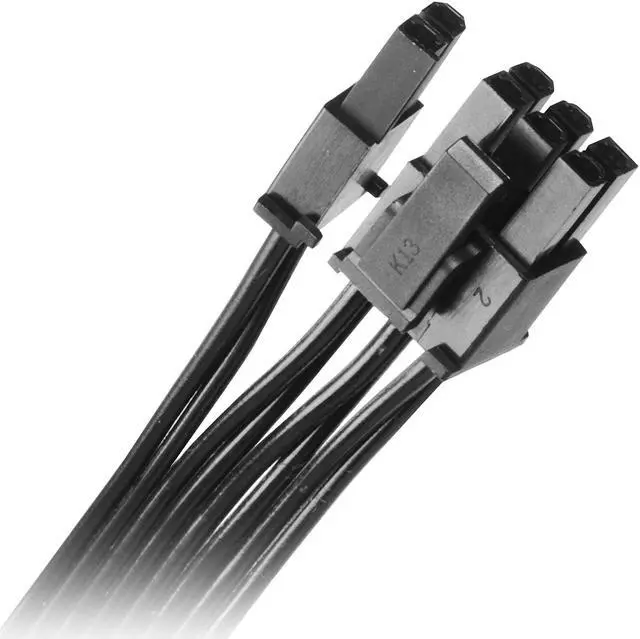

| PCI-Express Connector | 4 x 8 / 6-Pin PCIe connector ("500 mm / 150 mm" x 2) |

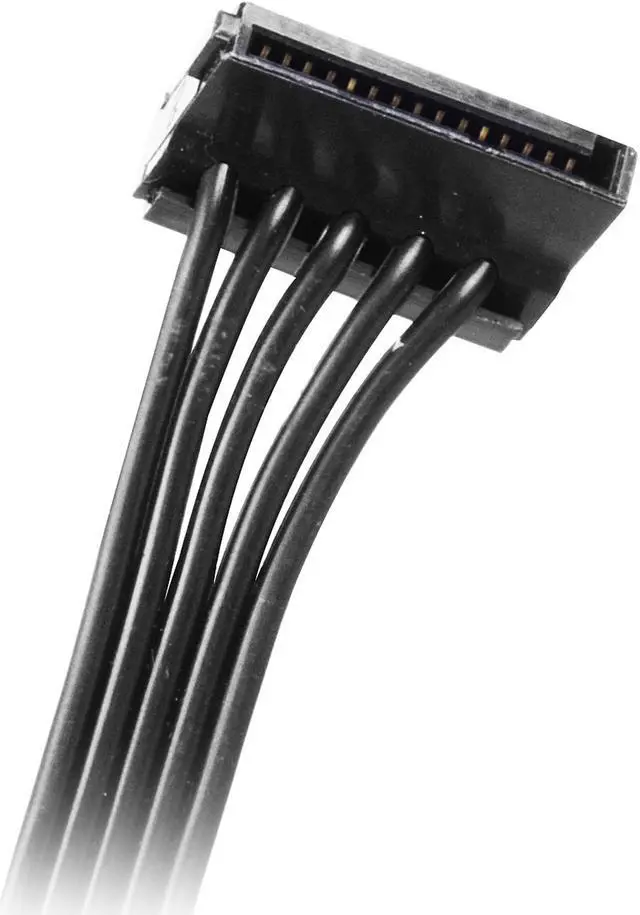

| SATA Power Connector | 8 x SATA connector ("500 mm / 150 mm / 150 mm / 150 mm" x 2) |
| Max PSU Length | 140 mm |
| Efficiency | > 85% |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Over Voltage Protection | Yes |

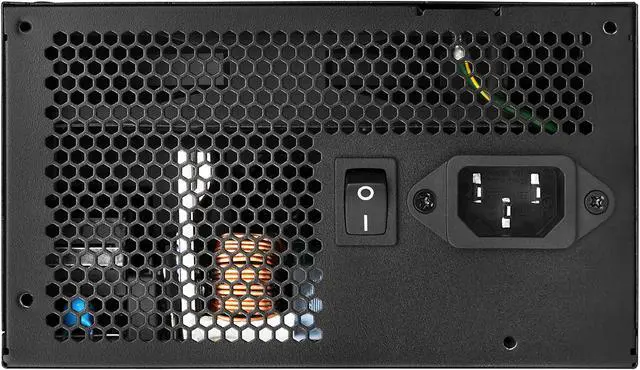

| Input Voltage | 90 - 264 V |
| Input Frequency Range | 47 - 63 Hz |
| MTBF | >100,000 Hours |

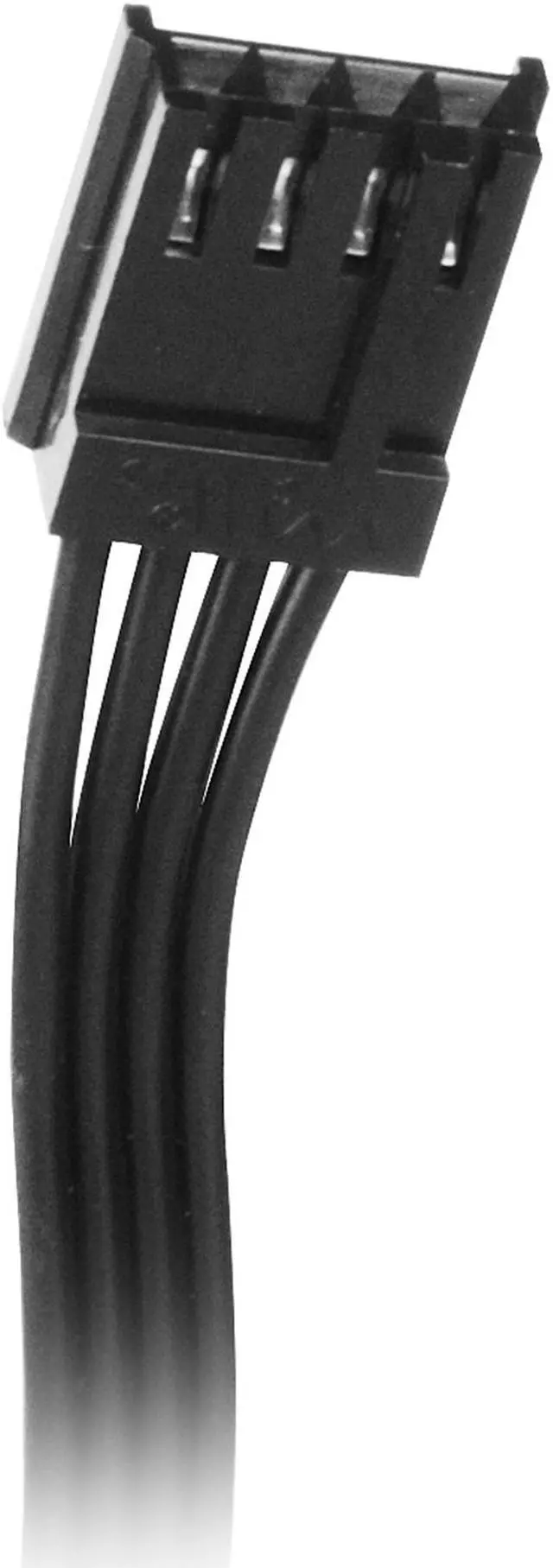

| Connectors | 1 x 24 / 20-Pin motherboard connector 1 x 8 / 4-Pin EPS / ATX 12V connector 4 x 8 / 6-Pin PCIe connector 8 x SATA connector 3 x 4-Pin Peripheral connector 1 x 4-Pin Floppy connector |

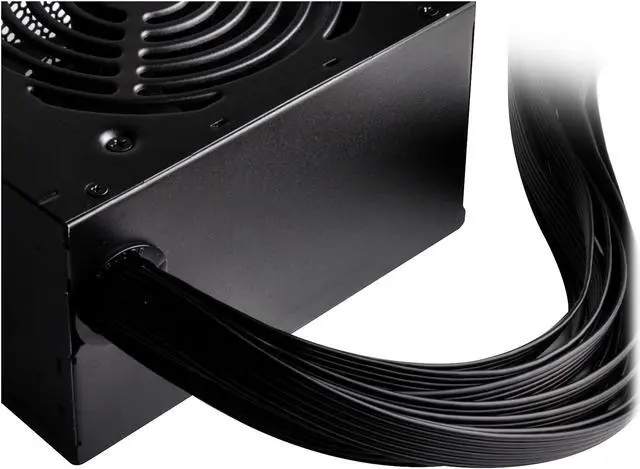

| Features | High efficiency with 80 PLUS Gold certification 24 / 7 continuous power output with 40? operating temperature Class-leading single +12V rail Silent running 120mm fan with 18 dBA PCIe 8pin and PCIe 6pin connectors support All-black flat cables design |
|---|
| Dimensions | 3.39" x 5.91" x 5.51" |
|---|---|
| Weight | 3.62 lbs. |
| Type | Compatible with ATX12V v2.4 |
|---|---|
| Power Rating | 650W |
| PFC | Active PFC(PF > 0.90 at full load) |
| +12V Rails | Class-leading single +12V rail |
| Efficiency | > 87% |
| Energy-Efficient | 80 PLUS GOLD Certified |
| MTBF | >100,000 Hours |
| Input Voltage | 90 - 264 V |
|---|---|
| Frequency Range | 47 - 63 Hz |

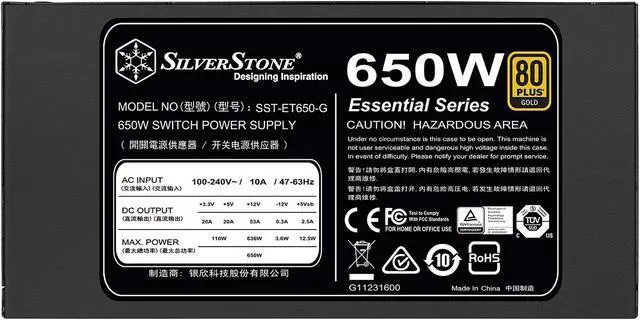

| +3.3V Max. Current | 20A |
|---|---|
| +5V Max. Current | 20A |
| +12V1 Max. Current | 53A |
| -12V Max. Current | 0.3A |
| +5VSB Max. Current | 2.5A |
| Main Connector | 1 x 24 / 20-Pin motherboard connector (500 mm) |
|---|---|

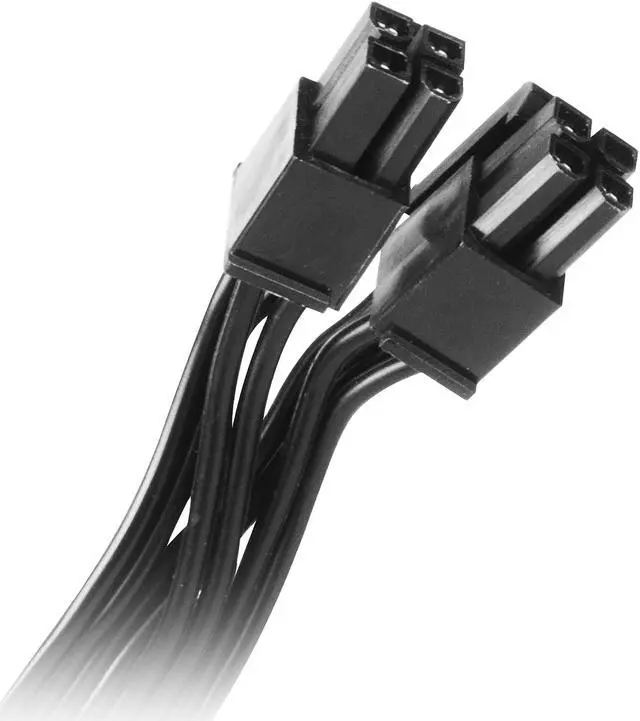

| 12V Power Connector | 1 x 8 / 4-Pin EPS / ATX 12V connector (750 mm) |
| PCI-Express Connector | 4 x 8 / 6-Pin PCIe connector ("500 mm / 150 mm" x 2) |
| SATA Power Connector | 8 x SATA connector ("500 mm / 150 mm / 150 mm / 150 mm" x 2) |
| Top Fans Size | Single 120mm silent fan |
|---|
| Over Voltage Protection | Yes |
|---|---|
| Short Circuit Protection | Yes |
| Over Current Protection | Yes |
| Over Power Protection | Yes |
| Over Temperature Protection | Yes |

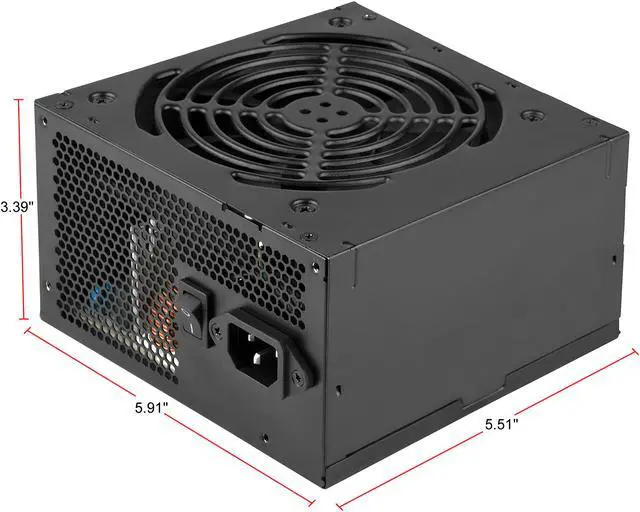

| Dimensions | H x W x D: 3.39" x 5.91" x 5.51" |
|---|---|
| Weight | 3.62 lbs. |
| First Listed on Newegg | October 12, 2017 |
|---|
