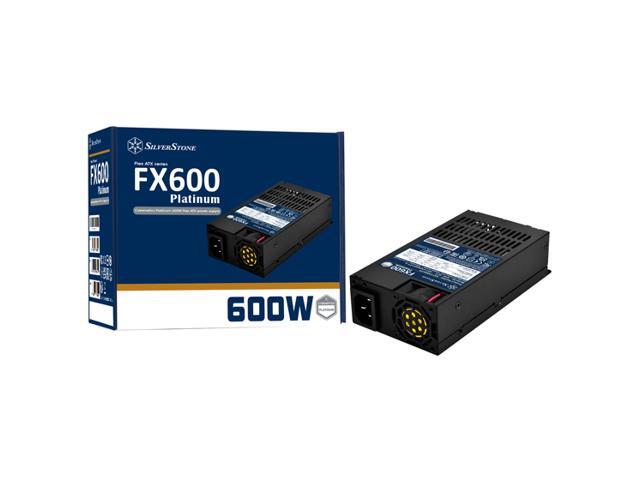

FX600-PT, TFX - Series FIX-CABLE

Product No. SST-FX600-PT

Max. DC Output: 600W

Power density: 1212W per liter

Model (safety certification): SST-FX0600FCPT-A

Combined +3.3V & +5V: 80W

Combined +12V: 600W

Input Voltage: 90 ~ 264 Vrms

Input Frequency Range: 47Hz ~ 63Hz

PFC: Active PFC (PF>0.9 at full load)

Efficiency: =89% & <91% overall efficiency

MTBF: 100,000 hours

Operating temperature: 0°C ~ 40°C

Protection:

Over current protection

Over power protection

Over voltage protection

Short circuit protection

Under voltage protection

Over temperature protection

Connectors:

1 x 24 / 20-Pin motherboard connector

1 x 8 / 4-Pin EPS / ATX 12V connector

1 x 8-Pin EPS connector

2 x 8 / 6-Pin PCIe connectors

4 x SATA connectors

3 x 4-Pin Peripheral connectors

1 x 4-Pin Floppy connector

Cooling System:Single 40mm silent fan

Form factor:Flex ATX

Noise Level: 20 dBA minimum

Dimension:

81.5mm (W) x 40.5mm (H) x 150mm (D)

3.21" (W) x 1.59" (H) x 5.91" (D)

Weight: 1.12 kg

Certification: Cybenetics Platinum
