The Grandia GD09 is a culmination of SilverStone’s decade-long experience in HTPC case design and manufacturing into a product that every PC enthusiast can enjoy. The incredible efficiency in which it utilizes all available space results in a case that is close in size externally to Micro-ATX based GD04 and GD05, yet capable of fitting most important full size standard components including wider ATX motherboards (SSI-CEB) such as ROG or other gaming-centric models. All drive cages have been designed similarly to those from the popular ML03 case to provide maximum flexibility in drive configuration without the need for additional adapters. For cooling, all positive pressure and smooth airflow designs were retained from previous Grandia models while improvements were made to filter access for even easier maintenance. With the GD09, there has never been a more attractively sized HTPC case that is as capable and user-friendly. So whether one is looking to build an affordable or a powerful PC, this case can definitely satisfy both ends of the requirement.
Right front 3/4 view
Left front 3/4 view

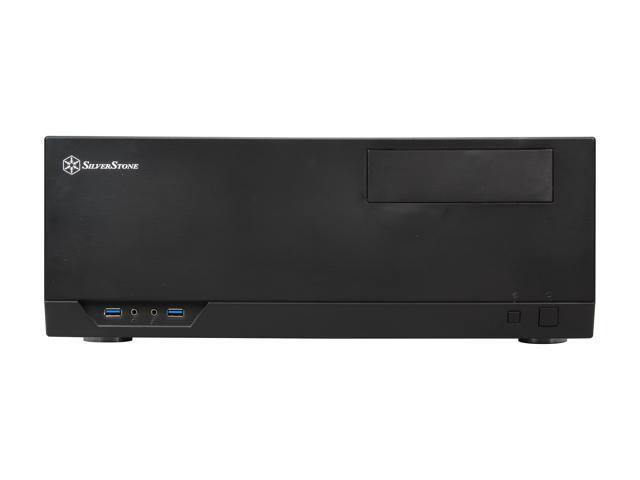

Front view
Left side view
Right side view

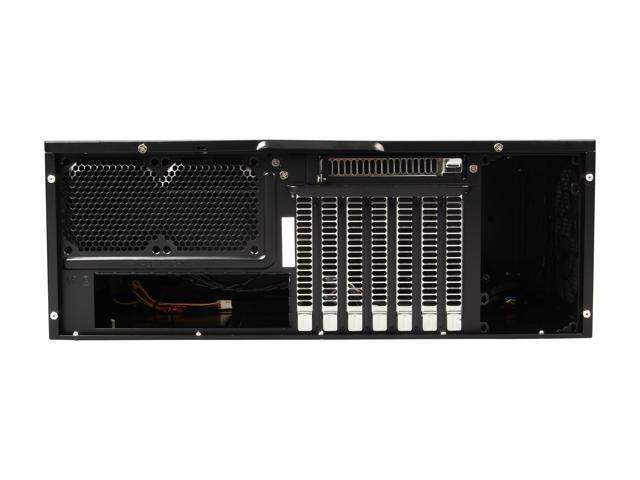

Rear view

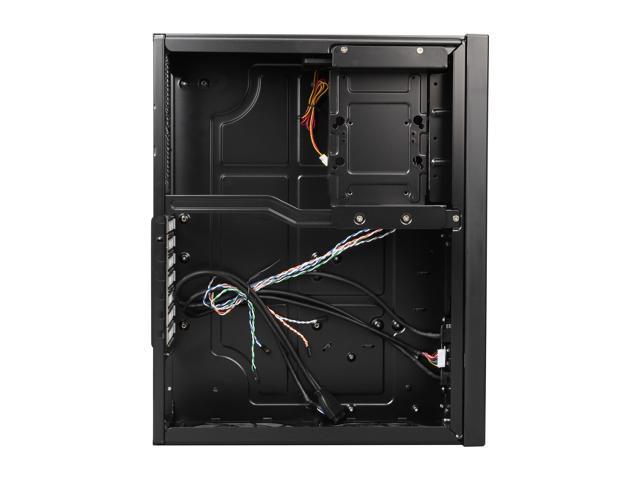

Top view with cover removed
7 + 1 Expansion slots
Front I/O ports
Hi-fi grand feet
Positive air pressure design for excellent cooling/quietness and dust-prevention
Filtered PSU intake vent
Independent graphics card vent
Model No. | SST-GD09B (Black) | |
Material | Plastic front panel with faux aluminum finish, 0.8mm steel body | |
Motherboard | SSI-CEB, ATX, Micro-ATX | |
Drive Bays | External | 5.25" x 1 (compatible with 3.5" x 1 or 2.5" x 2) |
Internal | 3.5" x 2 (one compatible with 2.5"); 2.5" x 1 | |
Cooling System | Rear | 2 x 80mm fan slots |
Side | Right: 1 x 120mm intake fan, 900RPM, 18dBA, 1 x 120mm fan slot Left: 1 x 120mm fan slot, compatible with 80mm fan |
|
Top | Expansion card vent | |
Expansion Slots | 7 + 1 | |
Front I/O Port | USB 3.0 x 2 audio x 1 MIC x 1 |
|
Power Supply | Standard PS2 (ATX) 220mm maximum, 180mm recommended |
|
Expansion Card | Support cards up to 12.2 inches, width restriction 5.25" | |
Max. CPU Cooler | 138mm | |
Net Weight | 10lbs (4.2kg) | |
Dimensions (W x H x D) | 17.3 x 6.7 x 14 inches (440 x 170 x 358mm), 1635 cubic inches (26.8 liters) | |
Extra | Support Kensington lock |
