SilverStone Milo Series SST-ML09B Black Acrylic and plastic front panel, 0.8mm steel body Mini-ITX Computer Case
- Acrylic and plastic front panel, 0.8mm steel body Mini-ITX
- 2 x USB 3.0 / Audio Front Ports
- Slim optical 12.7mm or 9.5mm x 1
- (9.5mm compatibility limited to tray type)
- (replaceable with 3.5" HDD x 1, 2.5" HDD x 2,or 120mm fan x 1) External 5.25" Drive Bays
+
+
Overview
Specs
Reviews (6)
INTRODUCTION
Milo Series ML09
- Super small at only 7 liters
- Premium styling front panel with mirror finish
- Includes one 120mm fan and support up to two 80mm fans
- Multipurpose 4-in-1 bracket
- Support Mini-ITX motherboard and SFX power supply
- Support dual slot low-profile graphics or expansion card
- Support four 2.5" HDD/SSD
The ML09 is an evolution and variation of the premium Mini-ITX HTPC case, the Milo ML06. With external dimension unchanged at 7 liters, the ML09 rearranged internal layout provides a crucial second expansion slot for support of more powerful low-profile discrete graphics card or expansion card that are two slots wide. For users that wish to build with a more robust GPU or tuner card in console/DVR-like form factor to game or for multimedia content recording, the ML09 is a great starting point.
FEATURE PHOTOS

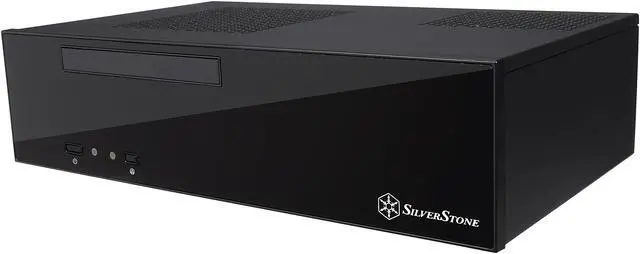

Super small at only 7 liters

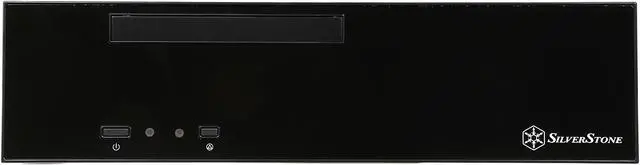

Premium styling front panel with mirror finish
Includes one 120mm fan
Two 80mm fan slot

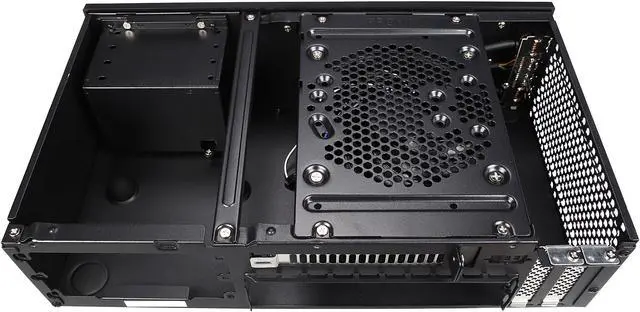

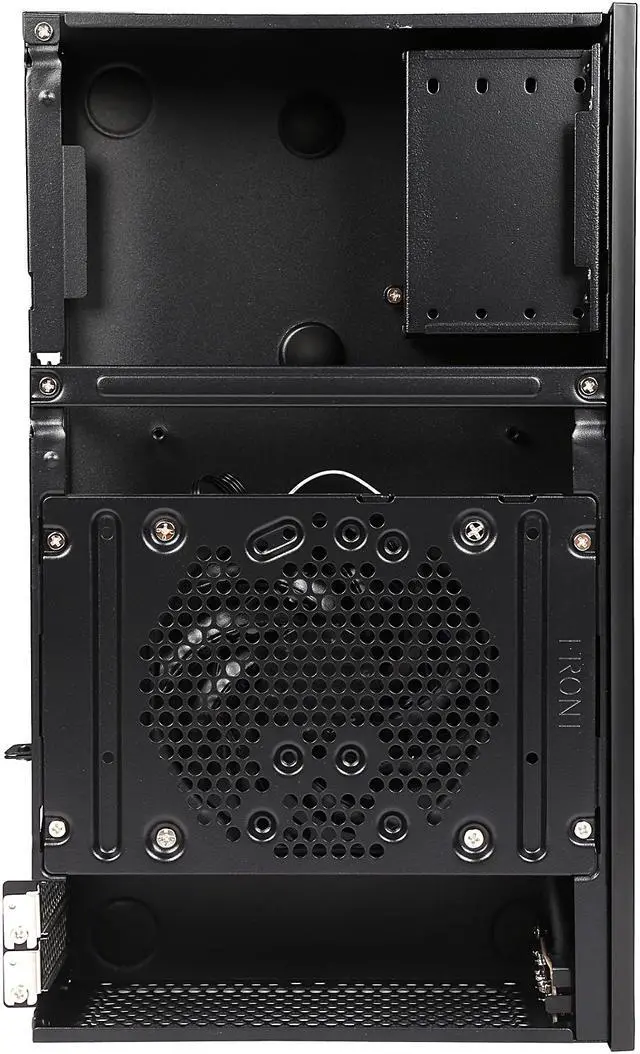

Multipurpose 4-in-1 bracket
Support SFX power supply
Support SFX power supply
Support dual slot low-profile graphics or expansion card

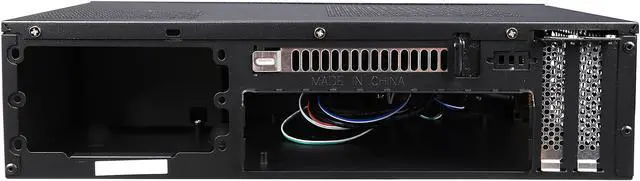

Utility expansion slot and rear I/O slot
Graphic card expansion Slot
Support more powerful low-profile discrete graphics card or expansion card with two slots wide
Support four 2.5" HDD/SSD
Support one slim optical 12.7mm or 9.5mm

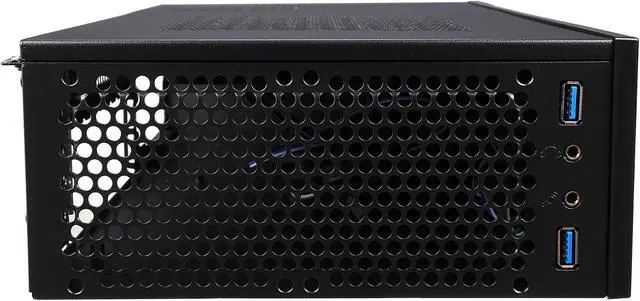

USB 3.0 x 2, headphone and microphone ports
Oversized vents
SPECIFICATIONS
| Model No. | SST-ML09B (black) | |
| Material | Acrylic and plastic front panel, 0.8mm steel body | |
| Motherboard | Mini-ITX,Mini-DTX | |
| Drive Bay | External | Slim optical 12.7mm or 9.5mm x 1 (9.5mm compatibility limited to tray type) |
| (replaceable with 3.5" HDD x 1, 2.5" HDD x 2,or 120mm fan x 1) | ||
| Internal | 2.5" x 4 | |
| Cooling System | Front | -- |
| Rear | -- | |
| Side | 2 x 80mm fan slot | |
| Top | 1 x 120mm fan, 1500rpm, 18dBA | |
| Bottom | -- | |
| Internal | -- | |
| Expansion Slot | 2 | |
| Front I/O Port | USB 3.0 x 2 audio x 1 MIC x 1 |
|
| Power Supply | 1 x Optional standard SFX | |
| Expansion Card | Single or dual slot low profile up to 6.9", width restriction-2.95" | |
| Limitation of CPU cooler | 37~70mm (variable based on use of multipurpose bracket) | |
| Limitation of PSU | -- | |
| Net Weight | 2.07kg | |
| Dimension | 350mm (W) x 99 mm (H) x 205 mm (D), 7 Liters 350mm (W) x 109 mm (H) x 205 mm (D) (includes feet) |
|
| Extra | Support Kensington lock | |
| Support VESA Mount | -- | |

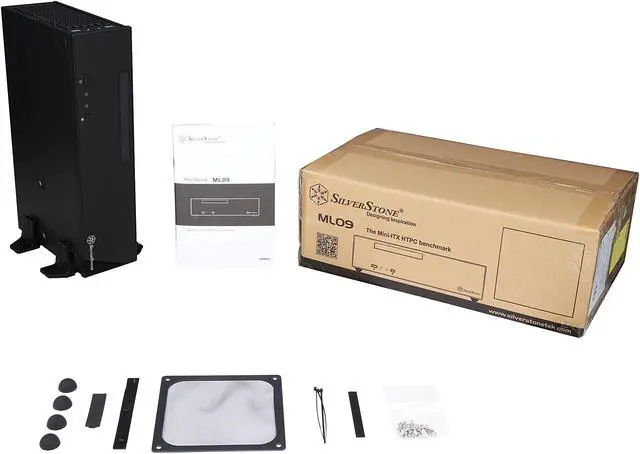

GALLERY
