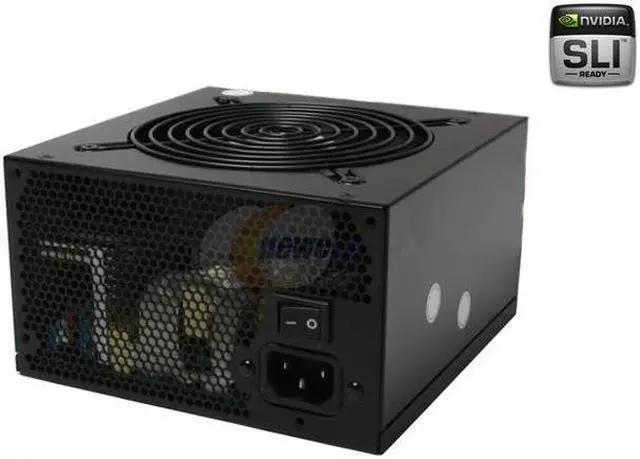

SilverStone OP800 800 W ATX 12V 2.2 & EPS12V SLI Ready CrossFire Ready Active PFC Power Supply

Name: SilverStone OP800 800 W Power Supply
Brand: Silverstone
SKU: N82E16817256034
Rating: 5 (13 reviews)

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Specs

Reviews (13)

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Silverstone OP800

General
Brand	SilverStone
Model	OP800

Details
Type	ATX 12V 2.2 & EPS12V
Maximum Power	800 W
Fans	Single 120mm ball bearing fan
PFC	Active
Main Connector	20+4Pin
+12V Rails	Single
PCI-Express Connector	4 x 6-Pin, 2 x 8-Pin
SLI	SLI Ready
CrossFire	CrossFire Ready
Modular	No
Efficiency	> 80%
Input Voltage	100 - 240 V
Input Frequency Range	47 - 63 Hz
Input Current	12 - 6A
Output	+3.3V@28A, +5V@30A, +12V@66A, [email protected], [email protected]
MTBF	100,000 hours at 25°C, full load
Approvals	RoHS, FCC, CE
Connectors	1 x 20+4Pin motherboard connector (550mm) 1 x 8Pin EPS12V connector (550mm) 1 x 4Pin ATX12V connector (550mm) 2 x 8Pin PCI-E connector (550mm) 2 x Dual 6Pin PCI-E connector (550mm) 2 x triple SATA connector (500mm +250mm + 250mm) 2 x triple 4Pin IDE & single floppy power connectors (500mm + 250mm + 250mm + 150mm)

Features
Features	Class-leading continuous 60A single +12V combined output at 50°C Precision manufactured by robotics Support for ATX 12V 2.2 & EPS12V Active PFC Japanese primary capacitors

Additional Information
First Listed on Newegg	November 05, 2007
