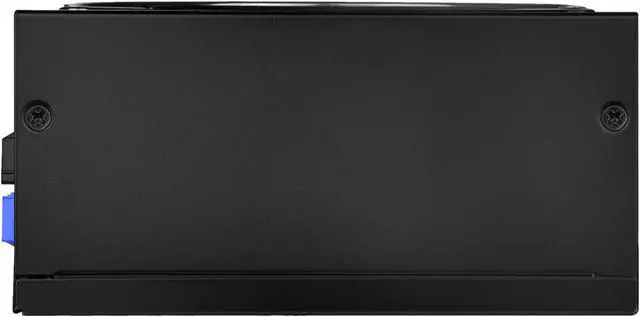

    SilverStone SFX Series SST-SX800-LTI 800 W SFX-L (Compatible with ATX12V v2.4) 80 PLUS TITANIUM Certified Active PFC Power Supply

    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    Reviews (11)
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Learn more about the Silverstone SST-SX800-LTI

    General
    Brand SilverStone
    Series SFX Series
    Model SST-SX800-LTI
    Details
    Type SFX-L (Compatible with ATX12V v2.4)
    Maximum Power 800 W

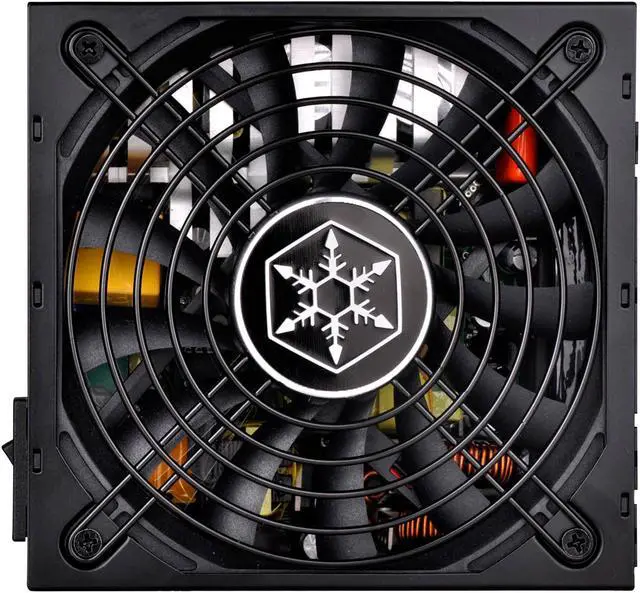

    Fans 1 x 120mm silent fan
    PFC Active
    Main Connector 20+4Pin
    +12V Rails Single
    PCI-Express Connector 4 x 6+2-Pin
    SATA Power Connector 12
    Max PSU Length 130 mm
    Efficiency 90 - 94% at 10 - 100% loading
    Energy-Efficient 80 PLUS TITANIUM Certified
    Over Voltage Protection Yes

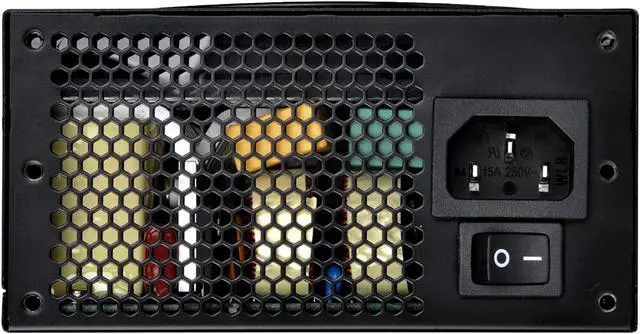

    Input Voltage 90 - 264 V
    Input Frequency Range 47 - 63 Hz

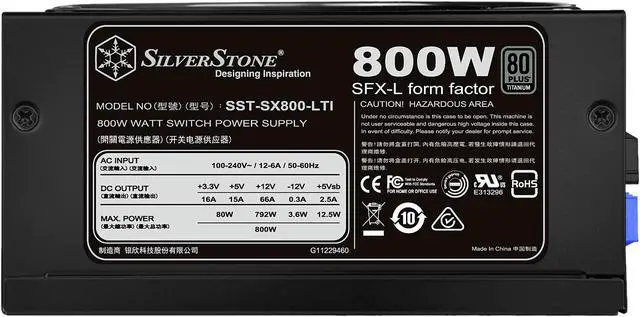

    Output +3.3V@16A, +5V@15A, +12V1@66A, [email protected], [email protected]
    MTBF 100,000 hours

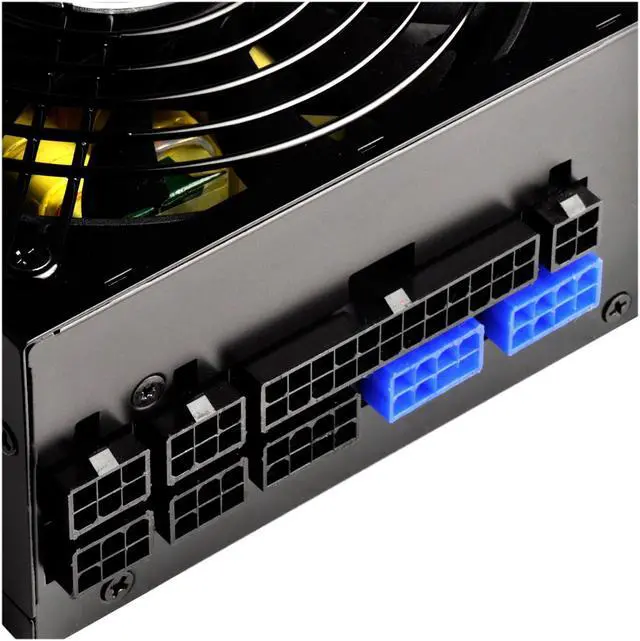

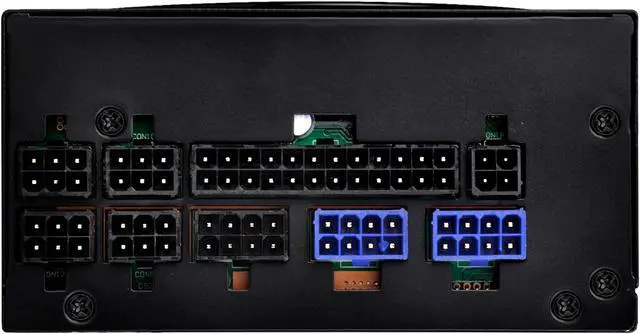

    Connectors 1 x 24 / 20-Pin motherboard connector(300mm)
    1 x 8 / 4-Pin EPS / ATX 12V connector(400mm)
    2 x 8 / 6-Pin PCIE connector(400mm / 150mm)
    2 x 8 / 6-Pin PCIE connector(550mm / 150mm)
    12 x SATA connector("300mm / 200mm / 100mm / 100mm" x 3)
    3 x 4-Pin Peripheral connector(300mm / 200mm / 200mm)
    1 x 4-Pin Floppy adapter connector(100mm)
    Features
    Features SFX-L form factor for use in small form factor computers

    800W continuous power output rated for 24/7 operation

    Class-leading single +12V rail with 66A

    High efficiency with 80 PLUS Titanium certification

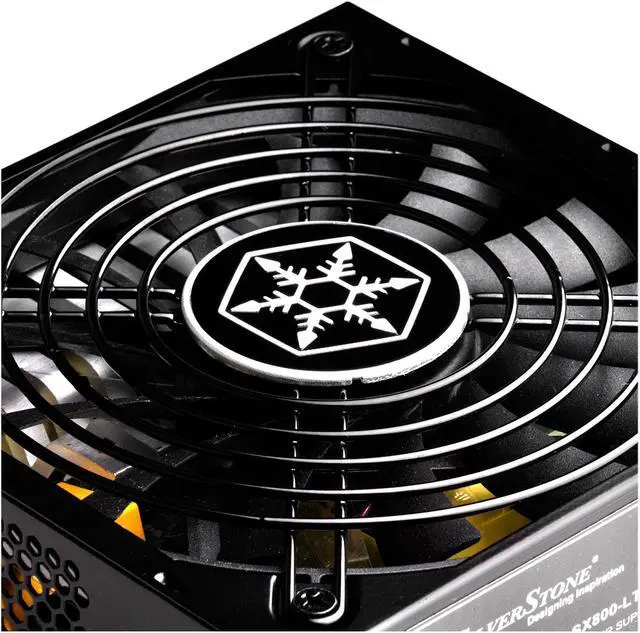

    Silent running 120mm fan with advanced semi-fanless operation

    100% modular short cables with flexible flat arrays

    Strict +/-3% voltage regulation and low ripple & noise

    Support quad PCI-E 8/6pin connectors

    High quality construction with all Japanese capacitors

    Protection: Over Current Protection, Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under voltage protection, Over Temperature Protection
    Dimension & Weight

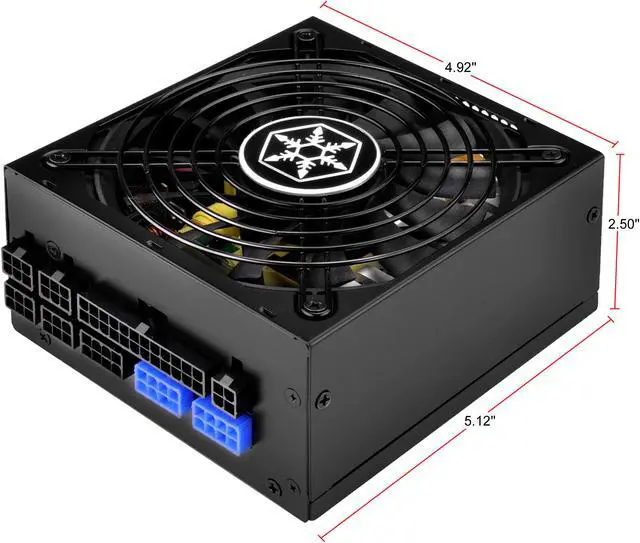

    Dimensions 2.50" x 4.92" x 5.12"
    Weight 3.75 lbs.
    Additional Information
    First Listed on Newegg January 03, 2017

    Warranty & Returns

    Warranty, Returns, And Additional Information

    Warranty

    • Limited Warranty period (parts): 1 year
    • Limited Warranty period (labor): 1 year
