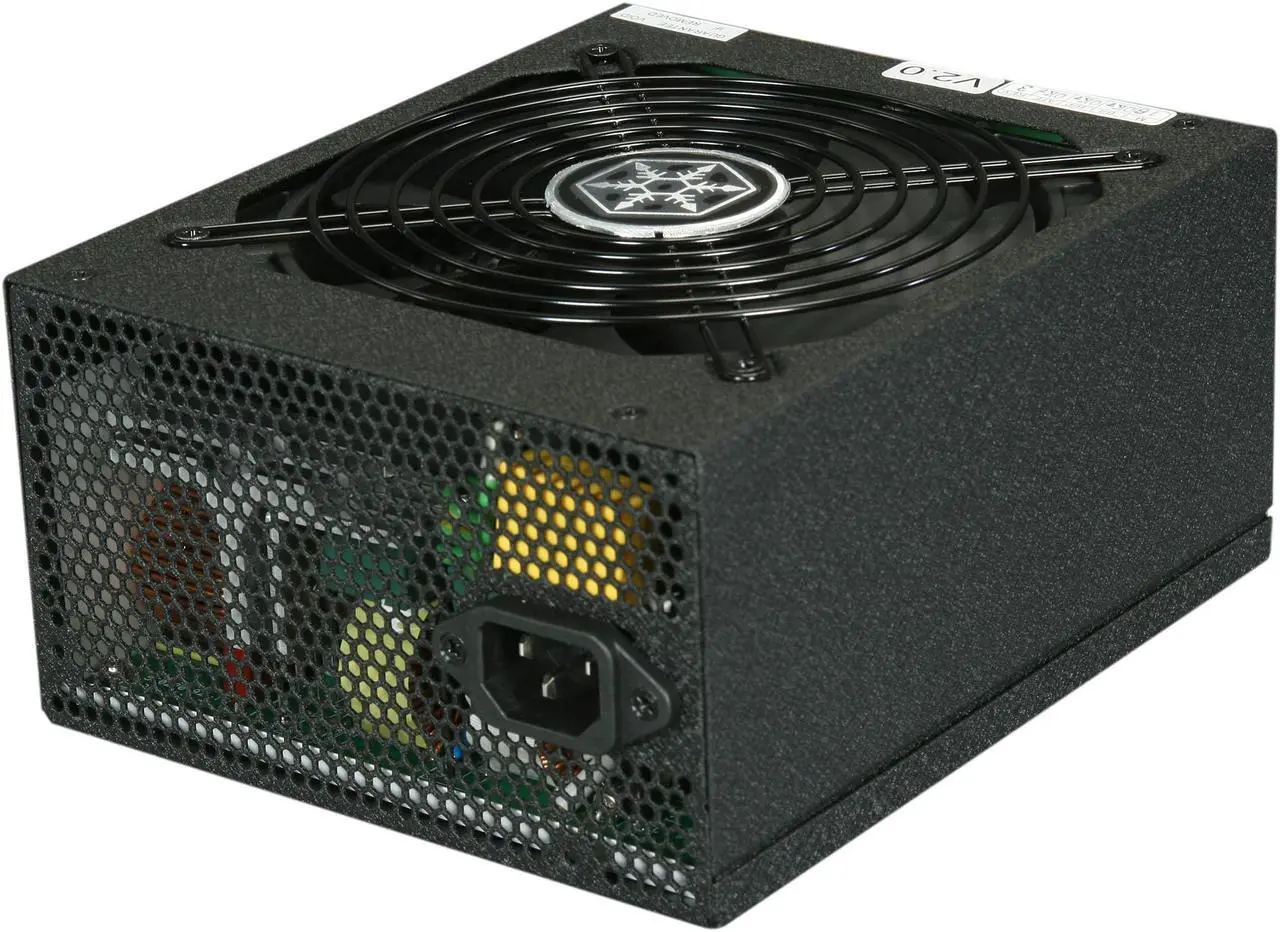

SILVERSTONE Strider Gold Evolution SST-ST75F-G Evolution 750W ATX 12V v2.3 / EPS 12V 80 PLUS GOLD Certified 100% Modular, Active PFC Power Supply, with 140mm Fan Filter
OUT OF STOCK.
- ATX 12V v2.3 / EPS 12V
- Modular
- 80 PLUS GOLD Certified
- 90 - 264 V 47 - 63 Hz

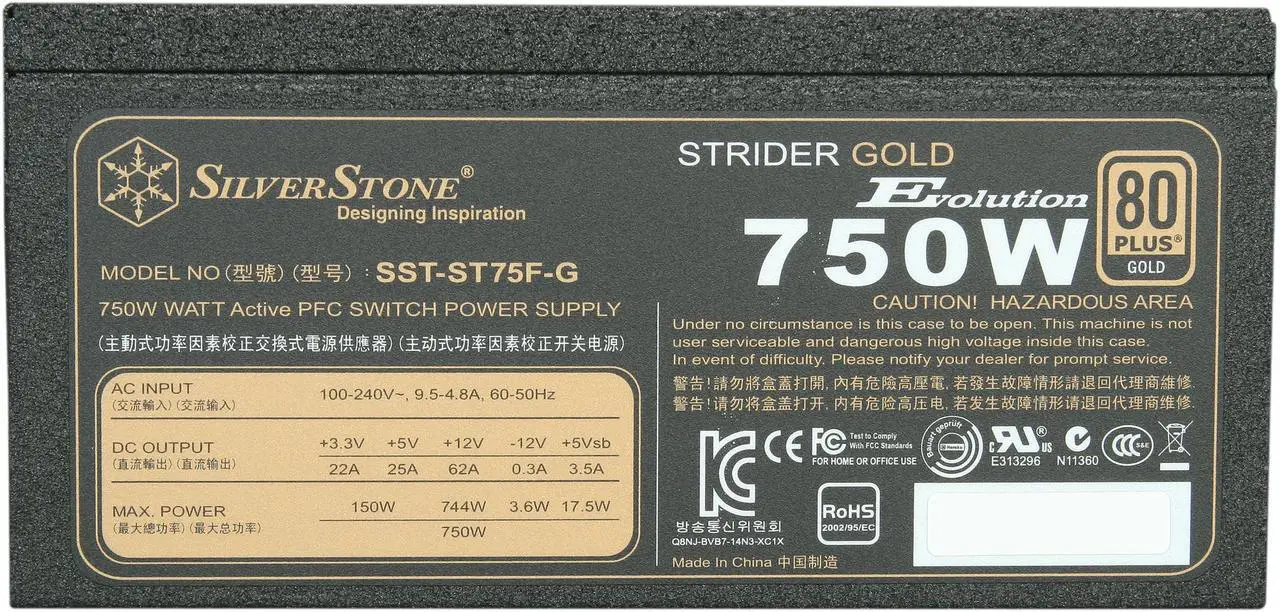

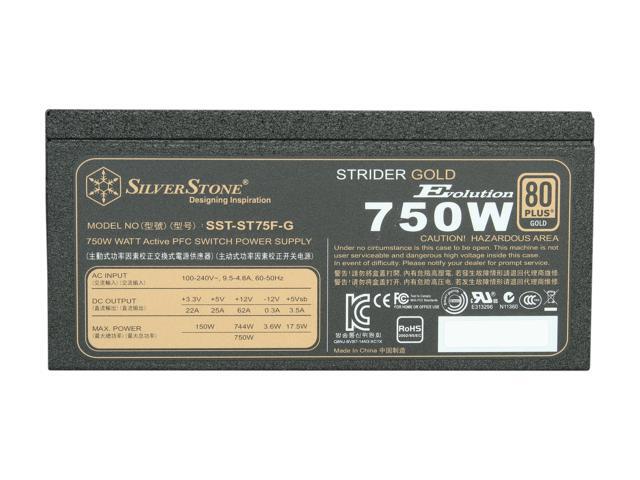

- +3.3V@22A, +5V@25A, +12V@62A, -12V@0.3A, +5VSB@3.5A
Overview
Specs
Reviews
SilverStone Strider Gold Evolution Active PFC Power Supply
To make great power supplies even better, SilverStone engineers delved into the details with the Strider Gold series. In order to reduce the already low noise generated by the Strider Gold, they replaced the fan with SilverStone’s own Air Penetrator, which has superb cooling ability and is equipped with fluid dynamic bearing. This allowed for reprogramming of the fan controller to enable lower fan speed at any given loading condition compared to the predecessor. Various components were also re-tested and replaced with newer versions for minor boost in efficiency and performance. An excellent FF141 fan filter with magnets is even included in the package for use to reduce dust buildup.
With the fan and component upgrades, the Strider Gold Evolution series will again encompass wattage range from 750W to 1200W with 80 PLUS Gold level efficiency, ±3% voltage regulation, ±3% ripple & noise, and high amperage single +12V rail as its main features. For discerning users looking to get a top-notch power supply with all features covered and more, this is the perfect solution.
Highlights
- 80 PLUS Gold certification with high efficiency 88 - 91% at 20 - 100% loading
- Ultra silent 139mm Air Penetrator fan with fluid dynamic bearing
- FF141 Magnetized fan filter included
- 100% Modular cables
- 750W (850W peak power) 24-Hour fully continuous power output with 104°F (40°C) operating temperature
- Class-leading single +12V rail with 62A
- Strict ±3% voltage regulation and low ripple & noise
- Japanese main capacitors
- Dual EPS 8-Pin with multiple PCI-E 8-Pin and PCI-E 6-Pin connectors support
- Support ATX 12V 2.3 & EPS 12V
Features
Design for 80 PLUS Gold level of efficiency to reduce wasted heat and save electricity.

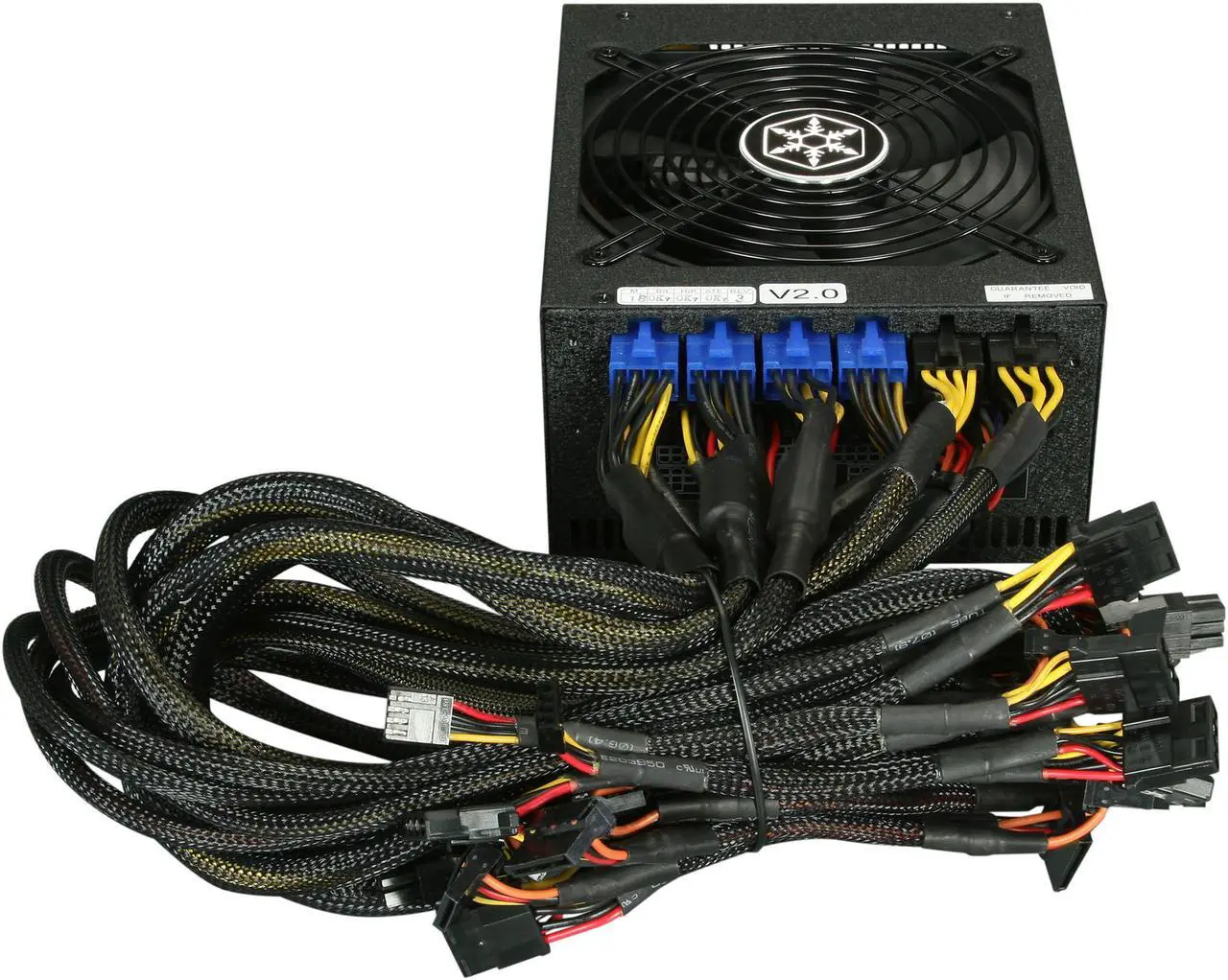

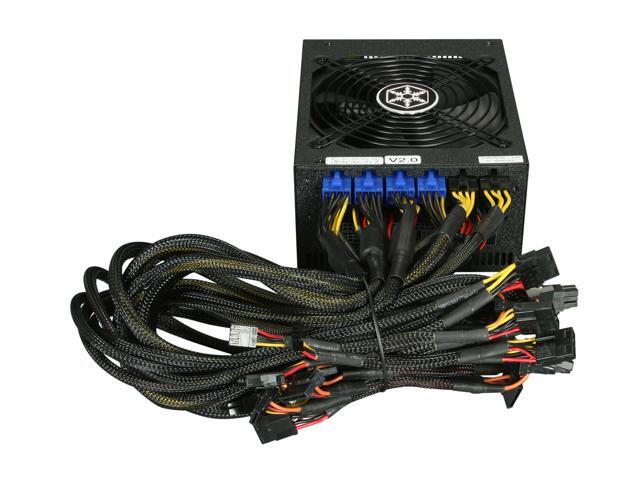

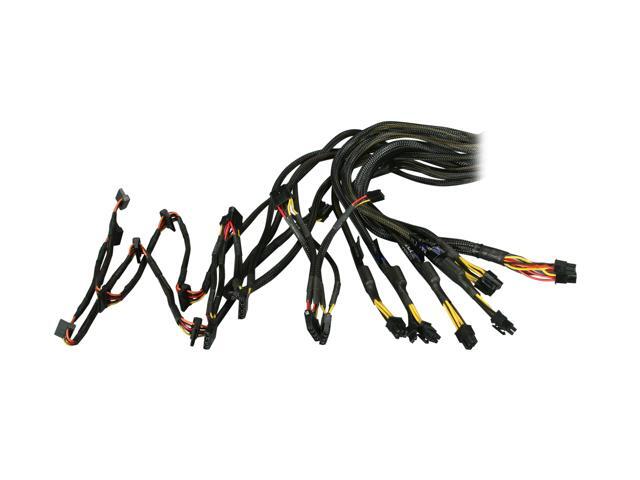

100% Modular cable design for use with short cable kit such as SilverStone’s PP05 or for easy removal in case with cable routed and tied down.
Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.
±3% regulation and low ripple & noise performance for high stability.

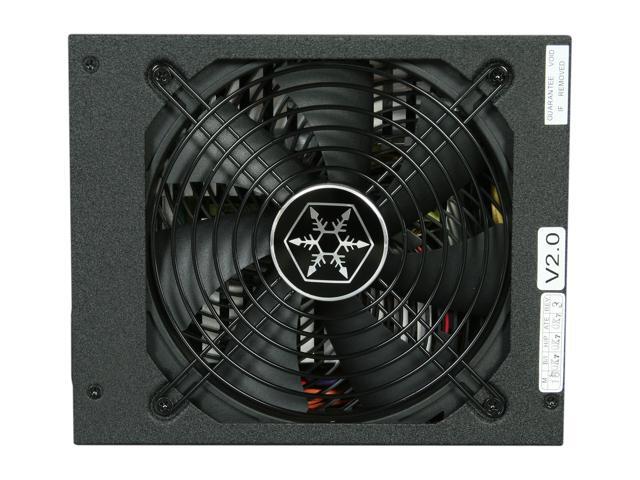

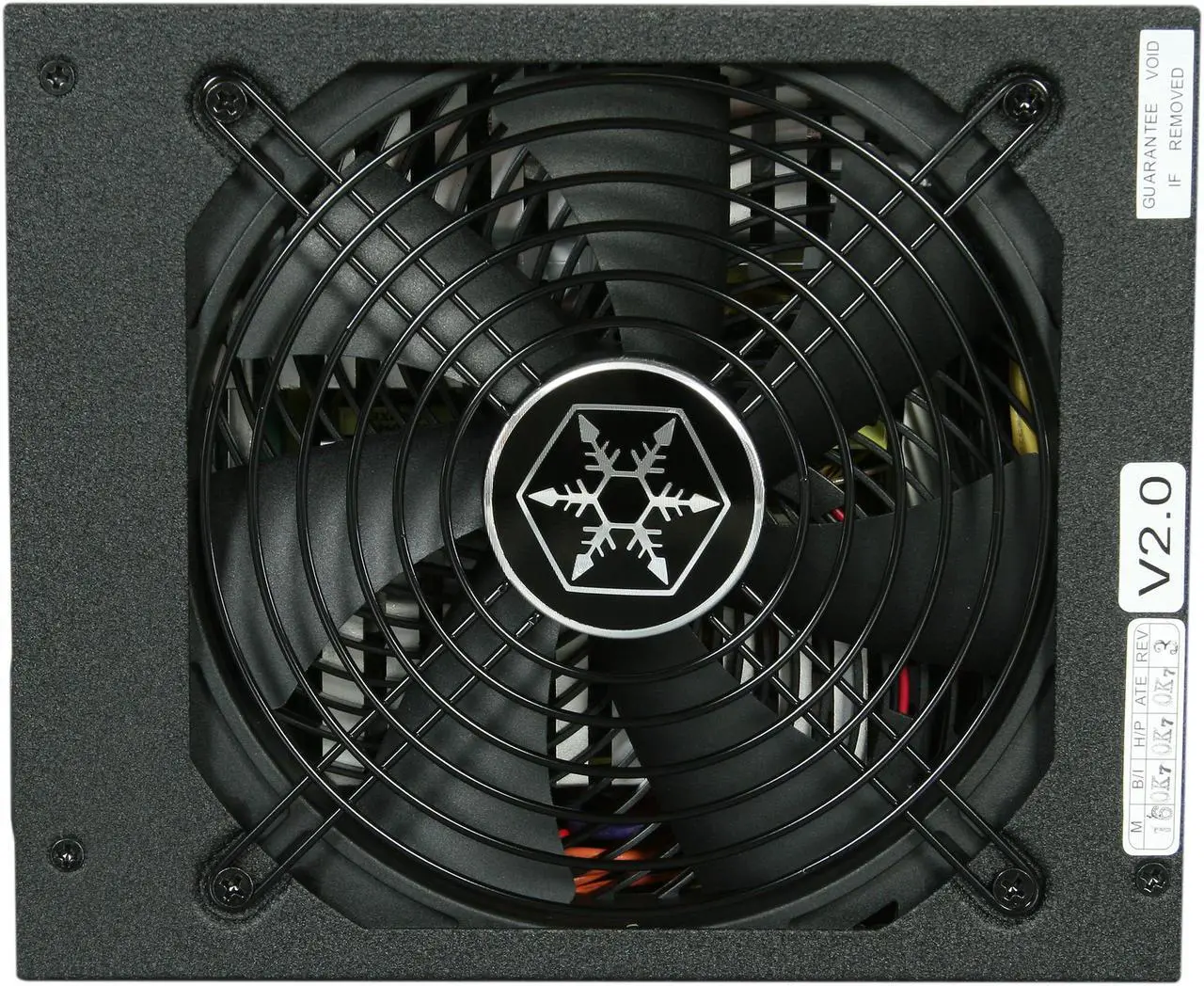

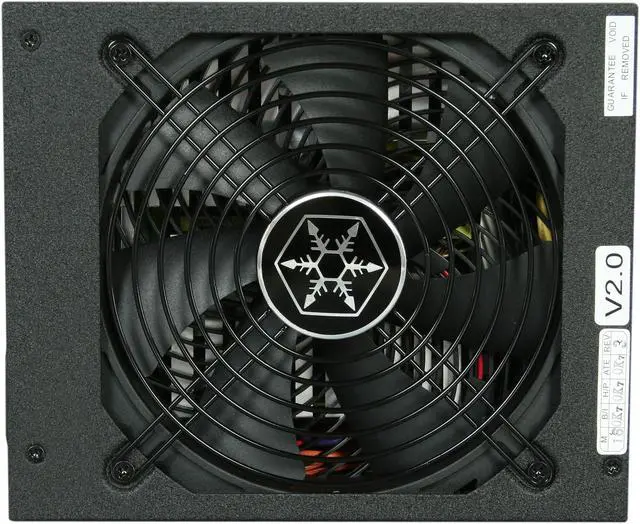

Ultra silent 139mm Air Penetrator fan with fluid dynamic bearing.
The included FF141 fan filter can help reduce dust buildup; and with its built-in magnets, it’s also extremely easy to attach and remove.
Installation Guide: Please make sure the fan of power supply and FF141 filter are properly aligned. The embedded magnet on FF141 can be effortlessly attached to any steel power supply.
Notice: Please make sure the chassis have enough space to accommodate with power supply and FF141.
To reduce electrical whine/buzz associated with high performance graphics card’s dynamic loading changes, 2200uF capacitors are attached to PCI-E connectors. This design also helps to maintain better voltage stability and improve ripple & noise performance.

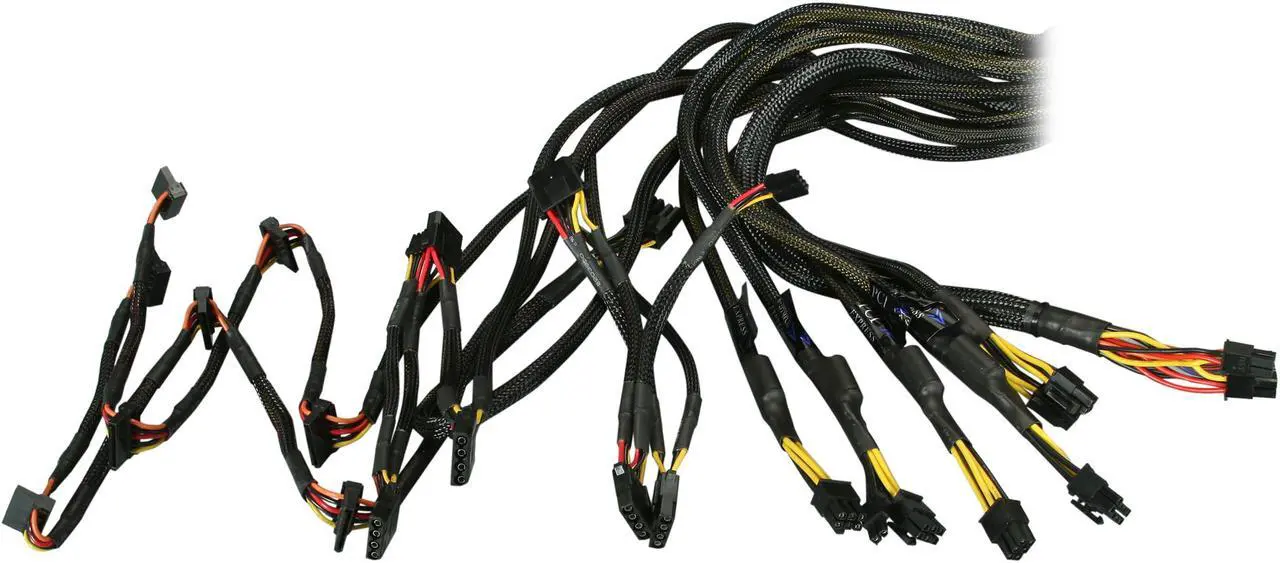

24/20-Pin Motherboard Connector x 1
4-Pin Peripheral Connector x 6
SATA Connector x 8
4-Pin Floppy Connector x 2
6-Pin PCI-E Connector x 2
4 + 4-Pin EPS12V / ATX12V Connector x 2
8- or 6-pin PCI-E Connector x 2

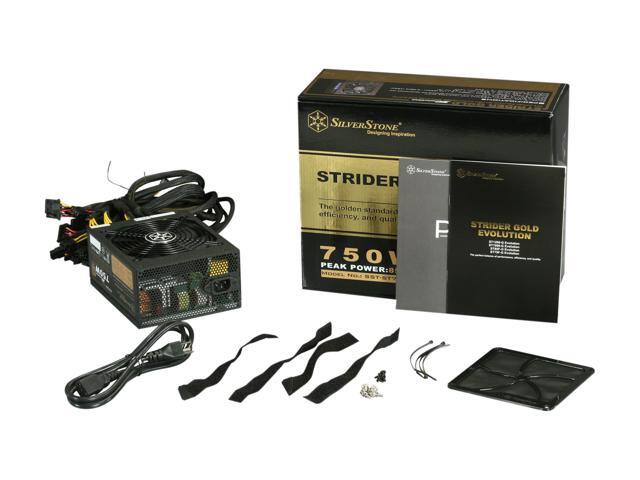

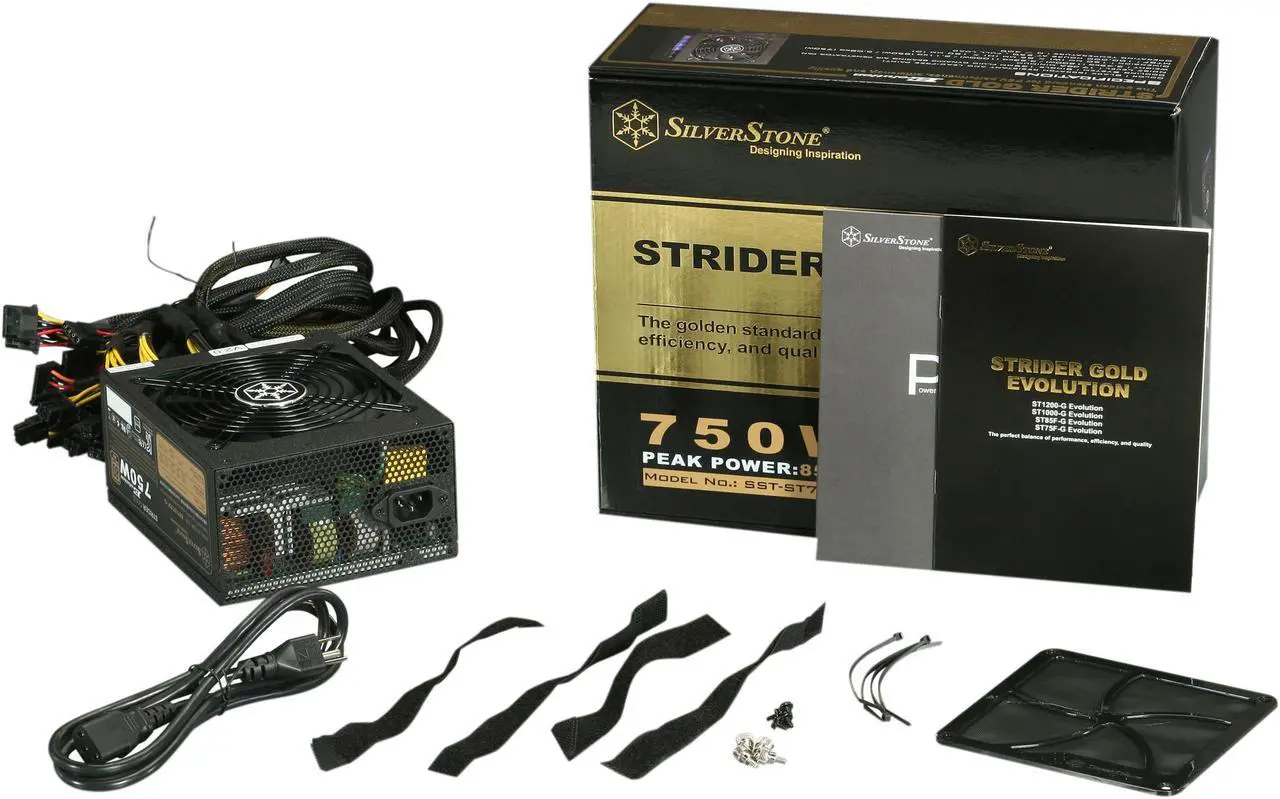

What's in the Box
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's Standard Return Policy
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: +1-909-465-9596
- Support Email: usasupport@silverstonetek.com
- Support Website
- View other products from Silverstone
LOADING...
Pros: -Worked right out of the box. No burning plastic smell, rattles, or whining. Always a good sign. -Silent 140mm fan with a neato magnetic dust cover. -Cable sleeving is really tight so it doesn't snag or look sloppy. -Comes with thumb screws, three velcro straps, and zip ties. -62A 12V rail hip thrusting power
Cons: -None so far

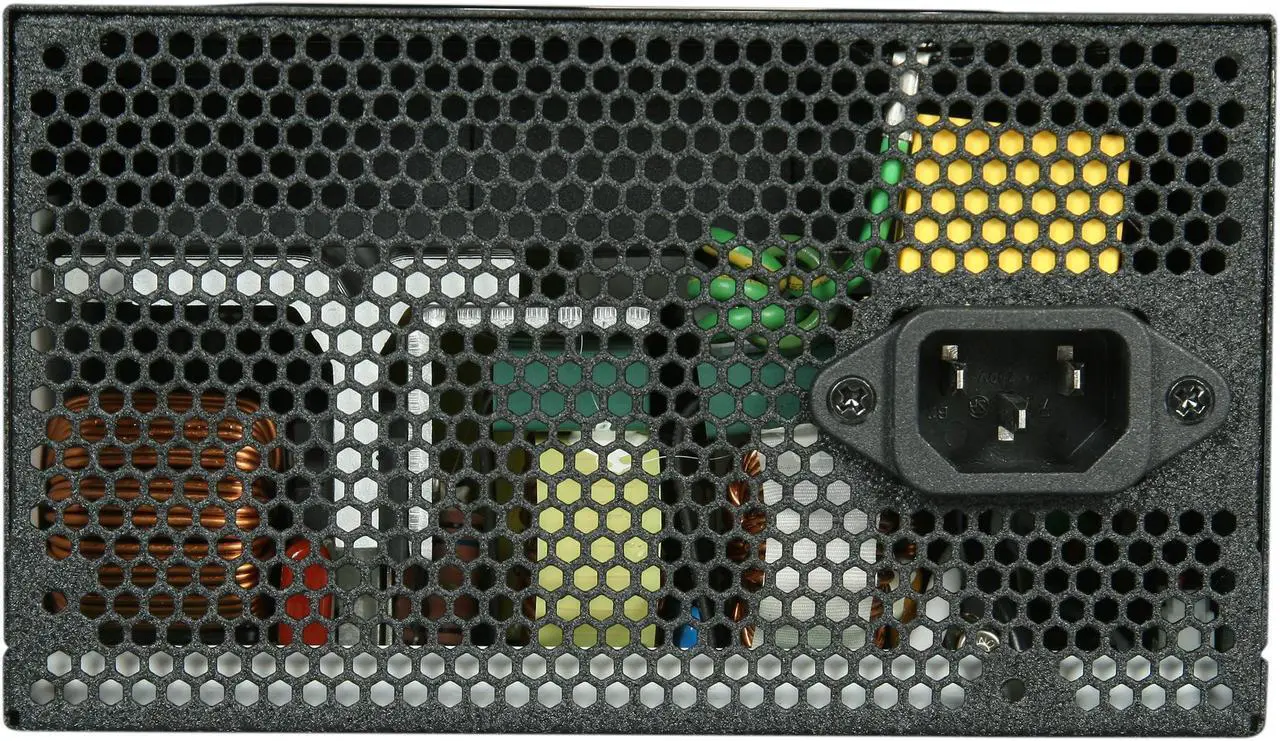

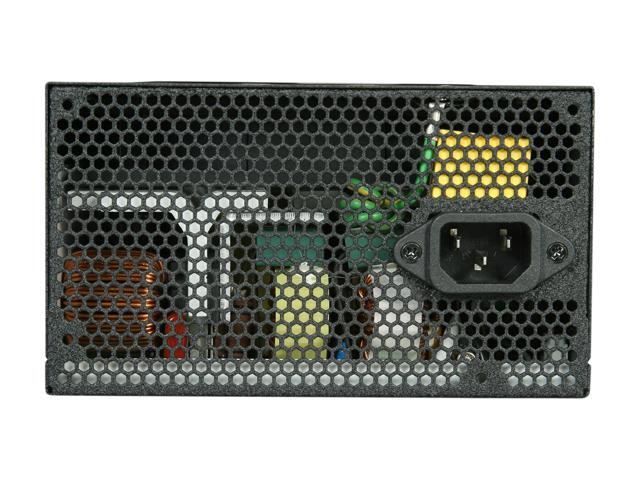

Overall Review: When I plugged everything in, I went behind the PSU to press the toggle switch, and surpringly there wasn't one? Never seen a power supply like that. I'm used to pressing the switch to do a quick reset for failed overclocks and freezes (that I caused). Says on the front of the box it can go up to 850W. (If you read the review on HardwareSecrets, it can go much higher)
