SilverStone ST1500-GS 1500 W 80 PLUS GOLD Certified Active PFC Power Supply
- 80 PLUS GOLD Certified
- 90 - 264 V 47 - 63 Hz

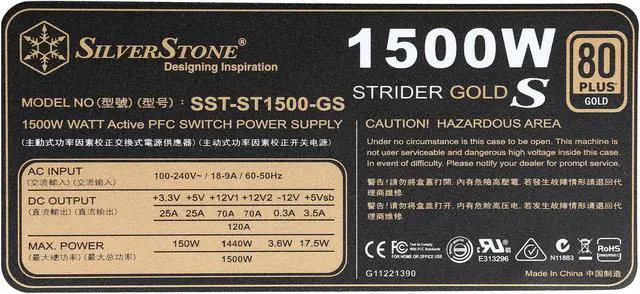

- +3.3V@25A, +5V@25A, +12V1@70A, +12V2@70A, +5VSB@3.5V, -12V@0.3A
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
INTRODUCTION
SilverStone ST1500-GS 1500W 80 PLUS GOLD Certified Active PFC Power Supply
To meet the requirements of current and future desktop computers, SilverStone created the Strider Gold S series power supplies. The Strider Gold S models are all new designs engineered to be the smallest fully-modular ATX power supplies at any wattage.
The Strider Gold S series includes wattages ranging from 550W to 1500W for a great variety of applications. With short depth designs, all models in the series are among the world's smallest fully-modular ATX PSUs. In addition to 80 PLUS Gold level efficiency, the Strider Gold S PSUs are built to meet very high standards in electrical performance with ±3% voltage regulation, ±3% ripple & noise, and high amperage single +12V rail. Other notable features included are 24/7 104°F (40°C) continuous output capability, low-noise fan, and multiple sets of PCI-E cables. For users looking for a power supply with faultless combination of compact size, performance, efficiency, and quality, the Strider Gold S Series is the only choice.
SPECIAL FEATURES
- High efficiency with 80 PLUS Gold certification
- 100% Modular cables
- 24/7 Continuous power output with 104°F (40°C) operating temperature
- 1600W Peak power
- Strict ±3% voltage regulation and low ripple & noise
- Silent running 135mm fan with 18dBA minimum
- Supports Eight PCI-E 8- & 6-pin connectors
- Compact design with a depth of 180mm for easy integration

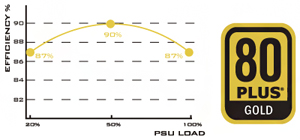

Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity.

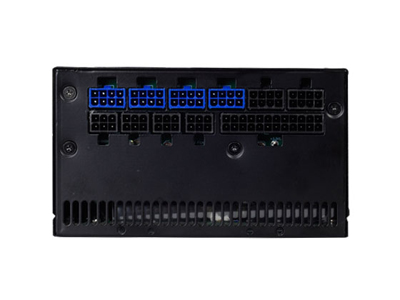

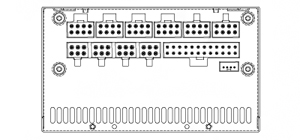

100% Modular cable design for use with short cable kits, such as SilverStone's PP05-E, or for easy removal in a case with cables routed and tied down.

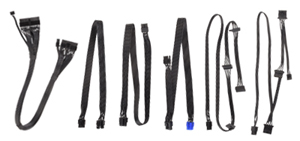

Flat cables have much greater flexibility to allow for tighter folding and management of cables.

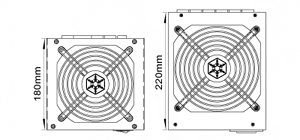

180mm Depth sets new standard for high wattage PSUs with modular cables.

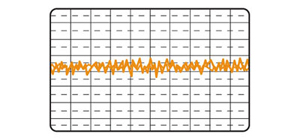

±3% regulation and low ripple & noise performance for high stability.

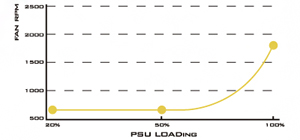

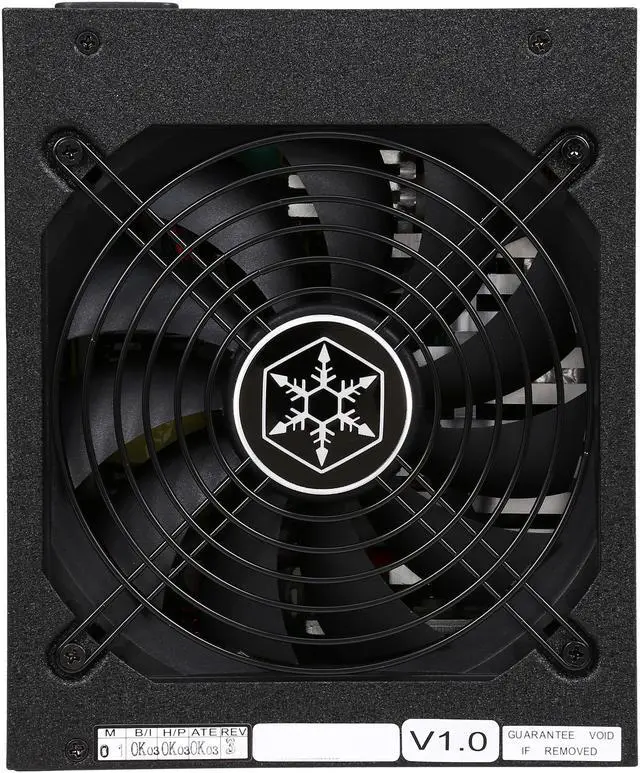

Built-in 135mm fan has excellent airflow and low noise - perfect for quiet home or office use.

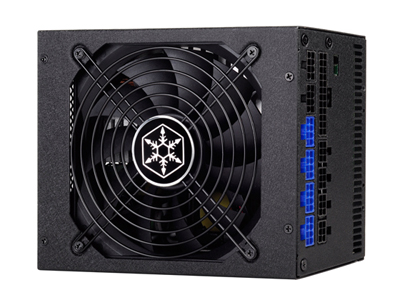

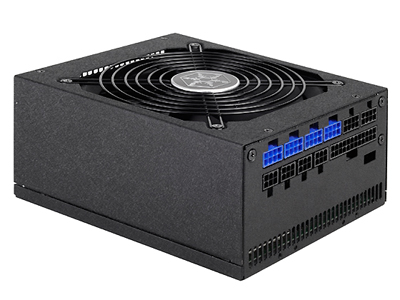

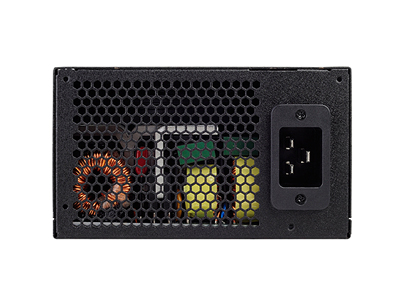

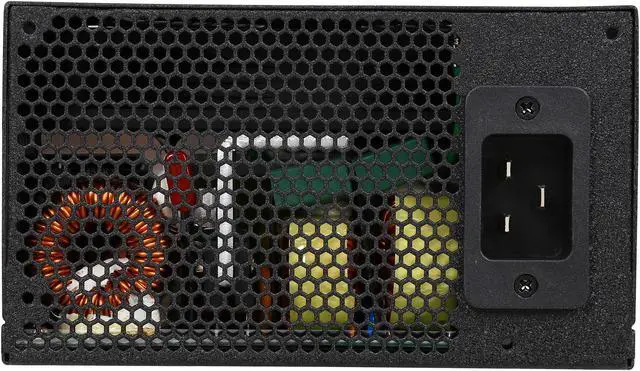

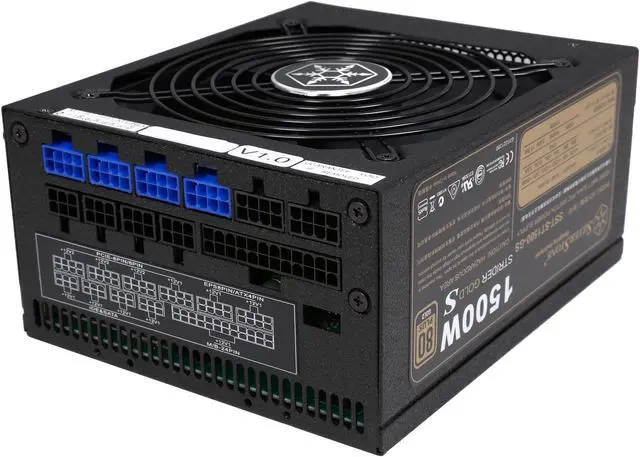

EXTERIOR PICTURES
SPECIFICATIONS
| Model No. | SST-ST1500-GS | |||||||||||||||||||||||||||||||||||||||||||||||||
| Max. DC Output | 1500W (Peak 1600W) | |||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||
| Combined +3.3, +5V | 150W | |||||||||||||||||||||||||||||||||||||||||||||||||
| Combined +12V | 1440W / 120A | |||||||||||||||||||||||||||||||||||||||||||||||||
| Input Voltage | 90V ~ 264V | |||||||||||||||||||||||||||||||||||||||||||||||||
| Input Frequency Range | 47Hz ~ 63Hz | |||||||||||||||||||||||||||||||||||||||||||||||||
| PFC | Active PFC (PF> 0.95 at Full Load) | |||||||||||||||||||||||||||||||||||||||||||||||||
| Efficiency | 87% - 90% (at 20%~100% loading) | |||||||||||||||||||||||||||||||||||||||||||||||||
| MTBF | 100,000 hours | |||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Temperature | 32 - 104°F (0 - 40°C) | |||||||||||||||||||||||||||||||||||||||||||||||||
| Protection |
Over current protection
Over power protection Over voltage protection Over Temperature Protection Under voltage protection Short circuit protection No load operation |
|||||||||||||||||||||||||||||||||||||||||||||||||
| Connectors |
1 x 24 / 20-Pin Motherboard Connector – 21.6" (550mm)
1 x 8 / 4-Pin EPS / ATX 12V Connector – 29.5" (750mm) 1 x 8 / 4-Pin EPS / ATX 12V Connector – 21.6" (550mm) 8 x 8 / 6-Pin PCIE Connector – 21.6" (550mm / 150mm x 4) 16 x SATA Connector – 23.6" / 5.9" / 5.9" / 5.9" (600mm / 150mm / 150mm / 150mm x 4) 6 x 4-Pin Peripheral Connector – 23.6" / 5.9" / 5.9" (600mm / 150mm / 150mm x 2) 2 x 4-Pin Floppy Connector – 23.6" / 5.9" / 5.9" / 5.9" (600mm / 150mm / 150mm / 150mm x 2) |
|||||||||||||||||||||||||||||||||||||||||||||||||
| Color | Black (Scratch resistant and lead-free paint) | |||||||||||||||||||||||||||||||||||||||||||||||||
| Cooling System | Silent 135mm fan | |||||||||||||||||||||||||||||||||||||||||||||||||
| Noise Level | 18dBA-34dBA | |||||||||||||||||||||||||||||||||||||||||||||||||

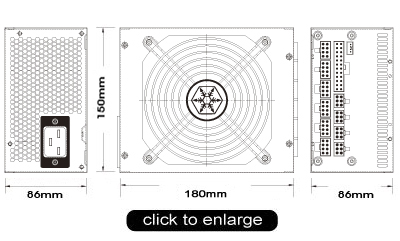

| Dimensions (W x H x D) | 5.9 x 3.3 x 7.0 in. (150 x 86 x 180mm) | |||||||||||||||||||||||||||||||||||||||||||||||||
| Weight | 7.0 lbs (3.2kg) | |||||||||||||||||||||||||||||||||||||||||||||||||
| Form Factor | ATX PS/2 | |||||||||||||||||||||||||||||||||||||||||||||||||
| Certification | 80 PLUS Gold | |||||||||||||||||||||||||||||||||||||||||||||||||
| Other | GPU Support List
Haswell CPU Support |
|||||||||||||||||||||||||||||||||||||||||||||||||
