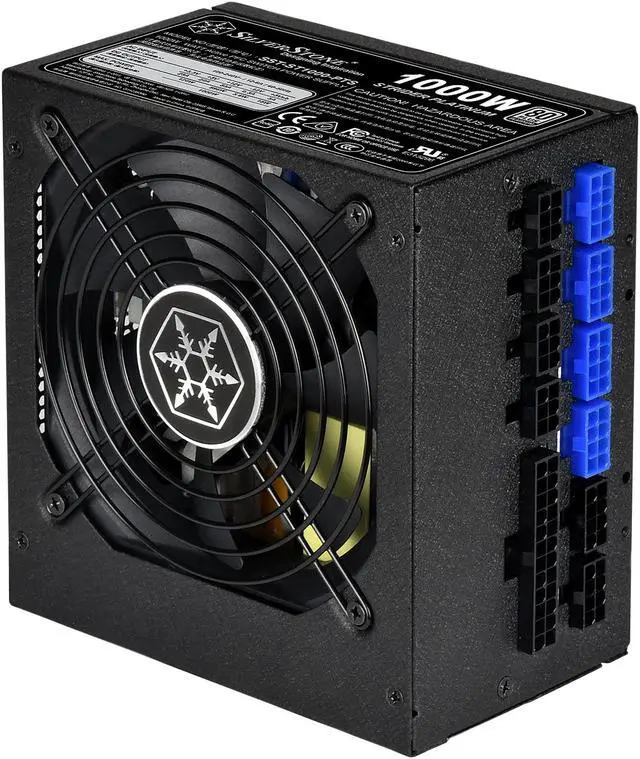

SilverStone Strider Platinum series SST-ST1000-PTS 1000 W ATX12V 80 PLUS PLATINUM Certified Full Modular Active PFC Power Supply

Be the first to review this product...
  • ATX12V
  • Full Modular
  • 80 PLUS PLATINUM Certified
  • 90 - 264 V 47 - 63 Hz
  • +3.3V@25A, +5V@22A, +12V@83A, +5VSB@3A, [email protected]
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Silverstone SST-ST1000-PTS

General
Brand SilverStone
Series Strider Platinum series
Model SST-ST1000-PTS
Details
Type ATX12V
Maximum Power 1000 W
Fans Single 120mm HYB fan
PFC Active
Main Connector 20+4Pin
+12V Rails Single
PCI-Express Connector 8 x 6+2-Pin
SATA Power Connector 8
Modular Full Modular
Efficiency 89% - 92% at 20% - 100% loading
Energy-Efficient 80 PLUS PLATINUM Certified
Over Voltage Protection Yes
Input Voltage 90 - 264 V
Input Frequency Range 47 - 63 Hz

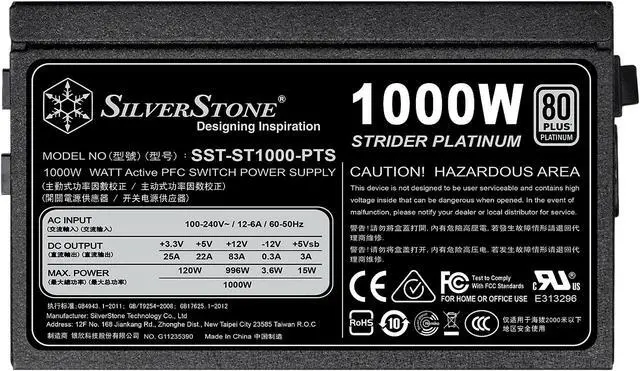

Output +3.3V@25A, +5V@22A, +12V@83A, +5VSB@3A, [email protected]
MTBF 100,000 hours

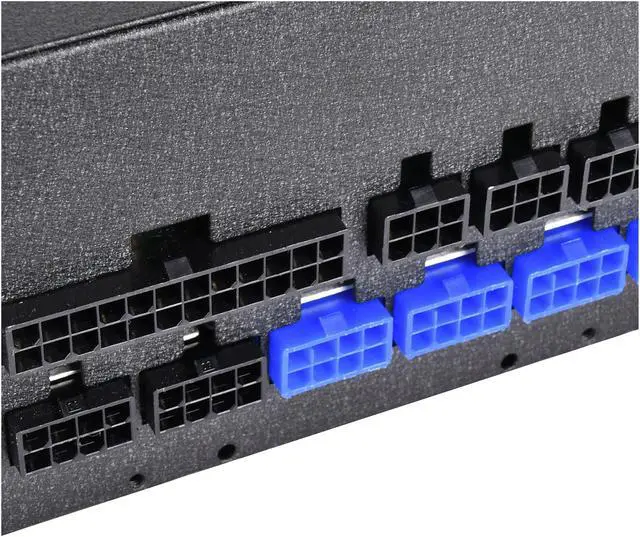

Connectors 1 x 24 / 20-Pin motherboard connector ("600mm")
1 x 8 / 4-Pin EPS / ATX 12V connector ("550mm")
1 x 8 / 4-Pin EPS / ATX 12V connector ("750mm")
8 x 8 / 6-Pin PCIE connector ("550mm / 150mm" X4)
8 x SATA connector ("600mm / 150mm / 150mm / 150mm" X2)
6 x 4-Pin Peripheral connector ("600mm / 150mm / 150mm" X2)
2 x 4-Pin Floppy connector ("150mm" X2)
Features
Features Compact design with a depth of 140mm for easy integration
High efficiency with 80 PLUS Platinum certification
100% modular cables
24/7 continuous power output with 40 degree C operating temperature
Class-leading single +12V rail
Strict +/-3% voltage regulation and low ripple & noise
Built-in silent & durable hybrid ceramic bearing (HYB) fan
FF122 magnetized fan filter included
Dimension & Weight

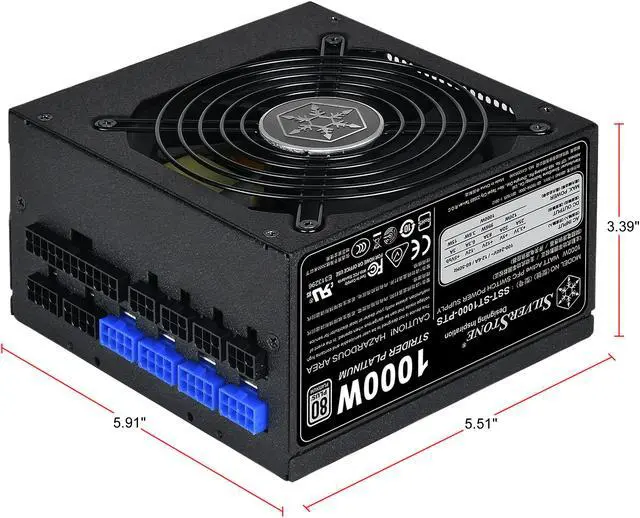

Dimensions 3.39" x 5.91" x 5.51"
Weight 4.37 lbs.
Additional Information
First Listed on Newegg March 08, 2019
