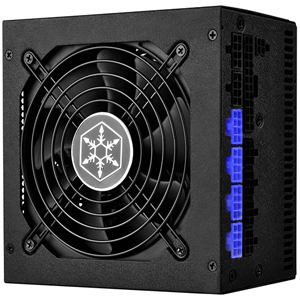

SilverStone Strider SST-ST60F-TI 600W ATX 80 PLUS TITANIUM Certified Full Modular Active PFC Power Supply
- ATX
- Full Modular
- 80 PLUS TITANIUM Certified
- 90 - 264 V 47 - 63 Hz
- +3.3V@20A, +5V@20A, +12V1@49A, +5VSB@2.5A, -12V@0.3A
Strider Titanium ST60F-TI
- High efficiency with 80 PLUS Titanium certification
- Compact design with a depth of 150mm for easy integration
- All Japanese capacitors
- 100% modular cables
- 24/7 continuous power output with 40°C operating temperature
- Class-leading single +12V rail
- Strict ±3% voltage regulation and low ripple & noise
- Silent running 120mm fan with 18dBA minimum
Introduced in 2012, the 80 PLUS Titanium represent the pinnacle of power supply efficiency with requirement of at least 90% conversion efficiency even at the very low 10% loading condition. This stringent standard makes mass producing 80 PLUS Titanium certified power supplies below 1000W extremely challenging. However, as a leader in power supply miniaturization, SilverStone successfully mass-produced a new line of power supplies -- the Strider Titanium series. Their compact design makes them the world's smallest fully modular ATX power supplies with 80 PLUS Titanium efficiency. Other enthusiasts features included are all Japanese capacitors, ±3% regulation, powerful single +12V rail, 24/7 continuous power output, and multiple PCI-E cables. For those looking to build the most efficient systems possible with great quality, the Strider Titanium is definitely the top choice.
1.Designed for 80 PLUS Titanium level of efficiency to reduce wasted heat and save on electricity.
2.100% modular cable design for use with short cable kit such as SilverStone's PP05-E or for easy removal in a case with cable routed and tied down.
3.Flat cables have much greater flexibility to allow for tighter folding and management of cables.
4.150mm depth sets new standard for high wattage PSUs with modular cables.
5.Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.
6.±3% regulation and low ripple & noise performance for high stability.

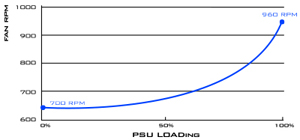

7.Built-in 120mm fan has excellent airflow and low noise, perfect for quiet home or office use.
100% modular cables

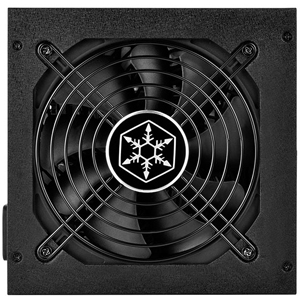

Silent running 120mm fan with 18dBA minimum
24/7 continuous power output with 40? operating temperature
1 x 24 / 20-Pin motherboard connector
1 x 8 / 4-Pin EPS / ATX 12V connector

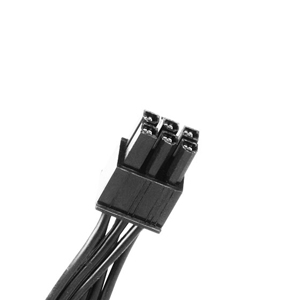

2 x 8 / 6-Pin PCIE connector
2 x 6-Pin PCIE connector
8 x SATA connector

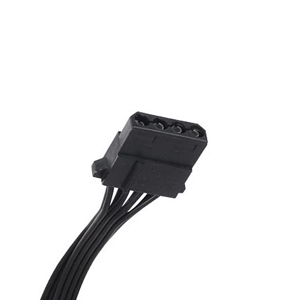

3 x 4-Pin Peripheral connector
1 x 4-Pin Floppy adapter connector
| Model No. | SST-ST60F-TI | ||||||||||||||||||||||||||||||||||||||||||
| Max. DC Output | 600W (Peak 650W) | ||||||||||||||||||||||||||||||||||||||||||
| Power density | 300W per liter | ||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||
| Color | Black(Lead-Free Paint) | ||||||||||||||||||||||||||||||||||||||||||
| combined +3.3, +5V | 100W | ||||||||||||||||||||||||||||||||||||||||||
| combined +12V | 588W | ||||||||||||||||||||||||||||||||||||||||||
| Input Voltage | 90V~264V | ||||||||||||||||||||||||||||||||||||||||||
| Input Frequency Range | 47Hz~63Hz | ||||||||||||||||||||||||||||||||||||||||||
| PFC | Active PFC(PF>0.9 at full load) | ||||||||||||||||||||||||||||||||||||||||||
| Efficiency | 90%~94% at 10% ~ 100% loading | ||||||||||||||||||||||||||||||||||||||||||
| MTBF | 100,000 hours | ||||||||||||||||||||||||||||||||||||||||||
| Operating temperature | 0°C ~ 40°C | ||||||||||||||||||||||||||||||||||||||||||
| Protection | Over Current Protection Over Power Protection Over Voltage Protection Short Circuit Protection Under voltage protection Over Temperature Protection |
||||||||||||||||||||||||||||||||||||||||||
| Connectors | 1 x 24 / 20-Pin motherboard connector(550mm) 1 x 8 / 4-Pin EPS / ATX 12V connector(750mm) 2 x 8 / 6-Pin PCIE connector("550mm" x 2) 2 x 6-Pin PCIE connector("550mm" x 2) 8 x SATA connector("600mm / 150mm / 150mm / 150mm" x 2) 3 x 4-Pin Peripheral connector(600mm / 150mm / 150mm) 1 x 4-Pin Floppy adapter connector(100mm) |
||||||||||||||||||||||||||||||||||||||||||
| Cooling System | Single 120mm silent fan | ||||||||||||||||||||||||||||||||||||||||||
| Noise Level | 18 dBA minimum | ||||||||||||||||||||||||||||||||||||||||||
| Dimension | 150 mm (W) × 86 mm (H) × 150 mm (D) | ||||||||||||||||||||||||||||||||||||||||||
| Weight | 2.7 kg | ||||||||||||||||||||||||||||||||||||||||||
| Form factor | ATX | ||||||||||||||||||||||||||||||||||||||||||
| Certification | 80 PLUS Platinum | ||||||||||||||||||||||||||||||||||||||||||
| Other | Compatible with ATX12V v2.4 | ||||||||||||||||||||||||||||||||||||||||||
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 5 years
- Limited Warranty period (labor): 5 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's Standard Return Policy
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-909-465-9596
- Support Email: usasupport@silverstonetek.com
- Support Website
- View other products from Silverstone
Pros: - Cables look great, long enough - Self explanatory - Nice aesthetic. This thing is rated at titanium, and they made sure EVERYONE will be made aware - Static cover is a nice touch
Cons: - Yeah, what guy below me said. My old stock Raidmax power supply had the power input, an LED switch, an off/on switch, and a little voltage modifier thing on the back. You can stand to put a little more bells and whistles on this guy
Overall Review: I have it mounted upside down both so it draws air from outside the case, and doesn't compete with my 480 for air flow. Also it has a dank titanium rated 80 plus seal visable this way. If you have a case that has holes on the bottom to support this kind of thing then do that. Keep in mind that this power rating is the only one that ensures top level efficiency at really light loads. Platinum doesn't insure anything at the 10% load mark. If you care about efficency, pay bills, and or you're looking at having this thing for years like you should be, and if your wallet can survive the significant price hike, it's probably worth getting.
