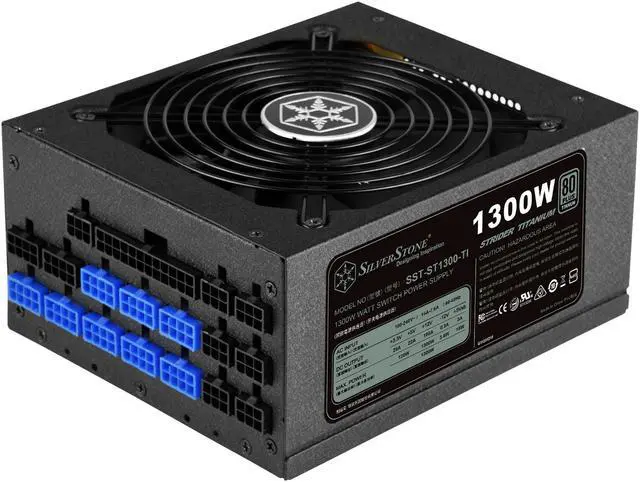

Silverstone ST1300-TI
- Top-level efficiency with 80 PLUS Titanium certification
- Japanese electrolytic capacitors
- 100% modular cables
- 24/7 continuous power output with 50°C operating temperature
- Class-leading single +12V rail
- Strict ±3% voltage regulation and low ripple & noise
- Dual EPS 8pin with multiple PCI-E 8 / 6pin connectors support
- Ultra silent 135mm fan with intelligent semi-fanless operation
Product Specifications
| Product No. | SST-ST1300-TI |
|---|---|
| Max. DC Output | 1300W (Peak 1400W) |
| Combined +3.3V & +5V | 120W |
| Input Voltage | 90 ~ 264 Vrms |
| PFC | Active PFC (PF>0.9 at full load) |
| MTBF | 100,000 hours |
| Cooling System | Single 135mm silent fan |
| Certification | 80 PLUS Titanium |
| Color | Black (lead-free paint) |
|---|---|
| Power density | 560W per liter |
| Combined +12V | 1296W |
| Input Frequency Range | 47Hz ~ 63Hz |
| Efficiency | 90% ~ 94% at 10% ~ 100% loading |
| Operating temperature | 0 ~ 50°C |
| Noise Level | 0 ~ 36 dBA |
| Dimension | 150 mm (W) x 86 mm (H) x 180 mm (D) |
Specifications presented on this page contains most recent revisions and may differ from those printed on retail boxes or manuals.
This PSU's motherboard connector includes a 4pin sense wire that needs to be connected to the PSU's modular interface as shown. Sense wire helps improve PSU's regulation performance by around 1%-2%.
