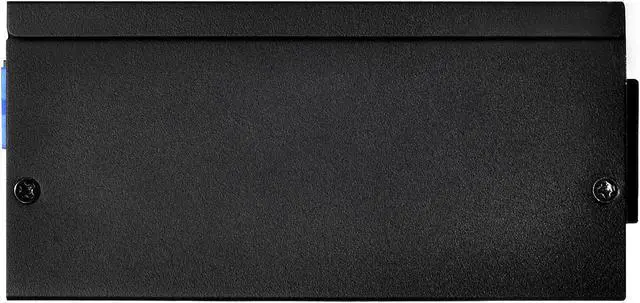

Main image of SilverStone Technology 500W SFX-L Form Factor 80 PLUS GOLD Full Modular Lengthened Power Supply with +12V single rail, Active PFC (SX500-LG)

Alt view image 2 of 18 - SilverStone Technology 500W SFX-L Form Factor 80 PLUS GOLD Full Modular Lengthened Power Supply with +12V single rail, Active PFC (SX500-LG)

Alt view image 3 of 18 - SilverStone Technology 500W SFX-L Form Factor 80 PLUS GOLD Full Modular Lengthened Power Supply with +12V single rail, Active PFC (SX500-LG)

Alt view image 4 of 18 - SilverStone Technology 500W SFX-L Form Factor 80 PLUS GOLD Full Modular Lengthened Power Supply with +12V single rail, Active PFC (SX500-LG)

Alt view image 5 of 18 - SilverStone Technology 500W SFX-L Form Factor 80 PLUS GOLD Full Modular Lengthened Power Supply with +12V single rail, Active PFC (SX500-LG)

Alt view image 6 of 18 - SilverStone Technology 500W SFX-L Form Factor 80 PLUS GOLD Full Modular Lengthened Power Supply with +12V single rail, Active PFC (SX500-LG)

Alt view image 7 of 18 - SilverStone Technology 500W SFX-L Form Factor 80 PLUS GOLD Full Modular Lengthened Power Supply with +12V single rail, Active PFC (SX500-LG)

Alt view image 8 of 18 - SilverStone Technology 500W SFX-L Form Factor 80 PLUS GOLD Full Modular Lengthened Power Supply with +12V single rail, Active PFC (SX500-LG)

Alt view image 9 of 18 - SilverStone Technology 500W SFX-L Form Factor 80 PLUS GOLD Full Modular Lengthened Power Supply with +12V single rail, Active PFC (SX500-LG)

Alt view image 10 of 18 - SilverStone Technology 500W SFX-L Form Factor 80 PLUS GOLD Full Modular Lengthened Power Supply with +12V single rail, Active PFC (SX500-LG)

Alt view image 11 of 18 - SilverStone Technology 500W SFX-L Form Factor 80 PLUS GOLD Full Modular Lengthened Power Supply with +12V single rail, Active PFC (SX500-LG)

Alt view image 12 of 18 - SilverStone Technology 500W SFX-L Form Factor 80 PLUS GOLD Full Modular Lengthened Power Supply with +12V single rail, Active PFC (SX500-LG)

Alt view image 13 of 18 - SilverStone Technology 500W SFX-L Form Factor 80 PLUS GOLD Full Modular Lengthened Power Supply with +12V single rail, Active PFC (SX500-LG)

Alt view image 14 of 18 - SilverStone Technology 500W SFX-L Form Factor 80 PLUS GOLD Full Modular Lengthened Power Supply with +12V single rail, Active PFC (SX500-LG)

Alt view image 15 of 18 - SilverStone Technology 500W SFX-L Form Factor 80 PLUS GOLD Full Modular Lengthened Power Supply with +12V single rail, Active PFC (SX500-LG)

Alt view image 16 of 18 - SilverStone Technology 500W SFX-L Form Factor 80 PLUS GOLD Full Modular Lengthened Power Supply with +12V single rail, Active PFC (SX500-LG)

Alt view image 17 of 18 - SilverStone Technology 500W SFX-L Form Factor 80 PLUS GOLD Full Modular Lengthened Power Supply with +12V single rail, Active PFC (SX500-LG)

Alt view image 18 of 18 - SilverStone Technology 500W SFX-L Form Factor 80 PLUS GOLD Full Modular Lengthened Power Supply with +12V single rail, Active PFC (SX500-LG)

Shop All Silverstone Technology Products | Visit RedAnt Store

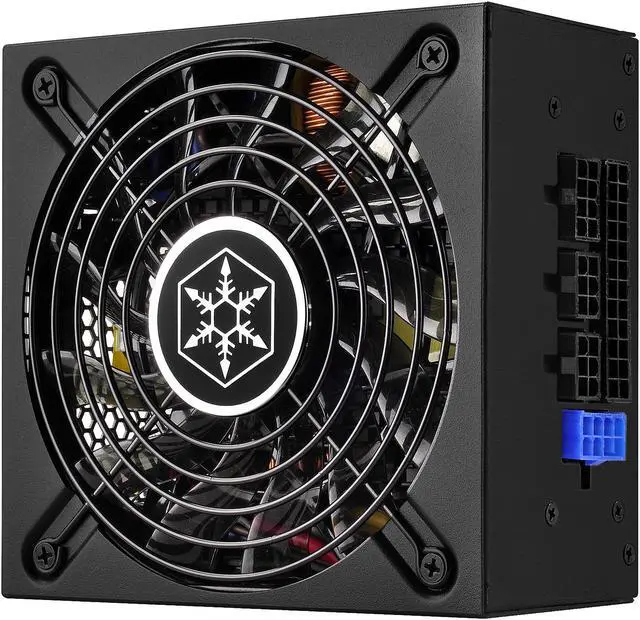

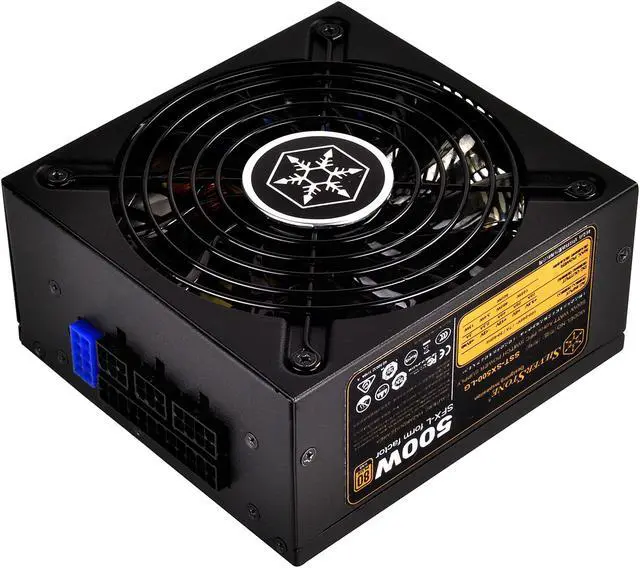

SilverStone Technology 500W SFX-L Form Factor 80 PLUS GOLD Full Modular Lengthened Power Supply with +12V single rail, Active PFC (SX500-LG)

Name: SilverStone Technology 500W SFX-L Form Factor 80 PLUS GOLD Full Modular Lengthened Power Supply with +12V single rail, Active PFC (SX500-LG)
Brand: Silverstone Technology
SKU: 1HU-00RG-00070
Price: 120.56 USD
Availability: InStock
Rating: 5 (1 reviews)

(1) Write a Review

SFX
Full Modular
80 PLUS GOLD Certified
100 - 240 V 50/60 Hz
+3.3V@20A, +5V@20A, +12V@40A, [email protected], [email protected]

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (1)

Any questions? Our AI beta will help you find out quickly.

Try me now

For small form factor enthusiasts, the standard SFX power supply form factor has excellent combination of size, power, and affordability. At 100mm deep, however, the standard SFX PSU is also limited in fan size to 80mm. While advances in engineering and components have made modern high-end SFX PSUs quieter than ever, there is still inherent limitation with 80mm fan's ability to dissipate heat at maximum loading conditions while maintaining satisfactory noise profile for users sensitive to higher-pitch sounds. With this in mind, Silverstone has released a "lengthened" variation of the SFX form factor called, SFX-L.

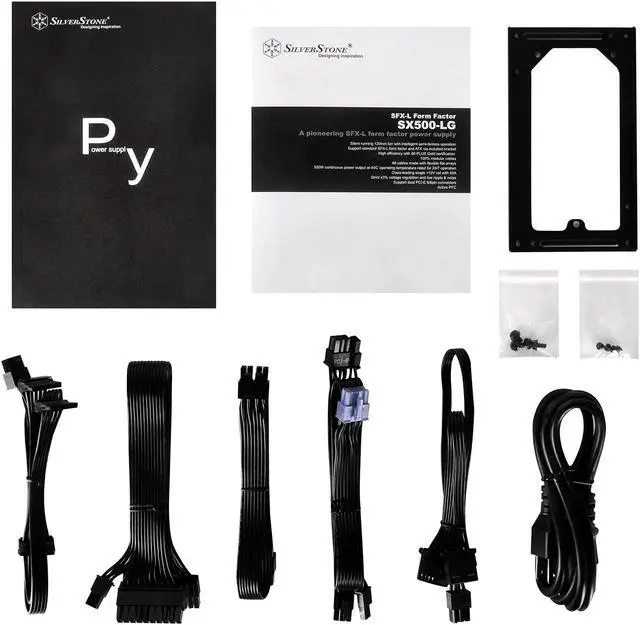

With 30mm of added depth, a SFX-L power supply has enough room to fit a 120mm fan, thus its maximum load noise can be not only lower in intensity (via slower fan speed), but also lower in pitch (due to larger fan size). The first model to debut in the SFX-L will be the SX500-LG, a 500W model that includes all features available from top of the line SFX Silverstone PSUs such as 80 PLUS Gold efficiency, modular flexible flat cables, and semi-finless capability. An ATX adapter bracket is included as well to enable users to install this PSU into any small or even larger cases that do not have SFX mounting holes.

Features:

to Worldwide, Six Months Quality Warranty
Interface: Plug and Play travel easily, Hi-Speed USB 2.0
Support Windows98/ SE /ME / 2000 / XP / Vista/Win 7/Win 8
Support to burn CD Only, not DVD-RW
Read Speed: 24x (CD) / 8x (DVD)
HP Xeon E5-2640

Package Quantity: 1

SX500-LG

A pioneering SFX-L form factor power supply

Silent running 120mm fan with 18dBA minimum (V2.0)
Support SFX-L form factor and ATX via included bracket
High efficiency with 80 PLUS Gold certification
100% modular cables
All cables made with flexible flat arrays
500W continuous power output at 40℃ operating temperature rated for 24/7 operation
Class-leading single +12V rail with 40A
Strict ±3% voltage regulation and low ripple & noise
Support dual PCI-E 8/6pin connectors
Active PFC
All Japanese capacitors
Dual EPS 8pin with multiple PCI-E 8 / 6pin connectors support

Remark

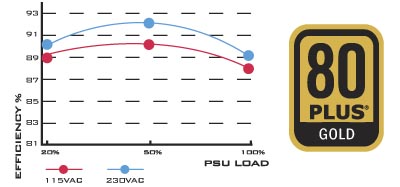

Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity.

100% modular cable design for easy removal in a case with cable routed and tied down.

Flat cables have much greater flexibility to allow for tighter folding and management of cables.

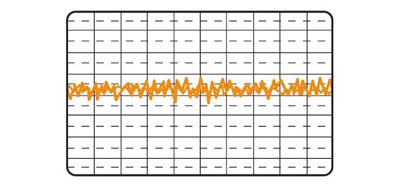

±3% regulation and low ripple & noise performance for high stability.

Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.

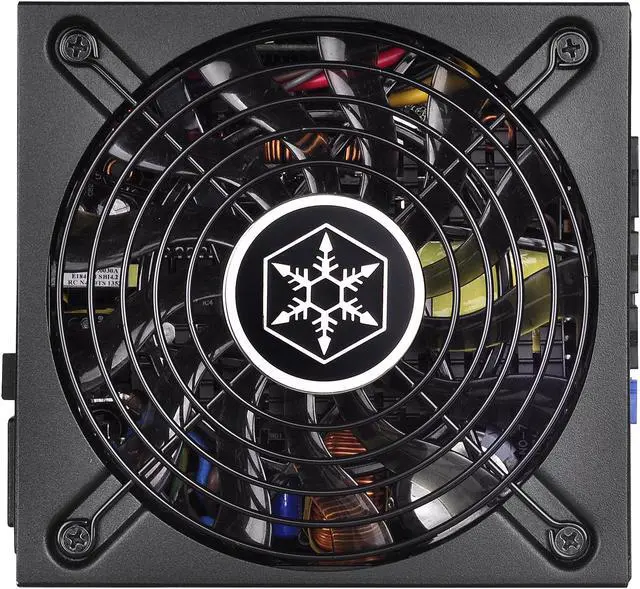

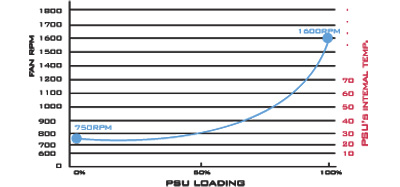

Built-in 120mm fan has excellent airflow and low noise, perfect for quiet home or office use. (V2.0)

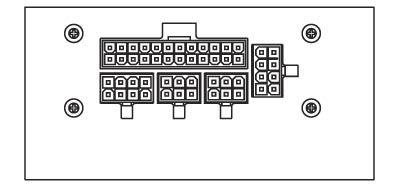

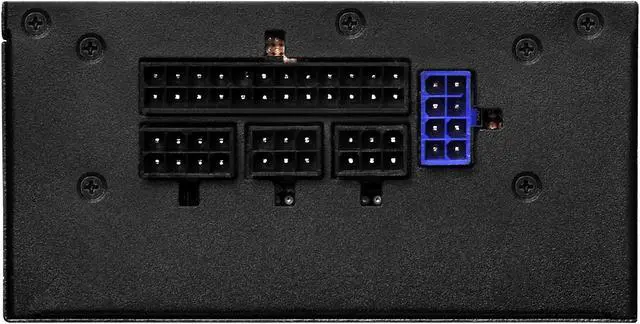

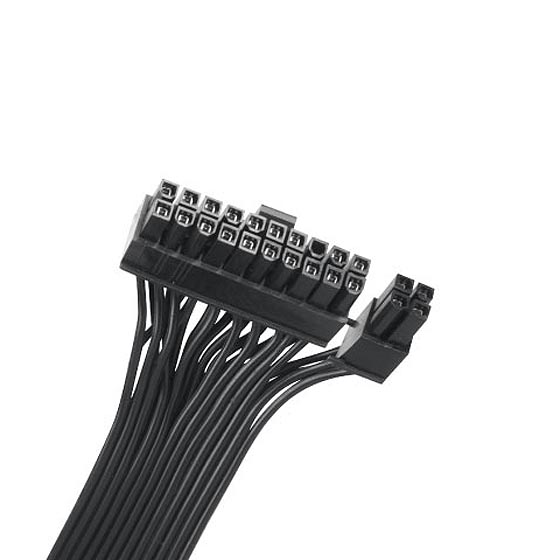

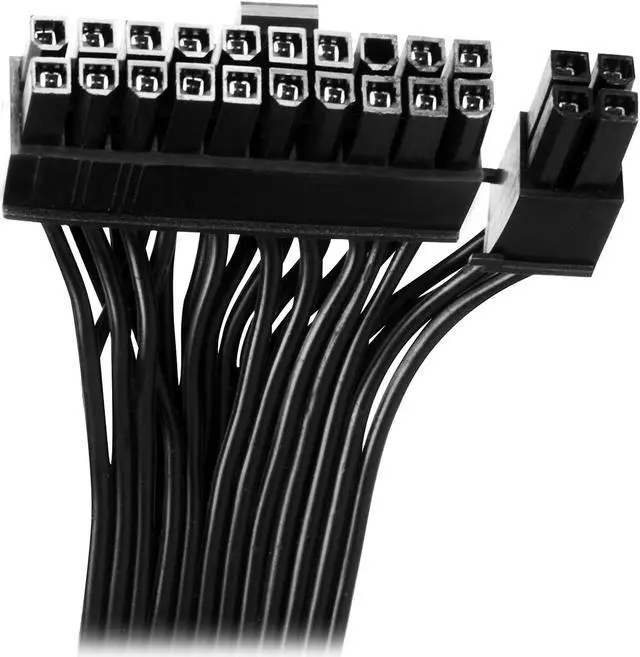

1 x 24 / 20-Pin motherboard connector

CPU 8-Pin connector (V2.1)

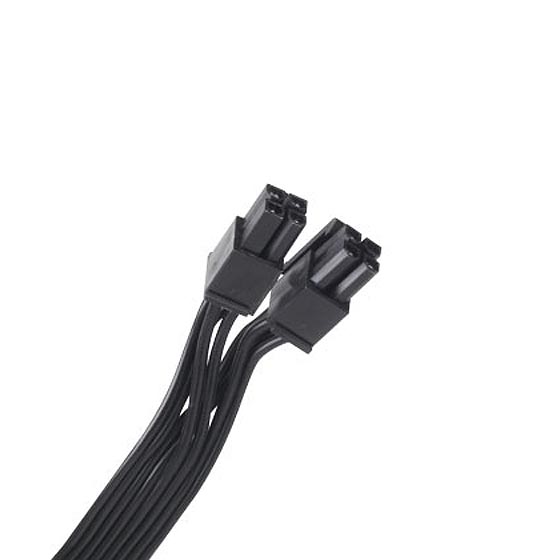

1 x 8 / 4-Pin EPS / ATX 12V connector

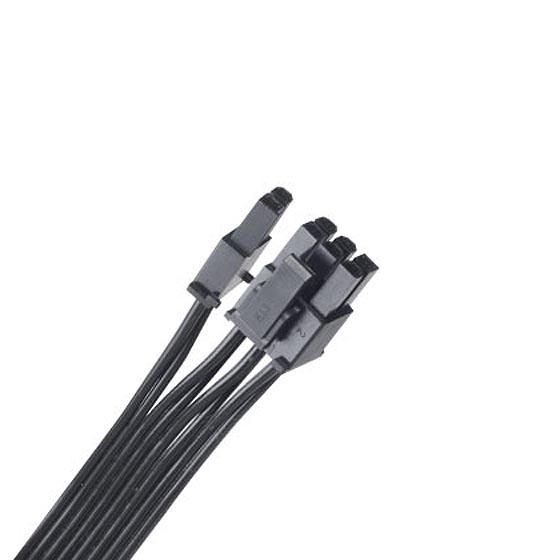

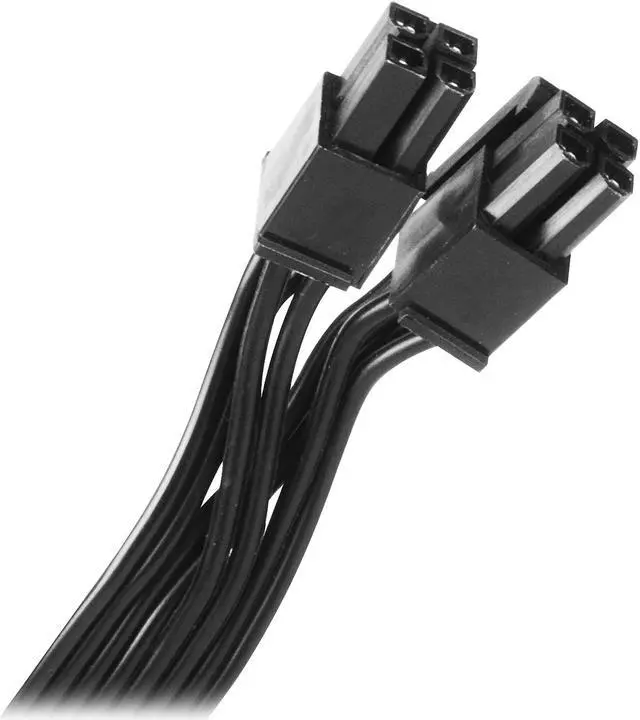

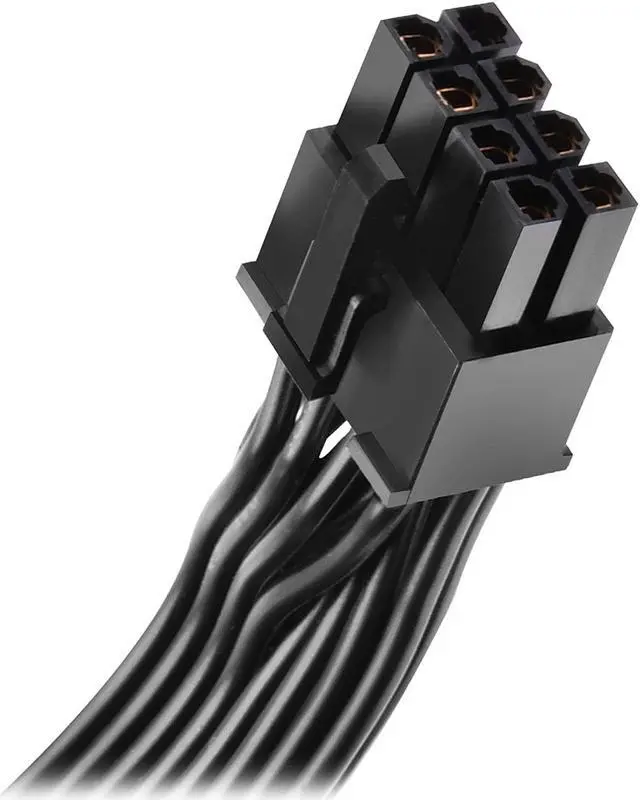

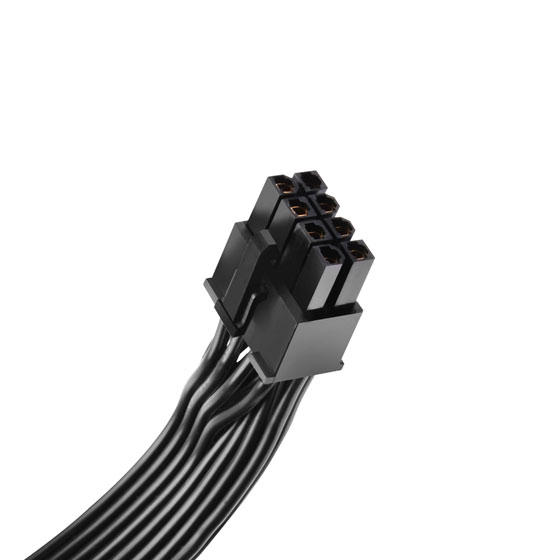

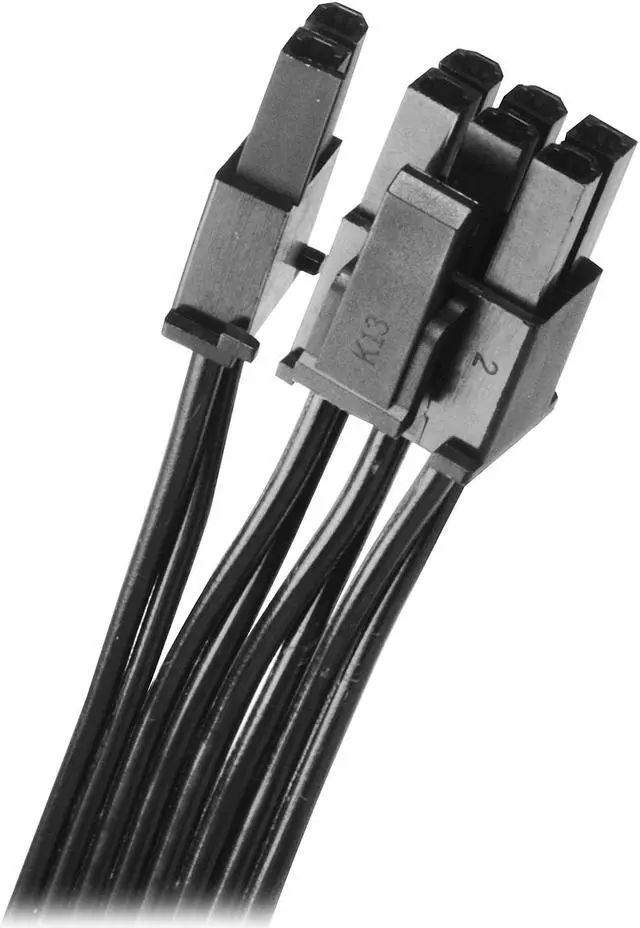

2 x 8 / 6-Pin PCIE connector

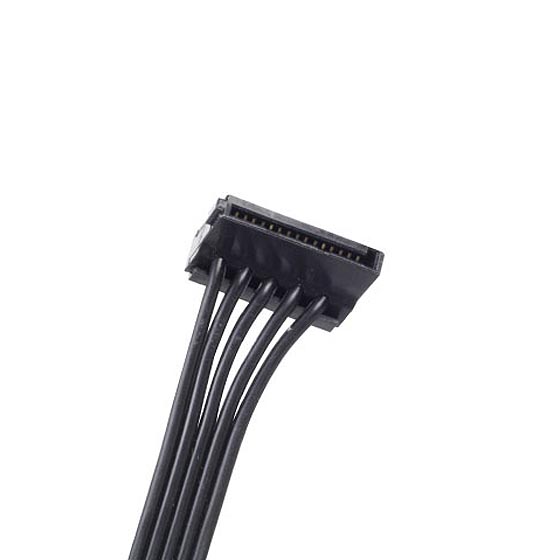

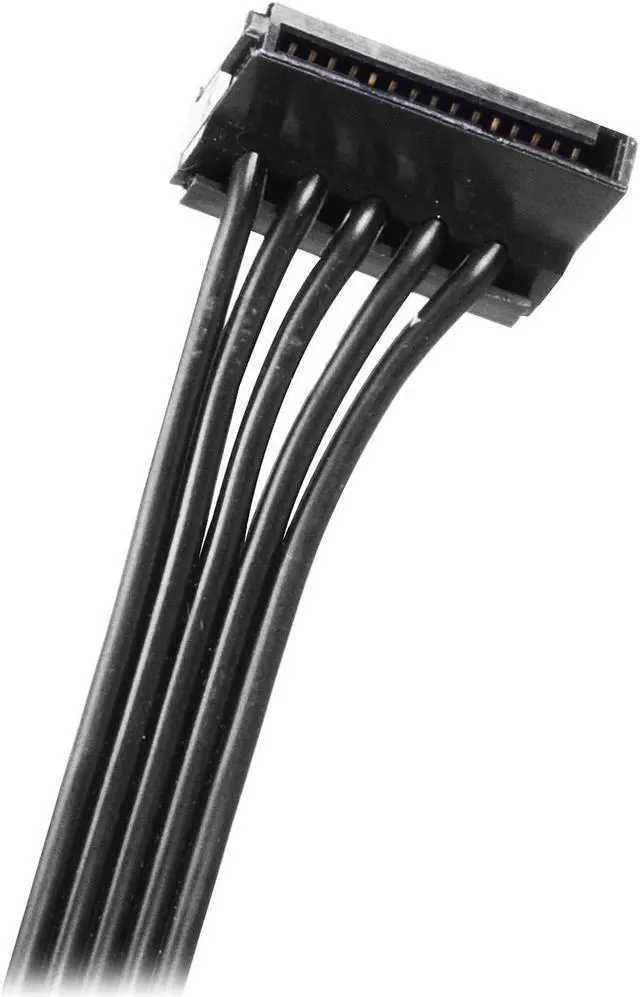

3 x SATA connector

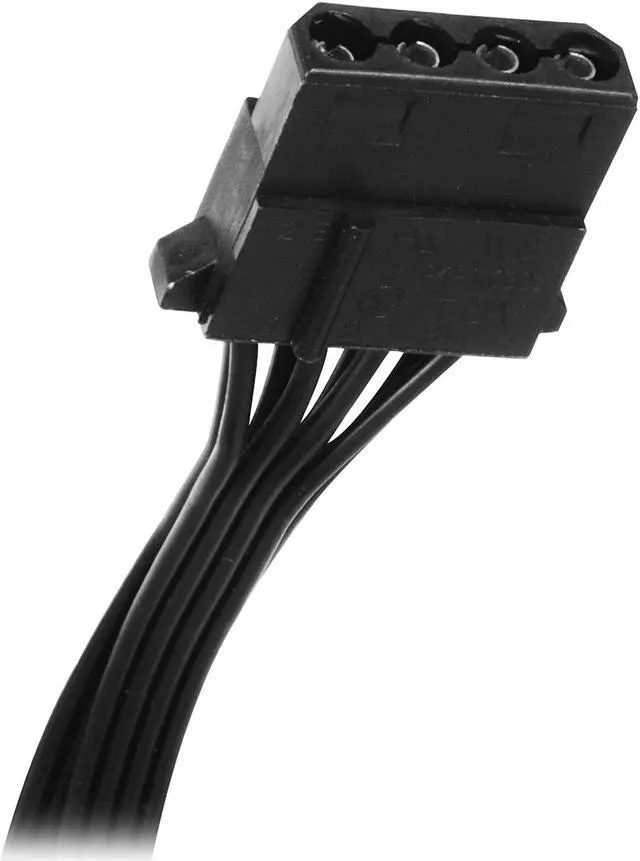

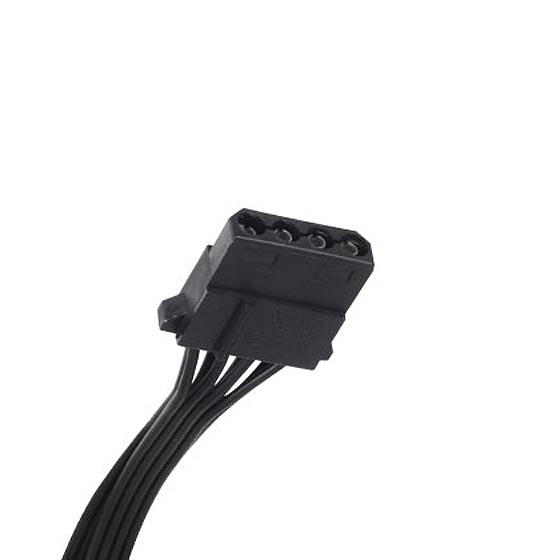

2 x 4-Pin Peripheral connector

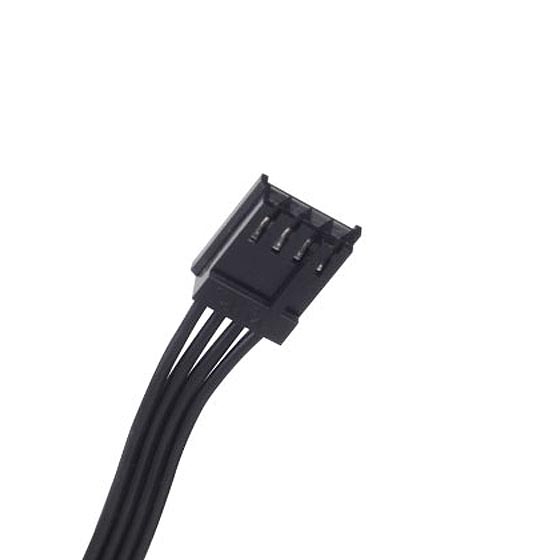

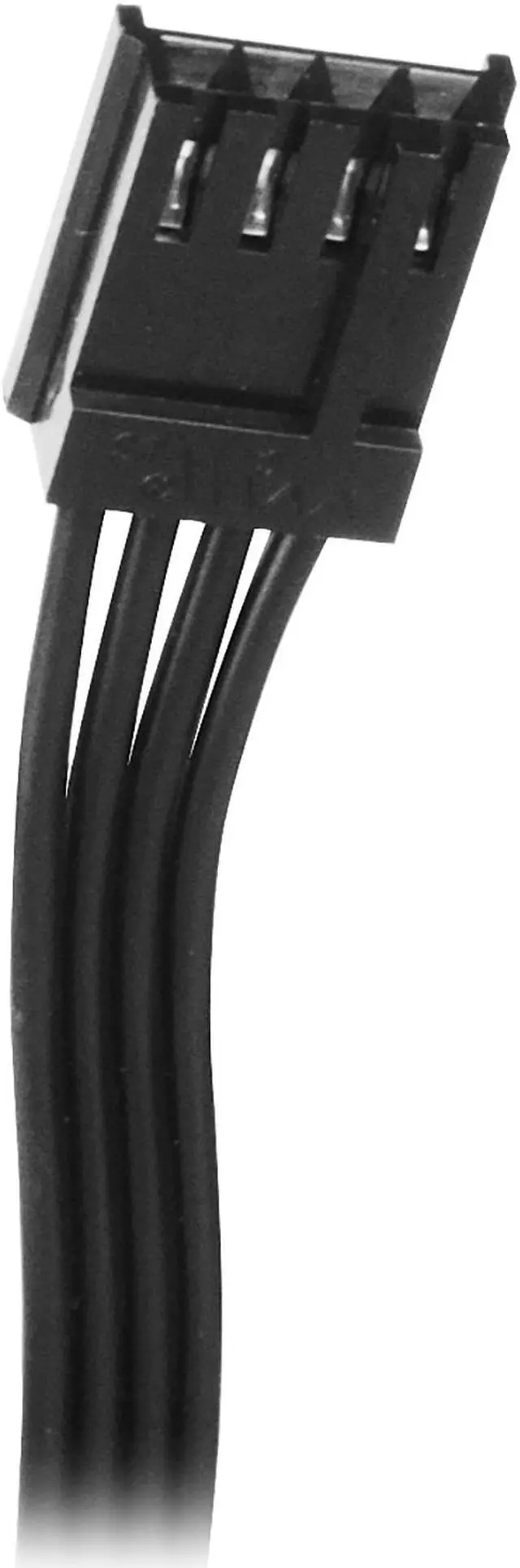

1 x 4-Pin Floppy connector

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by RedAnt Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

Color	Black
Type	SFX
Maximum Power	500 W
Fans	1 x 120 mm
PFC	Active
Main Connector	20+4Pin
+12V Rails	Single
PCI-Express Connector	2 x 6+2-Pin
SATA Power Connector	3
Max PSU Length	130 mm
Modular	Full Modular
Energy-Efficient	80 PLUS GOLD Certified
Protection	Over power protection Over voltage protection Over temperature protection Under voltage protection Short circuit protection
Input Voltage	100 - 240 V
Input Frequency Range	50/60 Hz
Input Current	7A

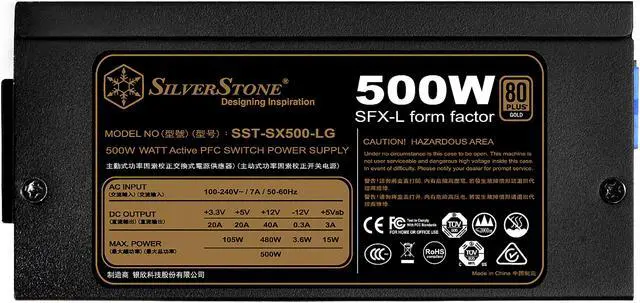

Output	+3.3V@20A, +5V@20A, +12V@40A, [email protected], [email protected]
MTBF	>100,000 Hours
Connectors	1 x 24 pin (20+4) ATX 1 x 8 pin (4+4) EPS (CPU) 1 x 8 pin CPU 2 x 8 pin (6+2) PCIe 3 x SATA 2 x 4 pin Peripheral 1 x Floppy
Cable Spec	20+4Pin MB: One cable (300mm) 1 x 8-Pin EPS and 1 x 4-Pin + 4-Pin ATX 12V: One cable (400+150mm) 2 x PCI-E 6+2Pin: One cable (400+150mm) 3 x SATA: One cable (300+200+100mm) 2 x 4-Pin Peripheral + 1 x 4-Pin Floppy: One cable (300+200+200mm)

Dimensions	2.50" x 4.92" x 5.12"
Weight	3.09 lbs.
