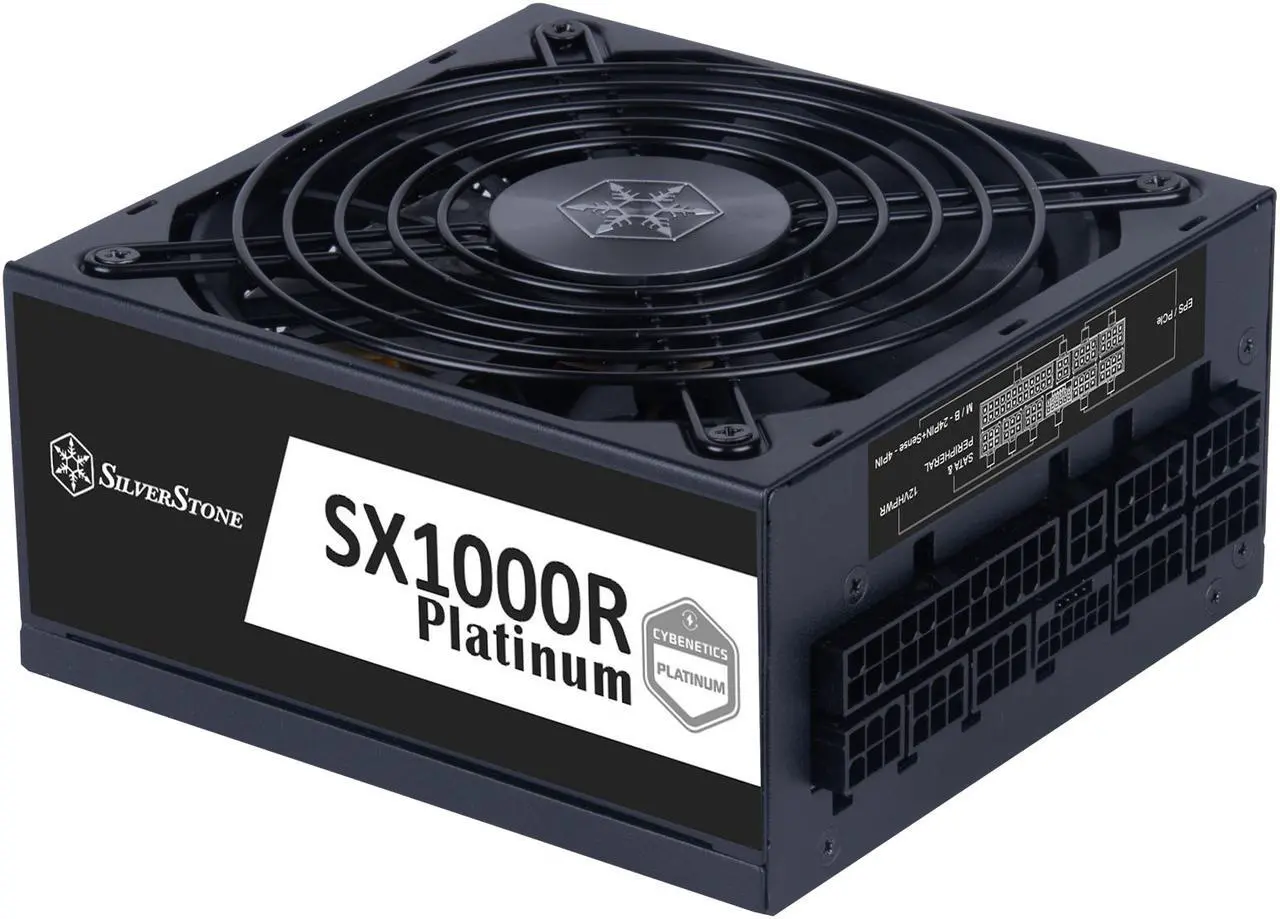

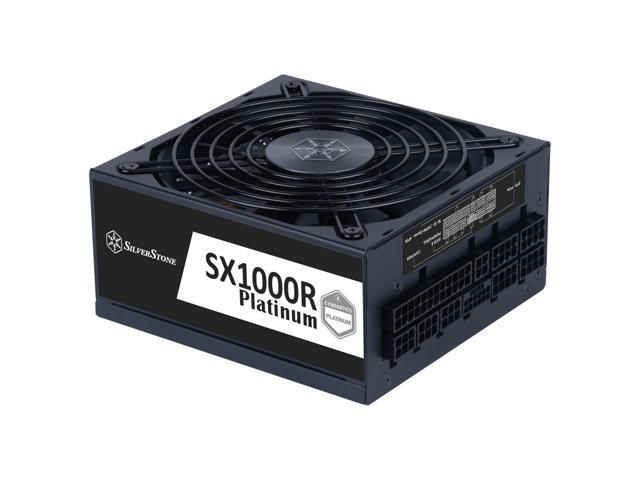

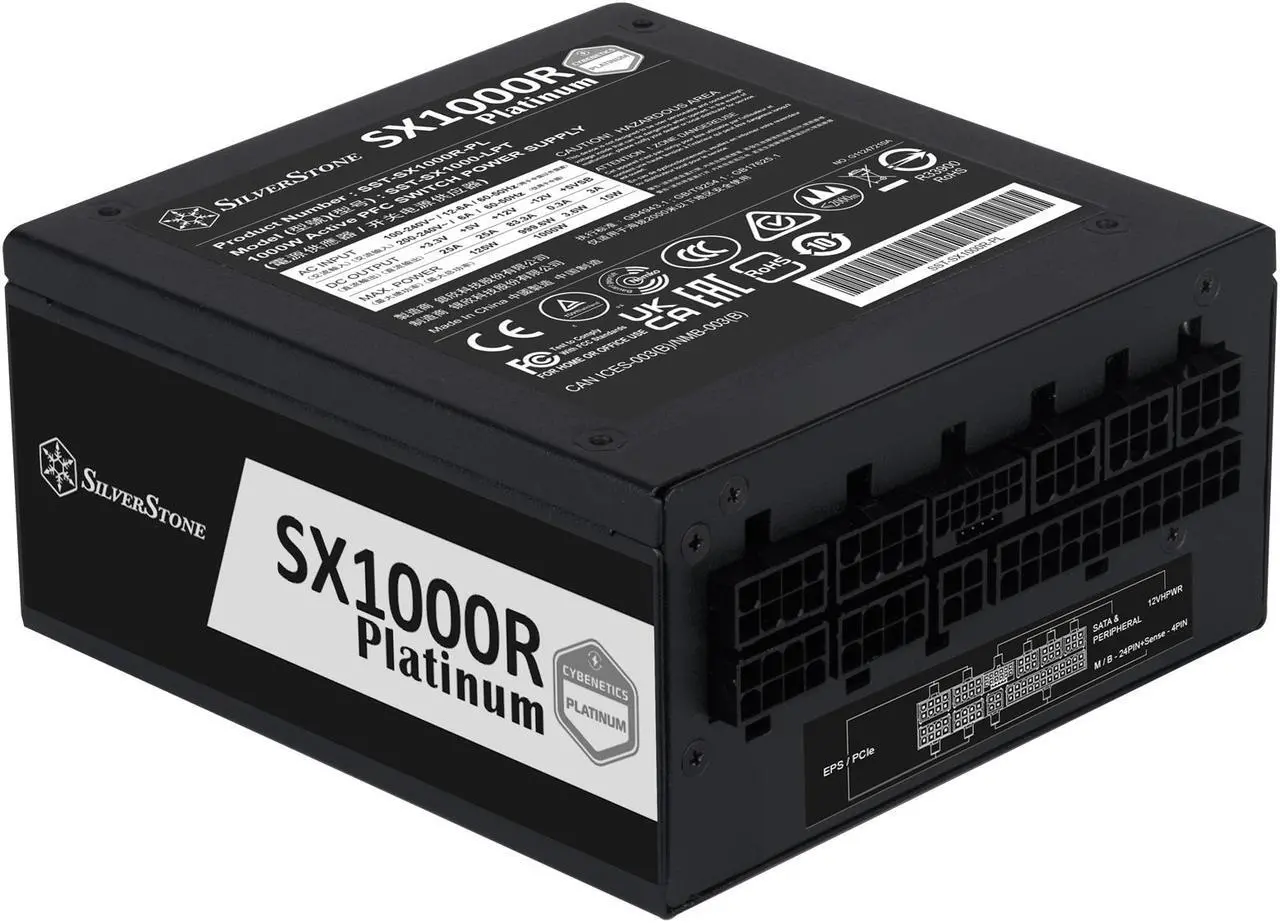

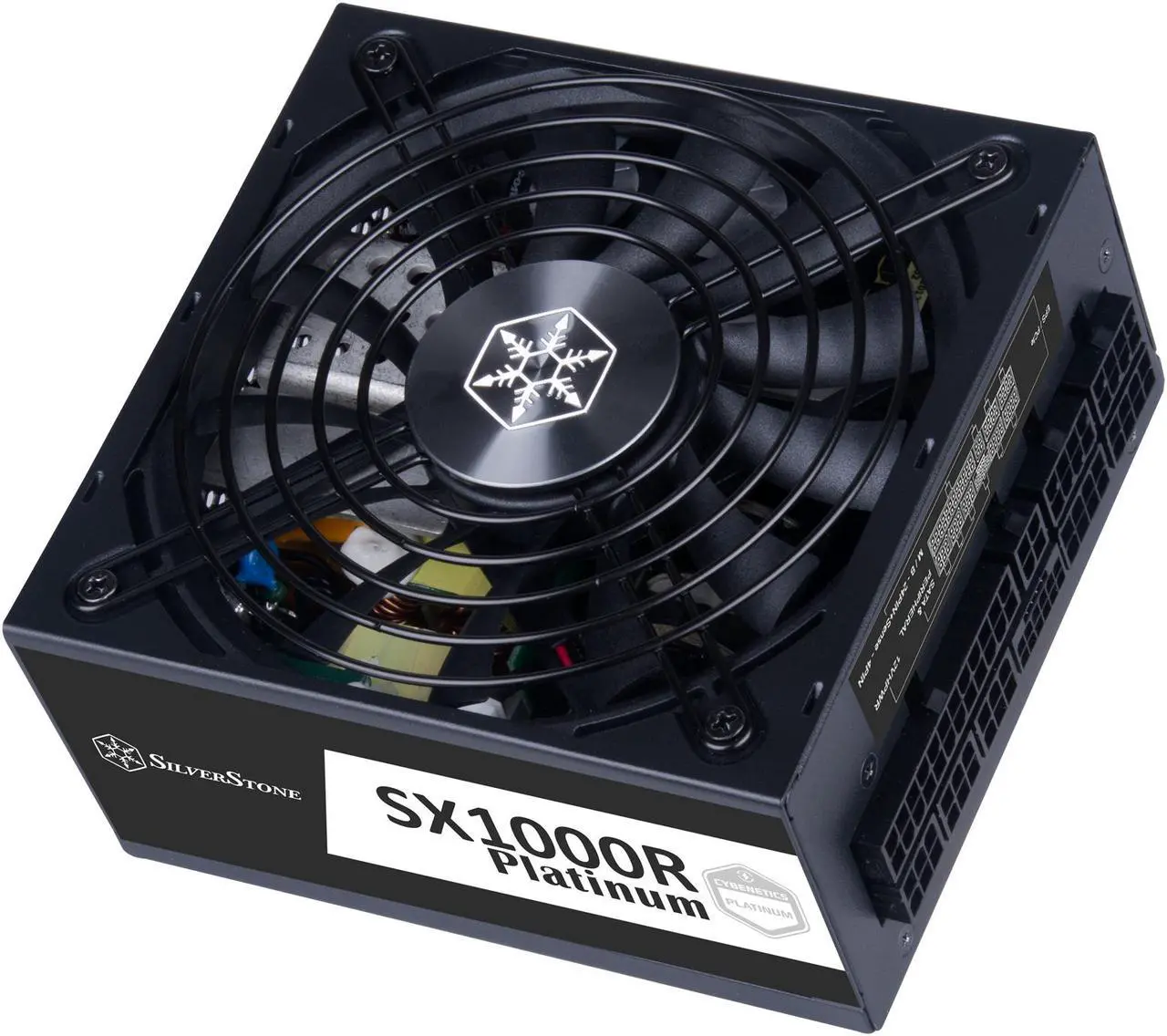

Silverstone SX1000R Platinum
Cybenetics Platinum 1000W SFX12V 4.0 & PCIe 5.0 Fully Modular SFX-L Power Supply
- SFX-L form factor for use in small form factor computers
- Supports 12VHPWR PCIe connector with SFX12V 4.0 and PCIe Gen 5 standard
- 1000W continuous power output rated for 24/7 operation
- Class-leading single +12V rail with 83.3A
- High efficiency with Cybenetics Platinum certification

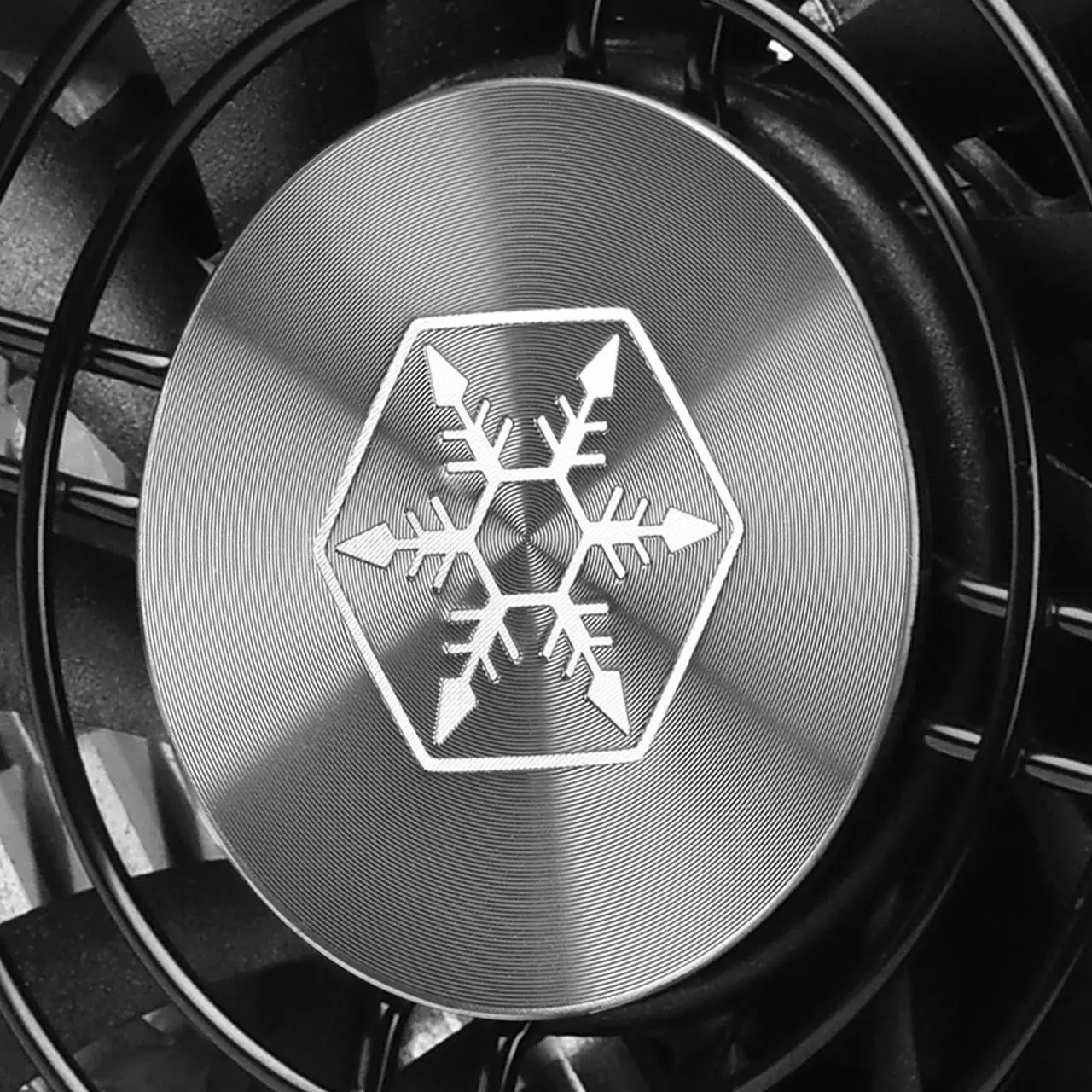

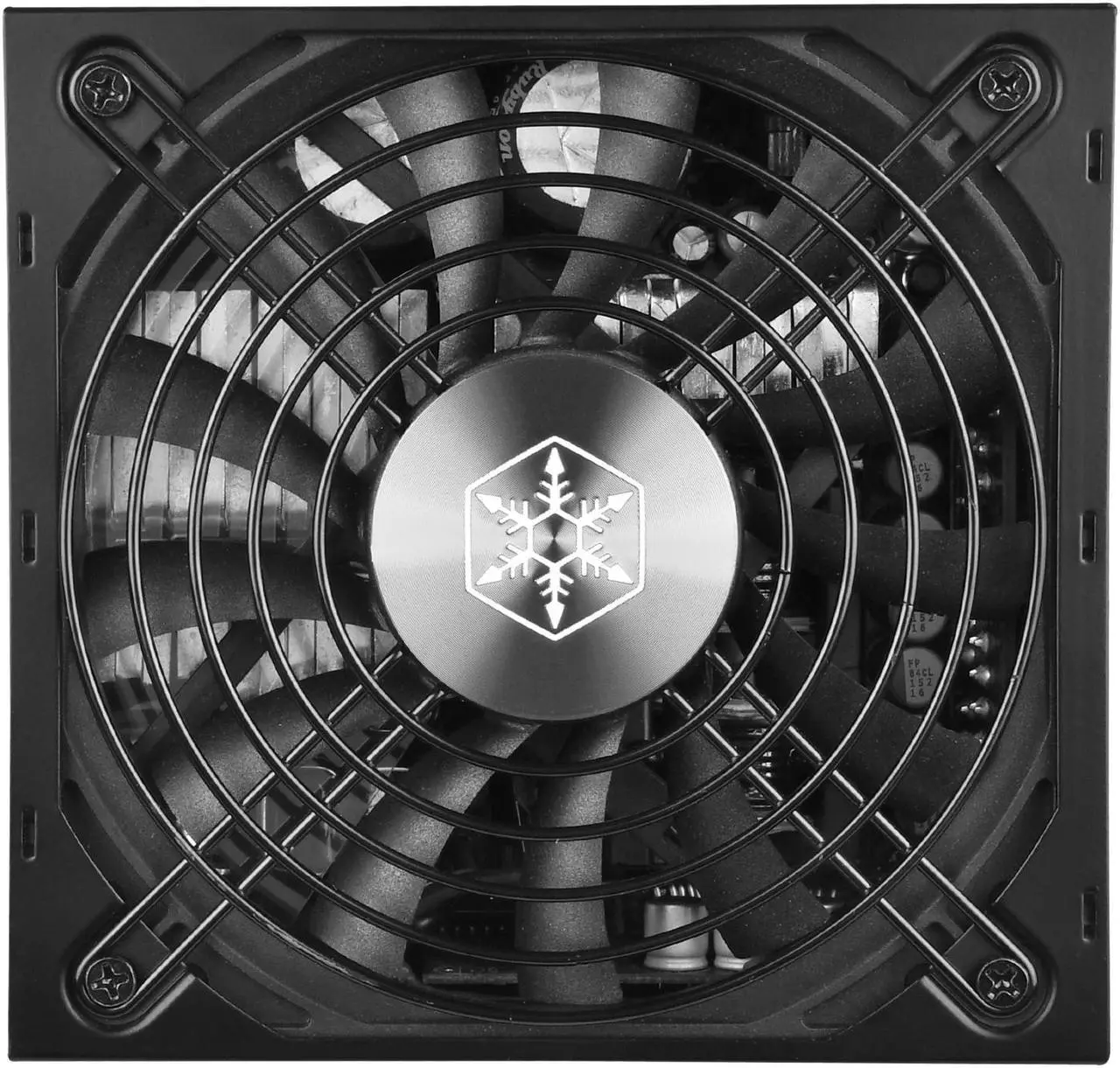

- Silent running 120mm dual ball bearing fan with advanced semi-fanless operation
- 24/7 continuous power output with 50°C operating temperature
- High quality construction with all Japanese capacitors

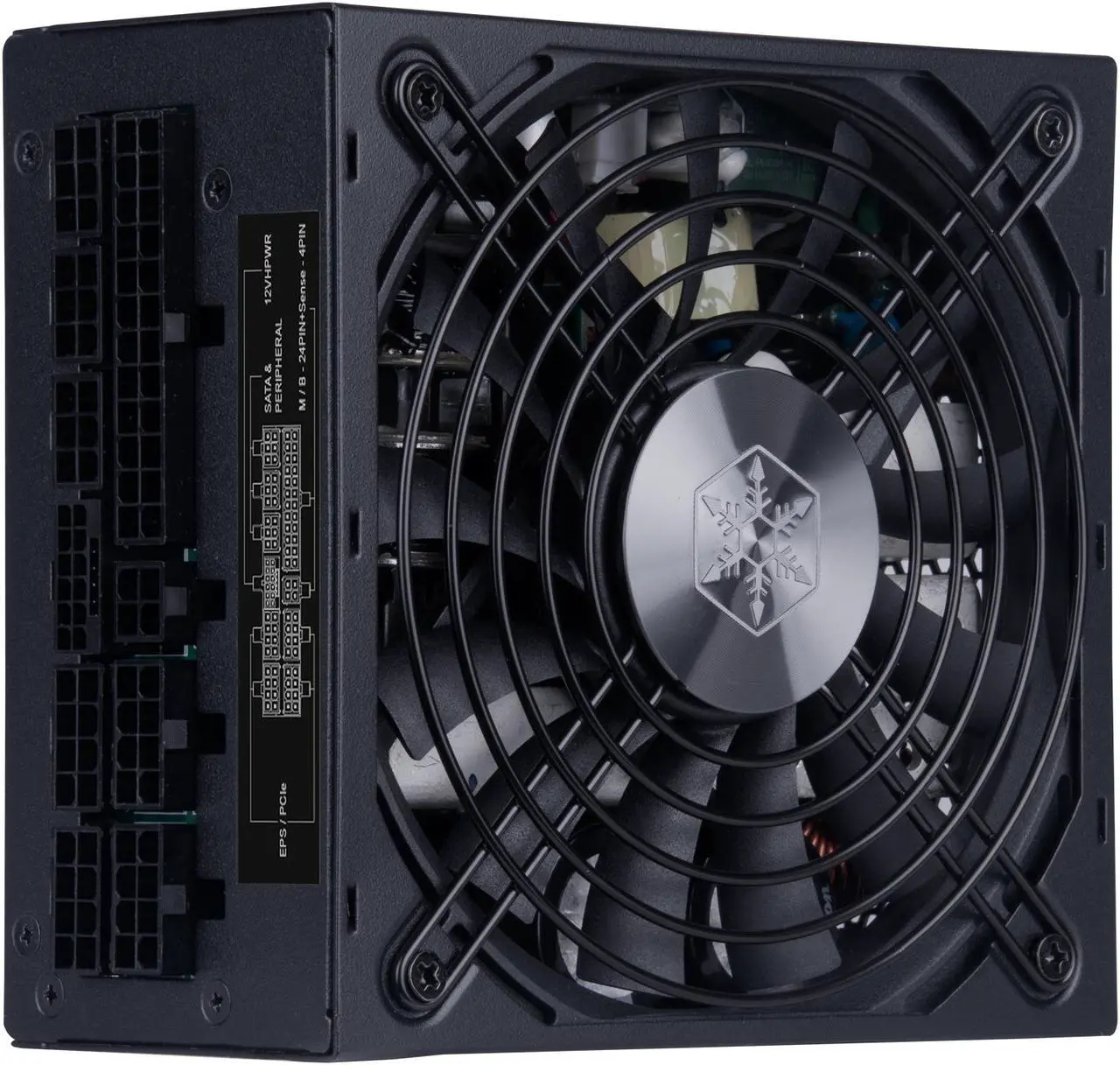

Connectors
- 1 x 24 / 20-Pin motherboard connector
- 2 x 8 / 4-Pin EPS / ATX 12V connector
- 4 x 8 / 6-Pin PCIe connectors
- 1 x 12+4-Pin 12VHPWR connector
- 8 x SATA connector
- 3 x 4-Pin Peripheral connector + 1 x 4-Pin Floppy adapter connector
Protection
- Over Current Protection
- Over Power Protection
- Over Voltage Protection
- Short Circuit Protection
- Over Temperature Protection
- Under Voltage Protection
Load Range
| Output | +3.3V | +5V | +12V | +5VSB | -12V |
|---|---|---|---|---|---|
| Max.(Amps) | 25A | 25A | 83.3A | 3.0A | 0.3A |
| Min.(Amps) | 0A | 0A | 0A | 0A | 0A |
| Range (%) | ±3% | ±3% | ±3% | ±5% | ±10% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 40mV | 40mV | 100mV | 40mV | 80mV |
Product Specifications
| Product No. | SST-SX1000R-PL |
|---|---|
| Color | Black (lead-free paint) |
| Combined +3.3V & +5V | 125W |

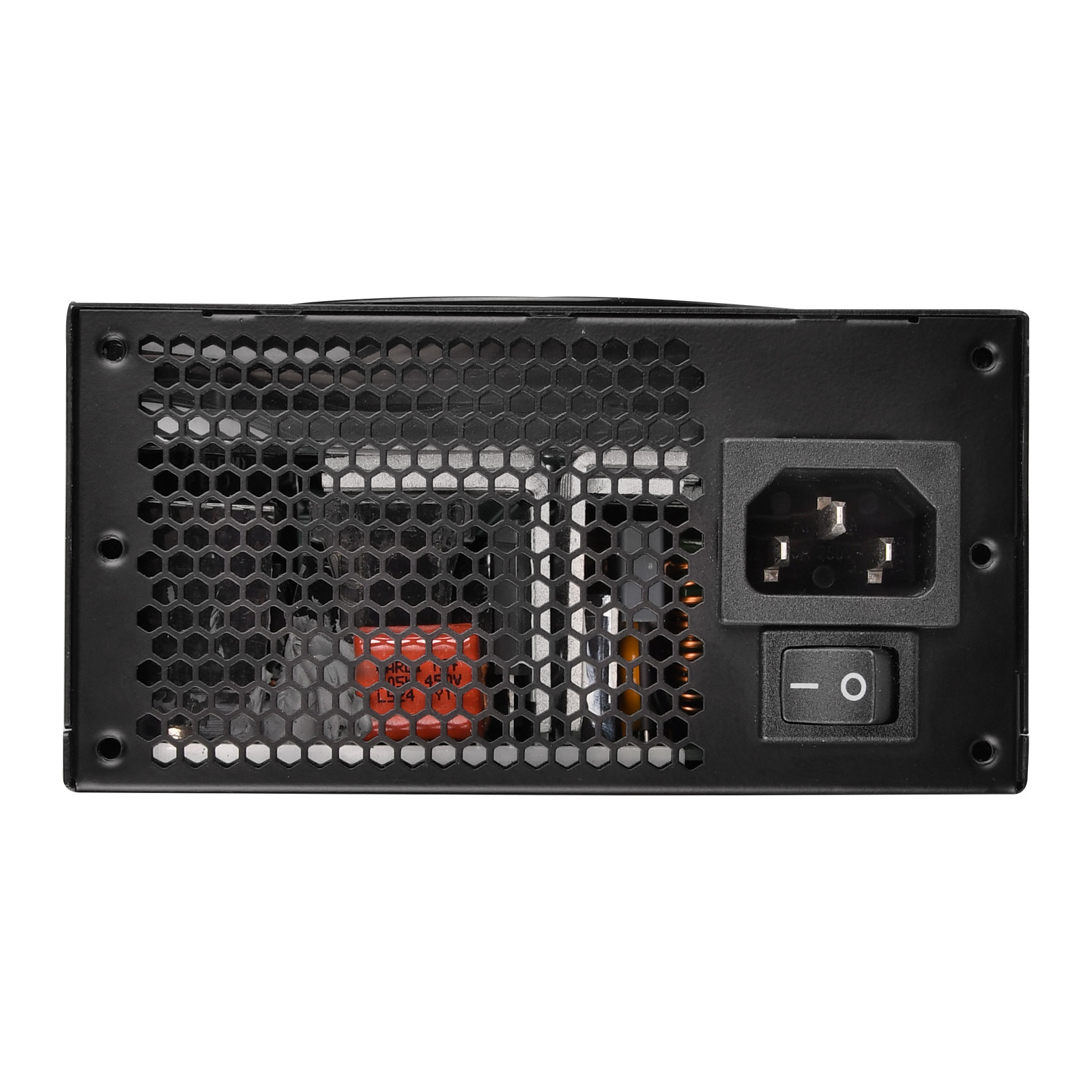

| Input Voltage | 90 ~ 264 Vrms |
| PFC | Active PFC (PF>0.9 at full load) |
| MTBF | 100,000 hours |
| Cooling System | Single 120mm dual ball bearing fan |
| Certification | Cybenetics Platinum |
| Model (safety certification) | SST-SX1000-LPT |
|---|---|
| Max. DC Output | 1000W |
| Combined +12V | 999.6W |
| Input Frequency Range | 47Hz ~ 63Hz |
| Efficiency | 89% ~ 91% overall efficiency |
| Operating temperature | 0°C ~ 50°C |
| Noise Level | 0 ~ 36 dBA |
| Dimension | 4.92" (W) x 2.5" (H) x 5.12" (D) |
Specifications presented on this page contains most recent revisions and may differ from those printed on retail boxes or manuals. This PSU's motherboard connector includes a 4pin sense wire that needs to be connected to the PSU's modular interface as shown. Sense wire helps improve PSU's regulation performance by around 1%-2%.
