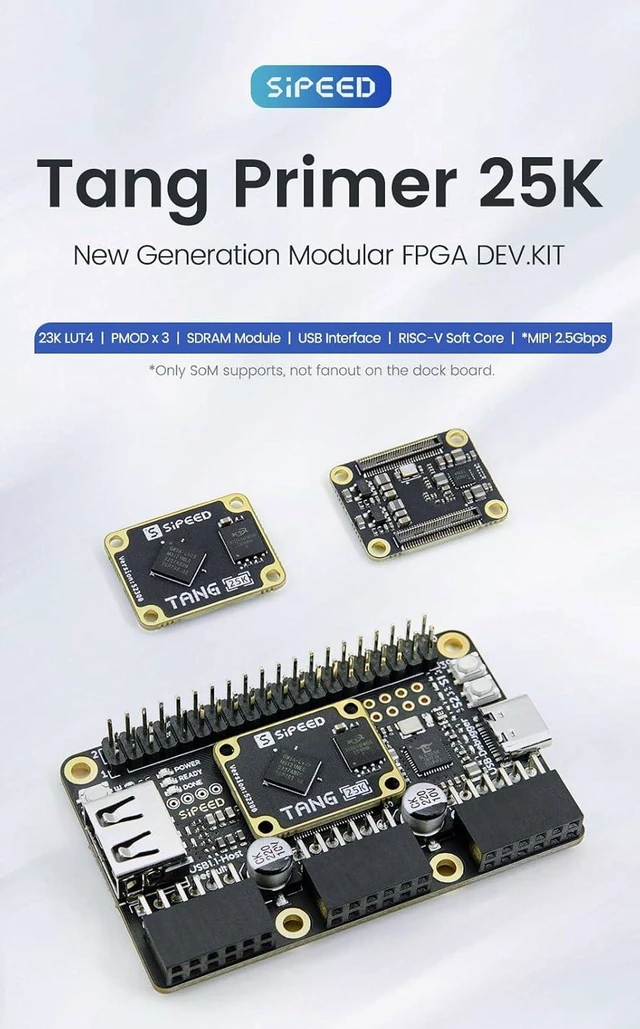

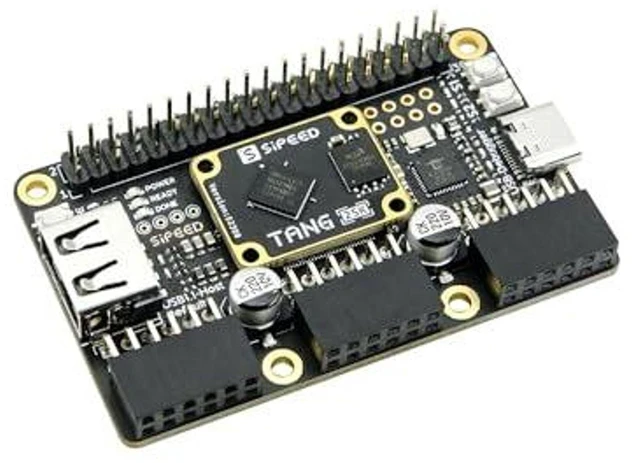

Tang Primer 25K Dock FPGA Development Board Modular FPGA SoM Board with Gowin GW5A-LV25MG121 23K LUT4 MIPI 2.5Gbps USB-JTAG Debugger PMOD and 40P Pin Header

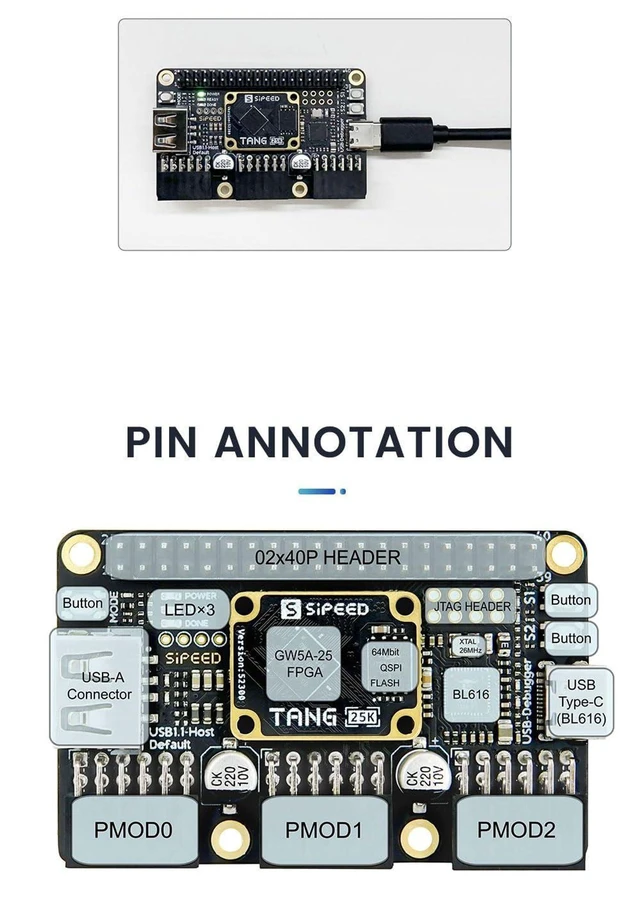

- Modular 25K dock board with an onboard USB-JTAG debugger, three PMOD interfaces, and a 40-pin header for expansion.
- Three PMOD interfaces support connection to simple add-on modules, including HDMI, gamepad, and LED modules.
- The 40-pin header interface supports more complex expansion modules such as SDRAM modules and dual DVP camera modules.
- Integrated FPGA SoM design includes 64Mbit SPI flash, a DC-DC power supply, and a BTB connector.
- Provides 76 GPIOs for connecting external signals and peripherals through the FPGA SoM board.
- Features one hard-core 4-lane MIPI D-PHY interface, with MIPI capability specified at 2.5Gbps.
- Includes three power outputs, and the SoM is designed to operate from a 5V power supply when configured correctly.
- Specified with 23K LUT4 resources and RISC-V support for FPGA development applications.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Product Description:

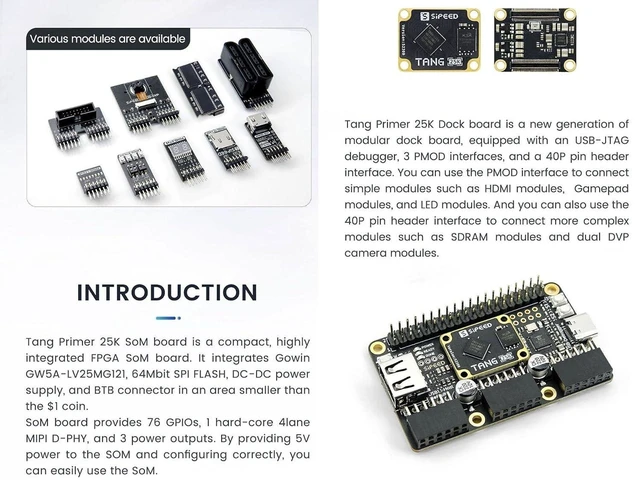

Tang Primer 25K Dock FPGA development board with a modular dock design for connecting PMOD and pin-header expansion modules. The integrated SoM supports FPGA development with onboard memory, power circuitry, and high-speed connectivity.
Core Selling Points:
Built-in USB-JTAG debugger supports programming and debugging. Three PMOD interfaces can connect modules such as HDMI, gamepad, and LED modules. A 40-pin header interface supports expanded connections including SDRAM and dual DVP camera modules. The compact SoM design integrates core components for modular use.
Technical Specifications:
Model: Tang Primer 25K. FPGA: GW5A-LV25MG121. Logic capacity: 23K LUT4. Memory: 64Mbit SPI Flash. Interfaces: USB-JTAG debugger, 3 PMOD interfaces, 40-pin header interface, BTB connector. GPIO: 76. MIPI: 4-lane hard-core MIPI D-PHY, 2.5Gbps. Power: DC-DC power supply, 3 power outputs; 5V input for the SoM.
Before Purchase:
Provide 5V power to the SoM and configure it correctly before use. Verify that connected PMOD or 40-pin expansion modules match the available interfaces.
