Brand | SMC LG-ERICSSON |
---|---|
Model | SMCGS8 |
Format | External |
---|---|
Standards | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x |
Network Management Type | Unmanaged |
Primary Ports | 8 x RJ45 |
---|---|
Primary Port Speed | 10/100/1000Mbps |
MAC Address Table | 8K |
---|---|
Switching Method | Store and Forward |
VLAN Support | No |
Jumbo Frames | No |
Buffer Memory | 144KB |
---|---|
PoE | No |
Stackable | No |
SNMP | No |
QoS | No |
LACP | No |
Layer | 2 |
Port Mirroring | No |
Module Support | No |
Cabling | 10Base-T, UTP/ STP category 3 or 5 cable 100Base-TX UTP/ STP category 3 or 5 cable 1000Base-T, UTP/ STP category 5 cable, 4 pairs |
LEDs | System: Power Port:Link/activity, 1000M |
Power | 9 Watts |
Features | SWITCH FABRIC: 16Gbits 11.9Mpps Auto MDI/MDI-X on each port to simplify integration into a network Support to handle Jumbo Packets EEE802.3x compliant full-duplex flow control, HOL blocking prevention Broadcast storm control and CRC Filtering LED indicators for simple troubleshooting |
---|
Dimensions | 7.4" x 3.5" x 1.5" |
---|---|
Weight | 0.58 lbs. |
Temperature | 0ºC to 40ºC (32ºF to 104ºF) |
---|---|
Humidity | 5% - 95%, Non-condensing |

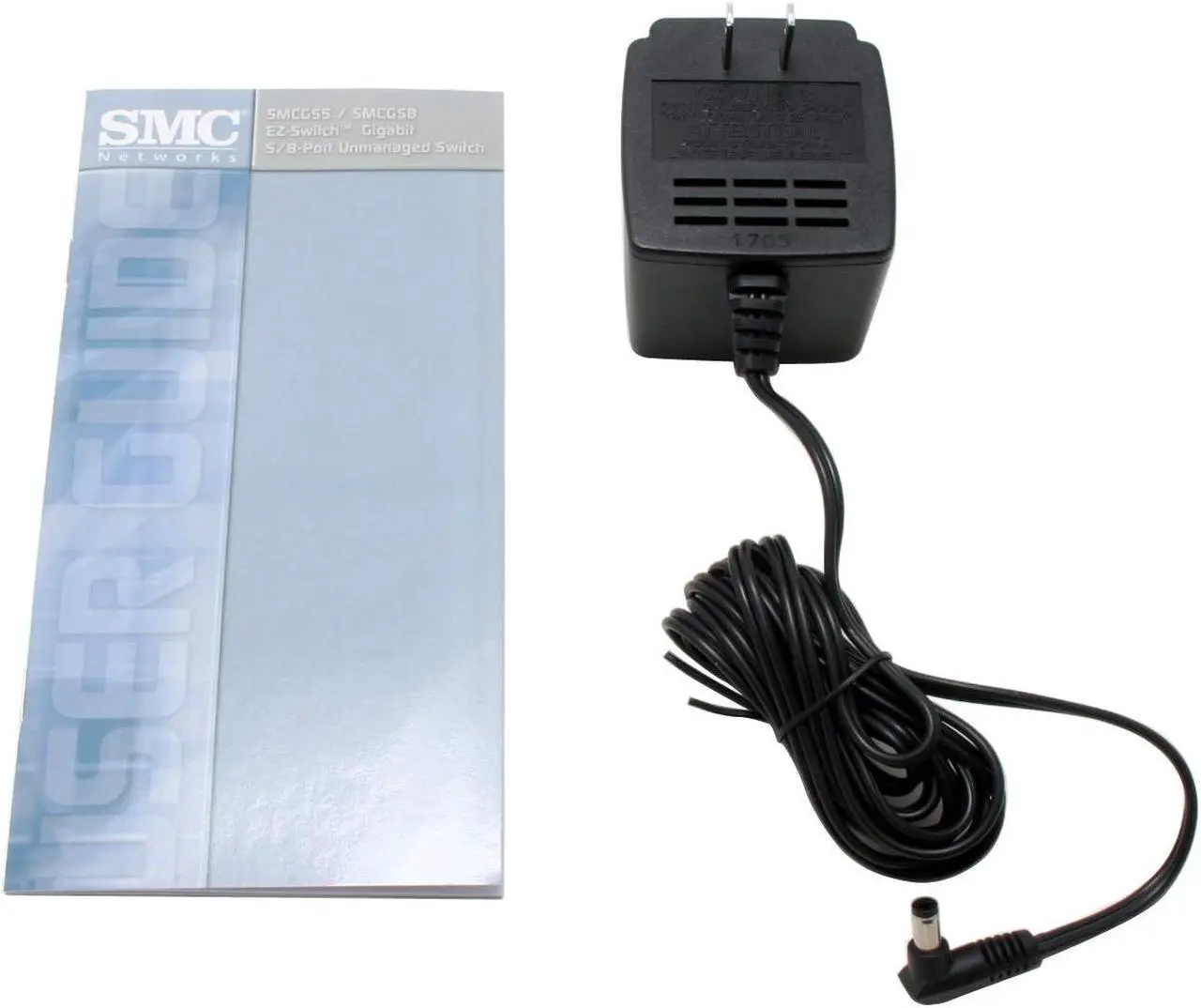

Package Contents | SMCGS8 Manual Power Adapter |
---|
Date First Available | July 07, 2005 |
---|
