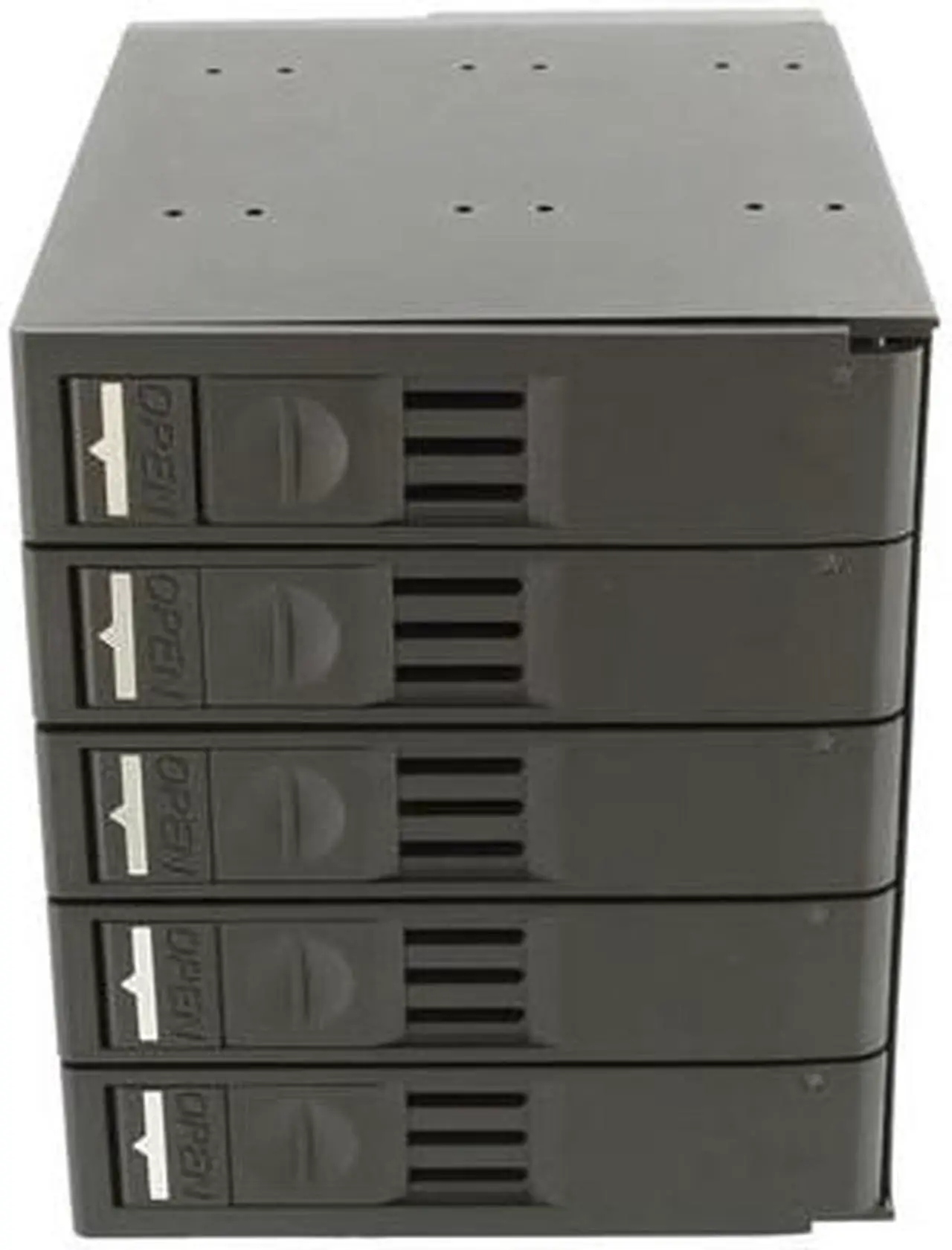

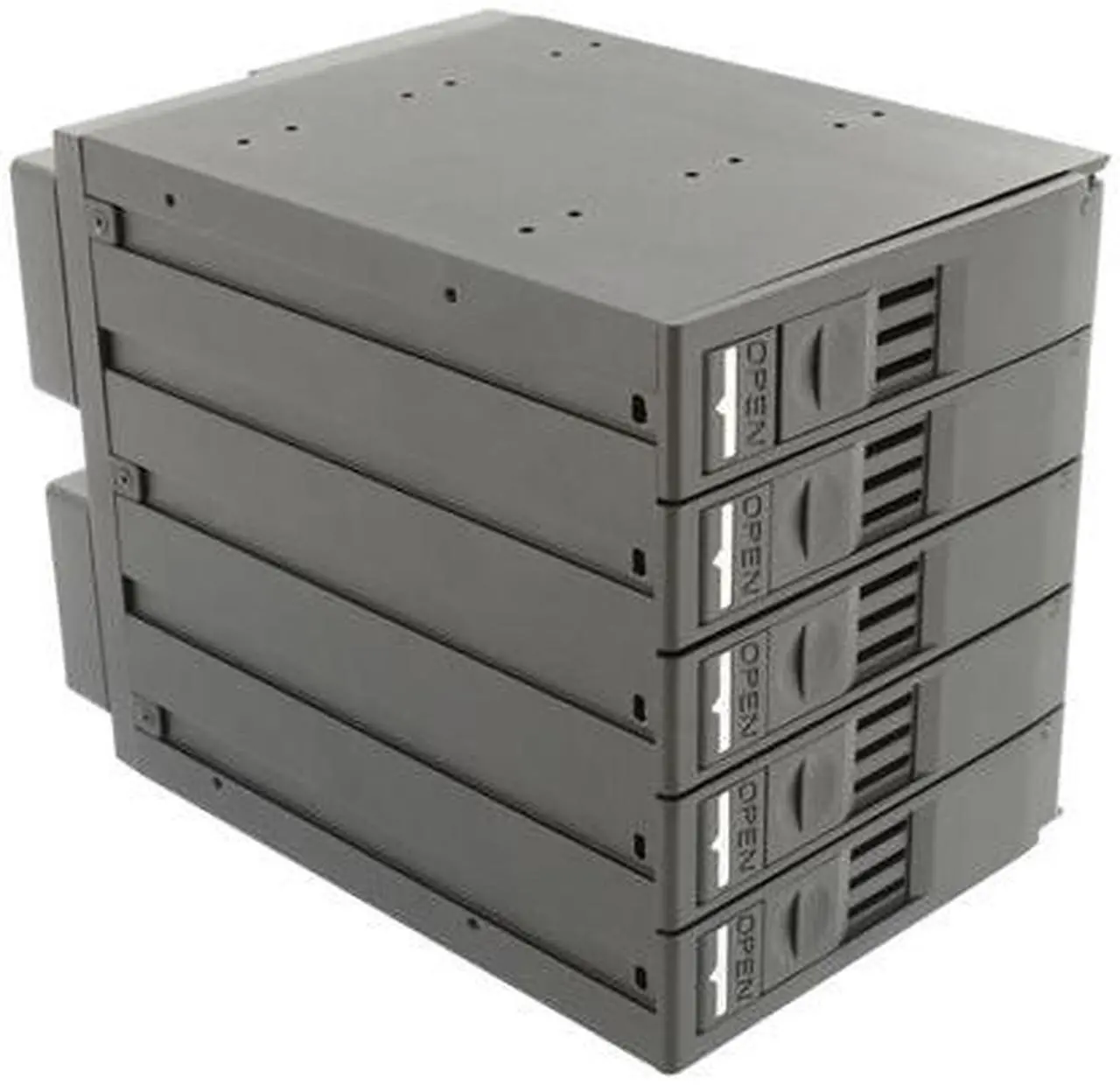

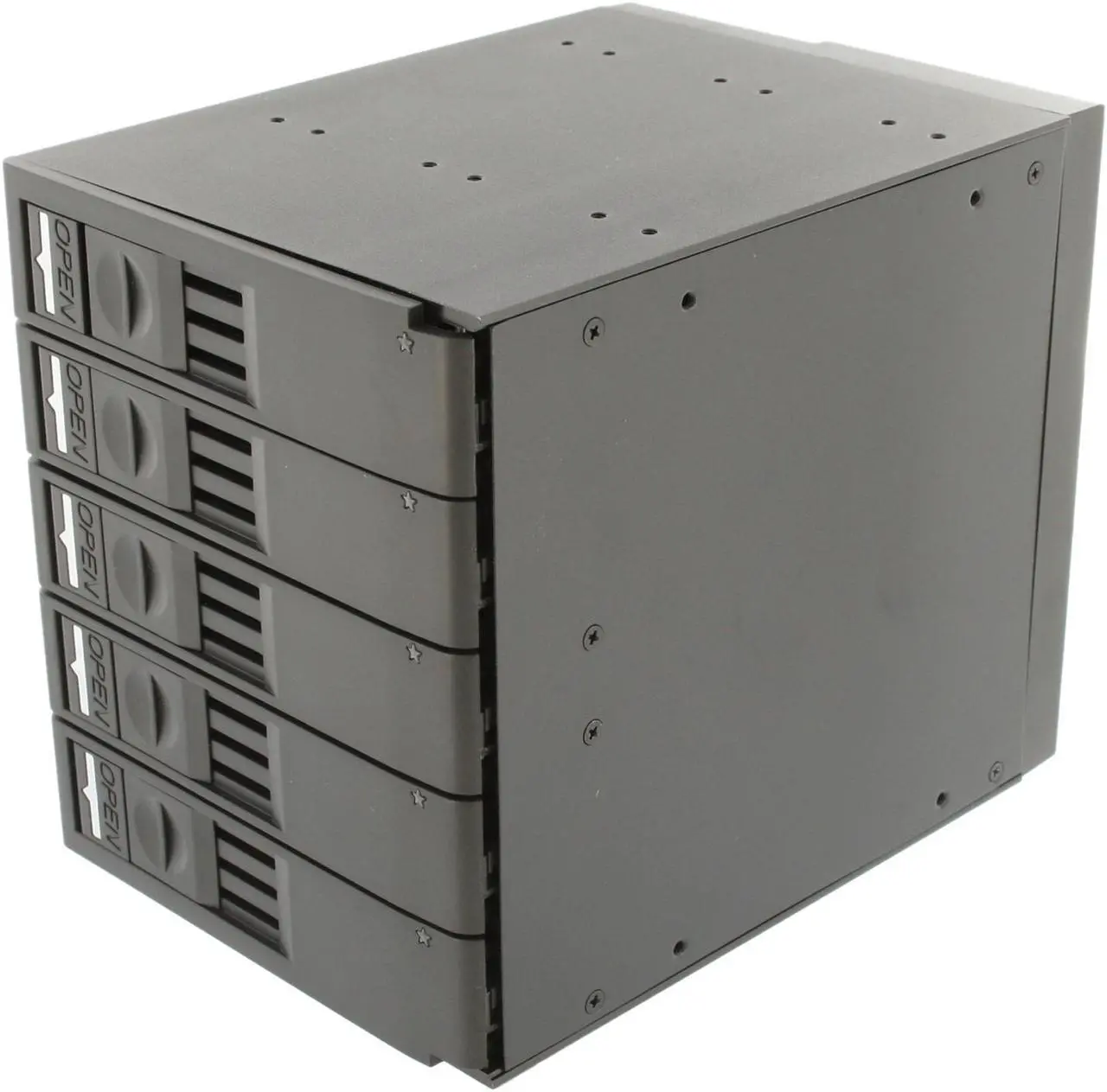

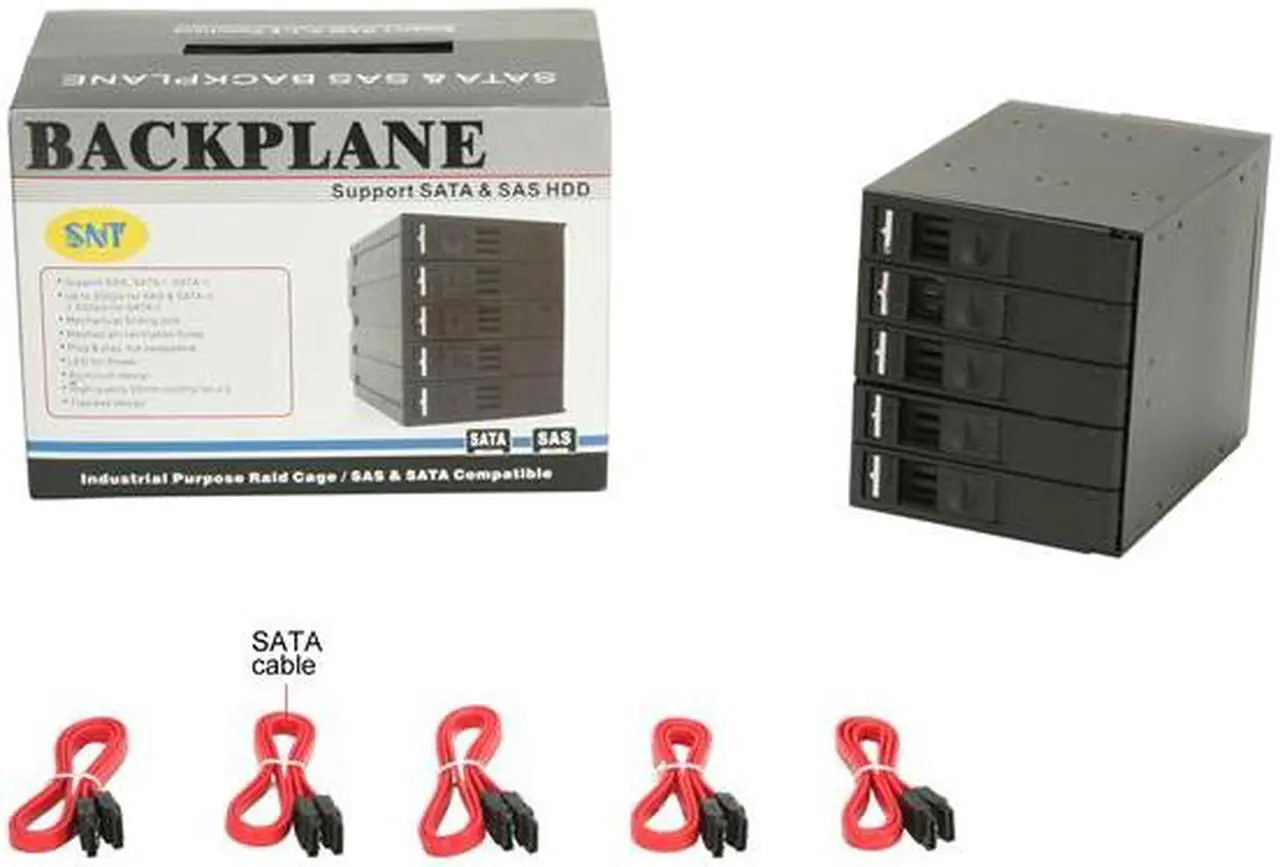

The SNT-SAC3051TL is a high capacity backplane RAID cage for both SAS and SATA. It is a 5 x 3.5” hard drive in 3 x 5.25” bay backplane raid cage that supports up to 10TB in total. It is tray-less. It transfers up to 3Gbps for SAS & SATA-II and 1.5Gbps for SATA-l. It’s designed to support RAID Level 0, 1, 5, 6, 10.

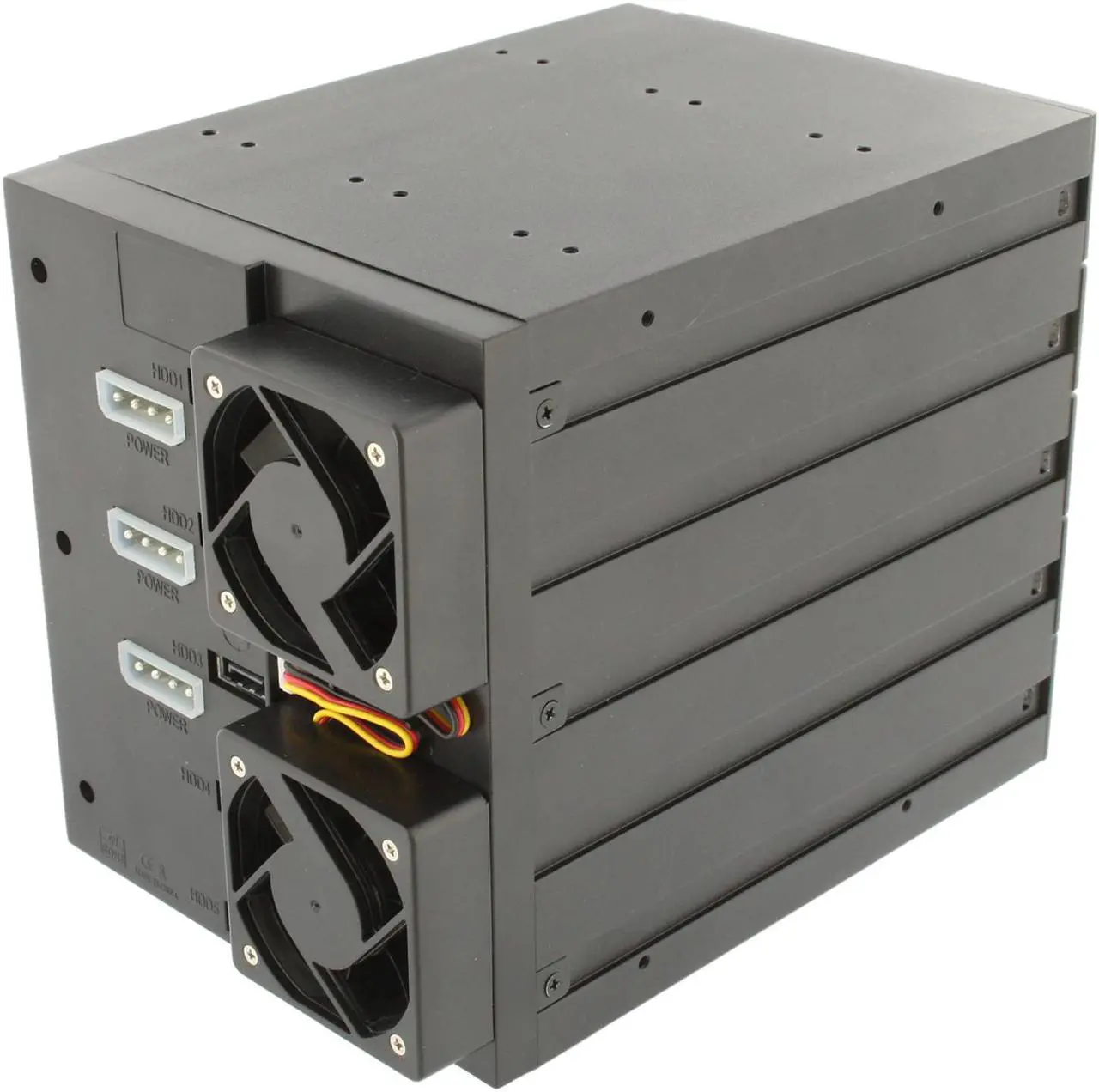

Created with aluminum on the body, protected with plastic in the front and supported by two 50mm cooling fans at the back, the SNT-SAC3051TL will never burn out. Mechanical sliding locks are designed to protect your storage hardware. It has hot swap ability and requires no software installations.
The SNT-SAC3051TL is a high capacity backplane RAID cage for both SAS and SATA. It is a 5 x 3.5” hard drive in 3 x 5.25” bay backplane raid cage that supports up to 10TB in total. It is tray-less. It transfers up to 3Gbps for SAS & SATA-II and 1.5Gbps for SATA-l. It’s designed to support RAID Level 0, 1, 5, 6, 10.
Created with aluminum on the body, protected with plastic in the front and supported by two 50mm cooling fans at the back, the SNT-SAC3051TL will never burn out. Mechanical sliding locks are designed to protect your storage hardware. It has hot swap ability and requires no software installations.

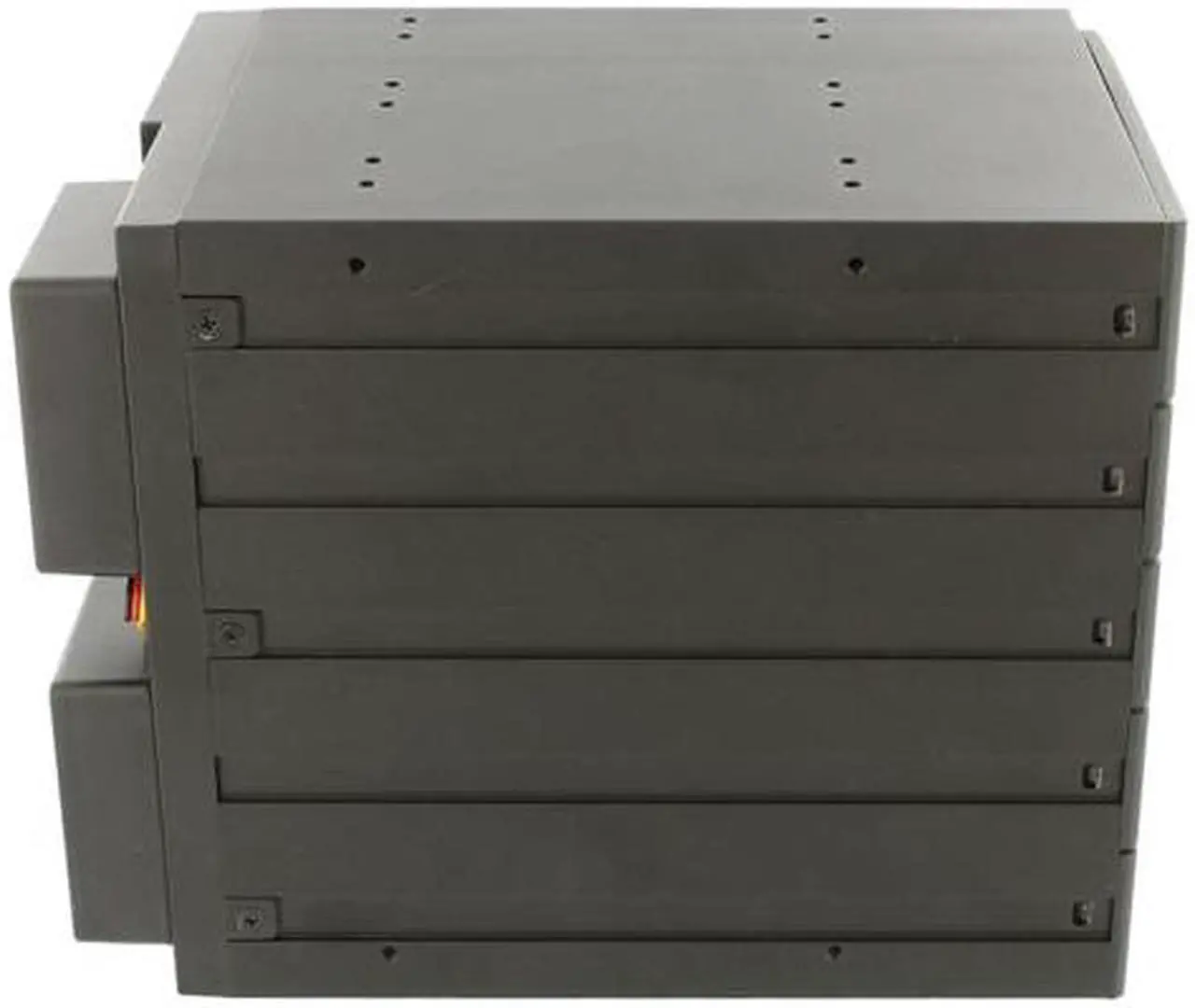

ProtectionThe SNT-SAC3051TL has super air ventilation and excellent heat sink. Made with aluminum on the body and supported by double 50mm cooling fan at the back panel, the system stays cool. In addition, mechanical slide lock is designed to protect any physical impact from the outside.
Storage CapacityThe SNT-SAC3051TL can support up to 10TB in total. Each bay has a capacity up to 2TB. Most 3.5” hard drives will do fine with SNT-SAC3051TL. It is compatible for both SAS and SATA hard drives. With its hot-swap function and plug & play ability, you will have an easy time storing and swapping your data on a daily basis.
Easy SetupThe setup procedure is simple and easy. Simply put the SNT-SAC3051TL into your 5.25” slots, connect them with SATA cables, and you’re ready to use this amazing product. You do not need to install any software or driver.
Learn more about the SNT SNT-SAC3051TL
Model
Brand
SNT
Model
SNT-SAC3051TL
Details
Specifications

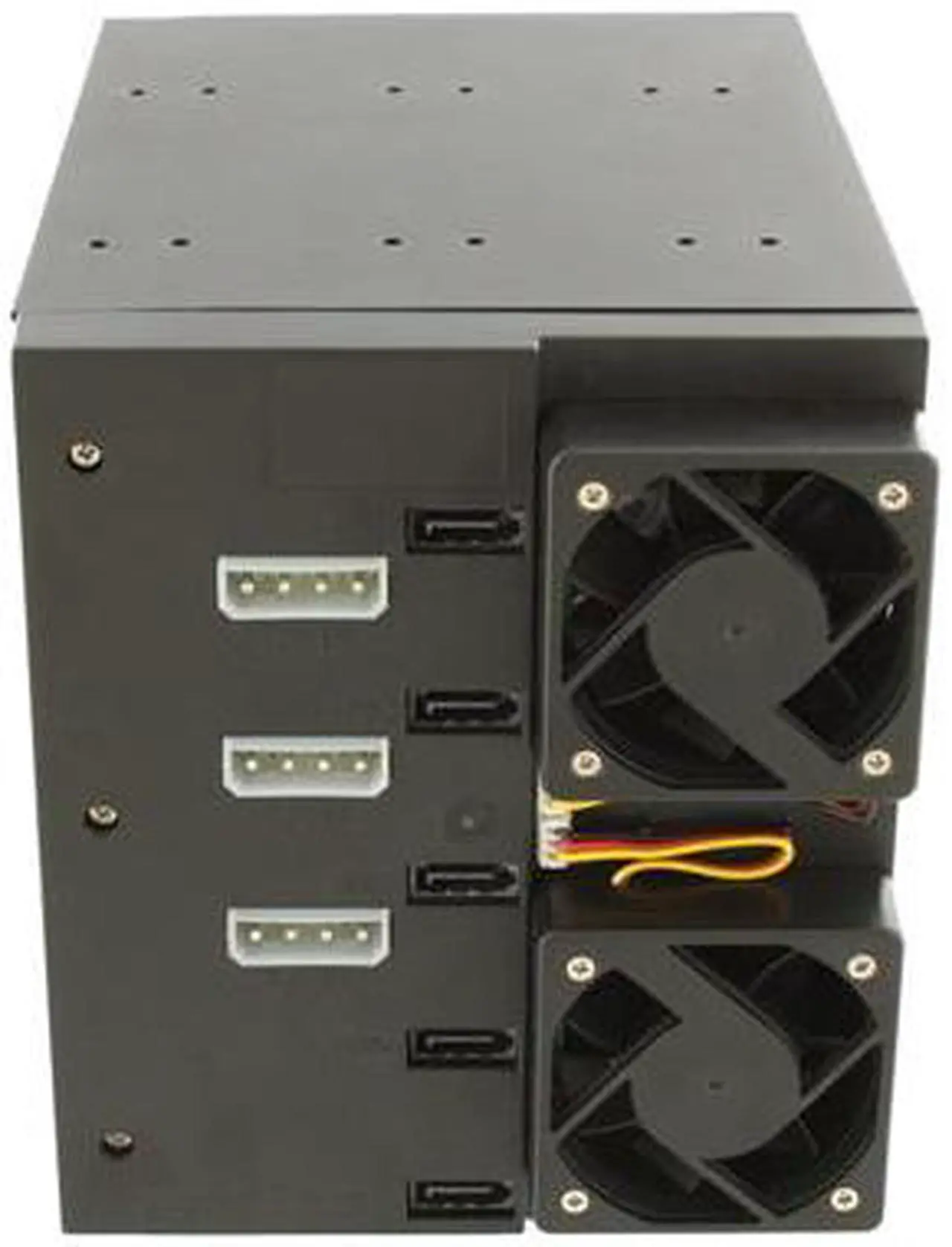

Interface: SATA/SAS [SAS support: Primary channel] Drive Bays: 3 x 5.25 Bay for 5 HDD HDD Support: SATA-I, SATA-II & SAS [ 1.5Gb / 3.0Gb ] Connectors: 5 x 7pin data connectors (primary) 3 x 4pin power connectors HDD Mounting: Screwless & Trayless HDD mounting and easy for HDD swap in/out Installation requirement: Toolless mounting case Hot Plug: Yes Cooling fan: 2 x 50mm Material: Aluminum Body & plastic front bezel Lock: Mechanical sliding lock LED: LED for Power Color: Black
Features
Features
Maximum Capacity up to 10TB! (5 x 2TB HDD)
Transfer rate up to 3 Gbps (SAS & SATA-II)
RAID Level: 0 / 1 / 5 / 6 / 10

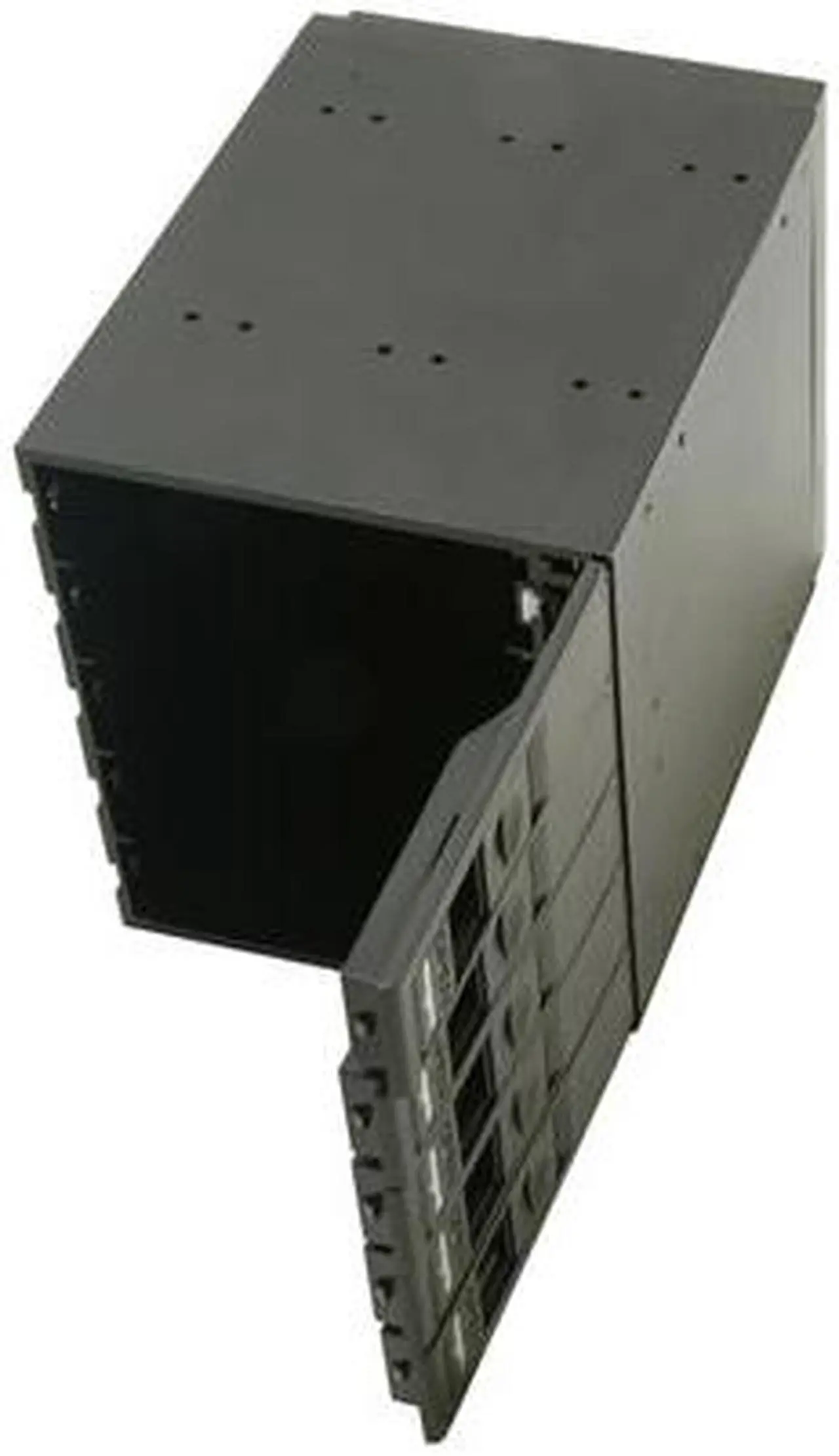

Trayless design, economical solution for data backup
Stylish Blue LED light
Mechanical sliding lock for each bay
Aluminum Material & plastic front bezel
Support SATA-I, SATA-II & SAS HDD
Generally accepted for rack mount, IPC, Sever cases, desktop

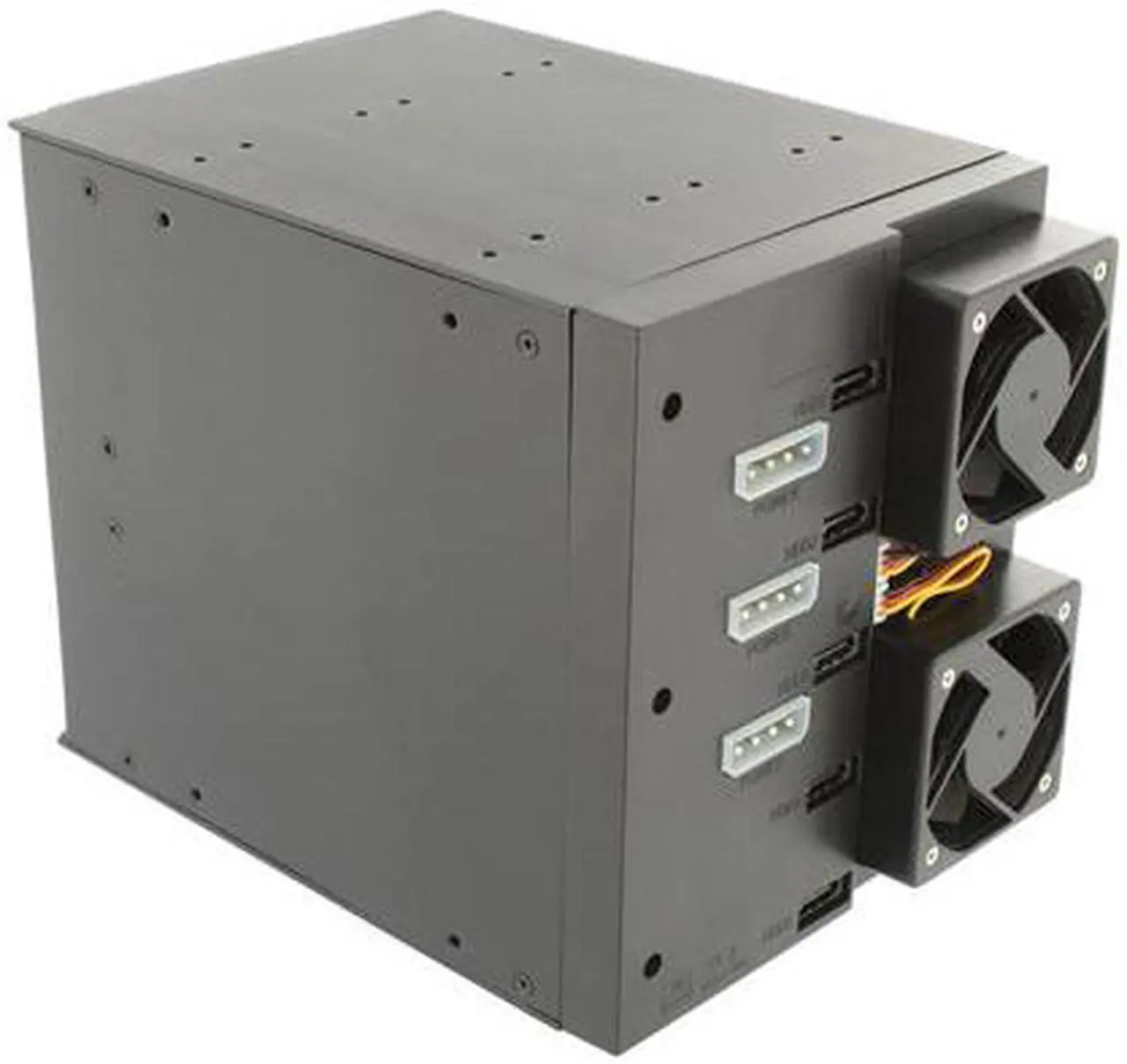

With 2 x 50mm cooling fan for efficient air-ventilation (Replaceable)
Multi-bay enclosures for RAID application(*need extra Raid controller)
