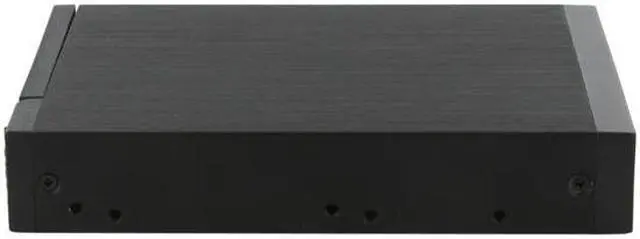

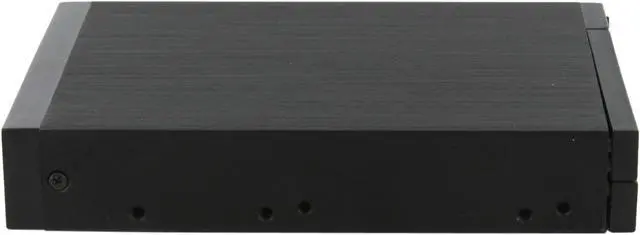

SNT SNT-SATA2221B Dual 2.5" SATA SSD / HDD to 3.5" Bay Trayless Hot Swap Mobile Rack Backplane

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • Interface: SATA x 2
  • Tray-less design
  • LED indication for HDD and Accessing
  • Dimension matches exactly as a standard 3.5" Bay
  • Energy saving on using 2.5" HDD or SSD
  • Complies with SATA-I, SATA-II int

  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

The SNT-SATA2221B is an external enclosure backplane that is built for convenience and safety. It is a 2 x 2.5” HDD (SSD) built on a convenient aluminum mobile rack. It enables two 2.5” SATA hard drives to be fit on a 3.5” standard form factor drive bay (floppy size space), in any desktop, rack mount or IPC. LEDs and front cover locks are also added into this design.

It has a maximum capacity of 2 TB in total. It only takes a few minutes to set up the SNT-SATA2221B. This package includes this mobile rack, manual guide and 2 SATA cables.

  • newegg Protection The SNT-SATA2221B is made mostly with aluminum, which means that the heat dissipation is excellent. Front locks are also available for extra safety.
  • newegg Convenience The SNT-SATA2221B can support up to 2 TB in total. Each bay has a capacity up to 1 TB. Instead of using a 5.25” bay drive, you can just insert and mount this into your 3.5” drive for storage purpose.
  • newegg Easy Setup The setup procedure is simple and easy. It is driver-free, which makes the setup procedure a lot easier. HDD is automatically ejected once you open the cover. This package also includes 2 sets of SATA cable, which allows you to set this masterpiece up as soon as it arrives.

Learn more about the SNT SNT-SATA2221B

Model

|
Brand
SNT
Model
SNT-SATA2221B

Details

|
Specifications
HDD interface: 2 x 2.5" SATA I/II SSD / HDD
Bay Requirement: 3.5" Bay
Max. Capacity: 500GB(1 HDD) or 1000GB/1TB (2 HDD)
Max. Transfer rate: Up to 3 Gbps

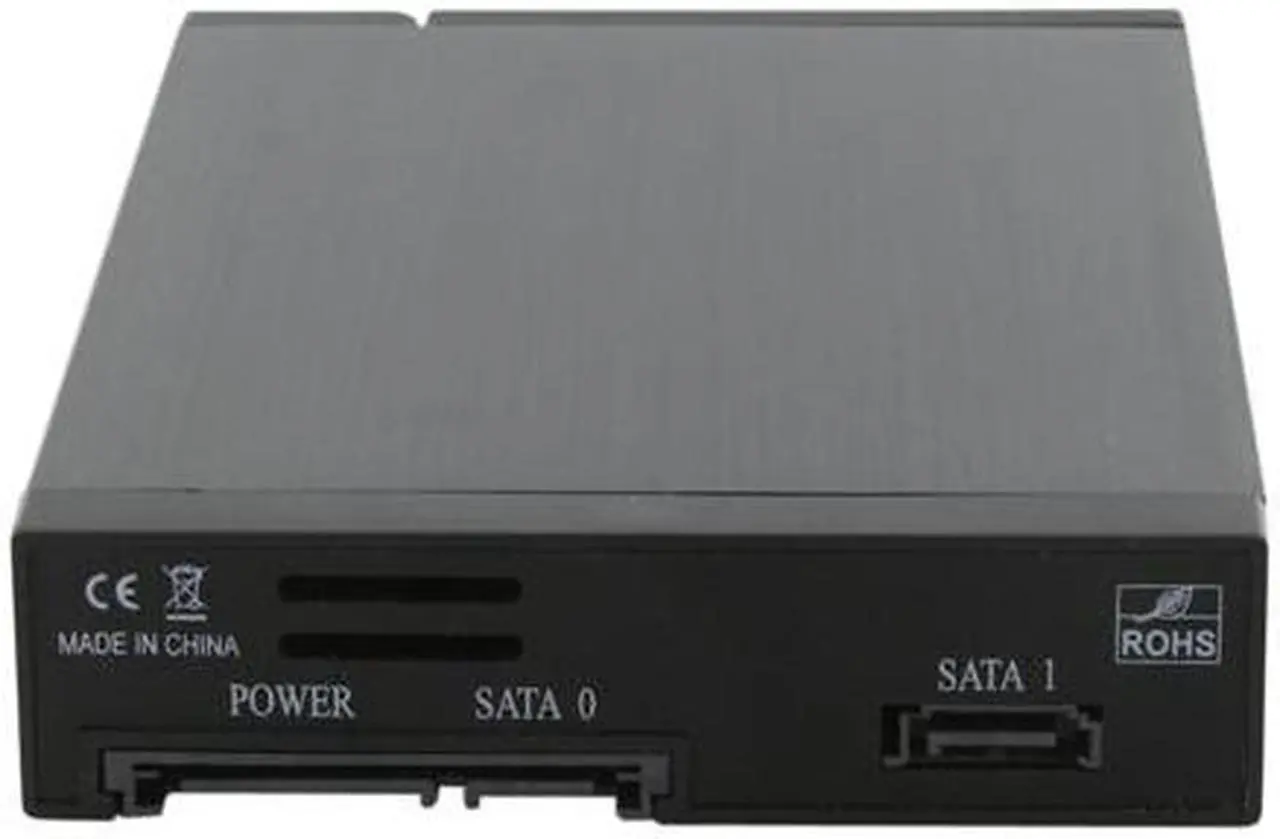

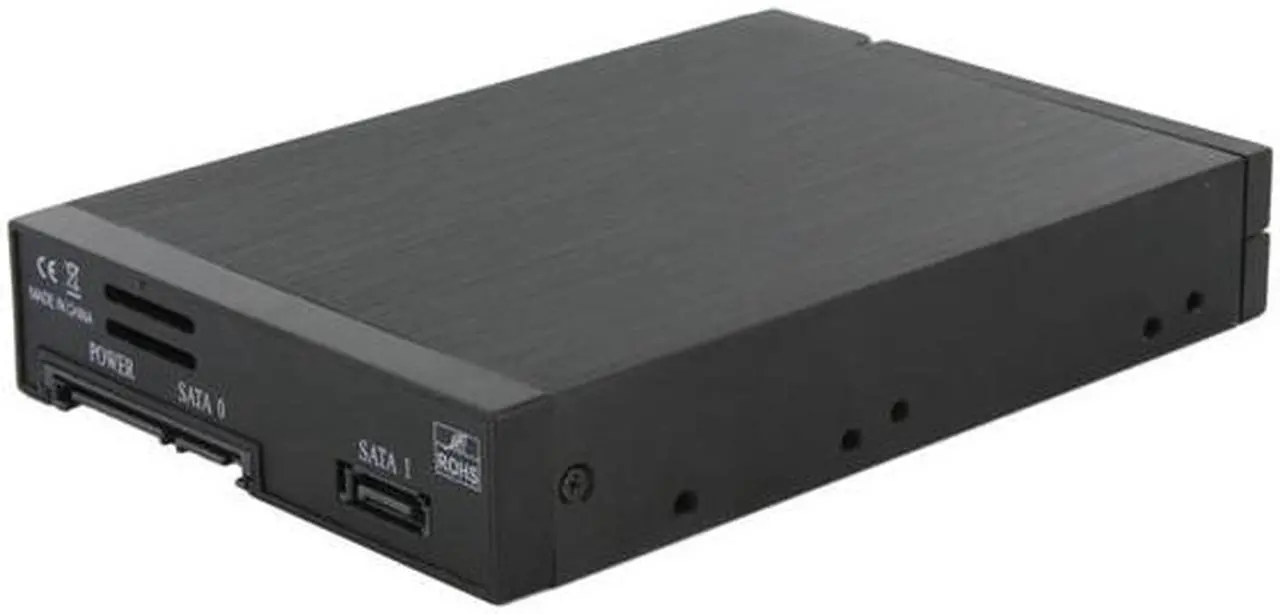

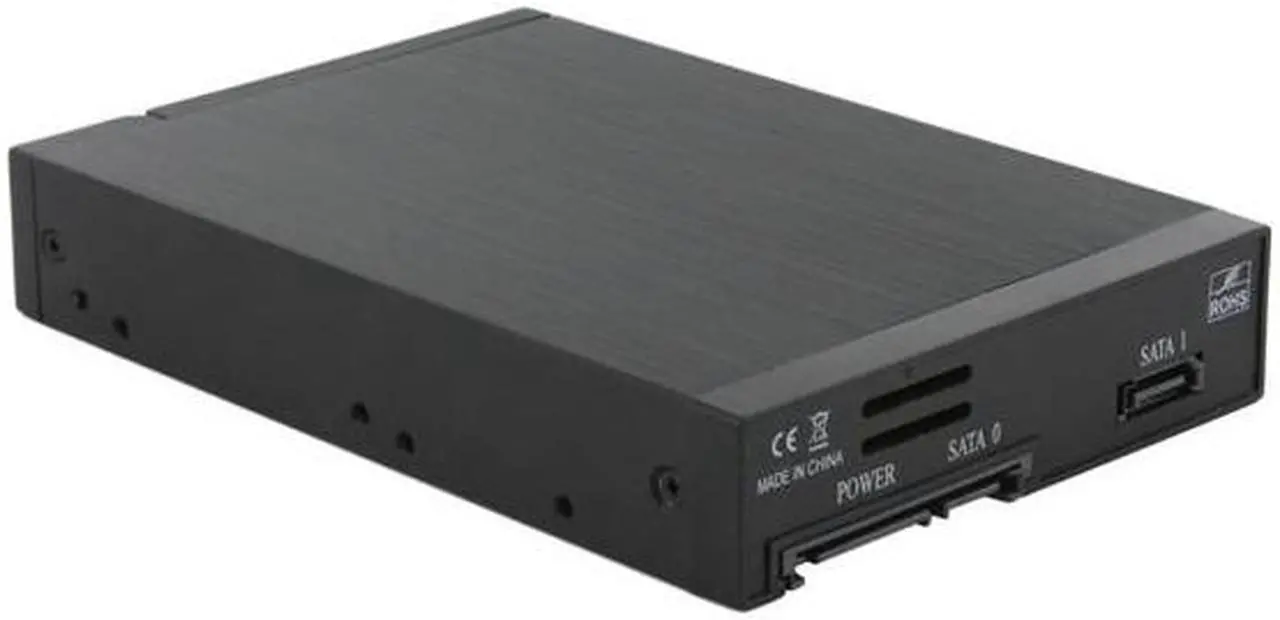

Connection: Data transfer by 7-pin SATA cable, Powered by 15-pin SATA cable
Supported System: Windows ME/2000/Server 2003/XP/Vista/7
LED: Power & HDD activity indication
Hot Swap: YES
Material: Aluminum Body & Plastic panel
Color: Black
Dimensions: 5.75" x 4" x 1" (101.7 x 146 x 25.8 mm) (L x W x H)
RoHS ready: Yes

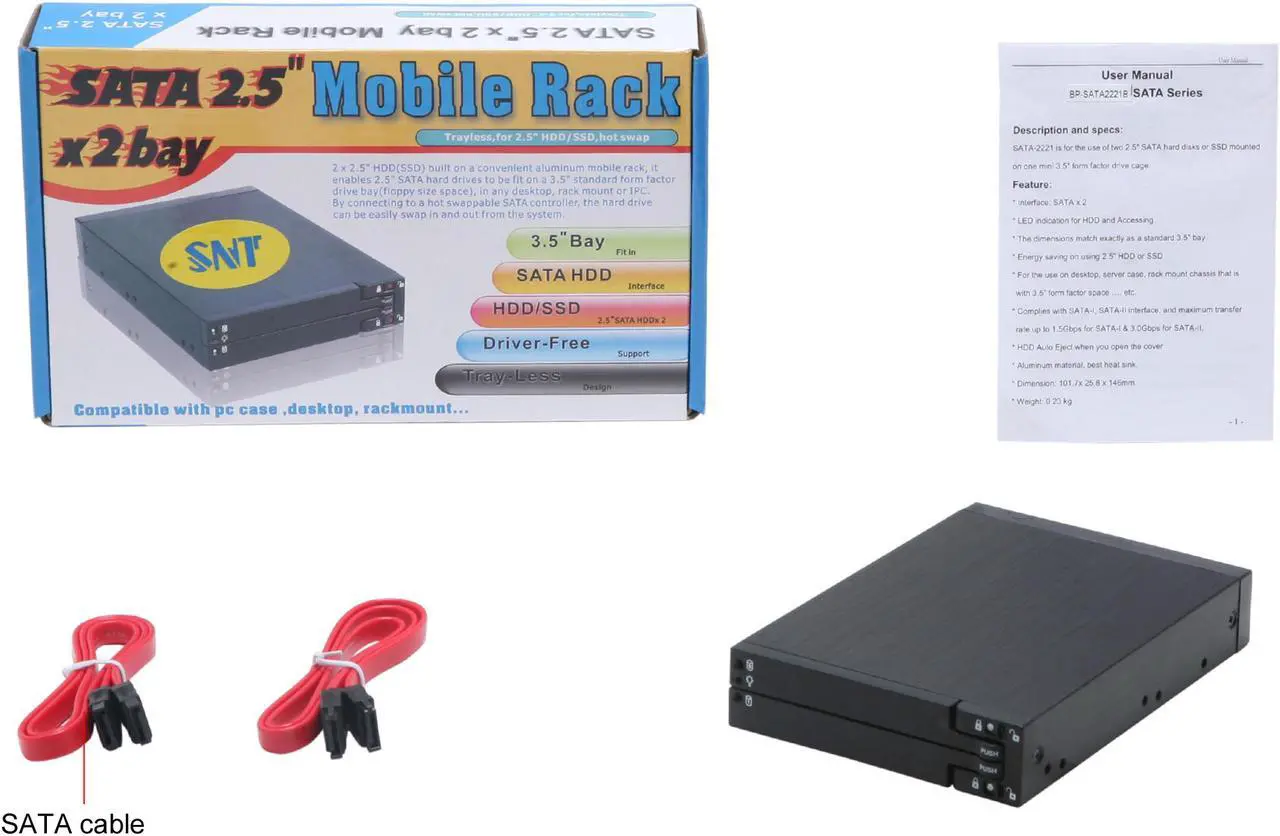

Package:
1 x SNT-SATA2221B
1 x User manual
2 x SATA cable
4 x Screw

Features

|
Features
Maximize your drive space by putting two 2.5" HDD in one 3.5" bay
Tool-less and Tray-less design for hard drive swapping
Driver-free makes installation easier.
HDD Auto eject when you open the cover
Front cover lock available
Made with high quality Aluminum material to allow better heat dissipation

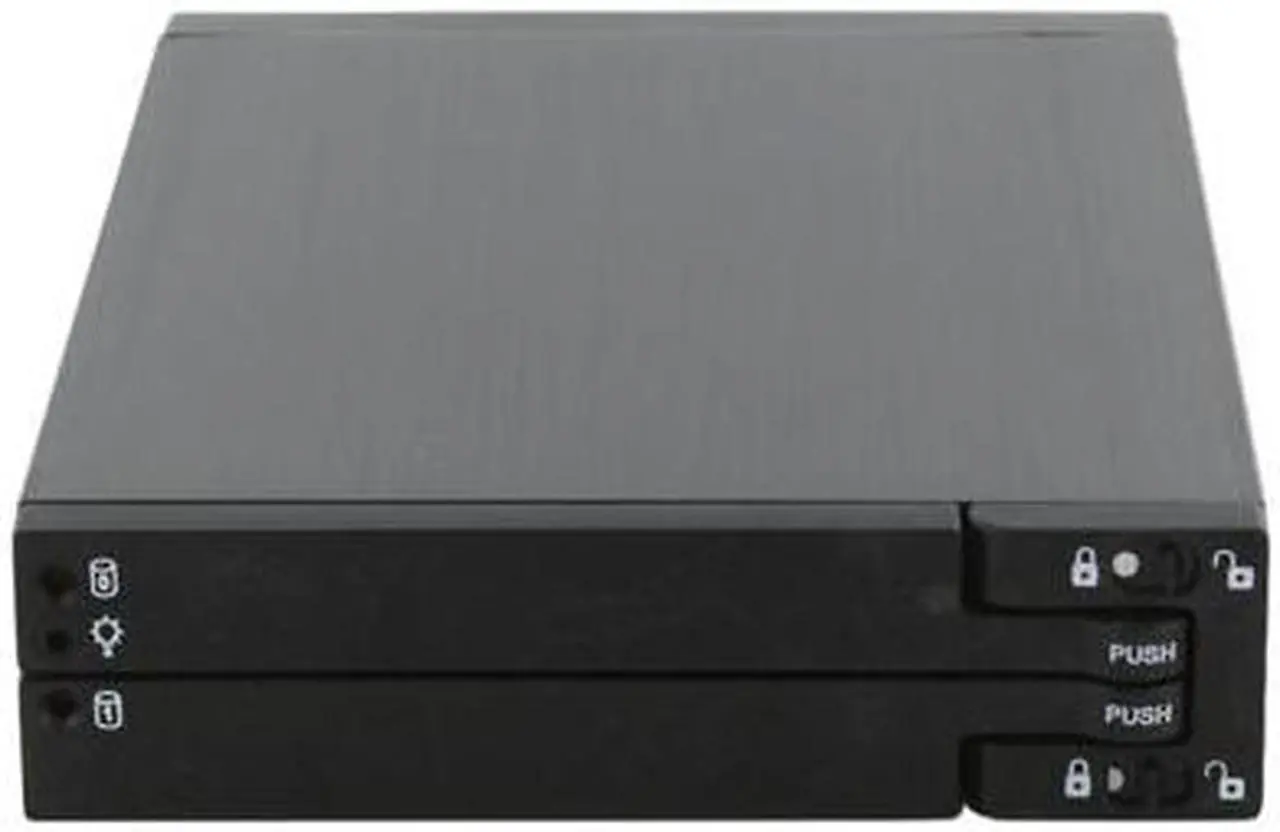

Front LED to indicate power & HDD operation
Support RAID 0, 1
Energy saving on using 2.5" HDD or SSD
Complies with SATA-I, SATA-II interface and maximum transfer rate up to 1.5Gbps for SATA-I & 3.0Gbps for SATA-II
Dimension matches exactly as a standard 3.5" Bay

Additional Information

|
Date First Available
July 24, 2009
Warranty, Returns, And Additional Information
  • Return Policies
    • Return for refund within: 45 days
    • Return for replacement within: 1 year
  • This item is covered by Newegg.com's 45/1 Return Policy.
Ownership: 1 week to 1 month
Verified Owner
1/ 5
Very Low Quality 3/21/2014 8:19:38 AM

Pros: Cheap

Cons: Flimsy, no rails for drives to align the drives, making it very difficult to get them to line up with connectors. Drives are difficult to insert. Only one bay even worked, the lower bay wouldn't recognize that it had a drive inserted. I wish I could get the time back that I wasted on this useless product. Return shipping is almost as much as the drive housing itself.

Overall Review: The back of the housing is labeled HDD 0 and HDD 1. The inside of the housing has bays labeled HDD 1 and HDD 2. Which is which?

0 out of 1 people found this review helpful. Did you?
Ownership: more than 1 year
Verified Owner
5/ 5
Work great 8/27/2012 3:27:10 PM

Pros: Works great and makes it easy to put the HD in and slide it out.

Cons: None

Did you find this review helpful?
Ownership: 1 month to 1 year
Verified Owner
5/ 5
Great Rack! 3/23/2012 8:48:50 AM

Pros: I have used many of these to mount SDD's and they work great. Yes, you have to be careful that you don't break one of the doors off when you are ejuecting a disk drive, but remember that those doors are not crowbars. You cannot exert a lot of force on them. Further, don't leave them unlocked and flapping around when you are assembling your system. Exerting upware or doward force on a loose door is a good way to break one off.

Cons: I have seen a lot of comments that the screws don't fit. They don't fit a 3 1/2 inch disk drive bay very well, but they fit a 3 1/2 to 5 1/4 inch floppy drive adapter perfectly. You can use the screw holes on the sides or the bottom because they are identicaly to a floppy drive. Now I admit it would have been nice if the manufacturer had noted that in the documentation, but now you know.

Overall Review: I wouldn't use these racks for conventional disk drives because I think they would probably get pretty warm. But for SDD's they work great.

2 out of 2 people found this review helpful. Did you?
Ownership: less than 1 day
Verified Owner
1/ 5
Does NOT work with SATA III SSDs 2/15/2012 7:29:03 PM

Pros: 1-SATA power. Made of aluminium.

Cons: Does not work with SATA III 6G SSDs!
I contact the manufactures website to query, and was e-mailed that it would support SATA III.
NOPE!

Overall Review: After installation, BIOS posted very slow (if all all), due to searching for drives. If I got past the BIOS psot, Windows 7 would not start!
I give up. This is the 4th mobile rack I've tried with SATA III SSDs. 2 of them I fried (SIIG), 1 didn't like it (Rosewill), and this one (much like SIIG).

0 out of 8 people found this review helpful. Did you?
Anonymous
Ownership: 1 month to 1 year
Verified Owner
5/ 5
Very useful 12/5/2011 7:21:30 AM

Pros: I love these devices. I build Asus 1u servers and the cheap ones do not have hot swap so I just jam a couple of these inside the case and have 4 drives. Make sure to use 9.5mm drives and these are limited in height.

Cons: None

2 out of 2 people found this review helpful. Did you?
Ownership: more than 1 year
Verified Owner
2/ 5
Cheap and prone to break 11/9/2011 2:18:20 PM

Pros: Low priced.
Compact.
Have not had any electrical problems.

Cons: Cheap plastic door that flexes every time it's used and eventually snaps off.
Screw positioning made installation inconvenient.

Overall Review: I've had 30 of these in service for over a year. If the doors were solid, I could give it a four or a five. They _will_ eventually snap.

2 out of 2 people found this review helpful. Did you?
5/ 5
It is great, I dont understand why people give bad review! 11/5/2011 3:12:06 AM

Comments: If you like it, just give it five stars, if you dont buy the more expensive one, for this price, it is perfect

Did you find this review helpful?
Anonymous
4/ 5
8/6/2011 12:41:46 AM

Comments: With a slow ventilation fan pointing right at it, my WD Blacks run at 34C. This is a pretty good hard drive temperature, according to the Google server farm statistics that compared hard drive temperatures and longevity.

Did you find this review helpful?
