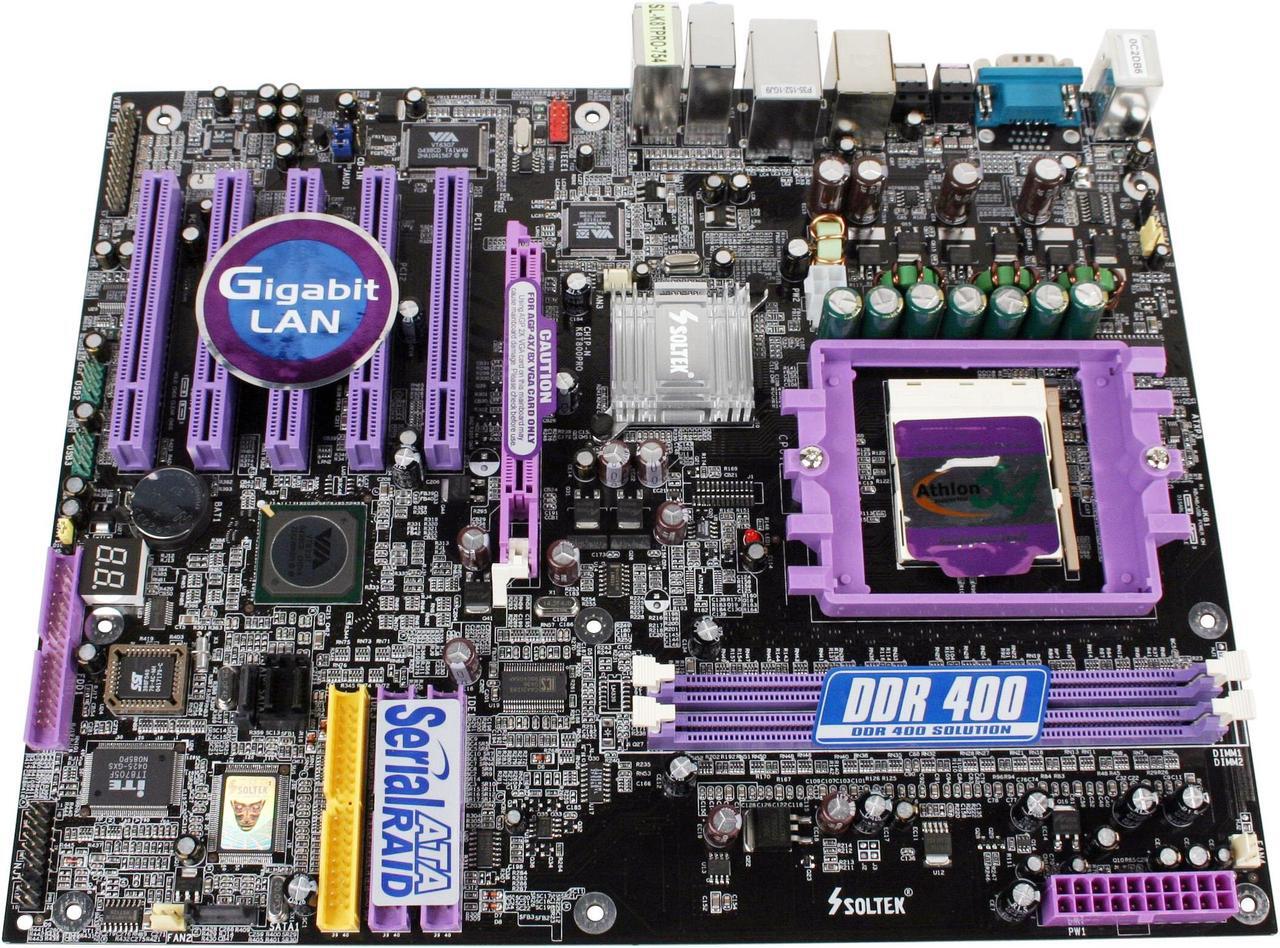

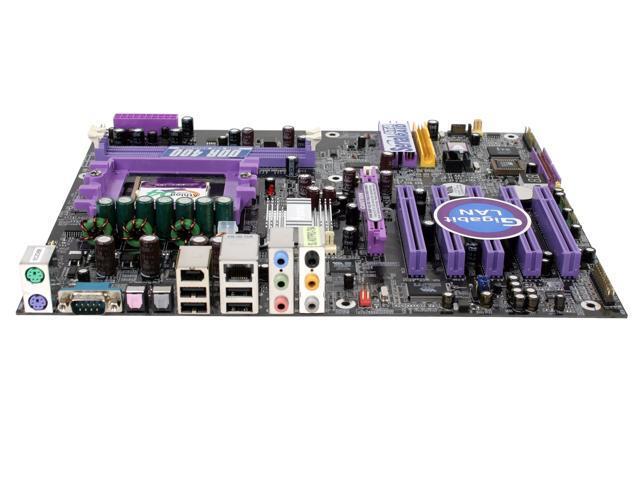

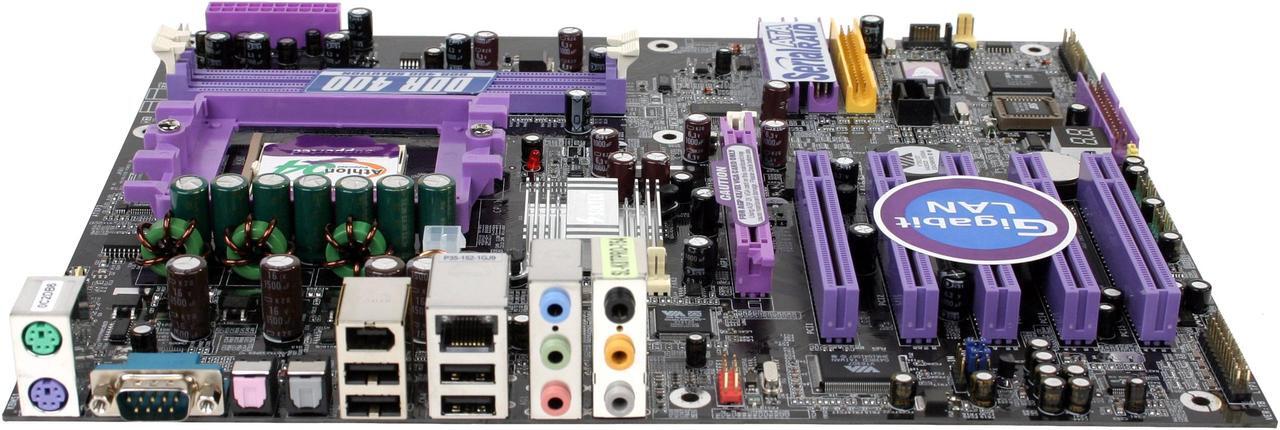

SOLTEK SL-K8TPro-754 754 VIA K8T800 ATX AMD Motherboard
- VIA K8T800
- Athlon 64 / Sempron
- DDR 400
Specs
Reviews (6)
Learn more about the Generic Brand SL-K8TPro-754
| Brand | SOLTEK |
|---|---|
| Model | SL-K8TPro-754 |
| CPU Socket Type | 754 |
|---|---|
| CPU Type | Athlon 64 / Sempron |
| FSB | 800 MHz |
| Chipset | VIA K8T800 |
|---|---|
| South Bridge | VIA VT8237 |
| Number of Memory Slots | 2x184pin |
|---|---|
| Memory Standard | DDR 400 |
| Maximum Memory Supported | 2GB |
| AGP Slots | 1 x AGP 4X / 8X |
|---|---|
| PCI Express x16 | None |
| PCI Slots | 5 x PCI Slots |
| PATA | 3 x ATA100 6 Dev Max. |
|---|---|
| SATA 1.5Gb/s | 4 x SATA 1.5 Gb/s |
| SATA RAID | 0/1 |
| Additional RAID Controller | Promise PDC20579 |
| Onboard Video Chipset | None |
|---|
| Audio Chipset | AC97 Codec |
|---|---|
| Audio Channels | 8 Channels |
| Max LAN Speed | 1Gbps |
|---|
| Back I/O Ports | 1 x COM (Serial Port) / 1 x Optical S/PDIF Out / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| S/PDIF Out | 1 x Optical |
| S/PDIF In | 1 x Optical |
| Audio Ports | 6 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 20 Pin |
| Features | BIOS FSB Setting. BIOS Writing Protection. BIOS AGP, DIMM, Vcore Voltage Setting. BIOS South Bridge Chipset Voltage Setting. Soltek H/W Monitor. |
|---|
| Date First Available | December 07, 2004 |
|---|
