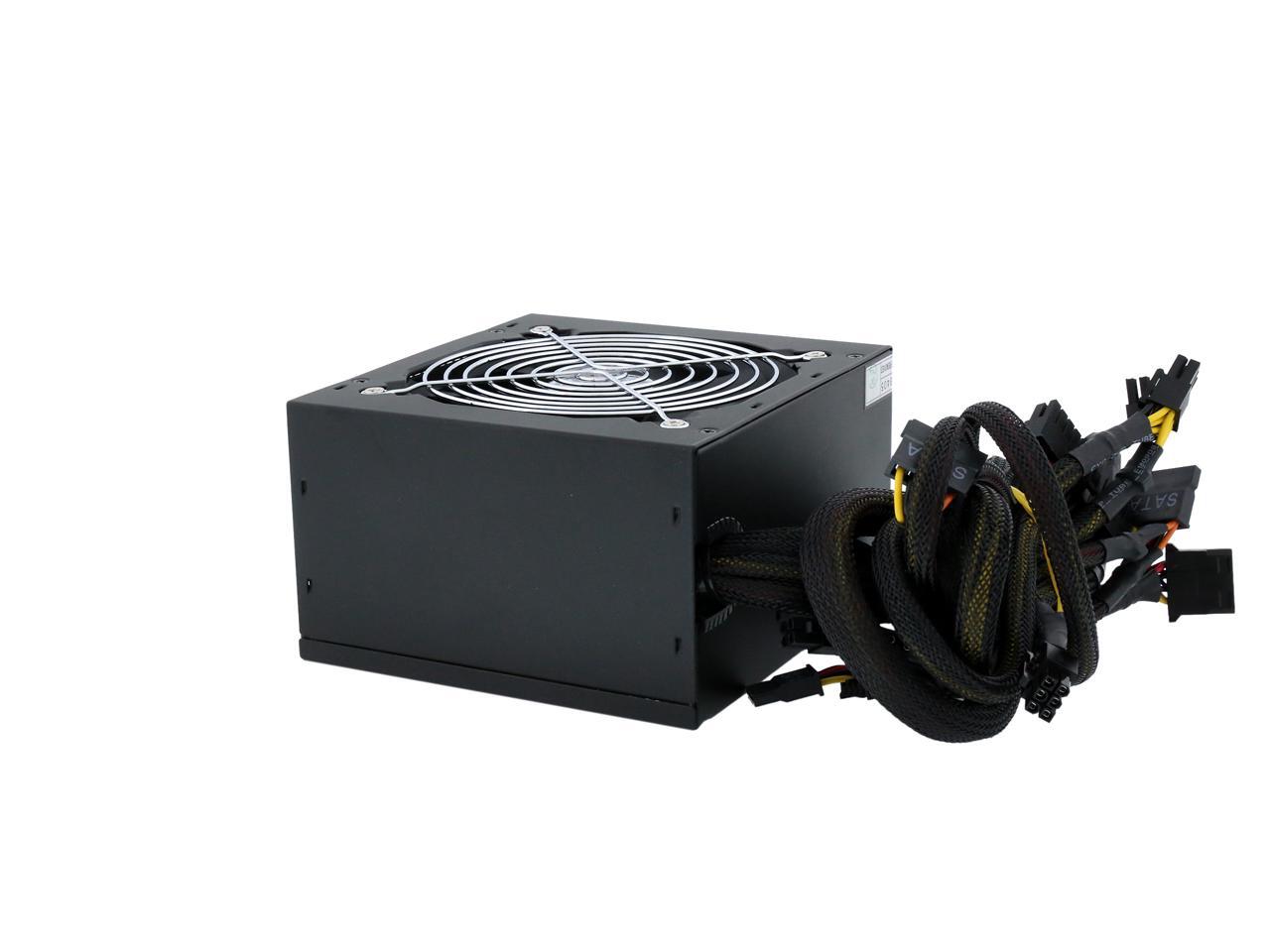

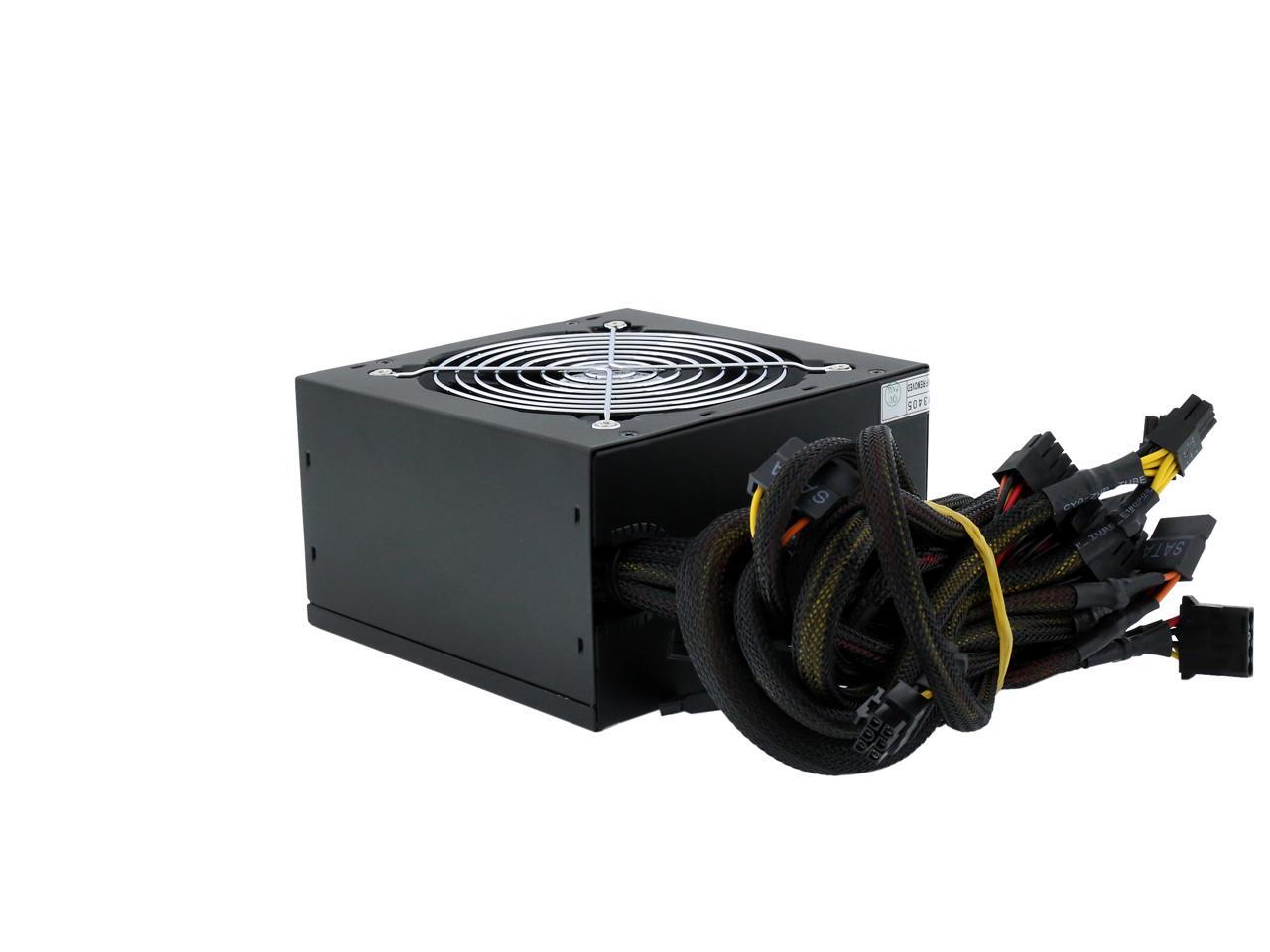

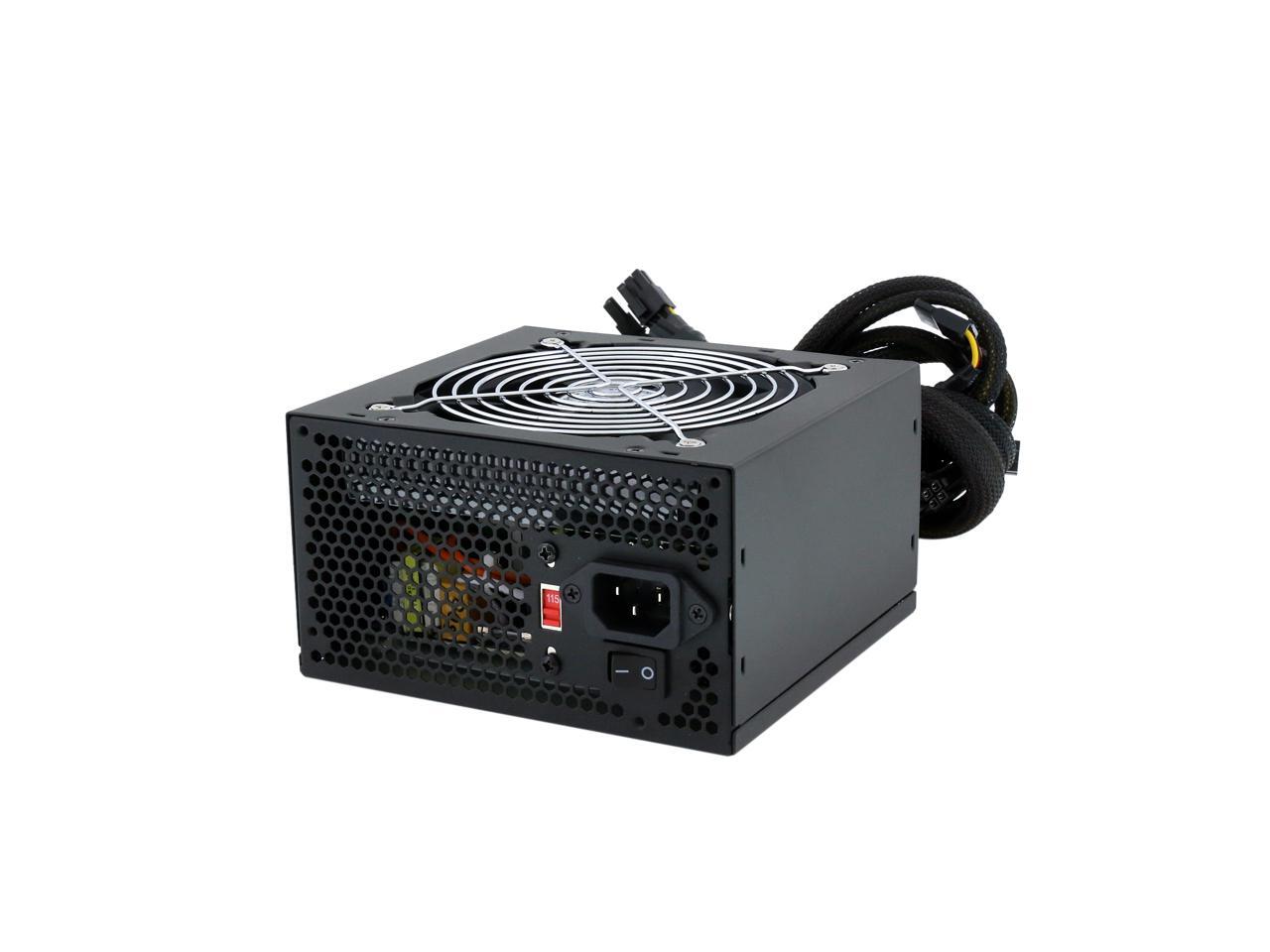

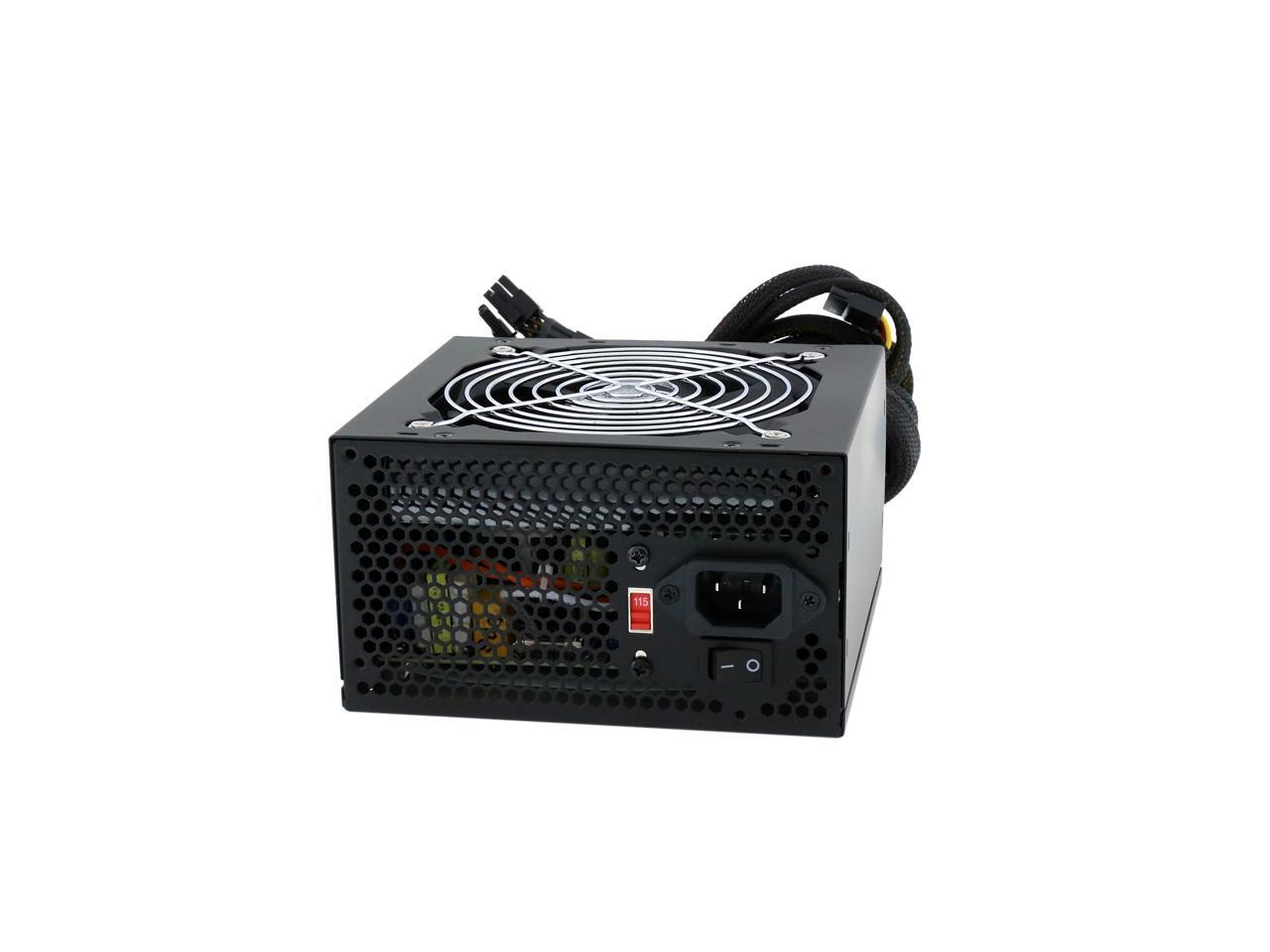

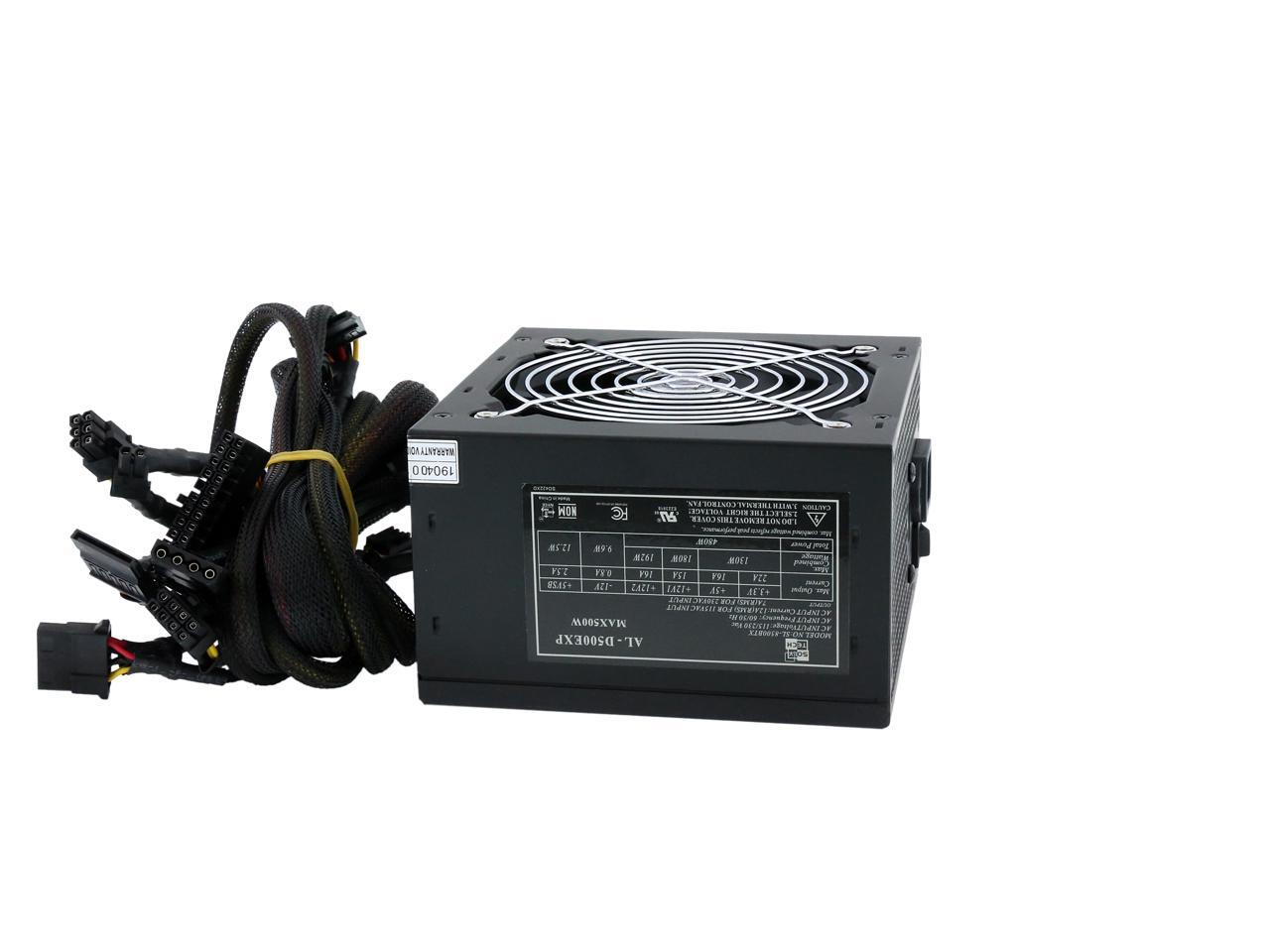

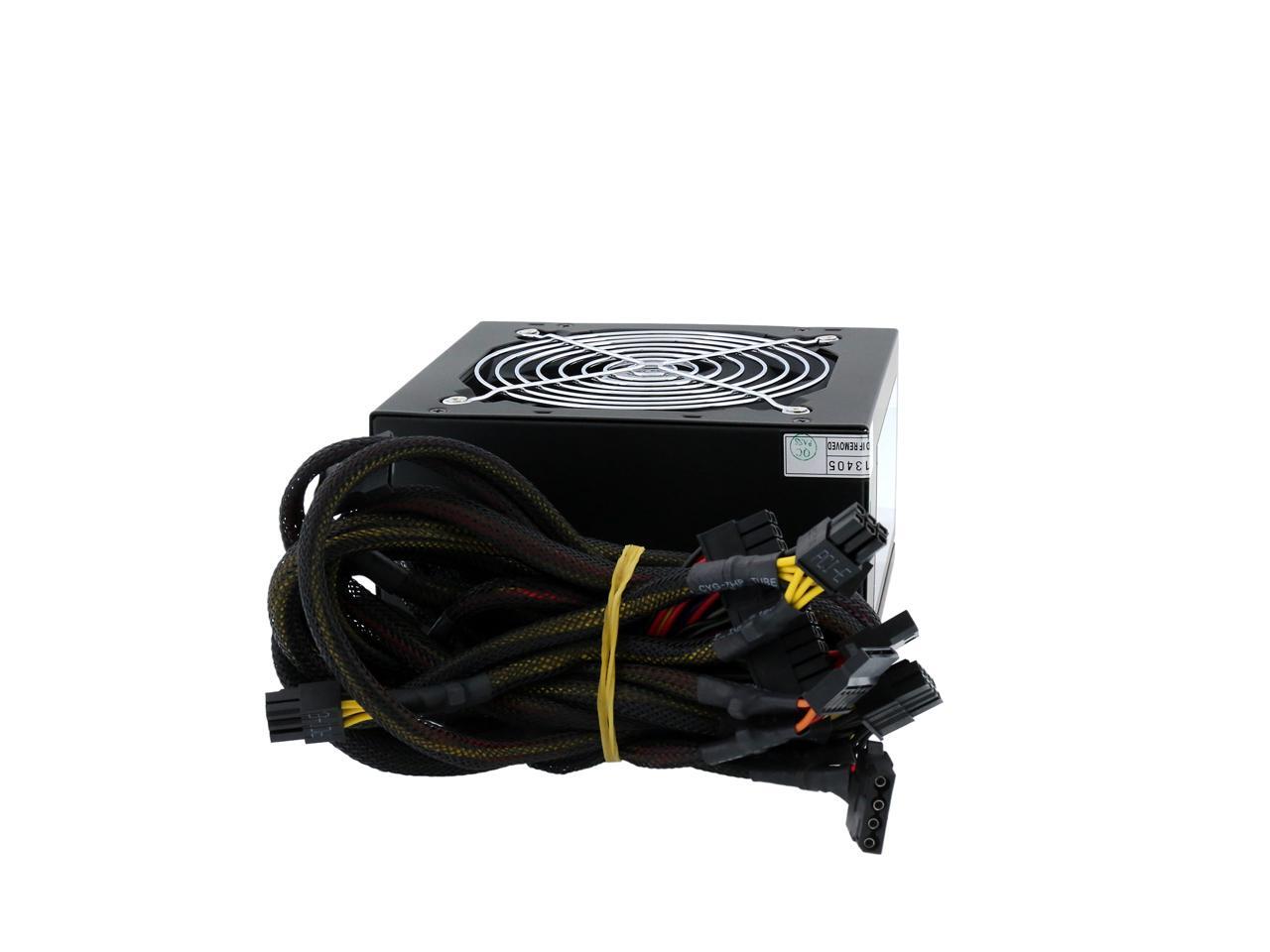

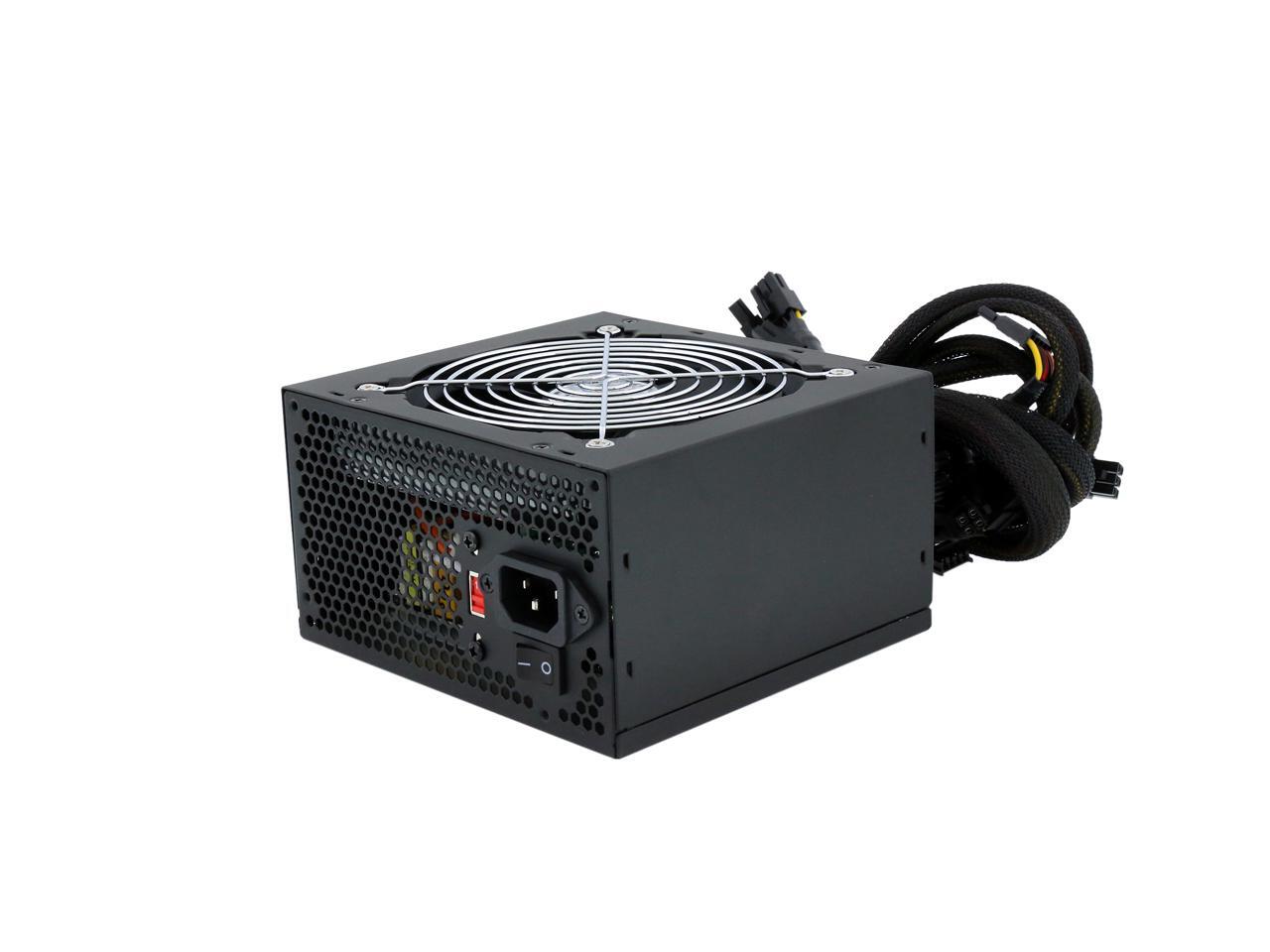

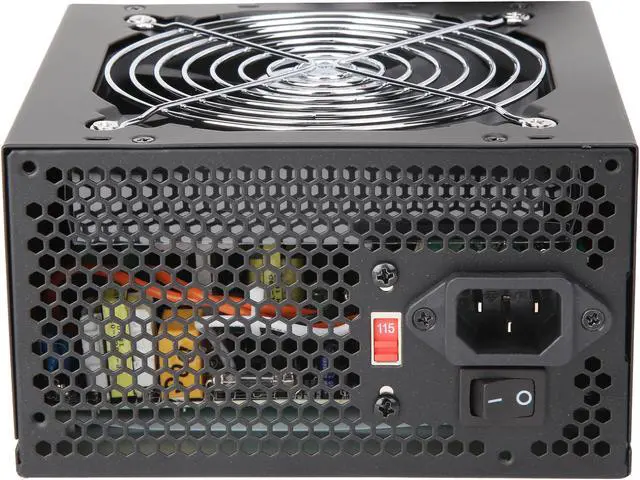

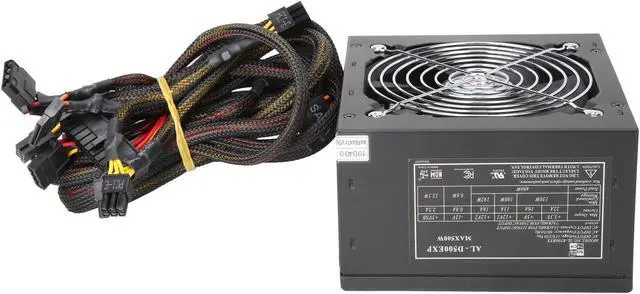

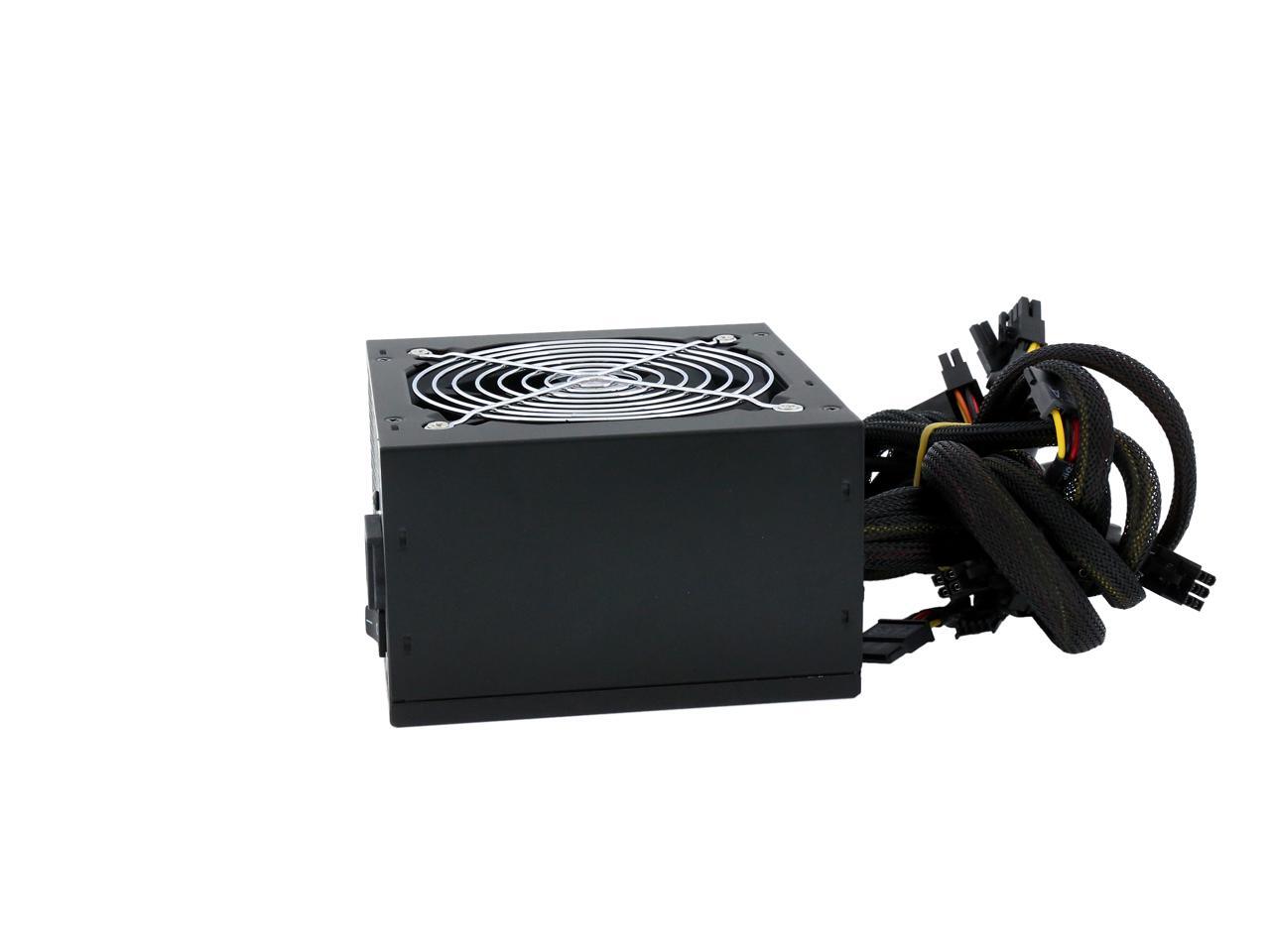

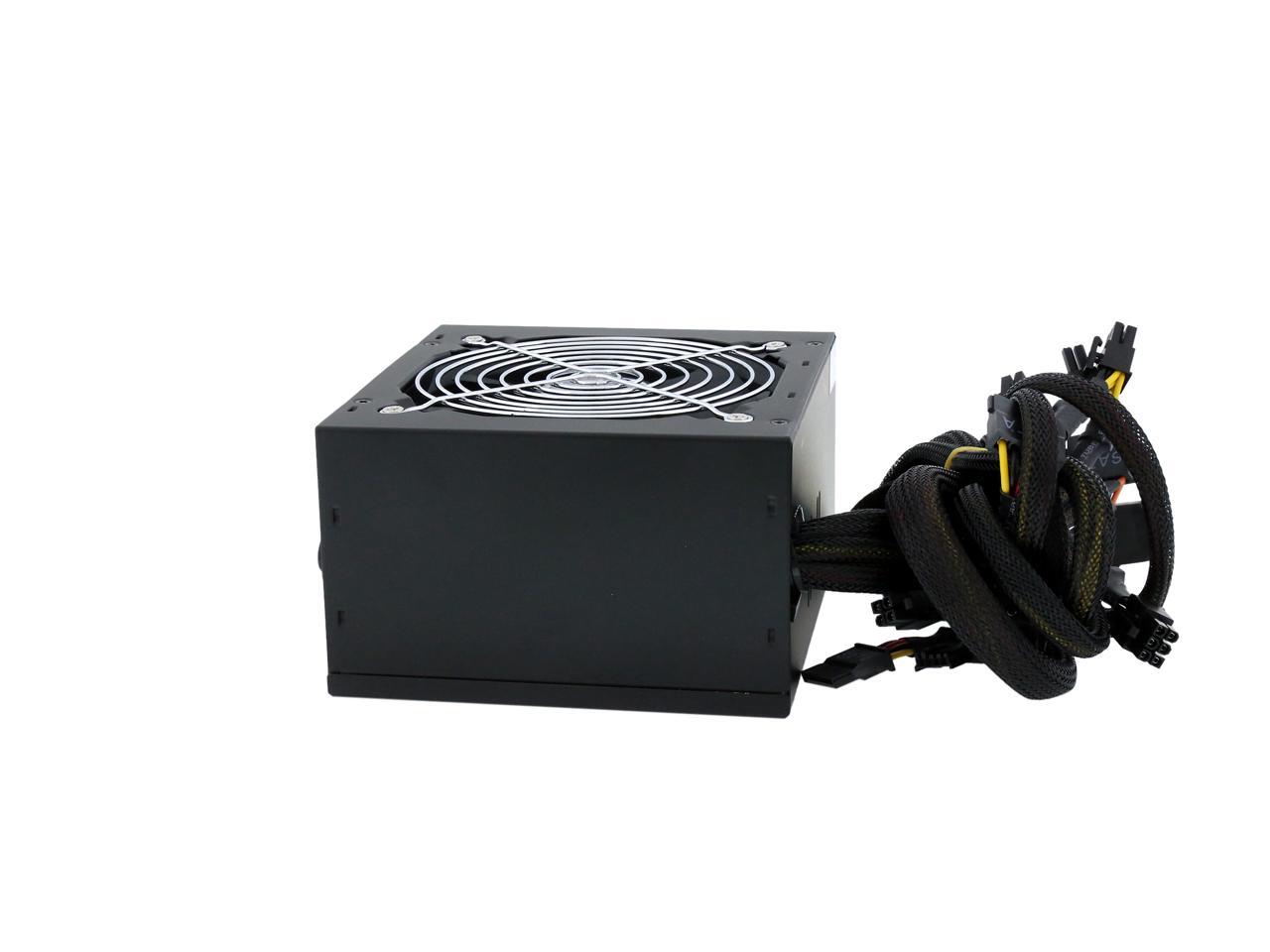

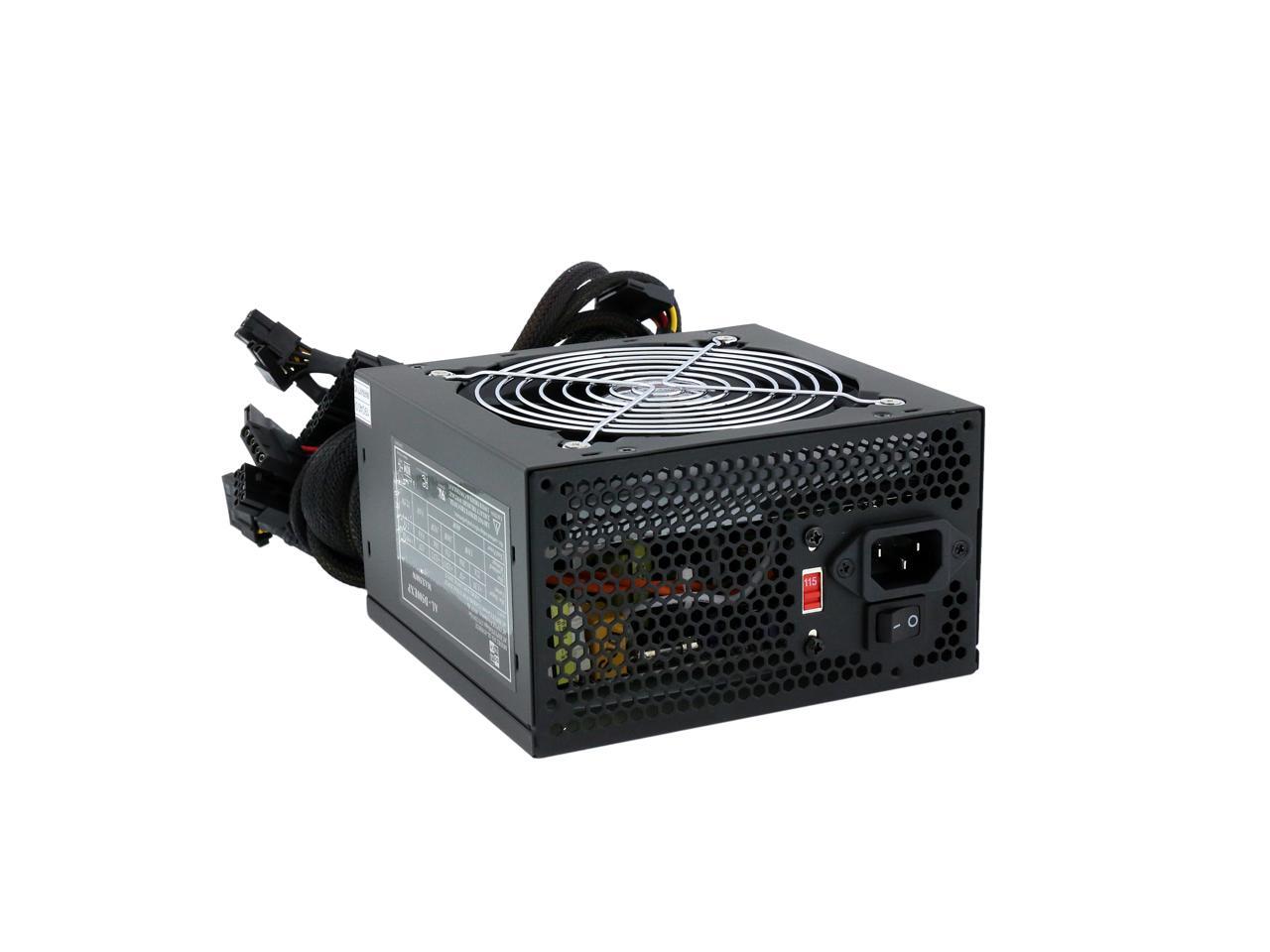

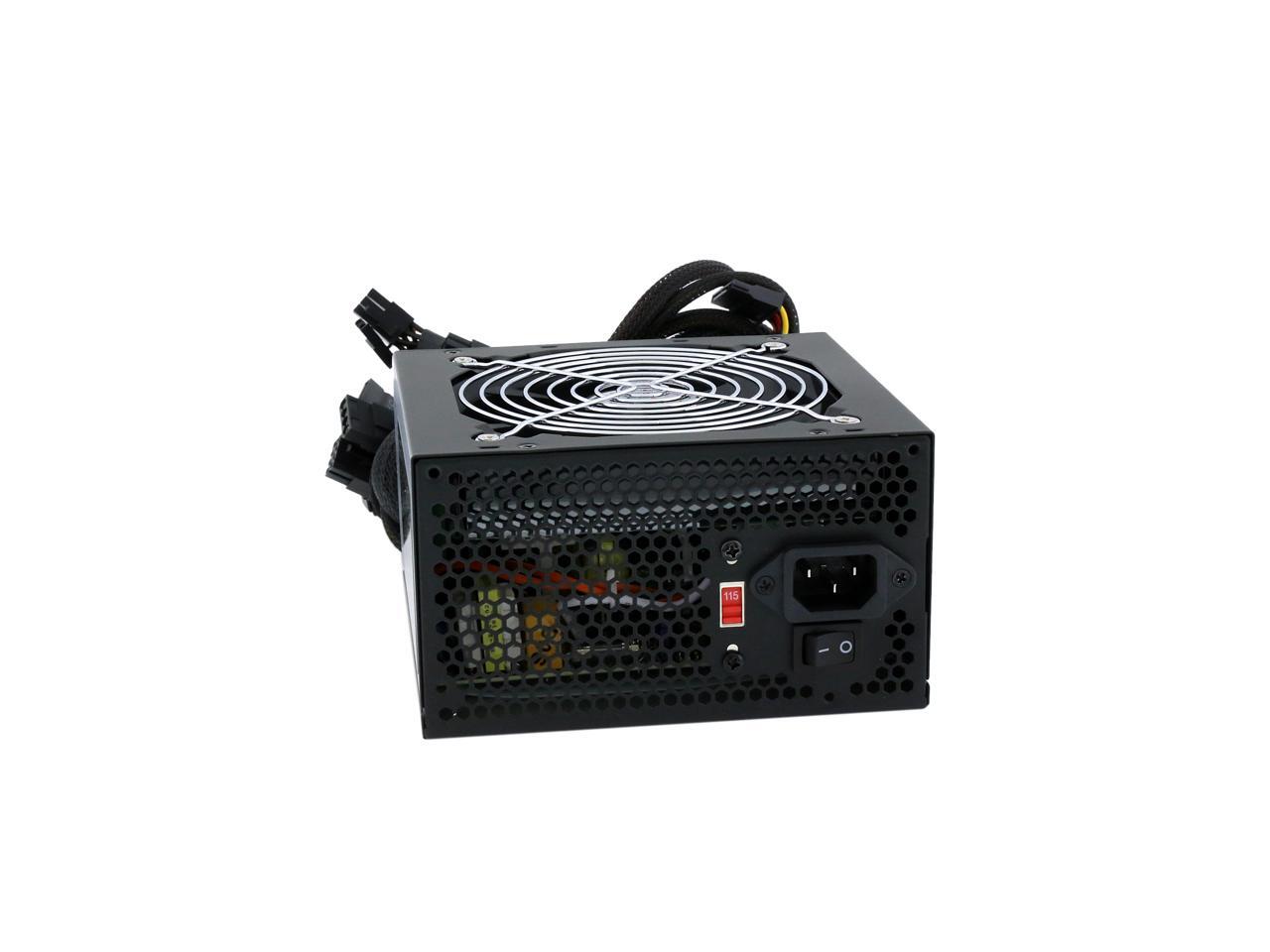

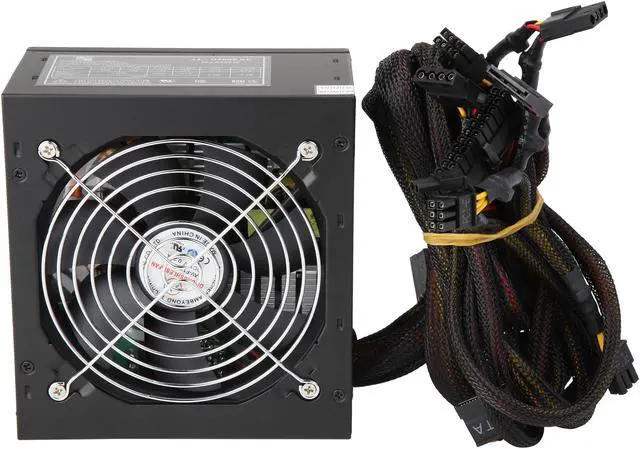

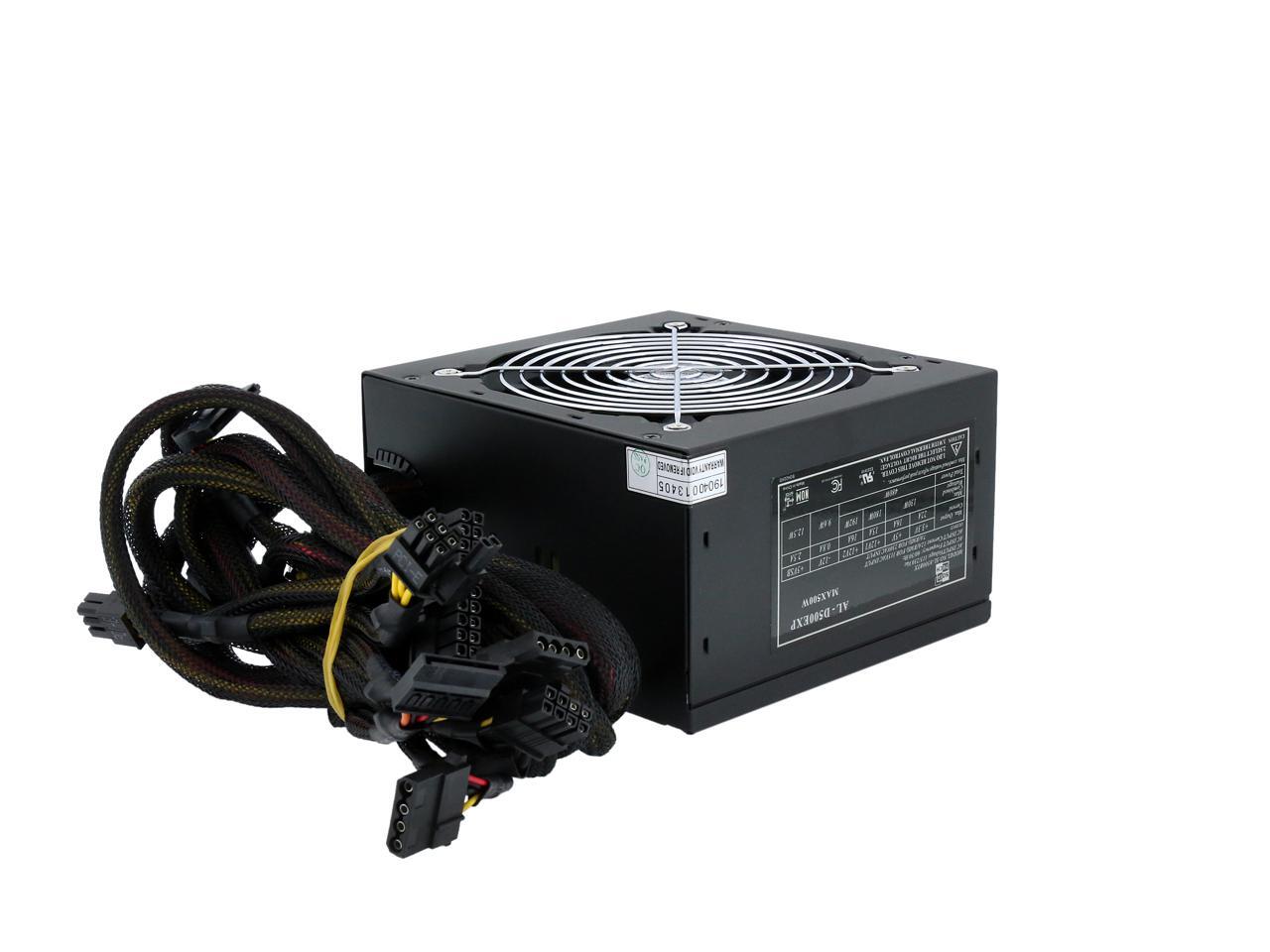

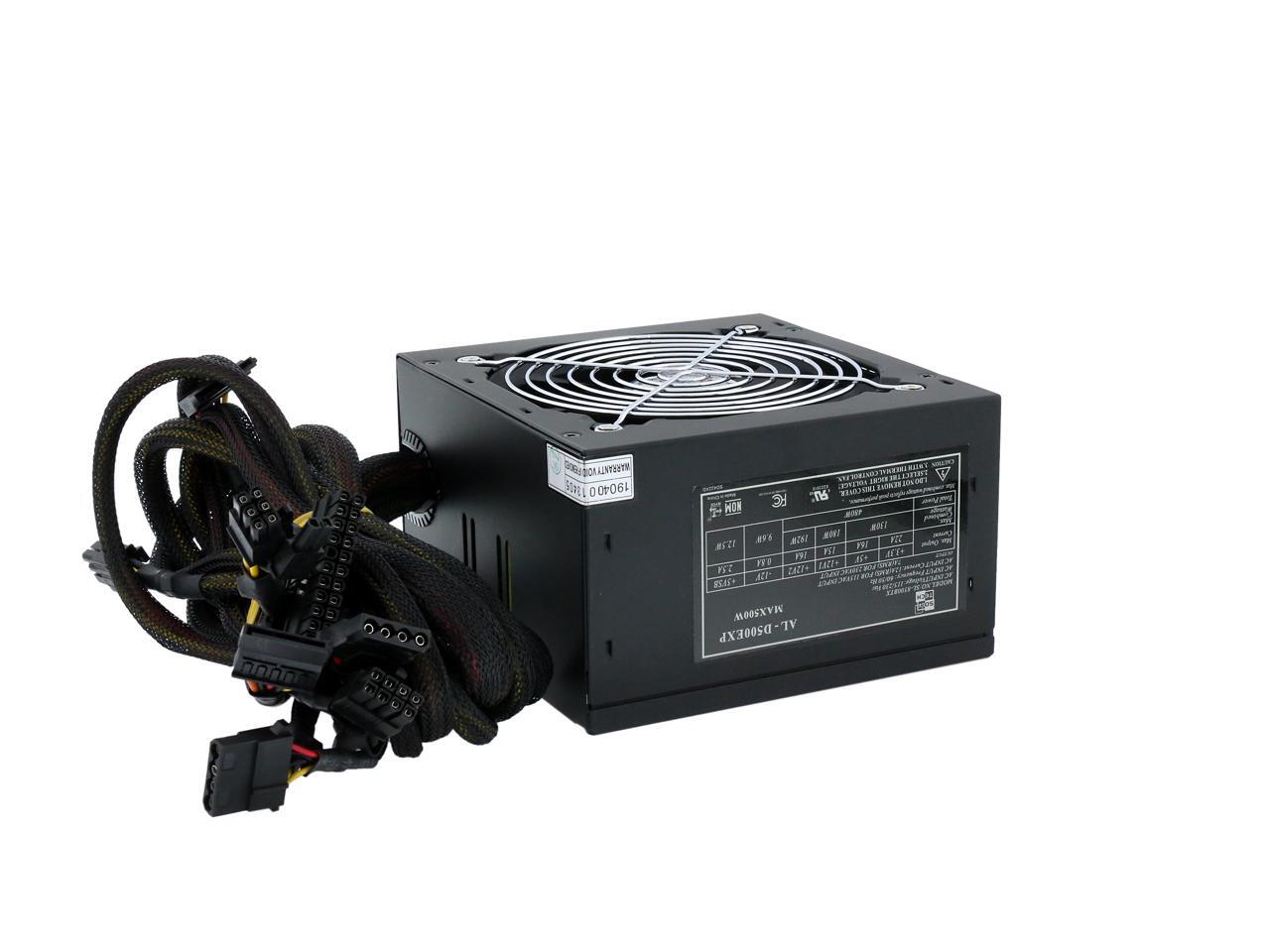

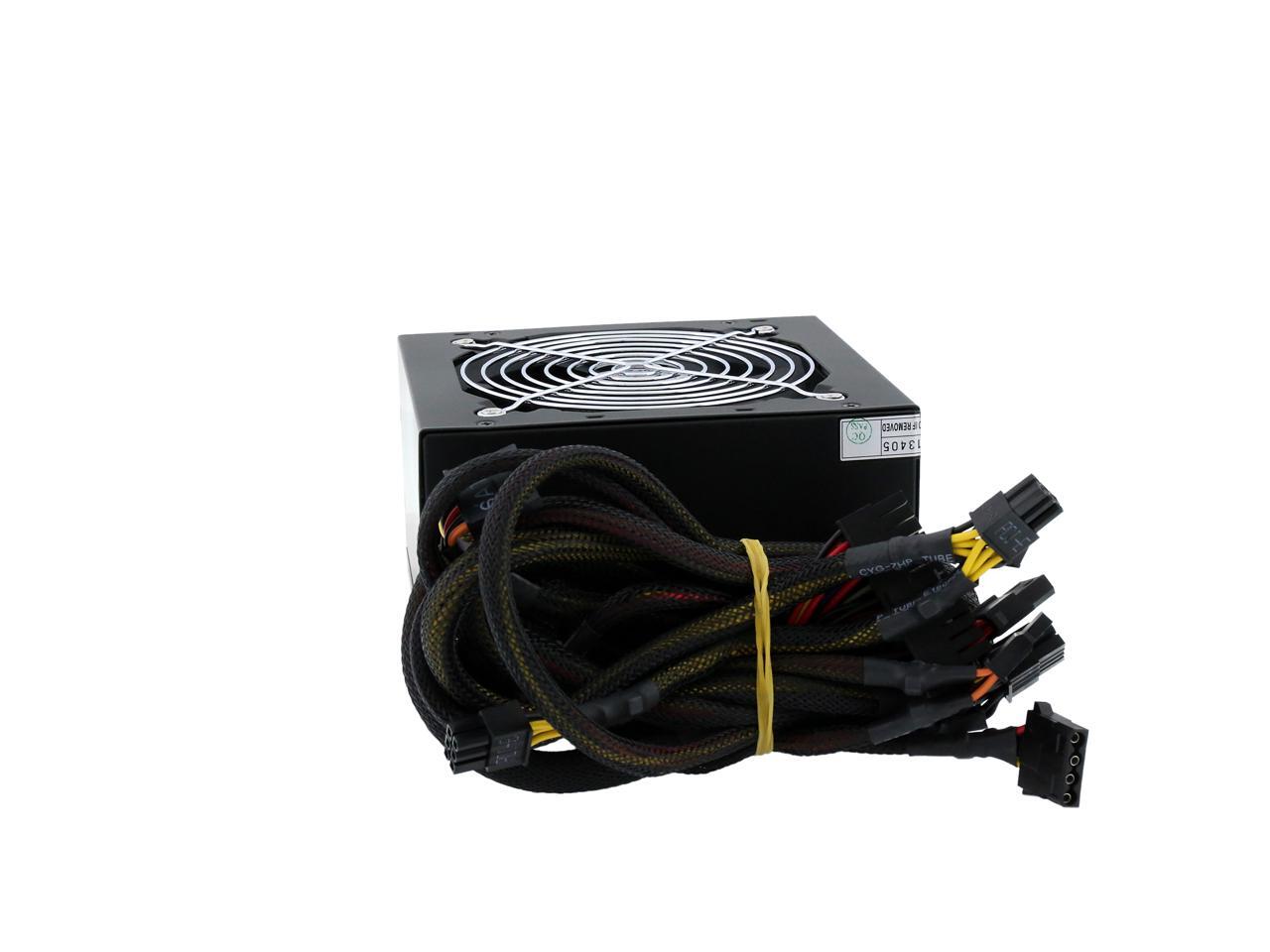

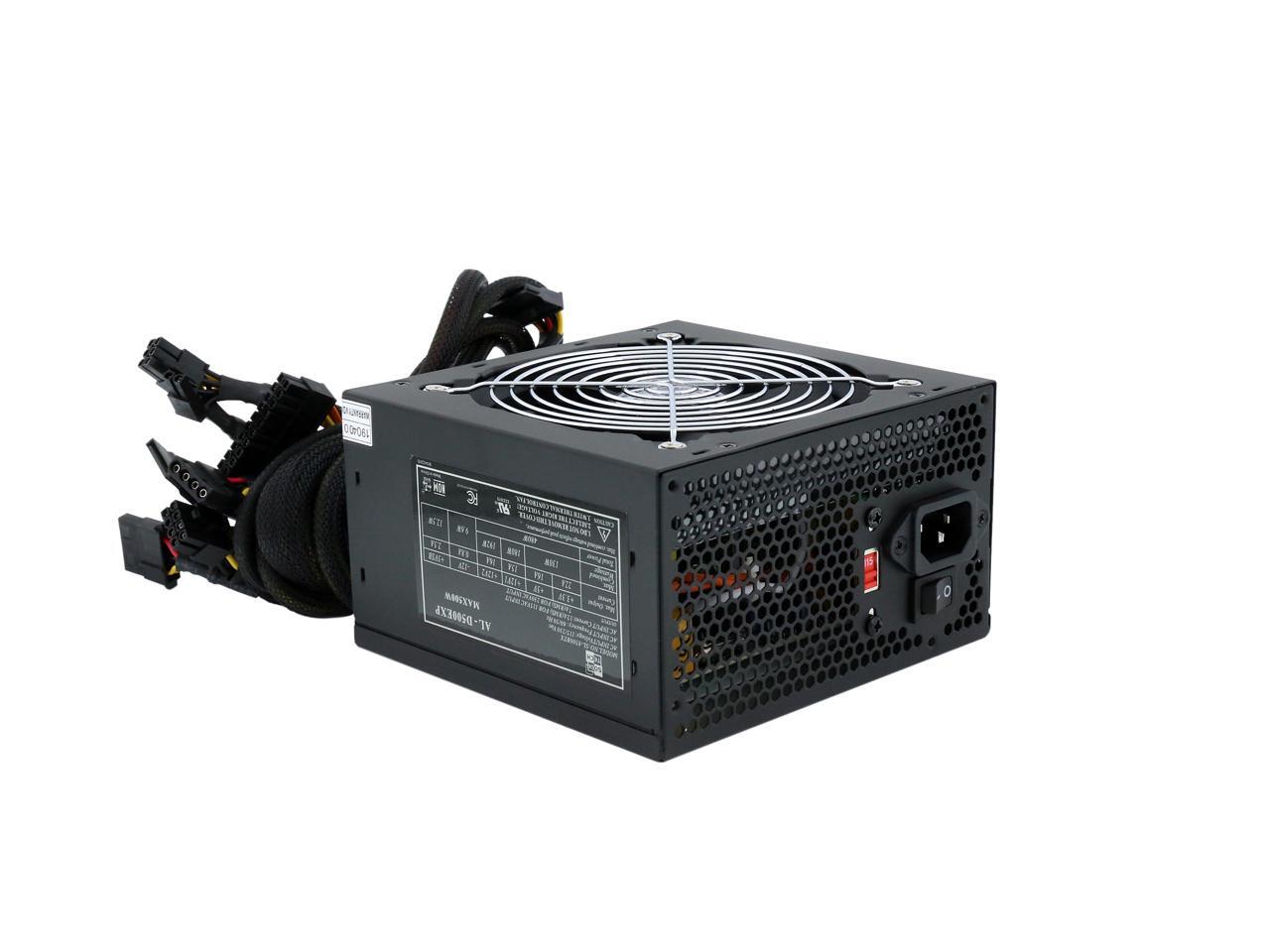

Solytech AL-D500EXP/SL-8500BTX 500 W ATX12V Power Supply - OEM
- ATX12V
- 115 / 230 V 47 - 63 Hz
- +3.3V@24A, +5V@24A, +12V1@18A, +12V2@18A, [email protected], +5VSB@2A
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Solytech Enterprise Corporation AL-D500EXP/SL-8500BTX
| Brand | Solytech |
|---|---|
| Model | AL-D500EXP/SL-8500BTX |
| Type | ATX12V |
|---|---|
| Maximum Power | 500 W |
| Fans | 1 |
| Main Connector | 24Pin |
| +12V Rails | 2 |
| PCI-Express Connector | 2 x 6-Pin |
| SATA Power Connector | 4 |
| Haswell Support | Yes |
| Over Voltage Protection | Yes |
| Input Voltage | 115 / 230 V |
| Input Frequency Range | 47 - 63 Hz |
| Input Current | 10A @ 115V, 6A @ 230V |
| Output | +3.3V@24A, +5V@24A, +12V1@18A, +12V2@18A, [email protected], +5VSB@2A |
| MTBF | >50,000 Hours |
| Approvals | cUL, CSA, FCC |

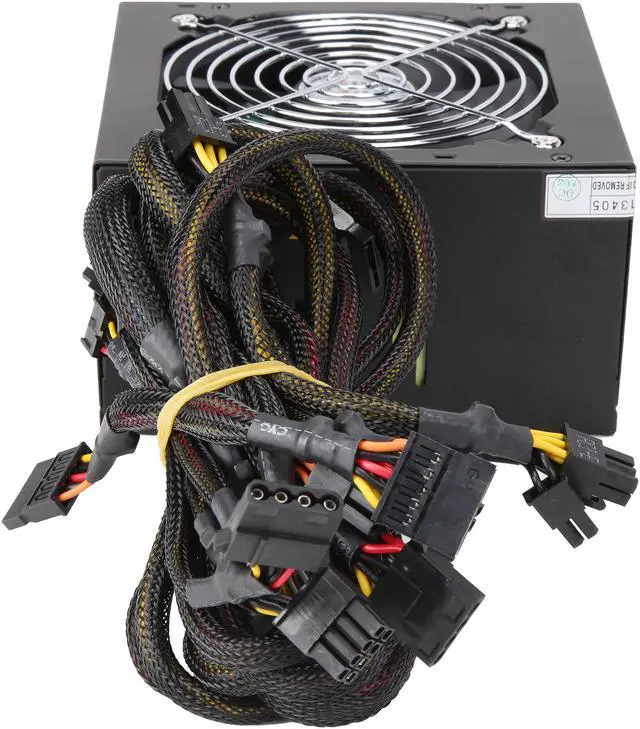

| Connectors | 1 x 24Pin Main connector 1 x 4Pin 12V (P4) 1 x 8Pin 12V 3 x Peripheral 4 x SATA 1 x Floppy 2 x PCI-E |
| Features | good for Intel Core i7 |
|---|

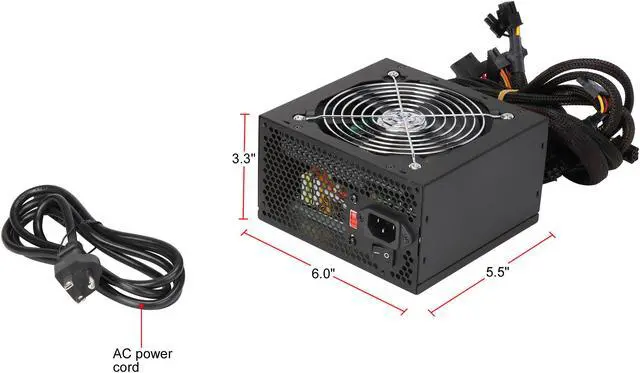

| Dimensions | 5.5" x 6.0" x 3.3" |
|---|---|
| Weight | 4.4 lbs. |
| First Listed on Newegg | July 11, 2019 |
|---|
