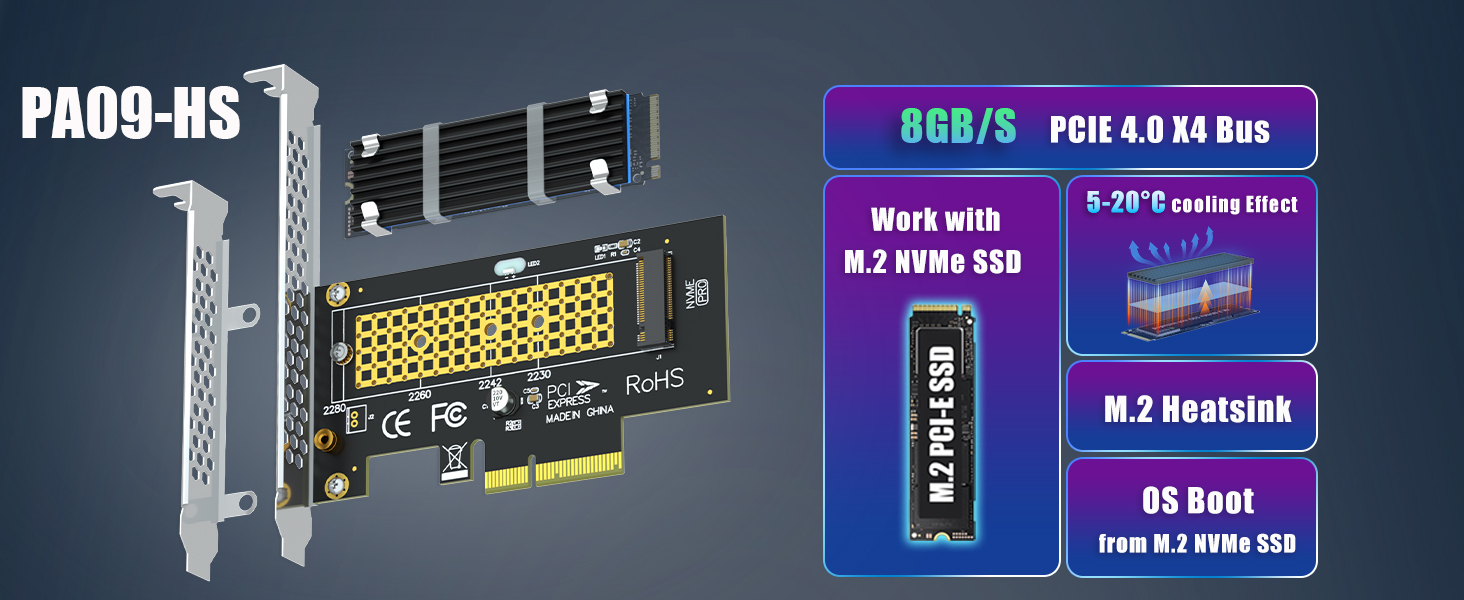

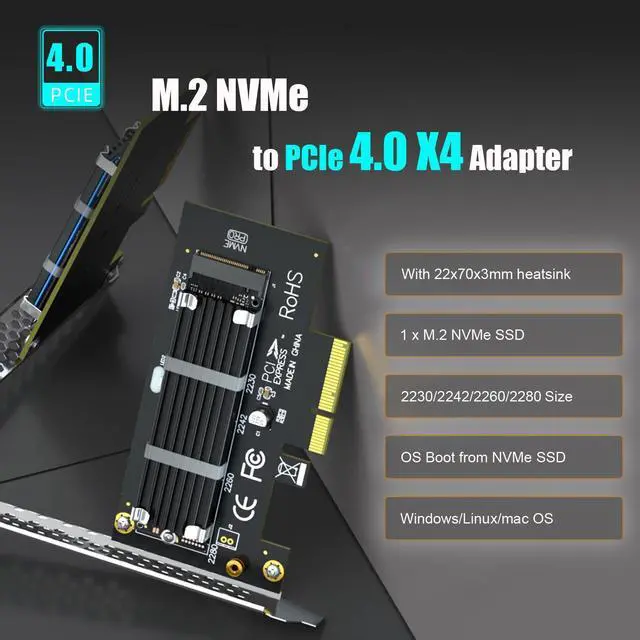

PA09-HS M.2 NVMe to PCIe 4.0 X4 Adapter with M.2 Heatsink for M.2 NVMe SSD

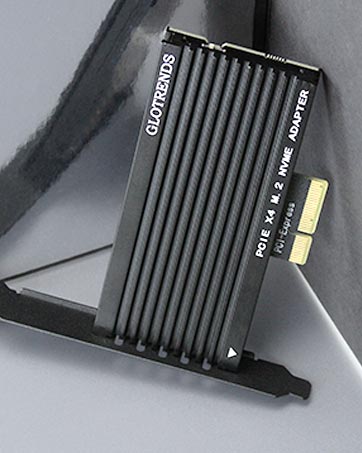

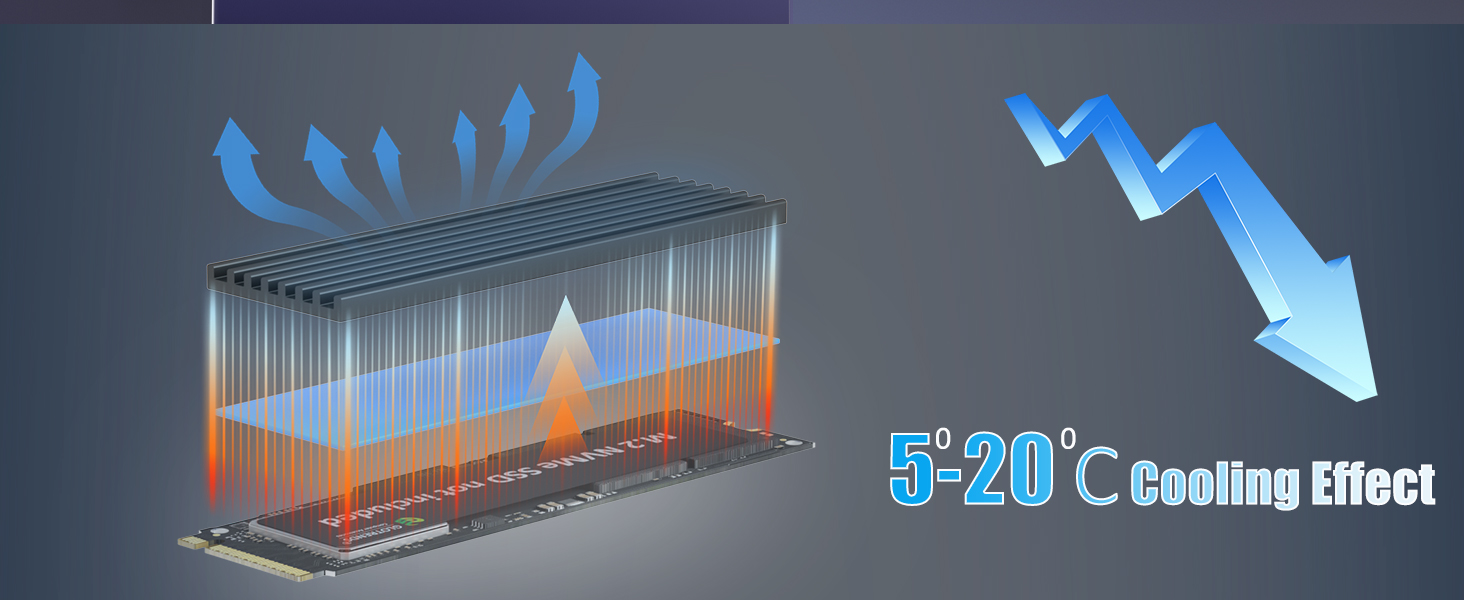

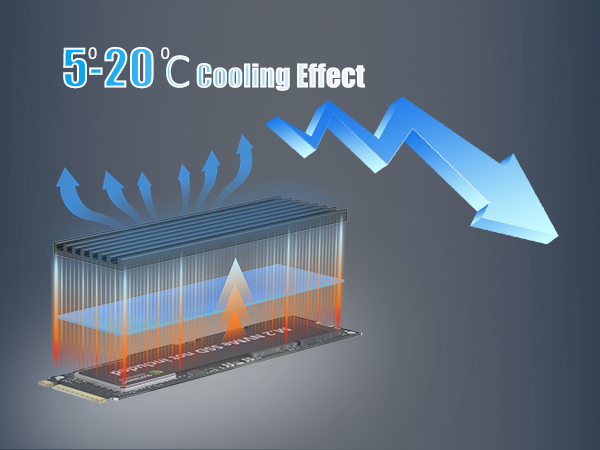

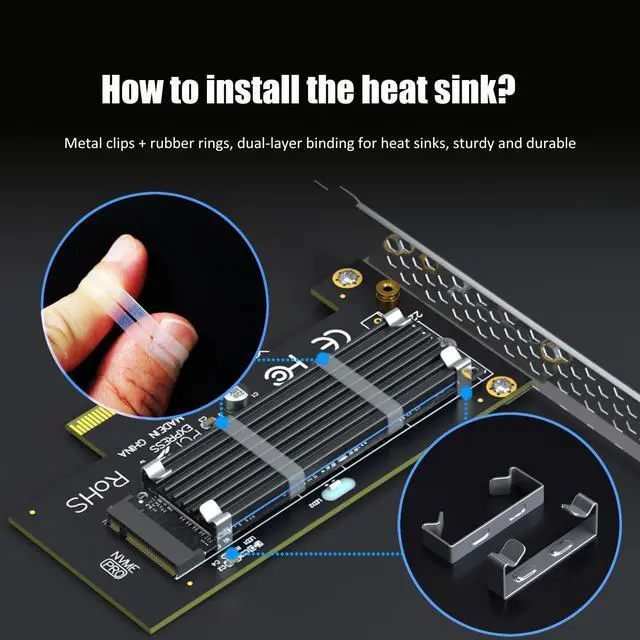

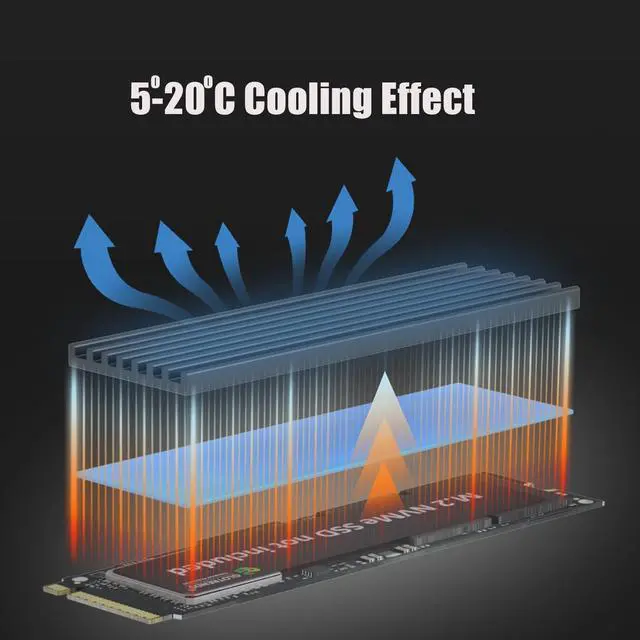

This adapter turns your motherboard's PCIE X4/X8/X16 slot into an M.2 Key M slot for M.2 NVMe SSD installation. PCIE X1/PCI slots aren't supported. It comes with heatsinks that cool M.2 SSDs by 5 - 20°C.

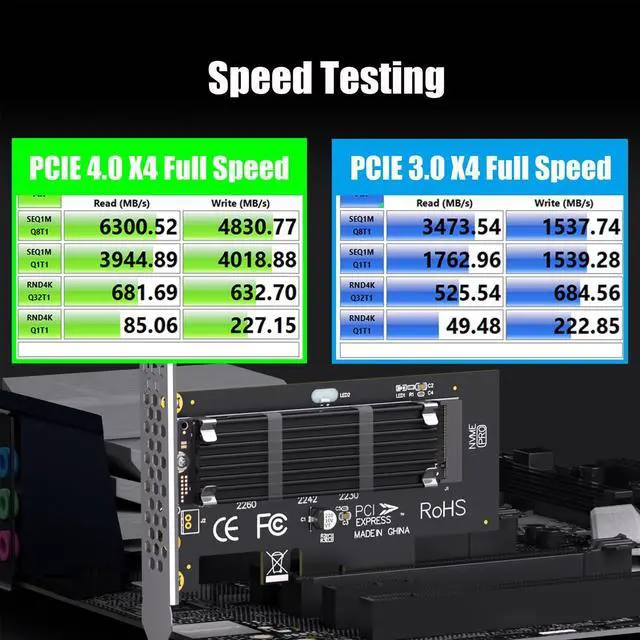

Works with PCIE 4.0/3.0 M.2 NVMe SSDs. For full PCIE 4.0 X4 speed, your CPU, slots, and SSD must all support it. Note: Intel CPUs below 11th gen don't support PCIE 4.0.

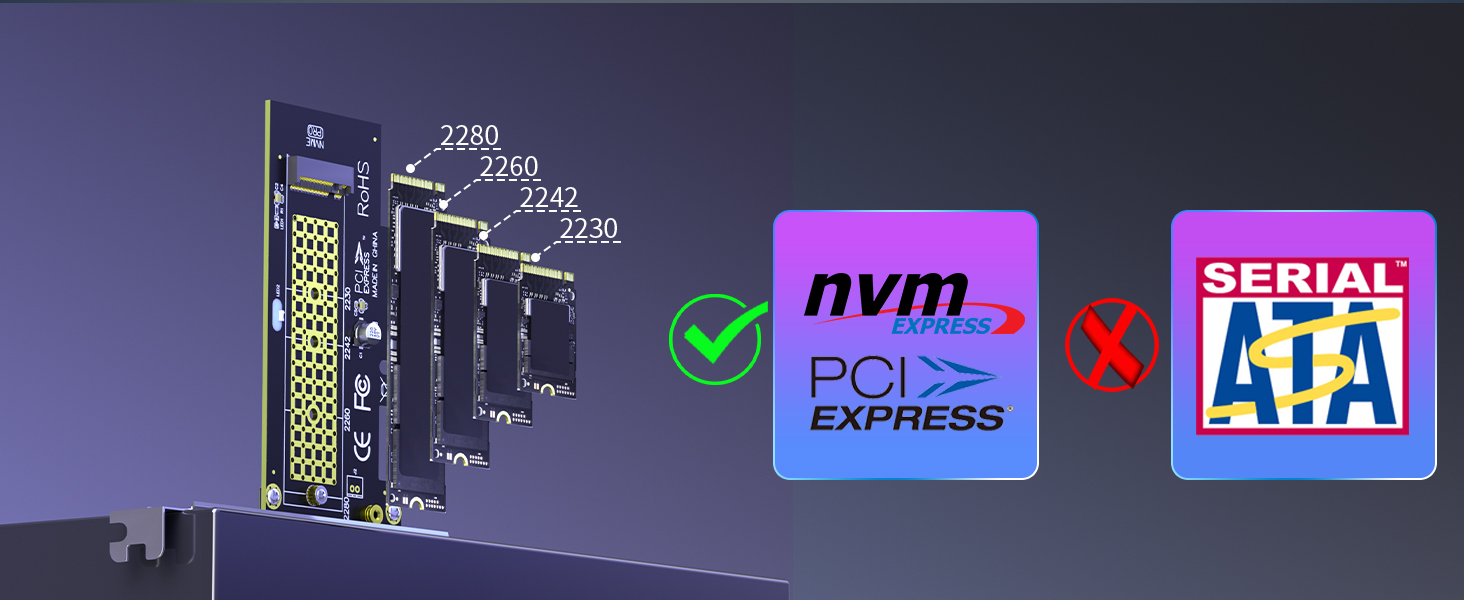

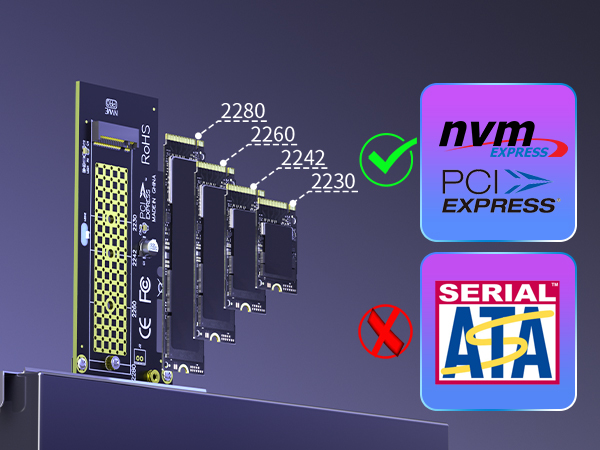

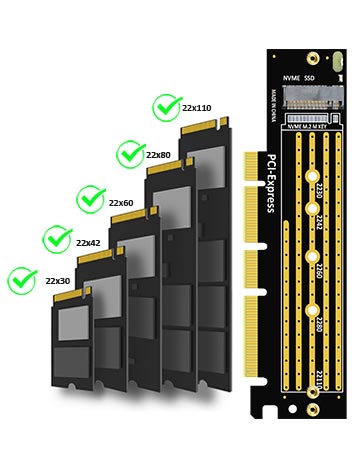

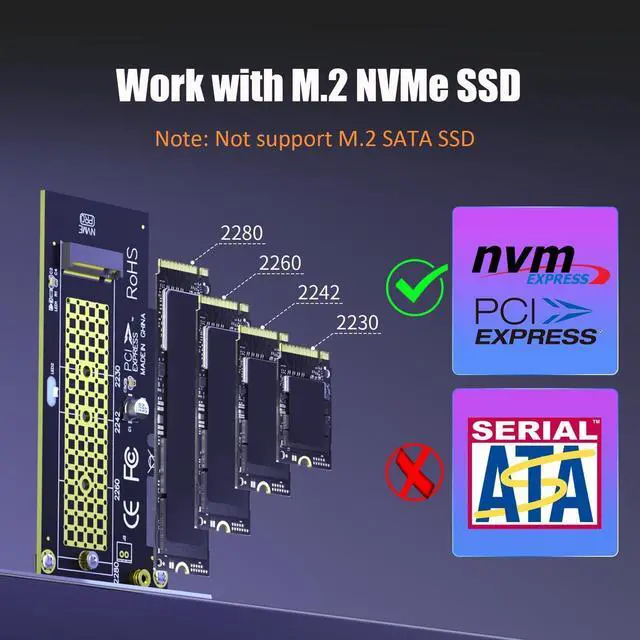

No capacity limit for M.2 NVMe SSDs (2T, 4T work). Supports 2230/2242/2260/2280 sizes. New SSDs need initialization and formatting. M.2 SATA SSDs aren't supported.
Compatible with Windows 11/10/8, Linux, and Mac OS. Support OS boot from NVMe SSD, except on some old motherboards (usable as storage then). Windows 7 lacks native NVMe driver; download from Microsoft or SSD manufacture site.

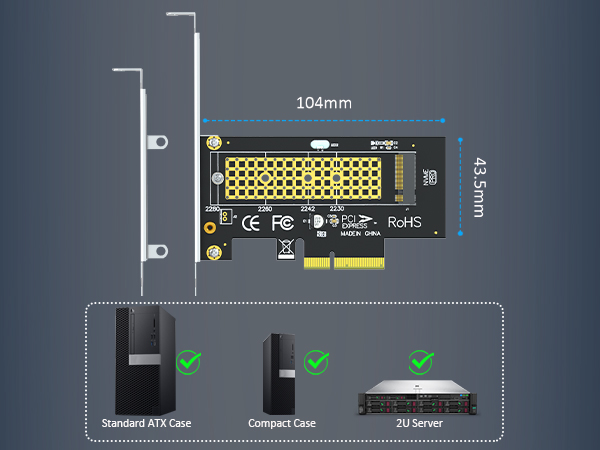

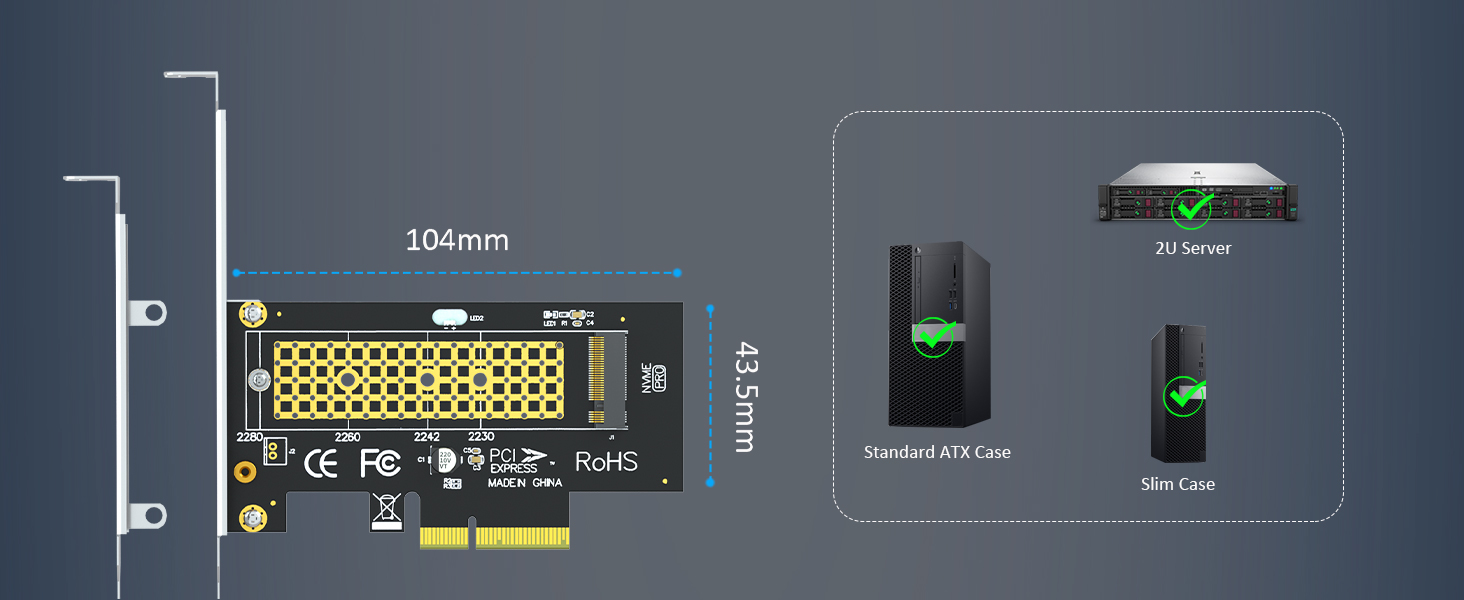

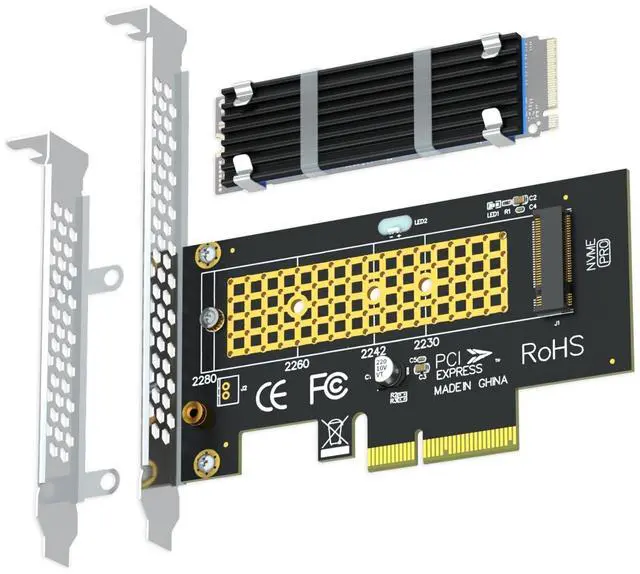

Includes 12cm regular and 8cm low - profile brackets for any PC frame. FCC and CE certified. Get lifetime tech support - contact us for troubleshooting.

GLOTRENDS specializes in developing high-performance PCIe adapters and riser cables for computer engineers and DIY enthusiasts.
The products mainly include 2 series: PCIe adapters (M.2 SSD Adapter, SATA Card, WiFi Card, Ethernet NIC, USB Card, etc) and PCIe 5.0/4.0/3.0 extension cables.
PA15
- M.2 NVMe to PCIe 4.0 X4 Adapter
- Extra Large Aluminum Heatsink
PA16
- 22110/2280 M.2 NVMe to PCIe 4.0 X4 Adapter
- 1U High Low-profile
M.2 NVMe Adapter with Heatsink
2/4-port M.2 PCIe Adapter
M.2 SSD Adapter
PU41
- U.2 PCIe 4.0 X16 Adapter
- 4 x U.2 SSD
U.2/U.3 Adapter
Heatsink for M.2 SSD/PS5
SA3824A
- 24-port SATA Card (Non-Raid)
- PCIe 3.0 X8 Bandwidth
- ~277MB/s per port
SATA Card
LE8445
- 4-port 2.5GB NIC
- PCIe 2.0 X4=20Gbps Upstream
- 2.5GB/s Full Speed
NIC Card
Wi-Fi 5/6E/7 Card
U6A2C

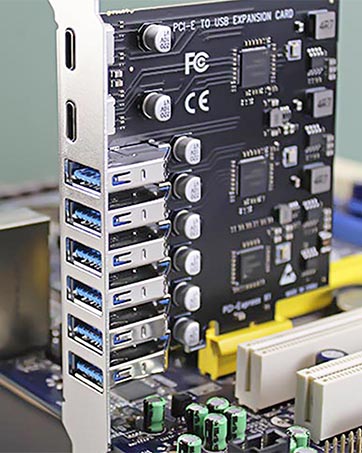

- 8-port USB 3.0 Expansion Card
- 2 x USB-C + 6 x USB-A
USB Card
PCIe Riser Cable
- PCIe 3.0/4.0 Riser Cable
- Up to 1000mm lenth
- PCIe X1/X4 Riser Cable
PCIe 3.0 X16 Riser Cable
PCIe 4.0 X16 Riser Cable

Model: PA09-HS

Internal Interface	PCI-Express X4
External Interface	Key M

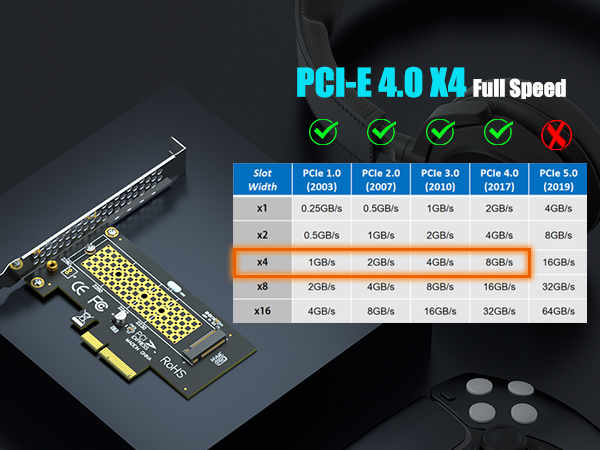

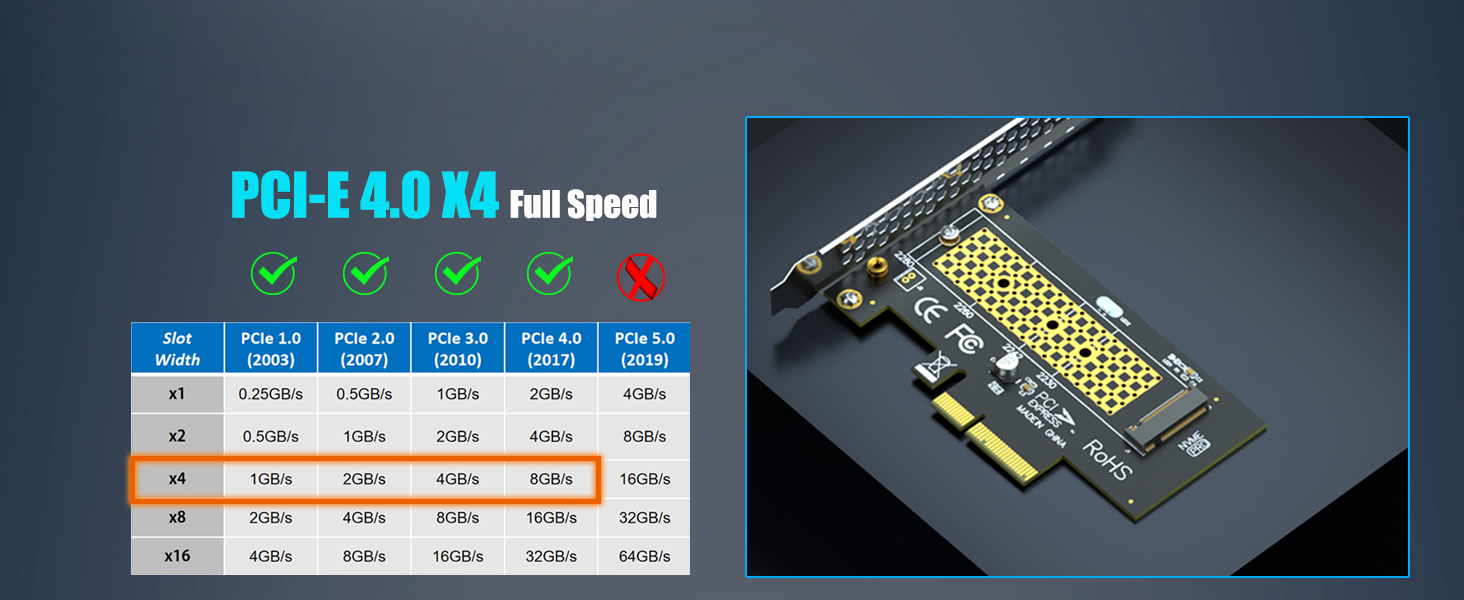

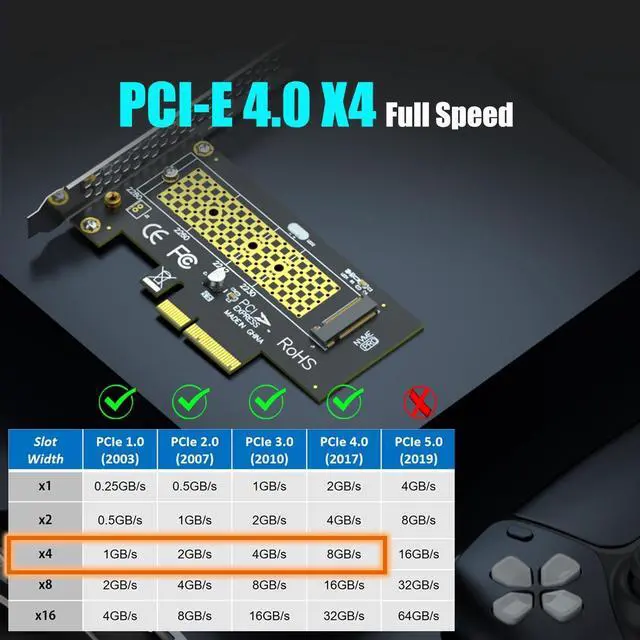

Max Bandwidth	8GB/s for PCIe 4.0 X4 and 4GB/s for PCIe 3.0 X4
M.2 Compatibility	M.2 NVMe SSD, not support M.2 SATA SSD
M.2 SSD Form Factor	2230/2242/2260/2280
OS Compatibility	Windows, Linux, Mac OS (Not support Windows 7)

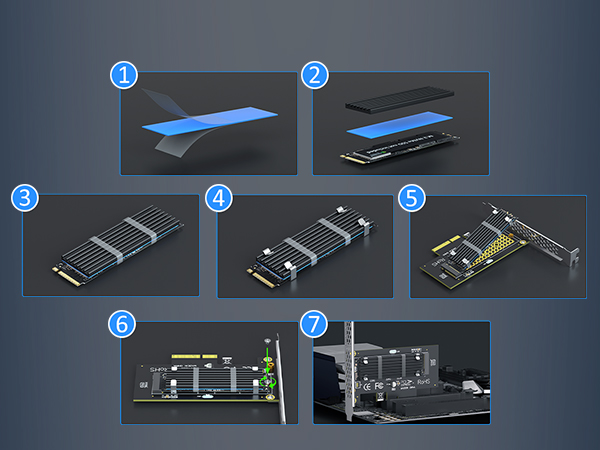

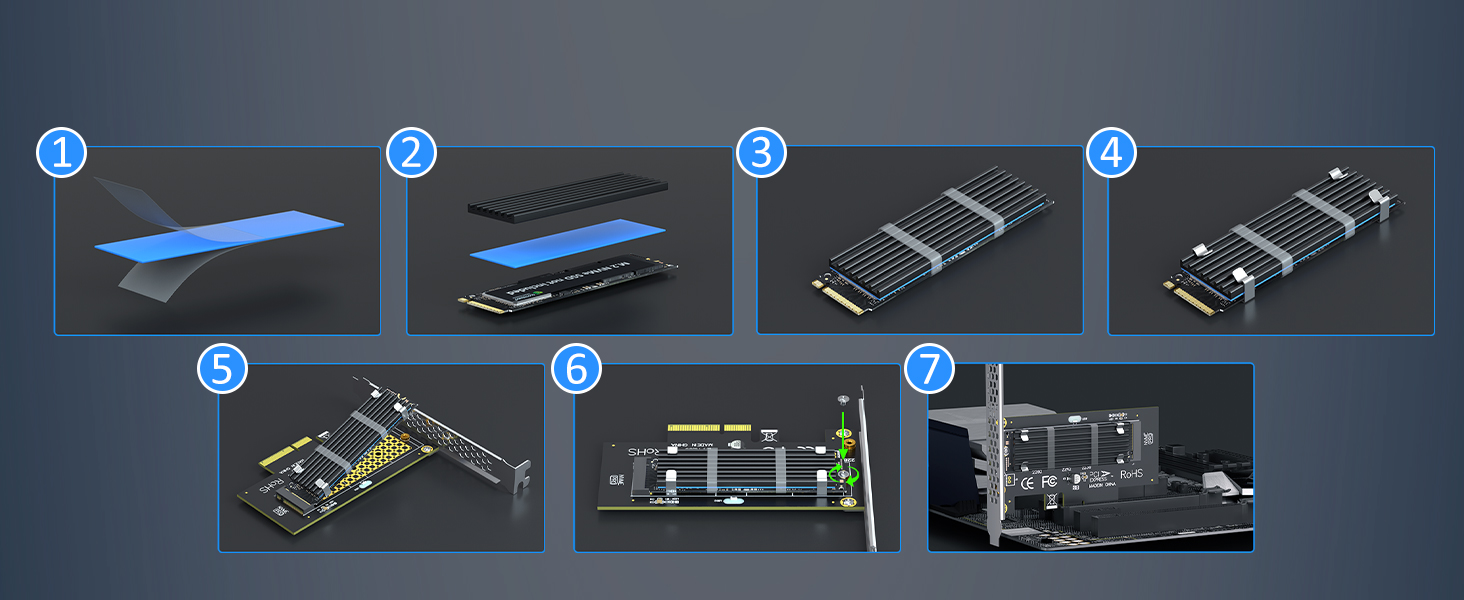

Installation

Model: PA09-HS

Internal Interface	PCI-Express X4
External Interface	Key M
Max Bandwidth	8GB/s for PCIe 4.0 X4 and 4GB/s for PCIe 3.0 X4
M.2 Compatibility	M.2 NVMe SSD, not support M.2 SATA SSD
M.2 SSD Form Factor	2230/2242/2260/2280
OS Compatibility	Windows, Linux, Mac OS (Not support Windows 7)

Installation

GLOTRENDS specializes in developing high-performance PCIe adapters and riser cables for computer engineers and DIY enthusiasts.
The products mainly include 2 series: PCIe adapters (M.2 SSD Adapter, SATA Card, WiFi Card, Ethernet NIC, USB Card, etc) and PCIe 5.0/4.0/3.0 extension cables.
PA15
- M.2 NVMe to PCIe 4.0 X4 Adapter
- Extra Large Aluminum Heatsink
PA16
- 22110/2280 M.2 NVMe to PCIe 4.0 X4 Adapter
- 1U High Low-profile
M.2 NVMe Adapter with Heatsink
2/4-port M.2 PCIe Adapter
M.2 SSD Adapter
PU41
- U.2 PCIe 4.0 X16 Adapter
- 4 x U.2 SSD
U.2/U.3 Adapter
Heatsink for M.2 SSD/PS5
SA3824A
- 24-port SATA Card (Non-Raid)
- PCIe 3.0 X8 Bandwidth
- ~277MB/s per port
SATA Card
LE8445
- 4-port 2.5GB NIC
- PCIe 2.0 X4=20Gbps Upstream
- 2.5GB/s Full Speed
NIC Card
Wi-Fi 5/6E/7 Card
U6A2C
- 8-port USB 3.0 Expansion Card
- 2 x USB-C + 6 x USB-A
USB Card
PCIe Riser Cable
- PCIe 3.0/4.0 Riser Cable
- Up to 1000mm lenth
- PCIe X1/X4 Riser Cable
PCIe 3.0 X16 Riser Cable
PCIe 4.0 X16 Riser Cable

Brand	SoNNeT
Model	PA09_HS
Part Number	PA09_HS

Connector A	pci_express_x4
Connector B	pci_express_x4
Connector Style	Standard

Dimensions	20'
Weight	0.08 kilograms

Item#: 9SIC620KUP5852
