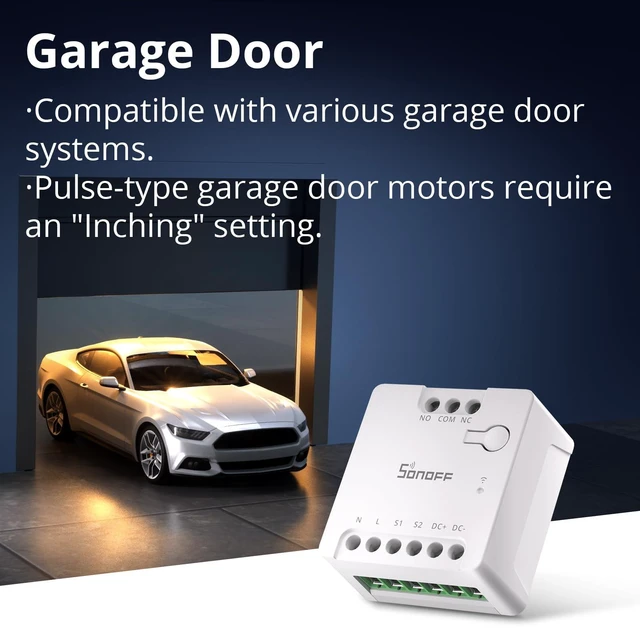

Upgrade Your Garage Door
Make your garage door smart with MINl-D which offers remote control and seamless automation

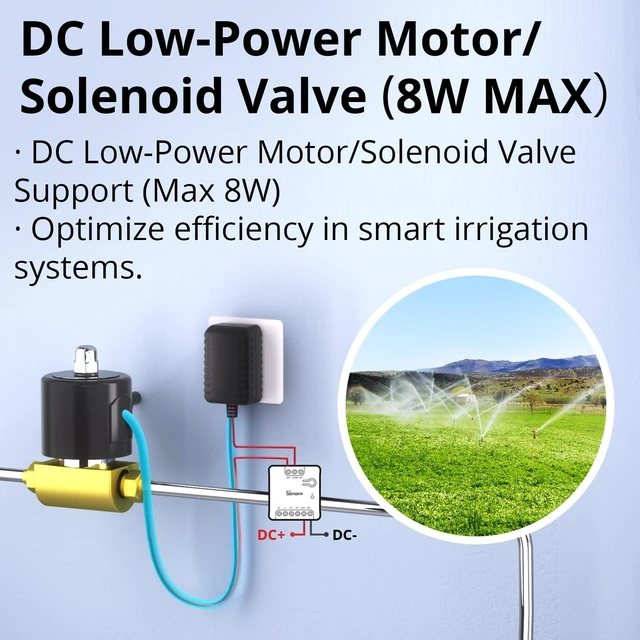

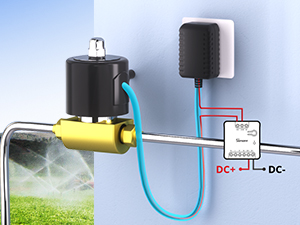

Smart lrrigation System
Specifically engineered to control DC low-power solenoid valves or motorloads up to 8W

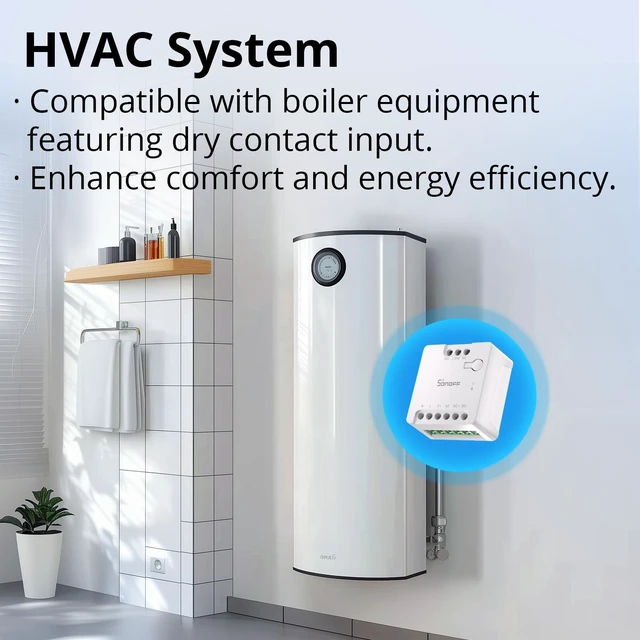

Thermostat Automation System
Integrated with other smart homedevices, which not only enhances convenience but also helps reduceenergy consumption

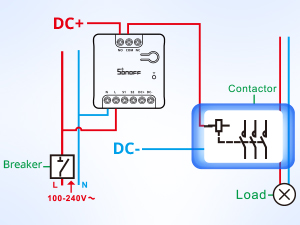

For Contactor Control
A low-power control circuit can safelyand efficiently manage high-power systems when integrated with the contactor

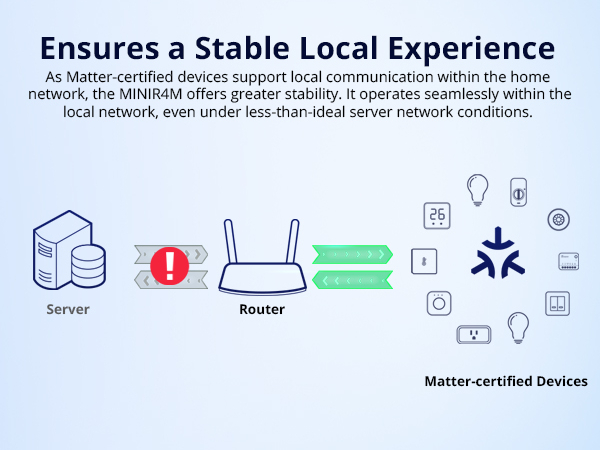

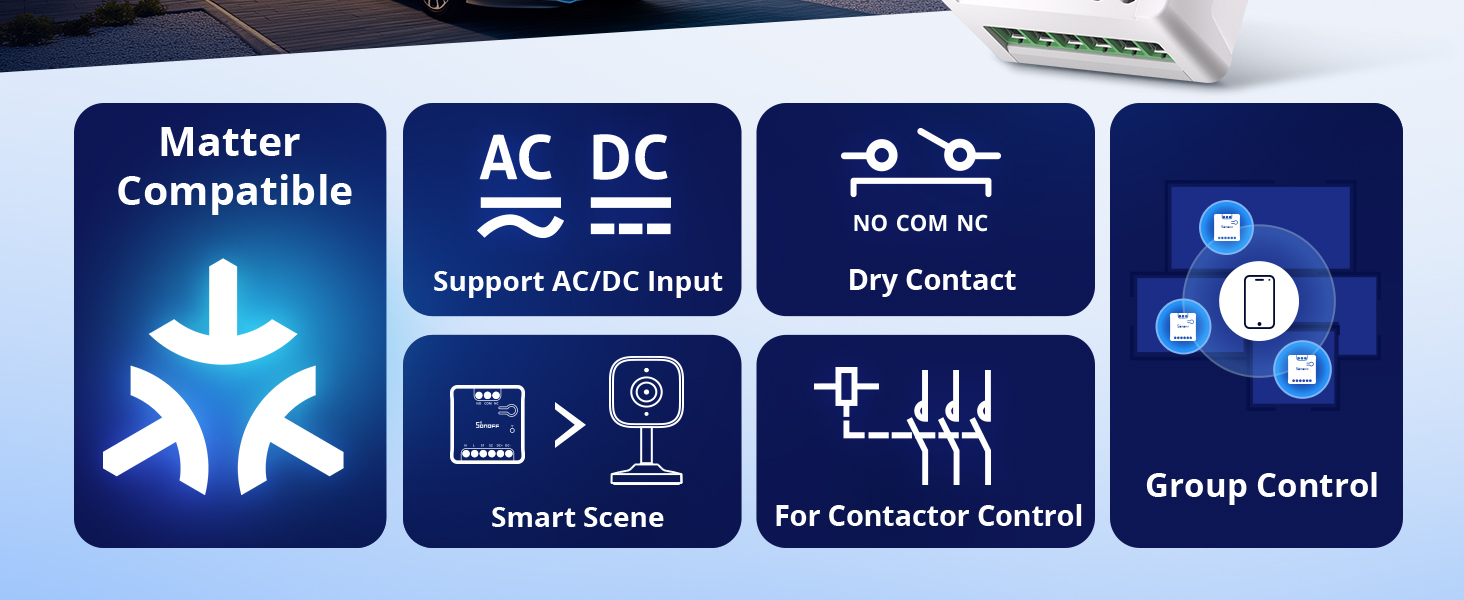

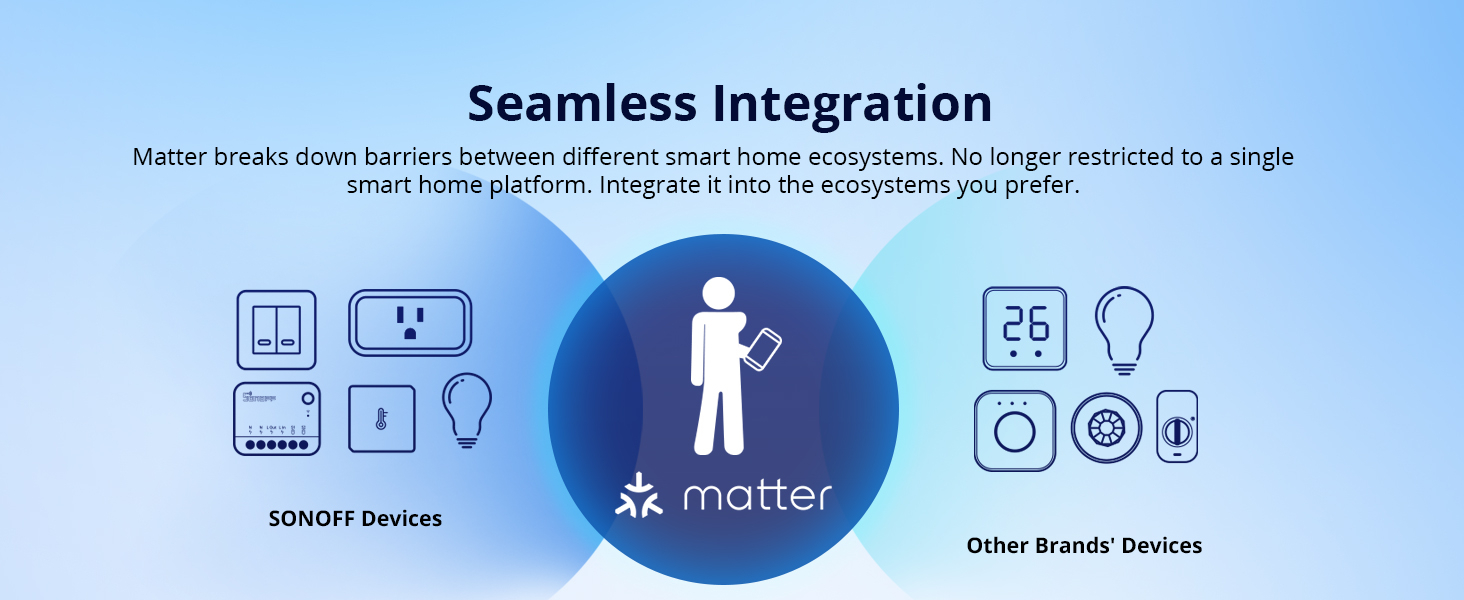

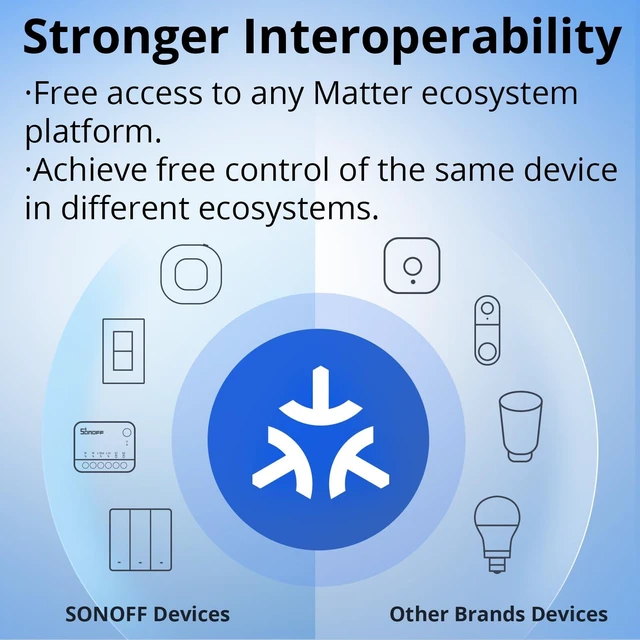

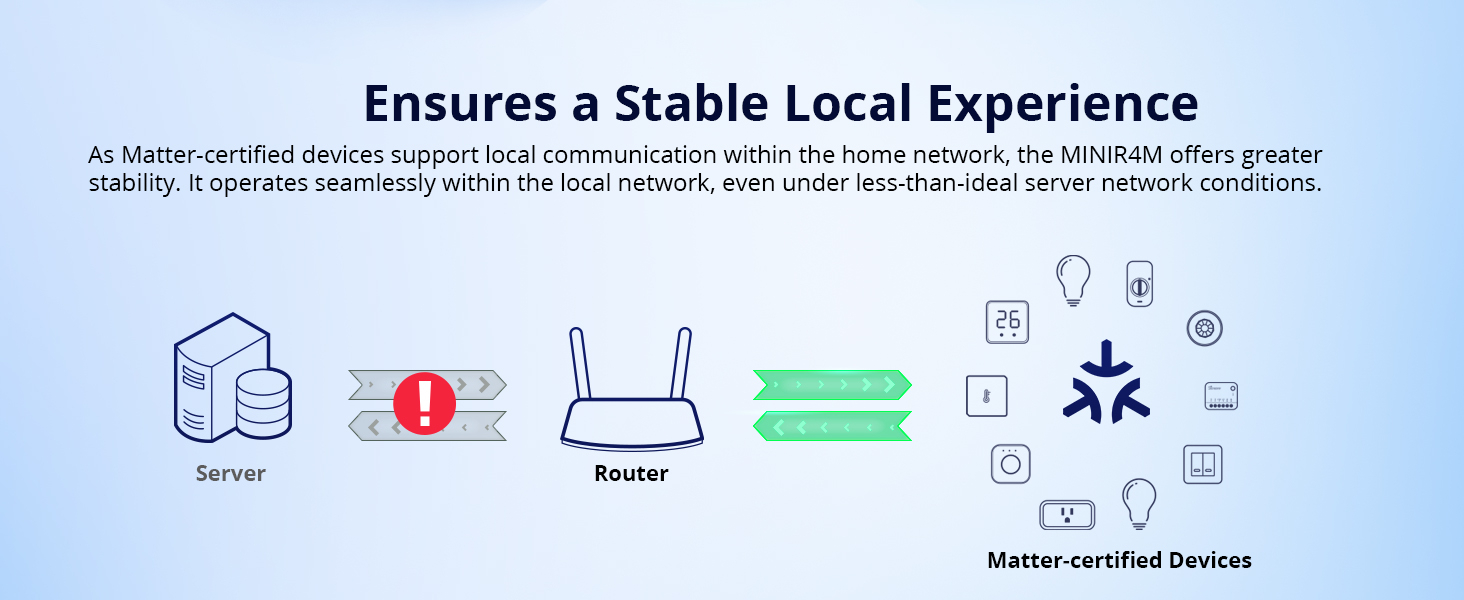

Matter Compatible
Equipped with Matter Protocol, the MINI-D integrates across various platforms and easily connects with voice assistants for effortless control of your smart devices.
Support AC/DC Input
Compatible with AC or DC power sources, ensuring flexible installation in various environments.

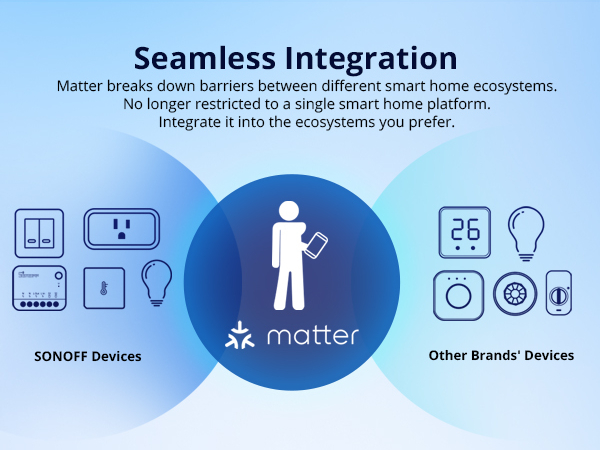

Smart Scene
Integrated with other smart home devices enhances convenience.

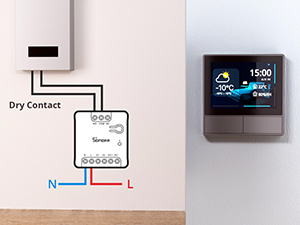

Dry Contact
The power supplied to the module is completely isolated from the switched load, which helps prevent electrical faults and enhances safety.
For Contactor Control
A low-power control circuit can effectively and safely regulate high-power systems by incorporating a contractor to manage larger loads precisely.
Group Control
Available for centralized management. Streamlined operations by controlling multiple devices or systems from a single interface.
Upgrade Your Garage Door
Make your garage door smart with MINl-D which offers remote control and seamless automation
Smart lrrigation System
Specifically engineered to control DC low-power solenoid valves or motorloads up to 8W

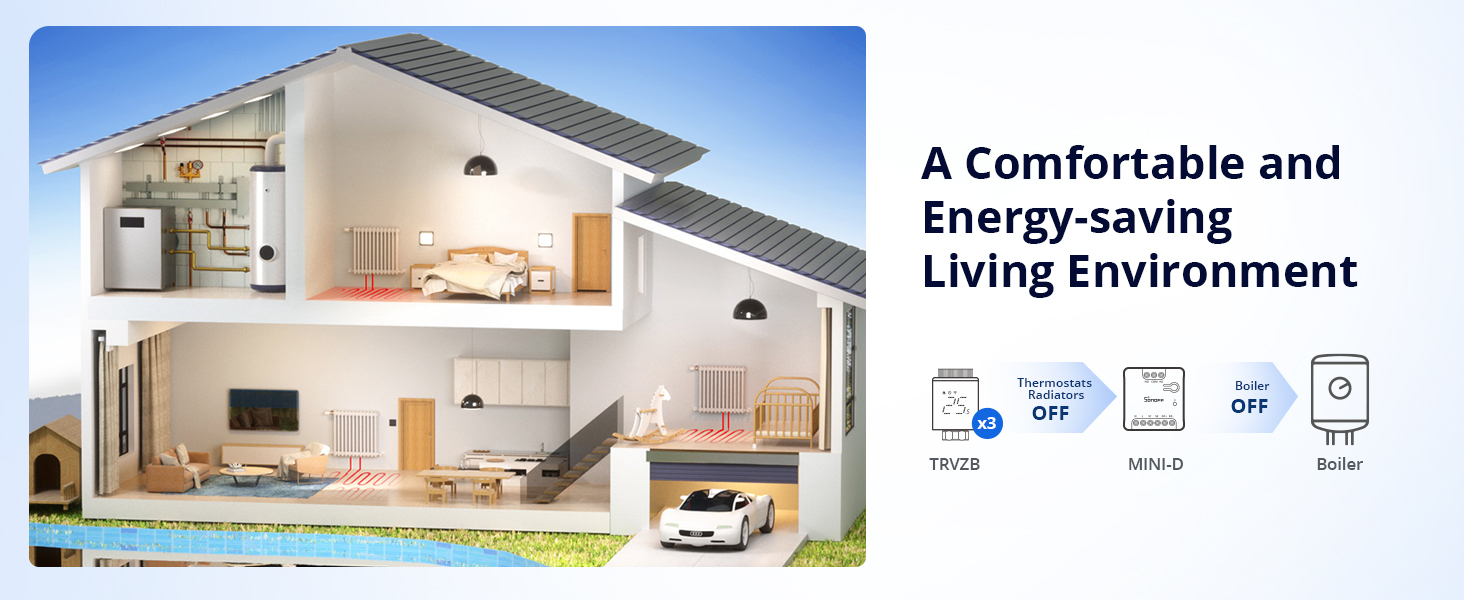

Thermostat Automation System
Integrated with other smart homedevices, which not only enhances convenience but also helps reduceenergy consumption
For Contactor Control
A low-power control circuit can safelyand efficiently manage high-power systems when integrated with the contactor

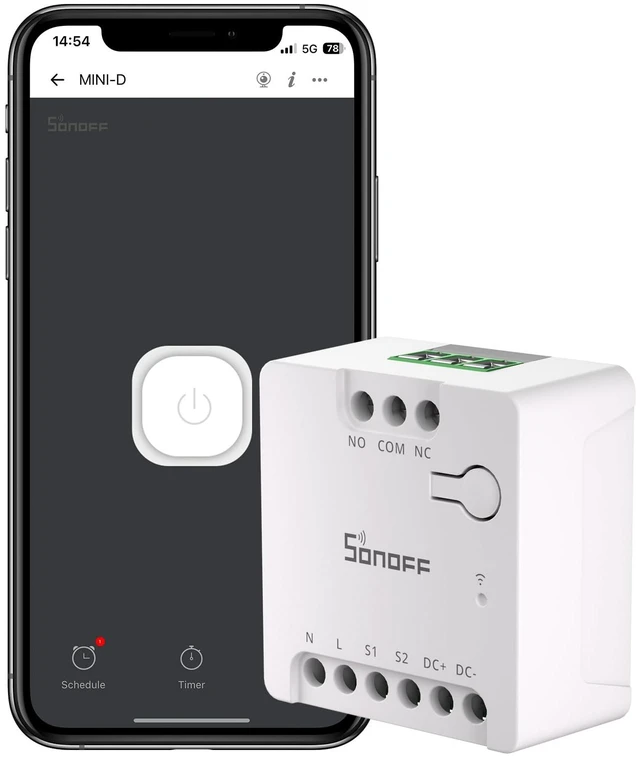

| Model | MINI-D |
|---|---|
| Rating | 100-240V~ 50/60Hz 0.1A Max OR 12-48V?1A Max µ |
| Load | 24V?2A Max Resistive load OR 12/24V?8W Motor load |
| Wireless Connectivity | Wi-Fi: IEEE 802.11 b/g/n 2.4GHz |
| Net Weight | 34.5g |

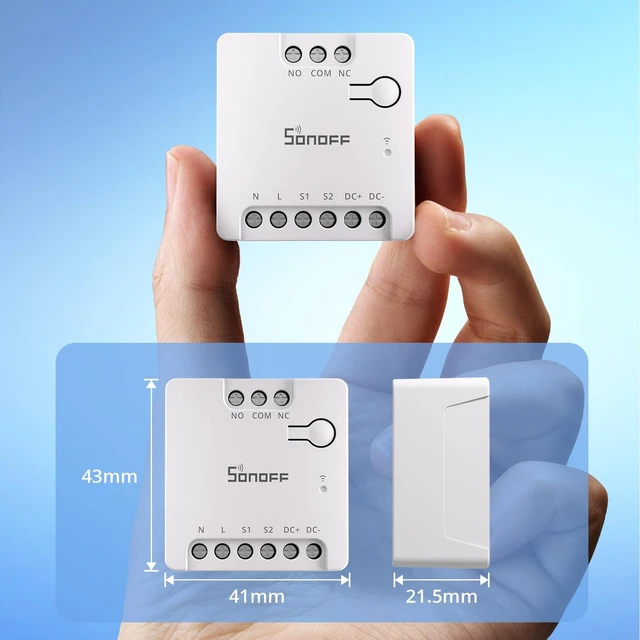

| Dimension | 41x43x21.5mm |
| Casing Material | PC |
| Applicable Place | Indoor |
| Working Temperature | 10T40 (-10?~40?) |
| Working Humidity | 5%~95% RH, non-condensing |
| Working height | Less than 2000m |
| NOTE 1 | Please install and maintain the device by a professional electrician. To avoid electric shock hazards, do not operate any connection or contact the terminal connector while the device is powered on! |
| NOTE 2 | Make sure all wires are connected correctly. AC and DC are not supported as power input at the same time! |
| NOTE 3 | To ensure the safety of your electrical installation, it's essential either a Miniature Circuit Breaker (MCB) or a Residual Current operated Cicuit-breaker with Integral Overcurrent protection(RCBO) with an electrical rating of 10A that meets national safety standards has been installed before the MINI-D. An overcurrent protection device with a rated current of 3A needs to be used in the control circuit of the MINI-D. |
| NOTE 4 | Under normal use of condition, this equipment should be kept a separation distance of at least 20 cm between the antenna and the body of the user. |
| NOTE 5 | Is only support the 2.4ghz router wifi, is not support 5ghz router wifi. |
