Brand | SONY |
---|---|
Model | SNC-RZ25N |
Network Camera | Yes |
---|---|
Type | PTZ Camera |
Connection Type | RJ45 |
---|---|

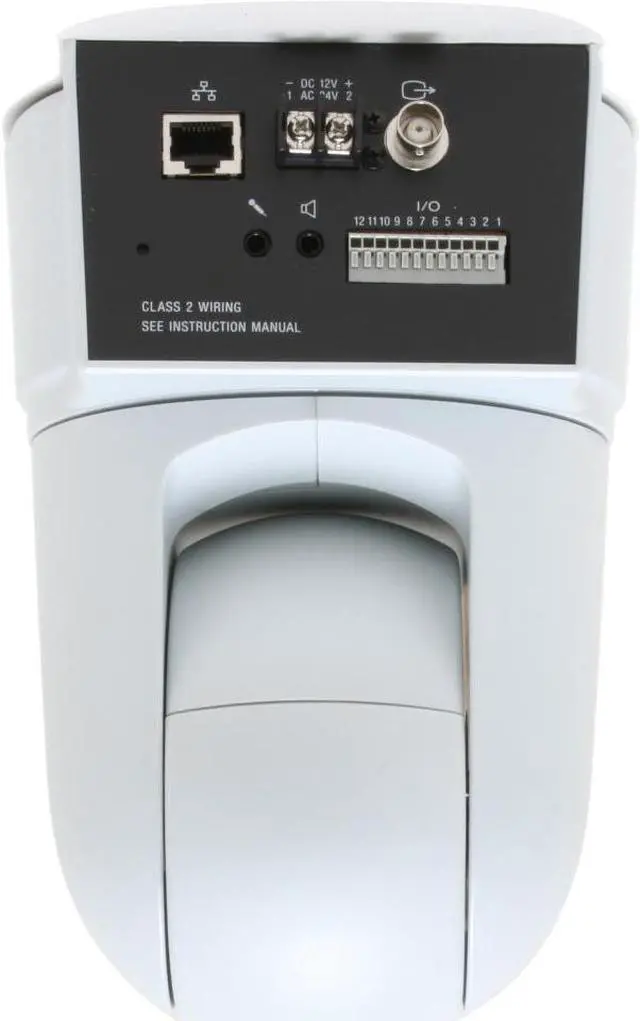

Ports | Ethernet: 10BASE-T / 100BASE-TX (RJ-45) Serial Interface: RS-232C(RxD/TxD) I/O port: Sensor input x 2, Alarm output x2 Card slot: Compact Flash type: SNCA-CFW1 (IEEE802.11b Wireless card) and Compact Flash memory card External microphone input: Mini-jack, 2.4 V DC plug-in power, 4.7 KO Audio line output: Mini-jack (mono), Max output level: 0.9 Vrms |
Networking Protocol | IP(IPv4), ICMP, ARP, TCP/UDP RTP/RTCP,SNMP (MIB-2) DHCP client, NTP client, DNS client, HTTP client/server, FTP client/server, SMTP client |
Pan/Tilt/Zoom | Zoom ratio Optical x 18 (x 12 Digital Zoom) Pan range -170° to +170° Tilt range -90°. to +30°, 120° degrees total tilt range |
---|---|
Sensor & Detector | 1/4 type CCD imager (Exwave HAD Technology) |
MAX Resolution | 640 x 480 |
Video Capture Resolution | For both JPEG and MPEG 4 640 x 480(VGA), 480 x 360, 384 x 288, 320 x 240(QVGA), 256 x 192, 160 x 120(QQVGA) |
Frame Rate | JPEG: QVGA: max.30fps, VGA: max.18fps MPEG4: QVGA: max.30fps, VGA: max.15fps |
Lens Type | Focal length f=4.1 - 73.8mm F Number F1.4 (Wide end), F3.0 (Tele end) Iris Auto/Manual (F1.4 - close) Minimum object distance 290mm (Wide end), 800mm (Tele end) |
Power | AC24V, DC12V |
---|
Operating Systems Supported | Windows 2000/XP |
---|---|
Features | Built-in Web Server - View and control using standard web browsers High sensitivity - 0.7 lux color, 0.1 lux b/w (AGC on, F1.4, 50 IRE) Built-in 18X optical auto-focus zoom lens Adaptive rate control feature prevents audio / video breakup due to network Analog video output - over 470 TV lines Bi-directional audio transmission, with external microphone input Motion detection using motion vector Equipped with one sensor in, two relay outputs, external trigger input for day/night, as well as external output for night mode (b/w) Compact flash slot for additional memory or wireless 802.11b via SNCA-CFW1 option MPEG-4 and JPEG Compression Formats, selectable |

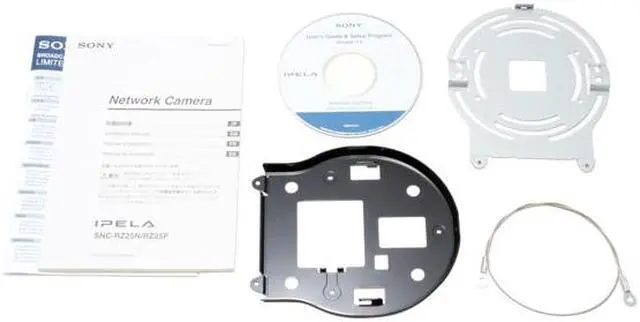

Package Contents | SNC-RZ25N User Manual Resource Disk Other Accessories |
---|
First Listed on Newegg | April 12, 2006 |
---|
