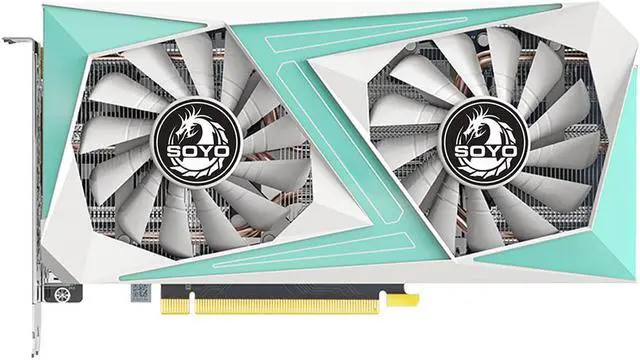

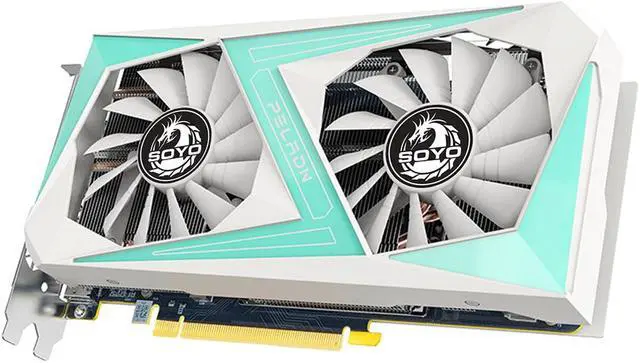

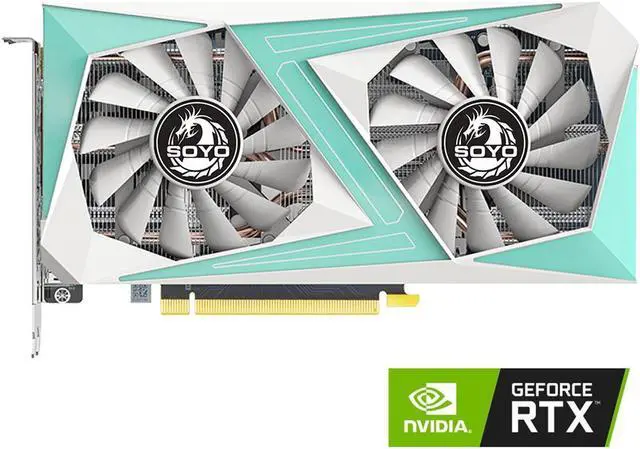

High-End Performance :The SOYO RTX 2070 8G graphics card offers top-notch performance for gaming and video rendering, with a max resolution of 7680 x 4320 and a double fan cooling type.
Advanced Technology :Equipped with NVIDIA chipset and GDDR6 video memory, this card ensures smooth and efficient operation, enhancing your computing experience.

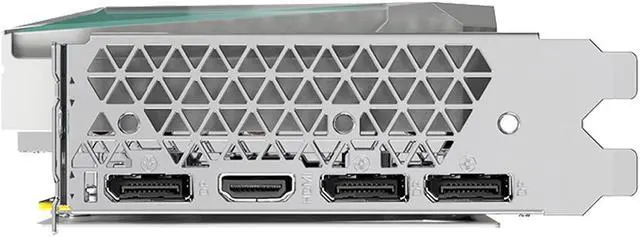

Versatile Interfaces :Featuring DisplayPort x 3 and PCI Express 3..0 x 16 interfaces, the card provides versatile connectivity options for various devices and monitors.
Energy Efficient :With an 8pin power connector and a 256 Bit memory interface, this graphics card ensures low power consumption while delivering optimal performance.
Desktop Application :Specifically designed for desktop use, this card is perfect for those seeking to upgrade their PC's visual capabilities.
Maximize the power of GeForce 5000 series cards with Gen5 NVMe SSD.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Tip: 1. Under normal circumstances, the normal temperature of the graphics card should be between "30-85 " 2. Even if the ambient temperature is too high in summer, the normal temperature is between "50-85°C" 3. Play some large 3D games and watch some high-definition videos, the graphics card temperature should be around 90 4. In fact, as long as the temperature of the graphics card does not exceed 95°C, there is generally no problem. If the temperature exceeds 95°C, the graphics card will automatically reduce the frequency, so there is no need to worry too much. 1. Turn off the computer and unplug the power cord. 2. Remove the chassis cover and find the PCle slot. 3. Removethe metal back plate at the expansion slot you want to insert the graphics card in. 4. Insert PCle connector Bto PCle slot and make sure that it is firmly inserted 5. Fix the graphics card to the expansion slot with screw 6. Co nectthe corespondingPCle power connectorto he independent power supply inter face on tgraphics card

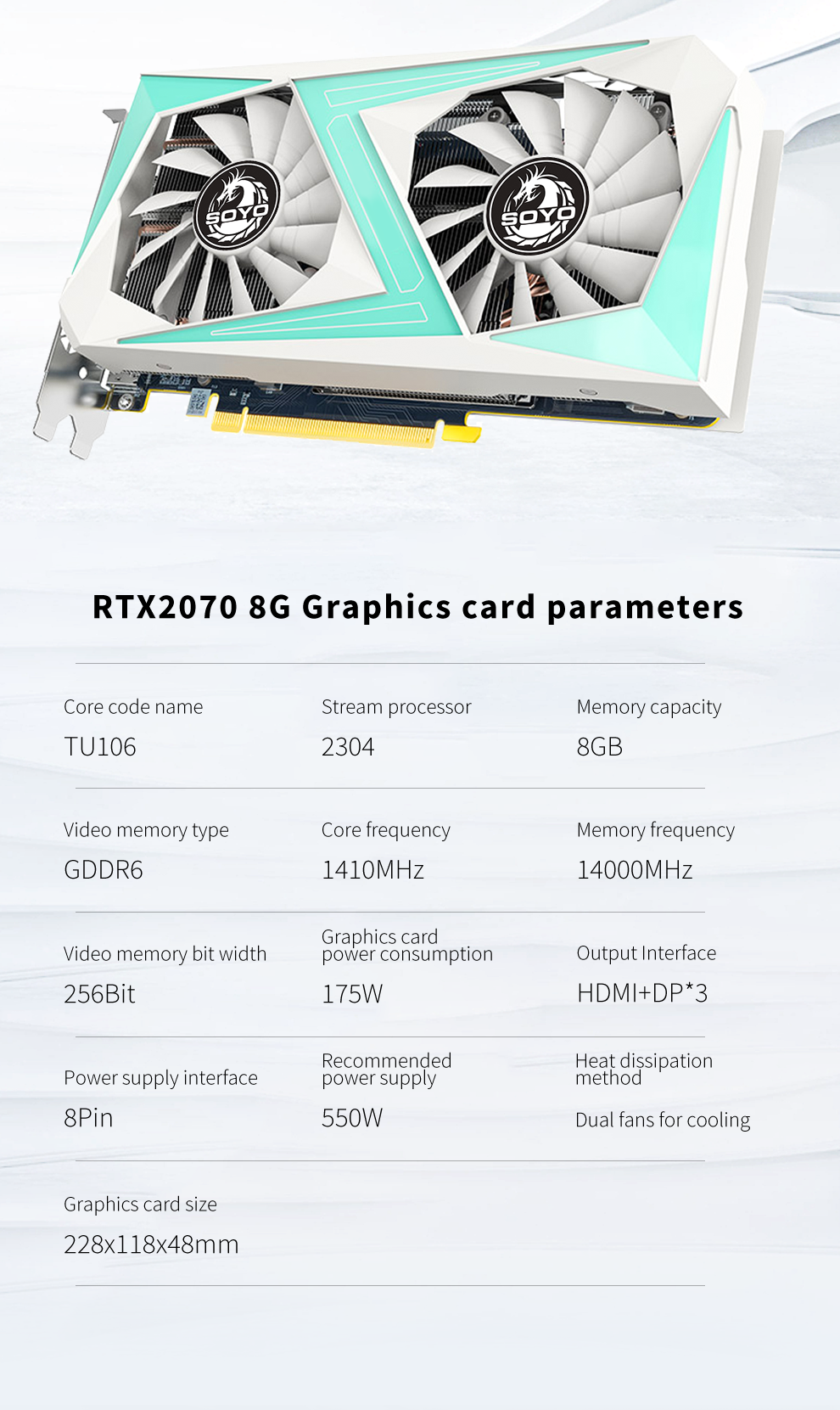

Learn more about the Detailed Specifications
Model
Brand
SOYO
Series
NVIDIA GeForce RTX 20 Series
Interface
Interface
PCI Express 3.0 x16
Chipset
Chipset Manufacturer
NVIDIA
GPU Series
NVIDIA GeForce RTX 20 Series
GPU
GeForce RTX 2070
Core Clock
1410 MHz
Boost Clock
1410
CUDA Cores
2304
Memory
Effective Memory Clock
14000 MHz
Memory Size
8GB
Memory Interface
256-Bit
Memory Type
GDDR6
3D API
DirectX
DirectX 12 Ultimate
OpenGL
OpenGL 4.6

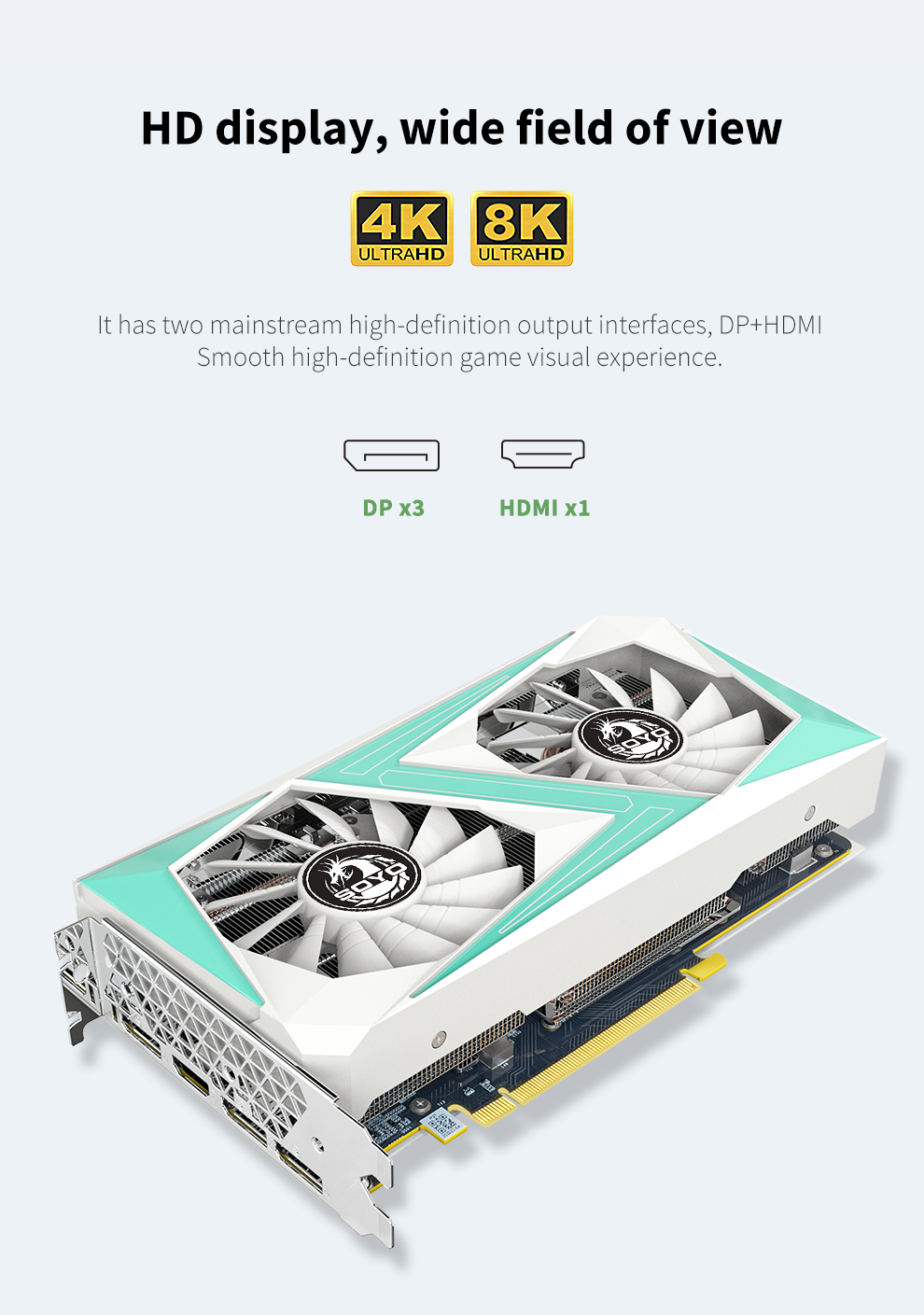

Ports
Multi-Monitor Support
4
HDMI
1 x HDMI
DisplayPort
3 x DisplayPort
Details
Max Resolution
7680 x 4320 @ 60 Hz
SLI Support
No
Virtual Reality Ready
Yes

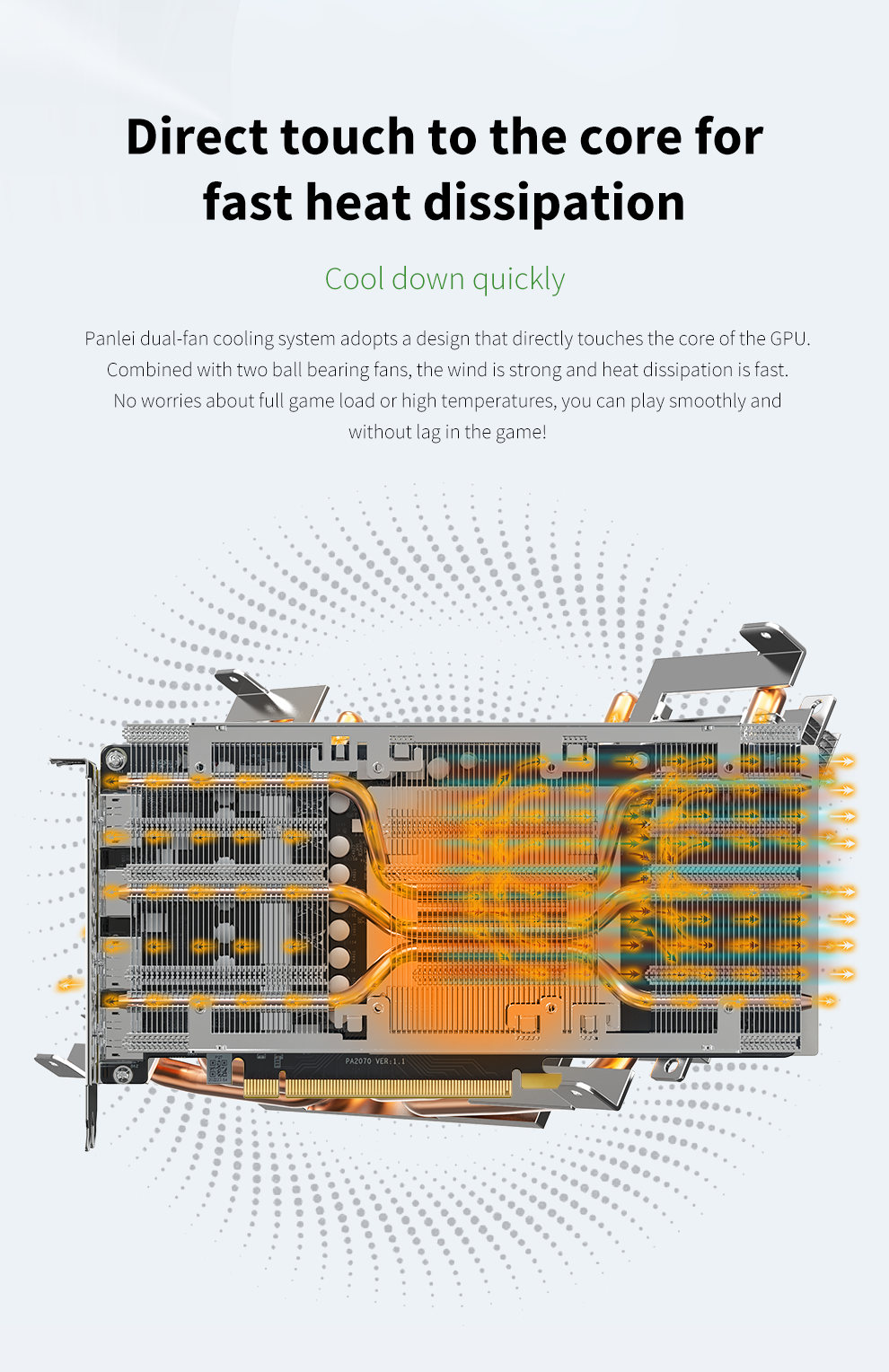

Cooler
Double Fans
Thermal Design Power
225W
Recommended PSU Wattage
550W
Power Connector
8-Pin
Form Factor & Dimensions
Form Factor
ATX
Max GPU Length
228 mm
Card Dimensions (L x H)
228*118*48mm
Slot Width
2 Slots
Additional Information
Date First Available
May 13, 2024
