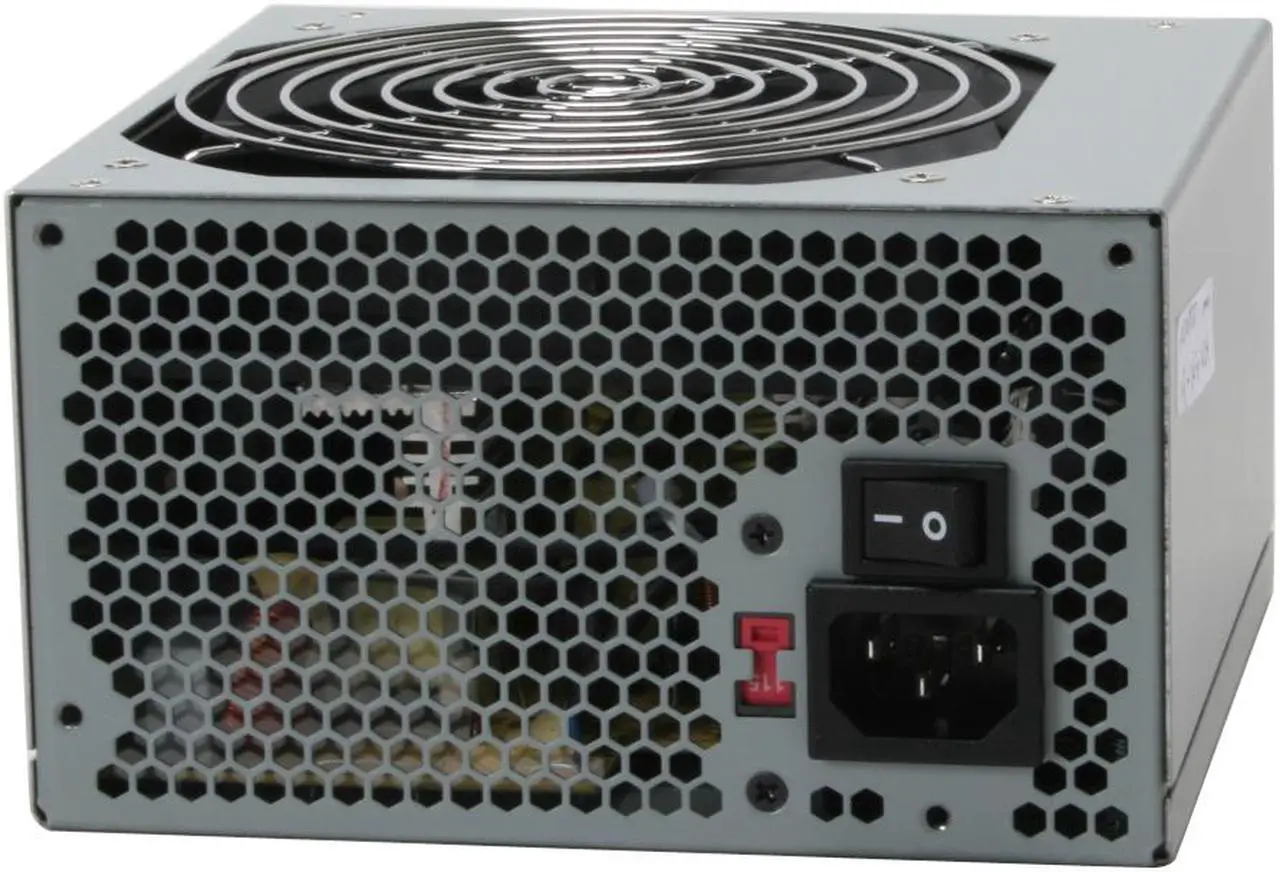

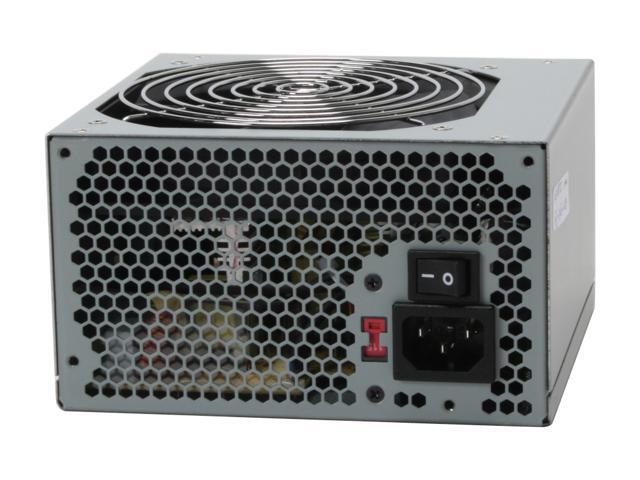

SPARKLE ATX-450PN 450 W ATX12V 2.2 Power Supply

Name: SPARKLE ATX-450PN 450 W Power Supply
Brand: Sparkle Power Inc.
SKU: N82E16817103024
Rating: 5 (3 reviews)

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Specs

Reviews (3)

Learn more about the Sparkle Power Inc. ATX-450PN

General
Brand	SPARKLE
Model	ATX-450PN

Details
Type	ATX12V 2.2
Maximum Power	450 W
Fans	Internal 12V DC fan included
PFC	No
Main Connector	20+4Pin
+12V Rails	2
PCI-Express Connector	1 x 6-Pin
SATA Power Connector	2
SLI	No
Modular	No
Power Good Signal	100-500ms
Hold-up Time	12ms minimum at nominal input voltage
Efficiency	70%
Over Voltage Protection	Yes
Input Voltage	110-120/ 220-240V
Input Frequency Range	50/60 Hz
Input Current	10/ 5A

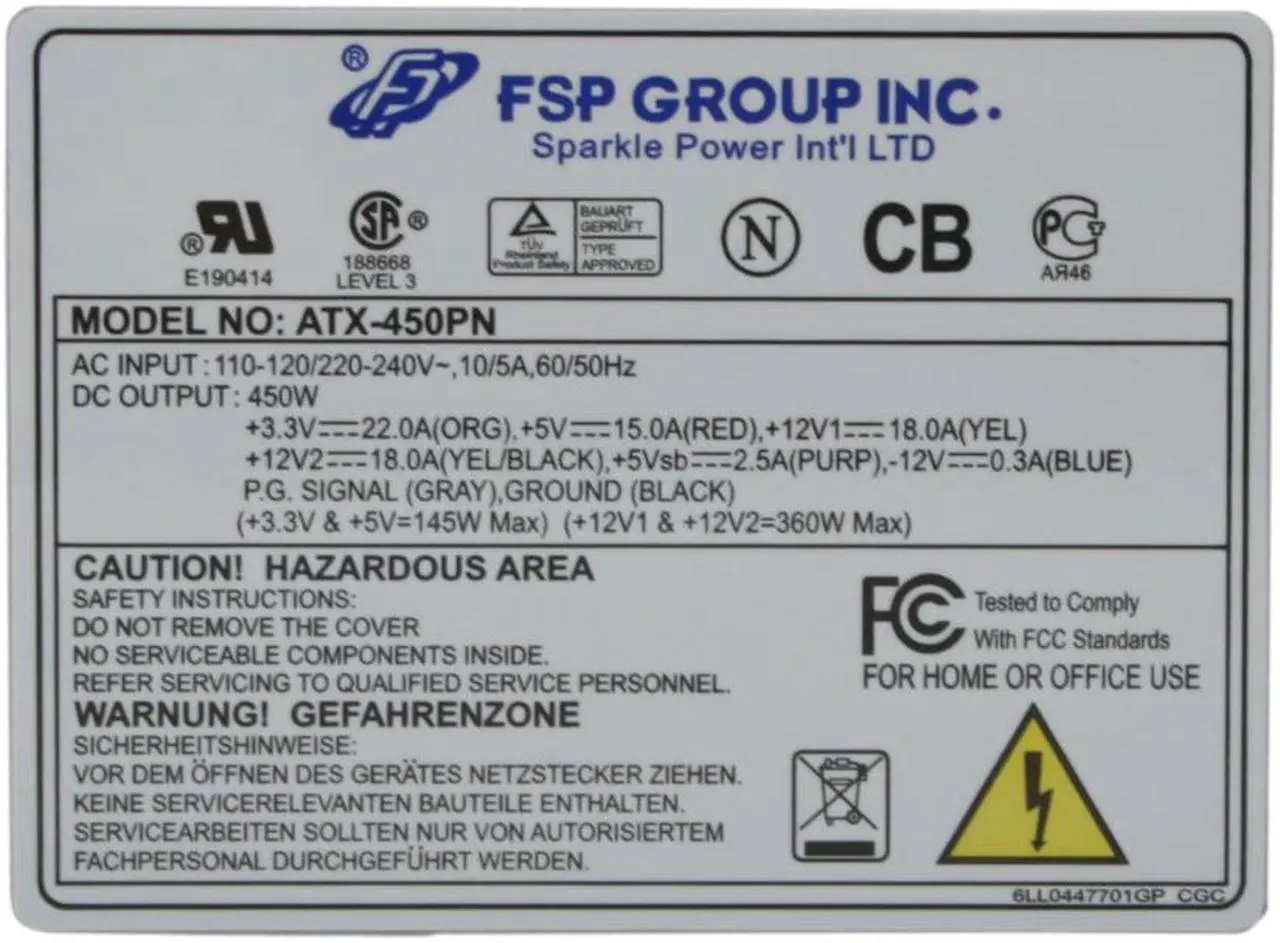

Output	+3.3V@22A, +5V@15A, +12V1@18A, +12V2@18A, [email protected], [email protected]
MTBF	100,000 hours on maximum load at +25°C
Approvals	UL, CSA, TUV, CB

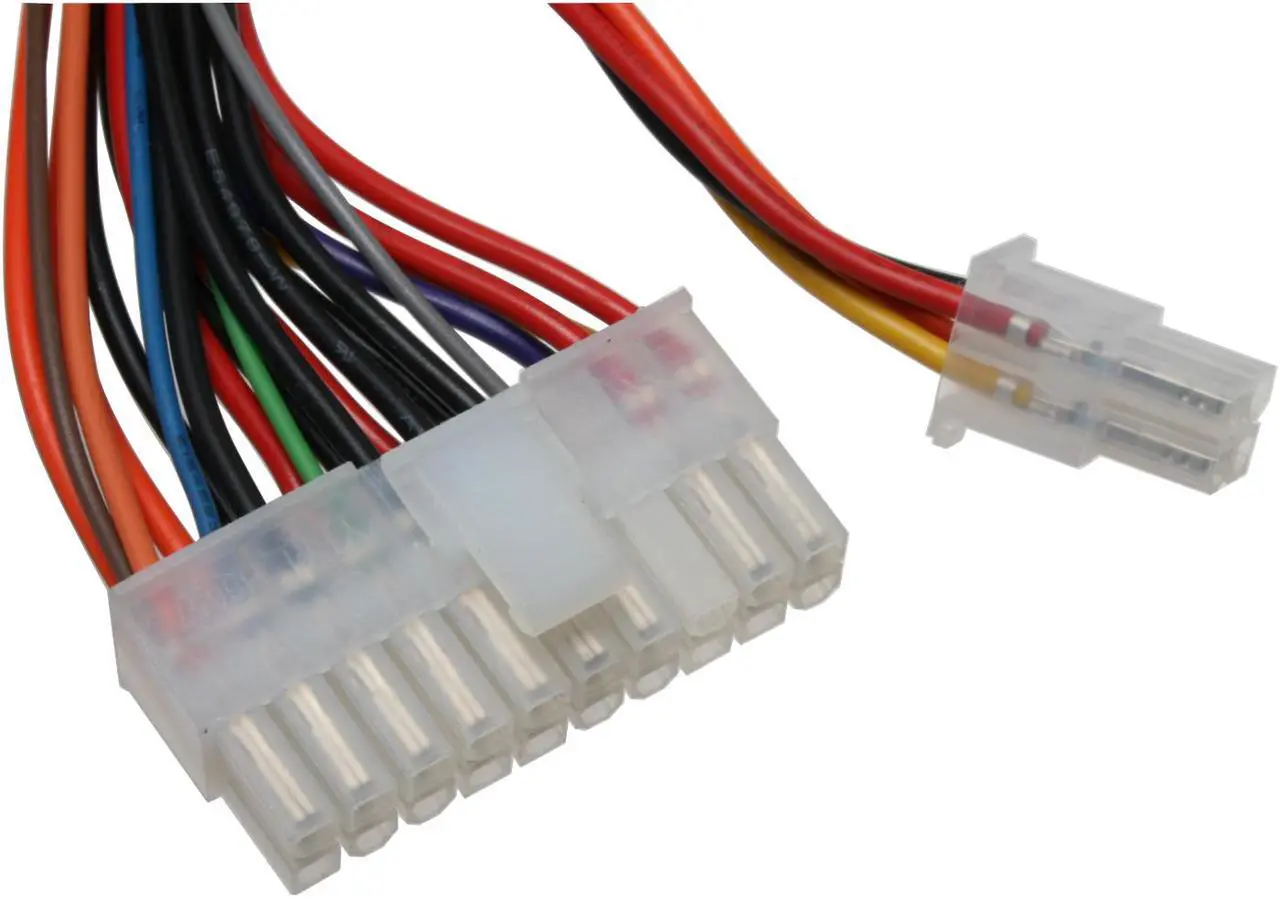

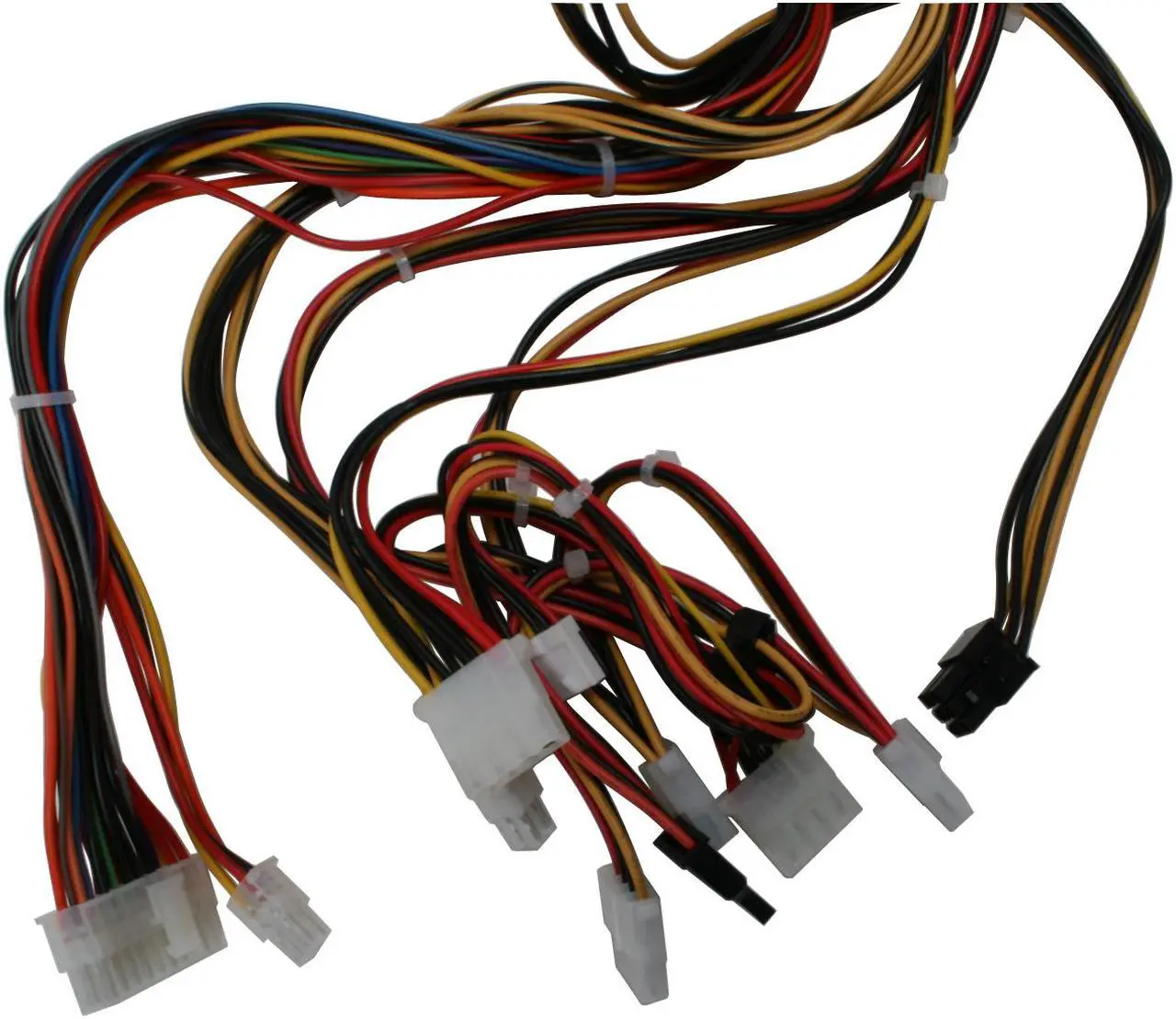

Connectors	1 x Main connector (20+4Pin) 1 x 12V(P4) 5 x peripheral 2 x SATA 1 x Floppy 1 x PCI-E

Features
Features	High efficiency and reliability, low noise and ripple Remote ON/OFF function Noise Killer (thermal fan speed control function) Output over voltage, short circuit, and over current protection 100% Hi-pot, ATE, and burn-in tested Re-settable power shut down

Dimension & Weight
Dimensions	5.5" x 5.9" x 3.4"

Additional Information
Date First Available	May 25, 2007
