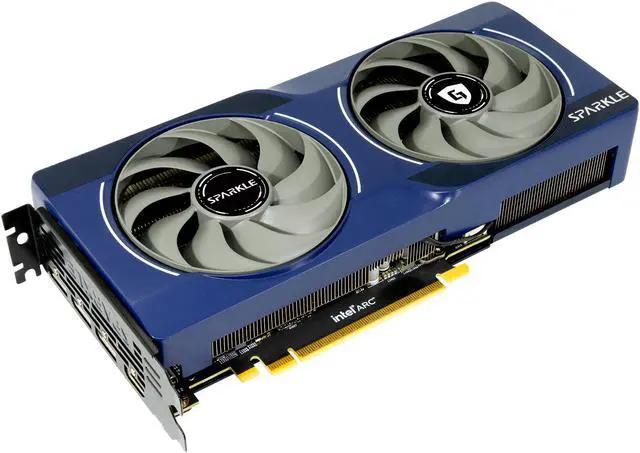

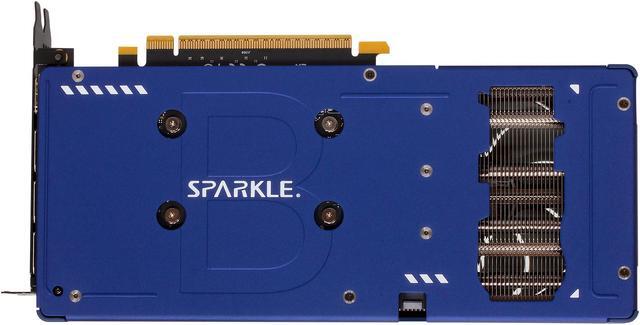

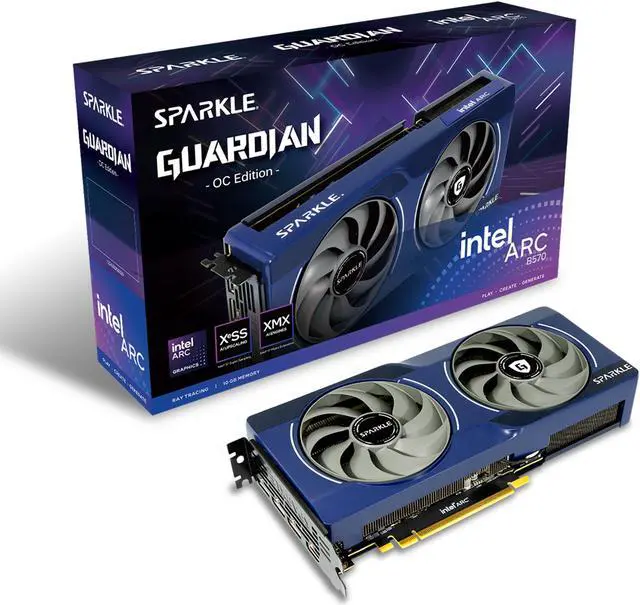

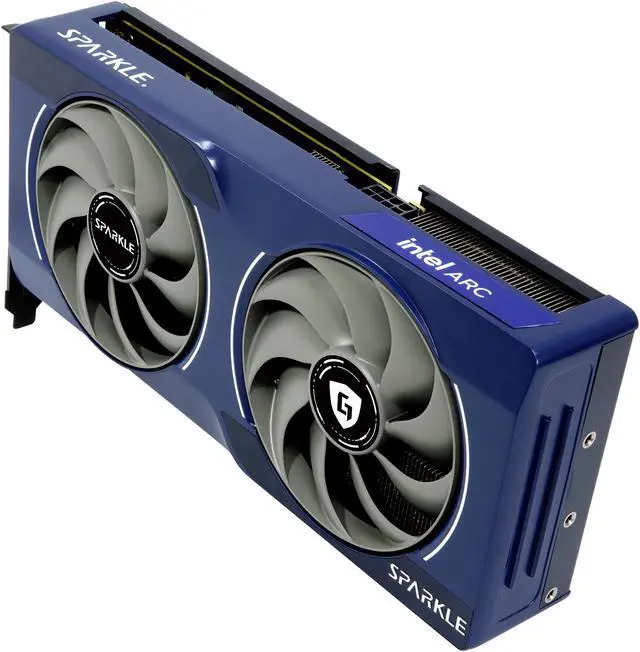

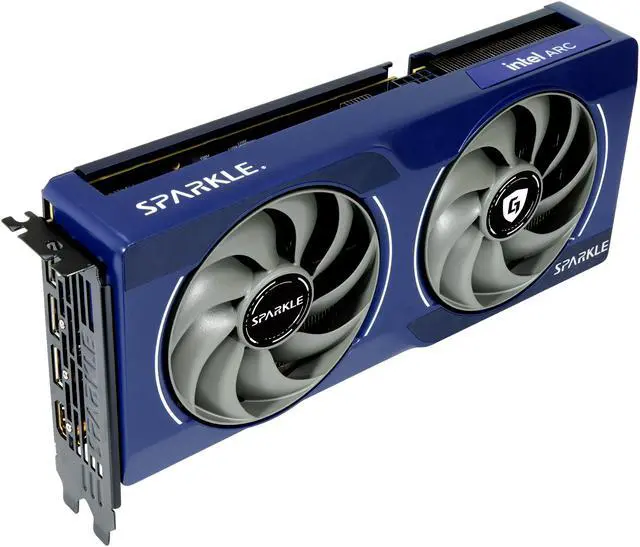

SPARKLE Intel Arc B570 GUARDIAN OC Graphics Card, 10GB GDDR6, TORN Cooling 2.0, Axial Fan, Breathing Light, Metal Backplate, SB570G-10GOC, Intel Battlemage Graphics Card
- Boost Clock: 2660 MHz
- Max Res.: Up to 8K at 120Hz HDR with DSC
- Memory Size: 10GB GDDR6
- Xe-Core: 18
- Ray Tracing Units: 18
+
+
Specs
Reviews (11)
Learn more about the Sparkle Computer Co., Ltd. Intel Arc B570 GUARDIAN OC
| Brand | SPARKLE |
|---|---|
| Series | GUARDIAN |
| Model | Intel Arc B570 GUARDIAN OC |
| Part Number | SB570G-10GOC |
| Interface | PCI Express 4.0 x8 |
|---|
| Chipset Manufacturer | Intel |
|---|---|
| GPU Series | Intel Arc B-Series |
| GPU | Arc B570 |
| Boost Clock | 2660 MHz |
| Xe-cores | 18 |
| Memory Size | 10GB |
|---|---|
| Memory Interface | 160-Bit |
| Memory Type | GDDR6 |
| DirectX | DirectX 12 Ultimate |
|---|---|
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
|---|---|

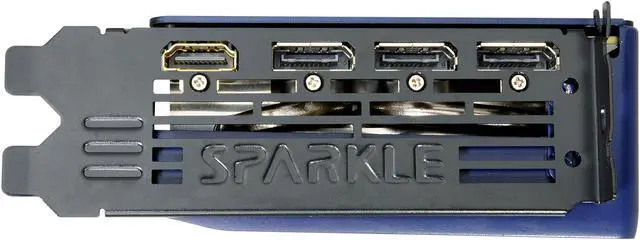

| HDMI | 1 x HDMI 2.1 |
| DisplayPort | 3 x DisplayPort 2.1 |
| Color | Other |
|---|---|
| Max Resolution | 7680 x 4320 |
| Cooler | Double Fans |
| Thermal Design Power | 170W |
| System Requirements | REQUIREMENTS 10th Gen Intel® Core™ / AMD Ryzen™ 3000 Series Processors or newer with compatible motherboards supporting Resizable BAR / Smart Access Memory PCI-Express® compliant MB with one x16 PCIe slot 600W or greater PSU with 1x 8-pin PCIe power connector 8GB of system memory minimum, 16GB recommended Windows® 11 64-bit or Windows® 10 64-bit |
| Recommended PSU Wattage | 600W |
| Power Connector | 8-Pin |
| Form Factor | ATX |
|---|---|
| Max GPU Length | 242 mm |
| Card Dimensions (L x H) | 242 x 105 x 44mm |
| Slot Width | 2.2 Slots |
| Date First Available | January 15, 2025 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: +886 28-698-3000
- Support Email: [email protected]
- Support Website
- View other products from Sparkle Computer Co., Ltd.
