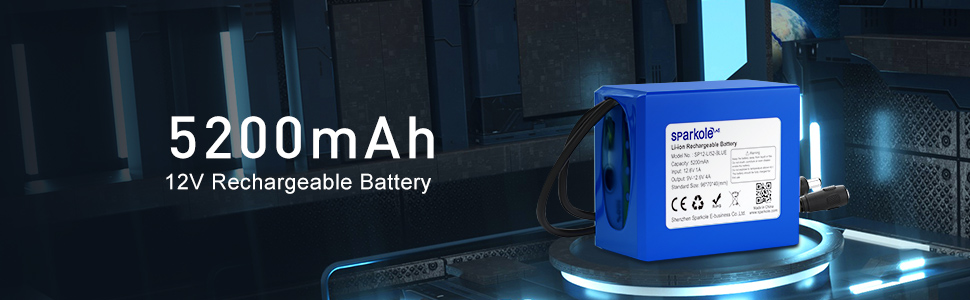

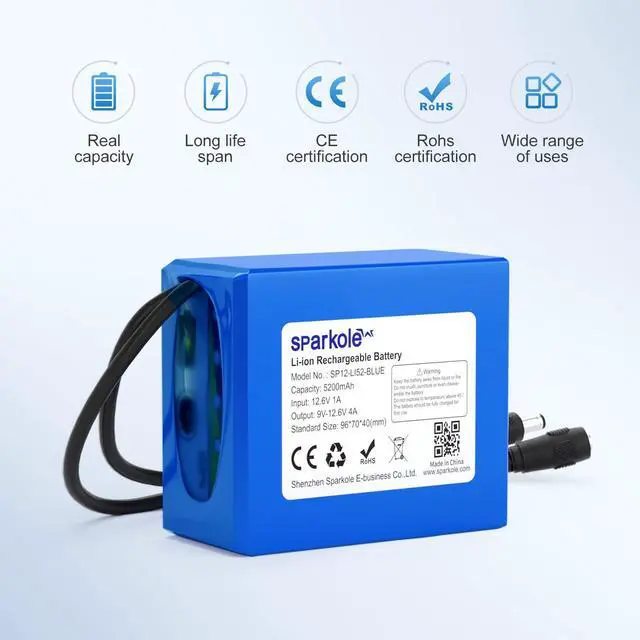

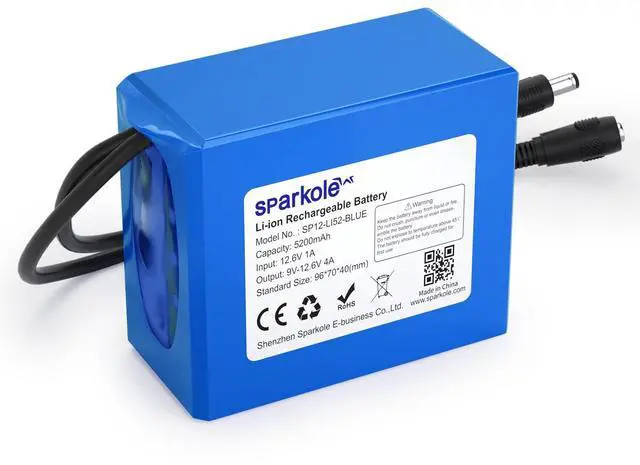

5200mAh 12V Rechargeable Lithium-ion Battery
General Parameter:
Rated Capacity: 5200 mAh Charging Voltage: 12.6V
Internal Impedance: =180mO
Standard Charging Time: 6 hours Fast Charging Time: 3 hours
Maximum Continuous Charge Current: 3A
Operation Temperature Range: Charge:0~45°C Discharge:-20~60°C

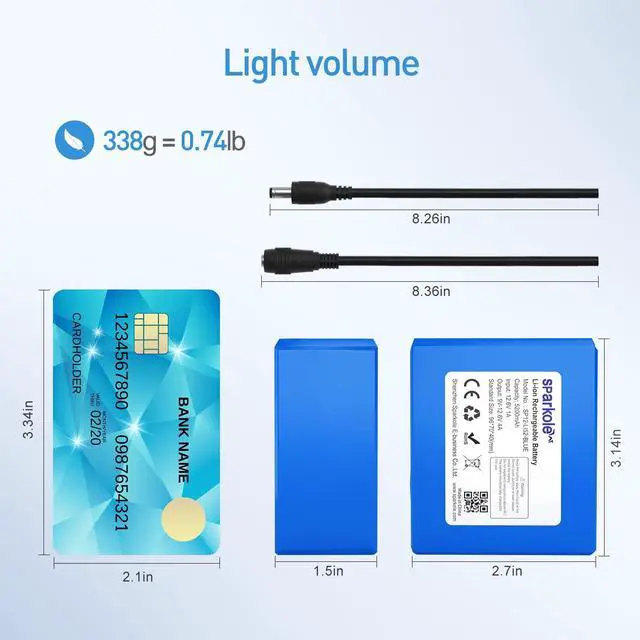

Battery Dimensions: length: 3.14in Width: 2.7in Thickness: 1.5in
Battery Pack Weight: 338g/0.74lb
Charge and Discharge line length: 210mm
Input DC2.1 Female Max: 12.6V 6A Output DC2.1 Male Max: 12V 6A

12v Battery Pack Built-in Upgrade Smart Chip
Provide overcharge, overvoltage, overheating, and short circuit protection for your charging equipment.Charging is safe, smart and guaranteed.

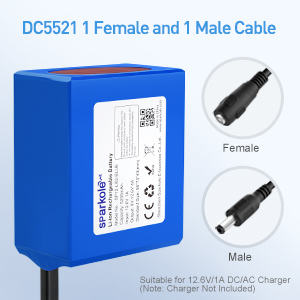

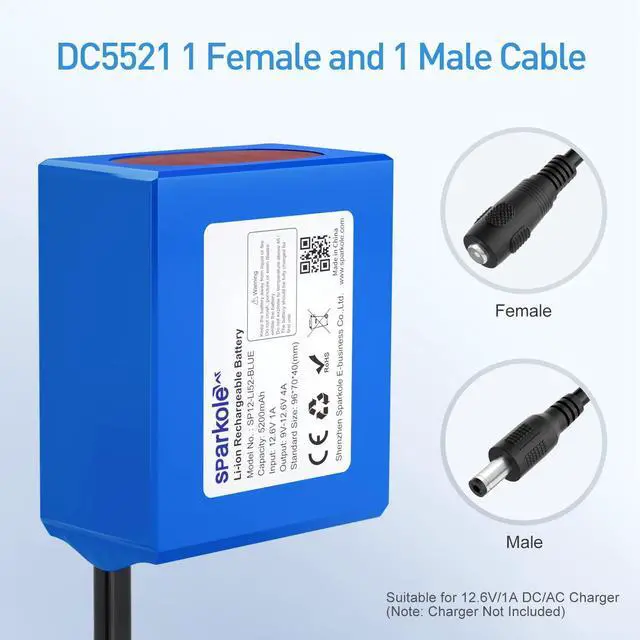

DC5521 interface 1 Female and 1 Male Cable
Input DC2.1 Female Max: 12.6V 6A
Output DC2.1 Male Max: 12V 6A
Connector: 5.5 x 2.1 mm
Suitable for 12.6V/1A DC/AC Charger
(Note: Charger Not Included)

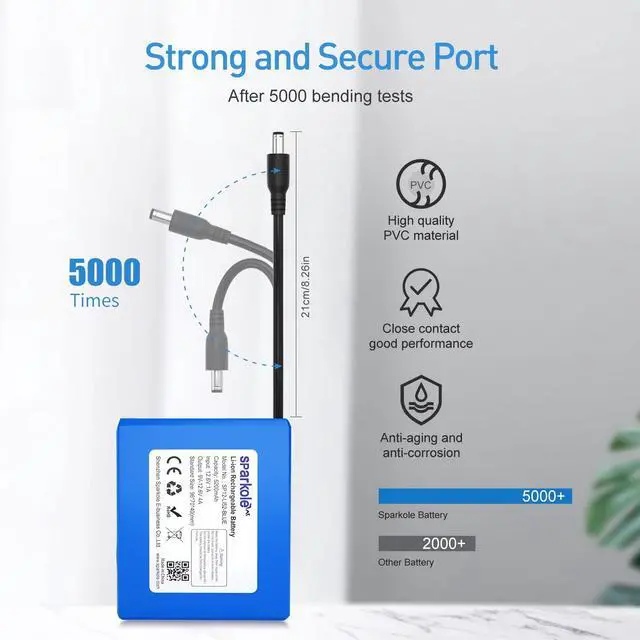

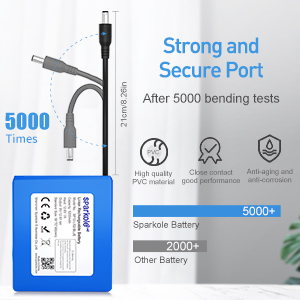

High-quality PVC Material for Charging Port, Anti-aging and Anti-corrosion
Sparkole 5.5*2.1 Male has close contact and good performance. The flame retardant safety factor of selected PVC materials is upgraded. Anti-aging, anti-corrosion, anti-cracking, wear-resistant and pressure-resistant, after 5000+ bending tests, the factory has undergone strict inspections, quality is guaranteed.

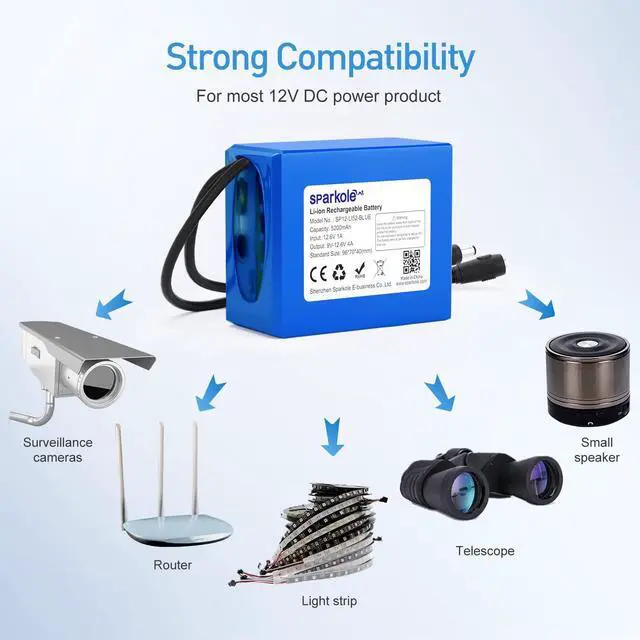

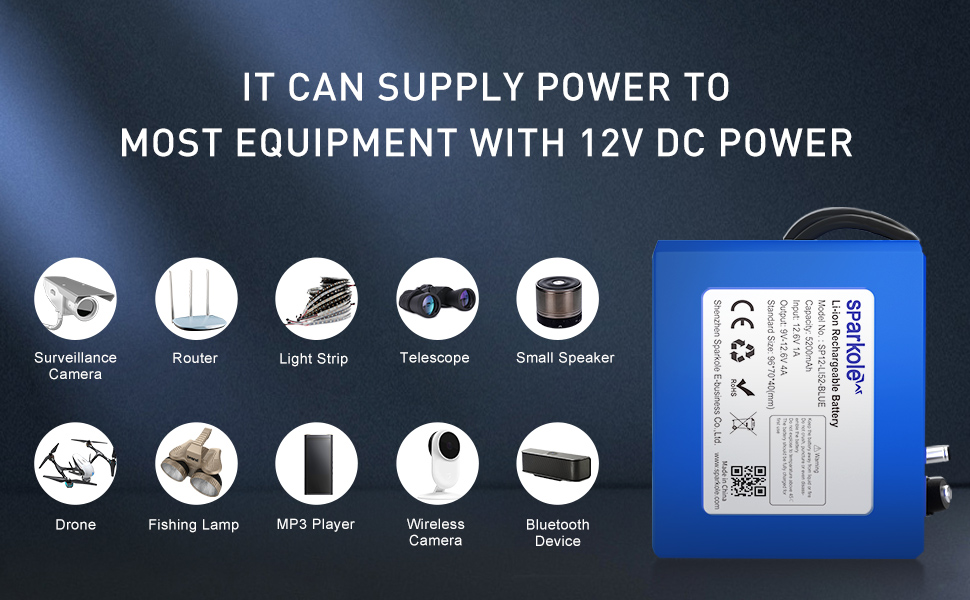

Compatible with Most of 12V Devices
Lightweight and Easy to Carry, Only 0.74lb, Supports a Variety of 12v Devices, Just Like:
- Surveillance Cameras
- Router
- Light Strip
- Telescope
- Small Speakers
- Fishing Lamp
- MP3 Player
- Wireless Camera
- Bluetooth Device
- Small Bluetooth Amp
- LED Desk Lamp
- Metal Detector
Please Note:
1) Charge shall be done by voltage less than that specified in the Product Specification (12 .6V/battery );
2) The battery shall be charged within 0°C~45°C range in the Product Specification;
3) Prohibition of reverse charge: In case of the battery is connected improperly, the battery cannot be charged;
4) Never disassemble the cells: The disassembling may generate internal short circuit in the cell or other problems;
5) Prohibition of dumping of battery pack into fire;
6) Prohibition of battery immersion into liquid such as water;
7) Prohibition of use of damaged batteries.
![]() 12V Battery Pack Rechargeable 5200mAh Lithium Ion Battery for LED St... | ![]() 12V Rechargeable Lithium ion Battery 2600mAh with Charger, Bare Lead... | ![]() 12V 6400mAh Rechargeable Lithium ion Battery with Charger, Bare Lead... | ![]() 24V 5Ah Rechargeable Lithium Battery with Charger, Cable Connector, Male Cabl... | |
|---|---|---|---|---|
| Customer Reviews | — | — | — | — |
| Price | — | — | — | — no data |
| Voltage | 12v | 12v | 12v | 24v |
| Capacity | 5200mAh | 2600mAh | 6400mAh | 5000mAh |
| LED Panel | ? | no data | ? | no data |
| Accessories | Only battery | with charger | with charger | with charger |
| Compatible Devices | LED Strip, CCTV Camera, Electronic Organ, Router, speaker | LED Strip, Router, Radio, CCTV Camera, DIY Project, Solar Panel | DIY projects, speakers, walkie-talkies, LED light strips | DIY Projects, Speaker Box, Radio Equipment, Portable Boombox |
| Battery Pack Weight | 295g | 160g | 330g | 590g |
