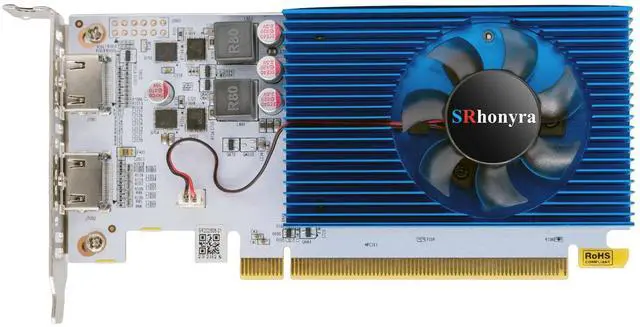

Why Consider This R5 230 Dual HDMI Low Profile Graphics Card By SRhonyra
- Quick and easy to download the drivers 15.7.1, and this card will be ready in a flash for full function.
- Without external power needs and only 20 W low power consumption, a Minimum 200 W PSU can run your desktop PC.

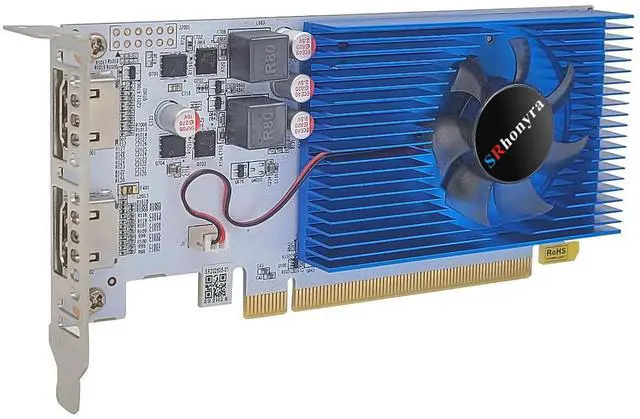

The SRhonyra R5 230 2GB low profile graphics card is for sure NOT a gamer card, but it does the job.
It is a budget-friendly graphics cards designed primarily for entry-level gaming and multimedia use. It is capable to deliver decent performance for casual gaming, but also help you engage mostly in multimedia consumption like streaming videos, photo editing, or some light gaming.
Due to SRhonyra R5 230 2GB video card features dual HDMI display, you can use it to build a dual setup without any convertors, the setup will definitely enhance your work productivity, so that you can accomplish tasks more quickly and effectively.
Overall, this is a great low profile card for a home server, or it is a good replacement for your old card, or a nice and cheap GPU when you are trying to resurrect your old pre-built desktop PC.

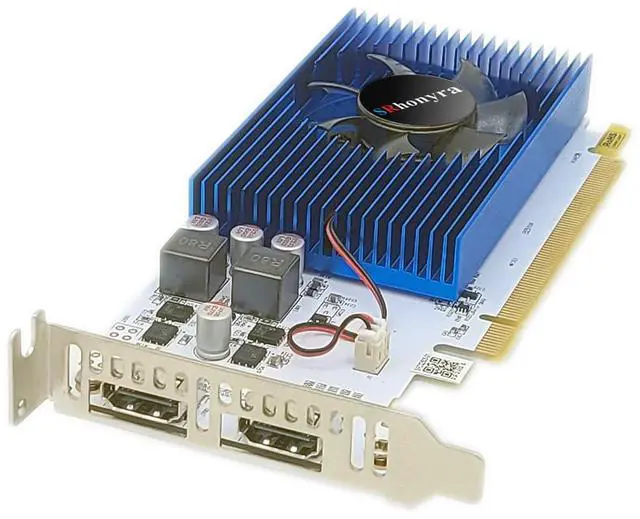

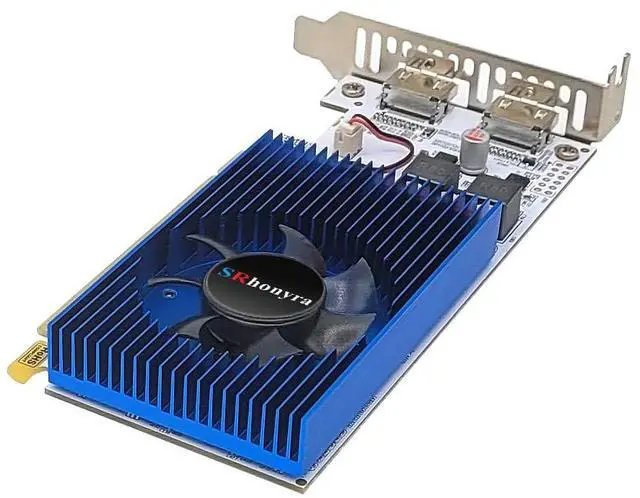

Single-slot width
This 2×HDMI dual outputs graphics card comes with a half-height bracket, fits your small form factor system well. An full-helight bracket also included in the package.

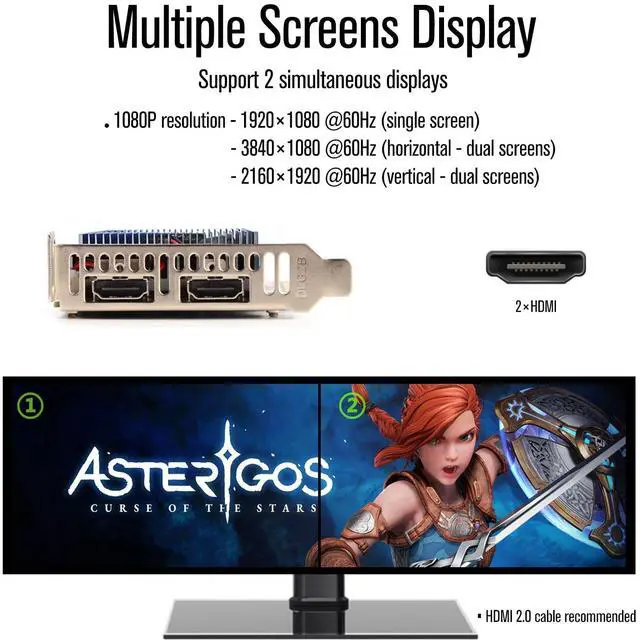

Dual-monitor graphics card

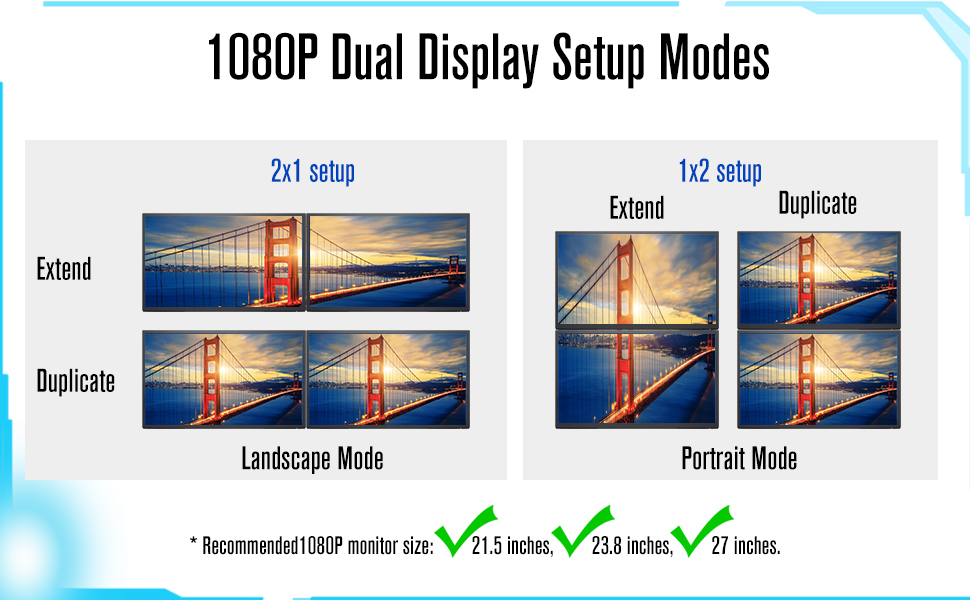

Support for up to dual Displays: HDMI resolutions 3840×1080 @60Hz Extend, landscape mode;
Energy Efficient
This multi-screen video card requires only 20 watts of power from the PCIe 2.0 x16 bus. Recommended 200 watt or greater power supply.
2 Audio Outputs
This discrete dual HDMI outputs graphics card support 2 channel audio out via cable. Please change the setting for the playback device enable HDMI audio output.
IMPORTANT:
* Driver Version: 15.7.1 (Newer driver than 15.7.1 for Windows incompatible, please do not install)
OS support:
* Win 10 32-bit/64-bit
* Win 8.1 32-bit/64-bit
* Win 8 32-bit/64-bit
* Win 7 32-bit/64-bit
* RHEL x86 32/64-bit
* Ubuntu x86 32/64-bit
* Linux x86
*Linux x86 64-bit
What to do before installing SRhonyra R5 230 2GB dual HDMI low profile video card? * Please follow below steps. 1) Use a brush and compressed air to blow away any dust from the PCIe slot used to install the video card. 2) Make sure the PCIe slot is working and your GPU is fully seated in the PCIe slot.
Troubleshooting:
Problem 1: both HDMI ports don't work at the same time
Root Reason: Did not install correct driver version
Solution: Download DDU, and use it to uninstall current driver for R5 230 video card. After PC restart, search “R5 230 driver 15.7.1" and download it, reinstall driver 15.7.1 for SRhonyra R5 230 2GB video card.
Problem 2: Item didn't fit customer's system (That means no display comes out of the graphics card. )
Root reasons: 1) Did not clean the PCIe slot for video card 2) PCIe slot is bad 3) Did not enable CSM support
Solution:
1) Use a brush and compressed air to clean the PCIe slot
2) Use another video card to check whether the PCIe slot is working or not
3) Restart your PC, enter BIOS settings, enable CSM support. Save and exit.

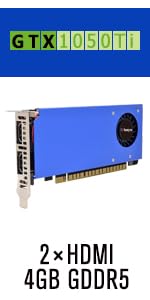

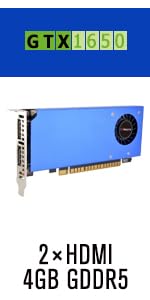

 R5 230 2xHDMI 2GB |  GT 1030 2xHDMI 2GB |  GTX 1050 Ti 2xHDMI 4GB |  GTX 1060 2xHDMI 6GB |  RX 550 2xHDMI 4GB |  GTX 1650 2xHDMI 4GB | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |

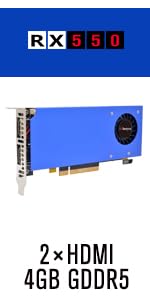

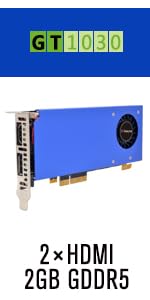

| Graphics processor | R5 230 | GT 1030 | GTX 1050 Ti | GTX 1060 | RX 550 | GTX 1650 |
| Core Frequency | 650 MHz | 1228-1468 MHz | 1290 MHz | 1506 MHz | 1367-1468MHz | 1485 MHz |
| Memory Size | 2 GB | 2 GB | 4 GB | 6 GB | 4 GB | 4 GB |
| Output Ports | 2xHDMI | 2xHDMI | 2xHDMI | 2xHDMI | 2xHDMI | 2xHDMI |
| Memory Clock Speed | 533 MHz | 6 Gbps | 7 Gbps | 8 Gbps | 7 Gbps | 7 Gbps |
| Max Resolution ((Splicing screens) | 3840x1080 @60Hz | 3840*2160 @60Hz | 3840*2160 @60Hz | 3840*2160 @60Hz | 3840*2160 @60Hz | 3840*2160 @60Hz |
| Power Supply | PCI e 2.0 x16 | PCI e 3.0 x4 x8 x16 | PCI e 3.0 x16 | PCI e 3.0 x16 | PCI e 3.0 x8 x16 | PCI e 3.0 x16 |
| CUDA Core | 160 | 384 | 768 | 1280 | 512 | 896 |
| Power Consumption | 20 Watts | 30 Watts | 60 Watts | 65 Watts | 20 Watts | 55 Watts |

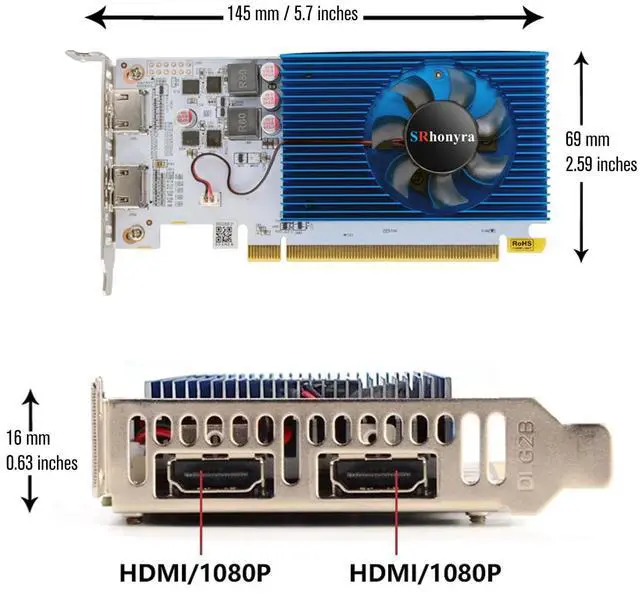

| Dimensions | 5.7"x2.69"x0.63" | 5.7"x2.69"x0.63" | 5.7"x2.69"x0.63" | 6.61"x2.69"x0.63" | 5.7"x2.69"x0.63" | 5.7"x2.69"x0.63" |
