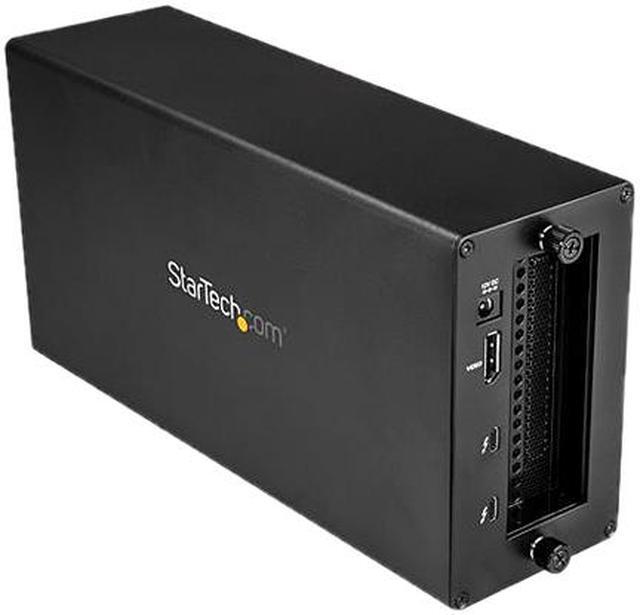

Main image of StarTech BNDTB10GI Thunderbolt 3 to 10 Gbe NIC - 1 port - External PCIe Enclosure / Chassis plus Card - with DisplayPort Monitor Port

Alt view image 2 of 5 - StarTech BNDTB10GI Thunderbolt 3 to 10 Gbe NIC - 1 port - External PCIe Enclosure / Chassis plus Card - with DisplayPort Monitor Port

Alt view image 3 of 5 - StarTech BNDTB10GI Thunderbolt 3 to 10 Gbe NIC - 1 port - External PCIe Enclosure / Chassis plus Card - with DisplayPort Monitor Port

Alt view image 4 of 5 - StarTech BNDTB10GI Thunderbolt 3 to 10 Gbe NIC - 1 port - External PCIe Enclosure / Chassis plus Card - with DisplayPort Monitor Port

Alt view image 5 of 5 - StarTech BNDTB10GI Thunderbolt 3 to 10 Gbe NIC - 1 port - External PCIe Enclosure / Chassis plus Card - with DisplayPort Monitor Port

Shop All STARTECH Products

StarTech BNDTB10GI Thunderbolt 3 to 10 Gbe NIC - 1 port - External PCIe Enclosure / Chassis plus Card - with DisplayPort Monitor Port

Be the first to review this product...

Add 10GbE connectivity to your Thunderbolt 3 desktop or laptop computer
Flexible solution with a removable PCIe network card
Intel x550 / Thunderbolt 3 to ethernet / Thunderbolt 3 to PCIe / Thunderbolt 3 to 10GbE adapter / External PCIe enclosure / Network Adapter / Thunderbolt 3 10GbE / Thunderbolt 3 expansion chassis / Thunderbolt 3 PCIe box / Thunderbolt 3 PCIe enclosure / Thunderbolt 3 PCIe expansion chassis / Thunderbolt 3 network adapter

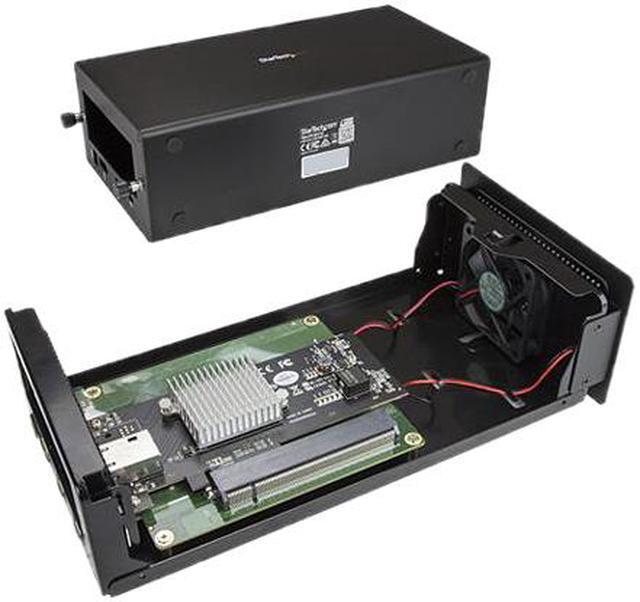

Assemble and install with just a screwdriver

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

CHASSIS AND CARD - TB3 TO 10GBE NIC

Model
Brand	StarTech.com
Model	BNDTB10GI

Details
Color	Black
Type	Enclosure
AC Adapter	Yes
Material	Aluminum / Steel
Thunderbolt 3	Yes
Internal Interface	1 x PCI Express x4 Male

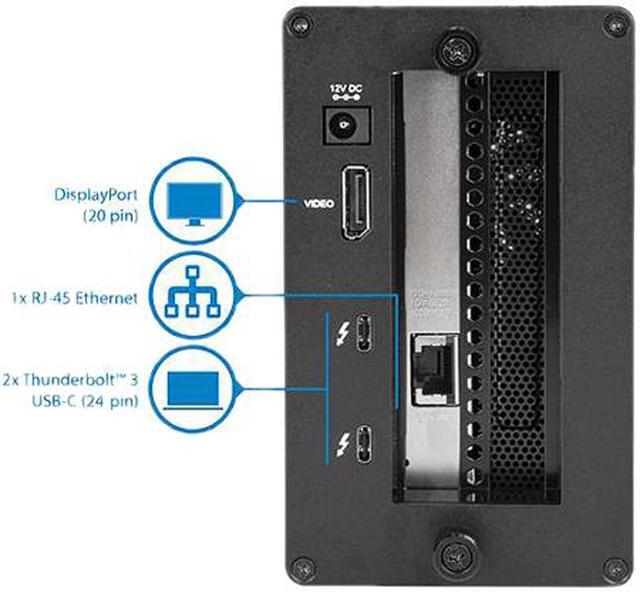

External Interface	1 x RJ-45 Female 2 x Thunderbolt 3 USB-C Female 1 x DisplayPort Female
Fan	1 x 92mm Sleeve Bearing Fan
Power	Center Tip Polarity: Positive Input Current : 2A Input Voltage : 100 ~ 240 AC Output Current: 5.417A Output Voltage: 12 DC Plug Type: N Power Consumption (In Watts): 65W Power Source: AC Adapter Included

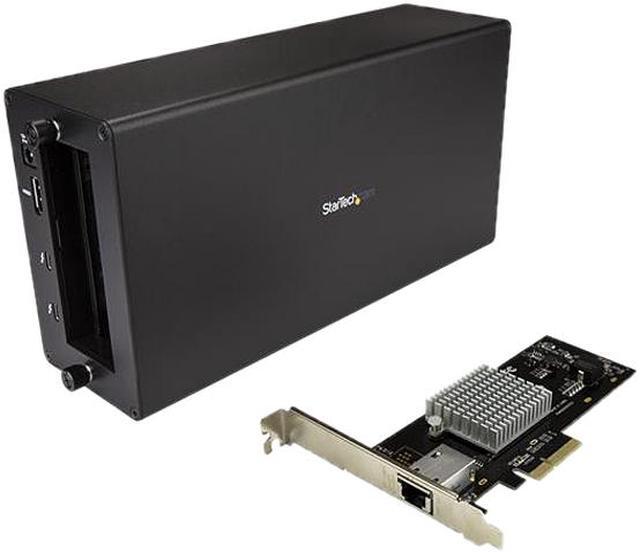

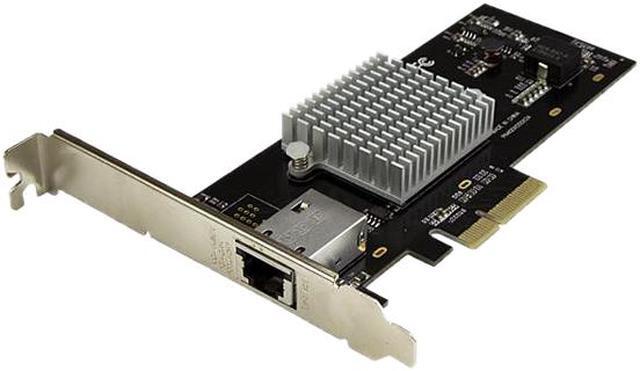

Specifications	This Thunderbolt 3 to 10GbE NIC lets you connect your Thunderbolt 3 enabled device to a 10 GbE network. This adapter combines the StarTech.com Thunderbolt 3 PCIe Expansion Chassis (TB31PCIEX16) and the PCI Express 10G NIC (ST10000SPEXI), giving you one DisplayPort output, one additional Thunderbolt 3 port and one RJ45 (10GbE) port. Reliable, high-performance and versatile multimode connectivity This 10G network card utilizes the Intel X550 chipset with Intel Virtualization Technology for connectivity, delivering the power, performance and enhanced capabilities you need for dependable network connections. Install and assemble with ease Requiring only a Phillips type screwdriver, this Thunderbolt 3 to 10GbE NIC can be assembled and connected in minutes. It connects easily through a single Thunderbolt 3 port on your computer. Change up your chassis The Thunderbolt 3 chassis not only pairs well with the 10GbE NIC-you can swap the NIC out for other PCIe cards, to help support other functionality and performance. With the extra TB3 port and DP output built into the chassis, you will always have the ability to hook up extended displays to effortlessly multitask.

Compatibility
Operating Systems Supported	Windows 7, 8, 8.1, 10 (64-bit only) macOS 10.12 - 10.13

Features
Features	This Thunderbolt 3 to 10GbE adapter lets you connect your Thunderbolt 3 enabled device to a 10 GbE network via an expansion chassis Add 10GbE connectivity to your Thunderbolt 3 desktop or laptop computer Upgrade your peripherals without having to upgrade your chassis by just switching out your PCIe card Assemble and install easily with just a screwdriver Note: The expansion chassis does not support video cards. This expansion chassis does not provide full power delivery but will provide 15W of power, resulting in a slow charge to some laptops, such as MacBook Pro. When the dock is connected to your host laptop, a charging icon may appear on your laptop's screen. This is only sufficient enough to charge your laptop in sleep state, and charging will require an extended time period. 5K support can only be achieved using a Thunderbolt 3 5K monitor. DisplayPort 5K monitors will not work with this expansion chassis. A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K). Certain monitors may be limited to 4K at 30Hz when connecting through DisplayPort. These monitors include the following models: Dell P2715Q, Viewsonic VX2475Smhl-4K, Philips 288P6LJEB, LG 31MU97C-B, Asus PB287Q (these models will need to be set to 4K at 30Hz). When connecting a display to one of the Thunderbolt 3 USB-C ports, a USB-C video adapter might be required depending on the input of your display. Secondary Thunderbolt 3 port can also be used to connect USB 3.1 (10Gbps) USB-Type C devices, such as USB 3.1 Hubs. Backwards compatible with USB 3.0 (USB 3.1 Gen 1), and USB 2.0.

Dimensions & Weight
Dimensions	11.00" x 5.60" x 3.20"
Weight	3.60 lbs.

Package Contents
Package Contents	1 x Thunderbolt 3 PCIe expansion box 1 x Thunderbolt 3 cable 4 x rubber feet 1 x 10G network card 1 x universal power adapter (NA/JP, UK, EU, ANZ) 1 x low-profile bracket 2 x quick-start guides
