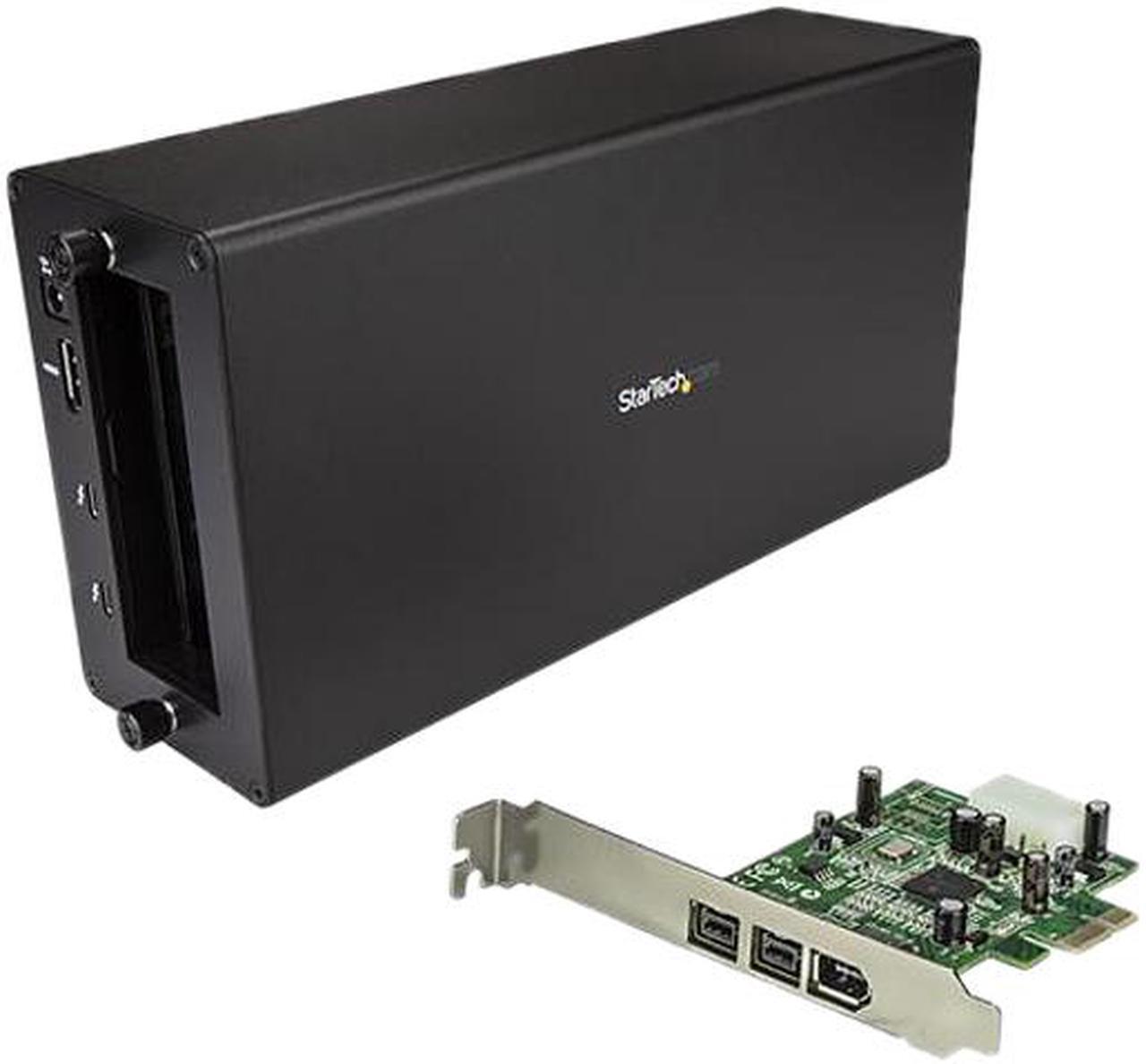

StarTech BNDTB1394B3 Thunderbolt 3 to Firewire Adapter - 1394 FireWire - External PCIe Enclosure / Chassis plus Card - with DisplayPort Monitor Port

The Thunderbolt 3 to 1394 FireWire adapter connects your FireWire peripherals to your Thunderbolt 3 computer
Connect FireWire peripherals to TB3 devices

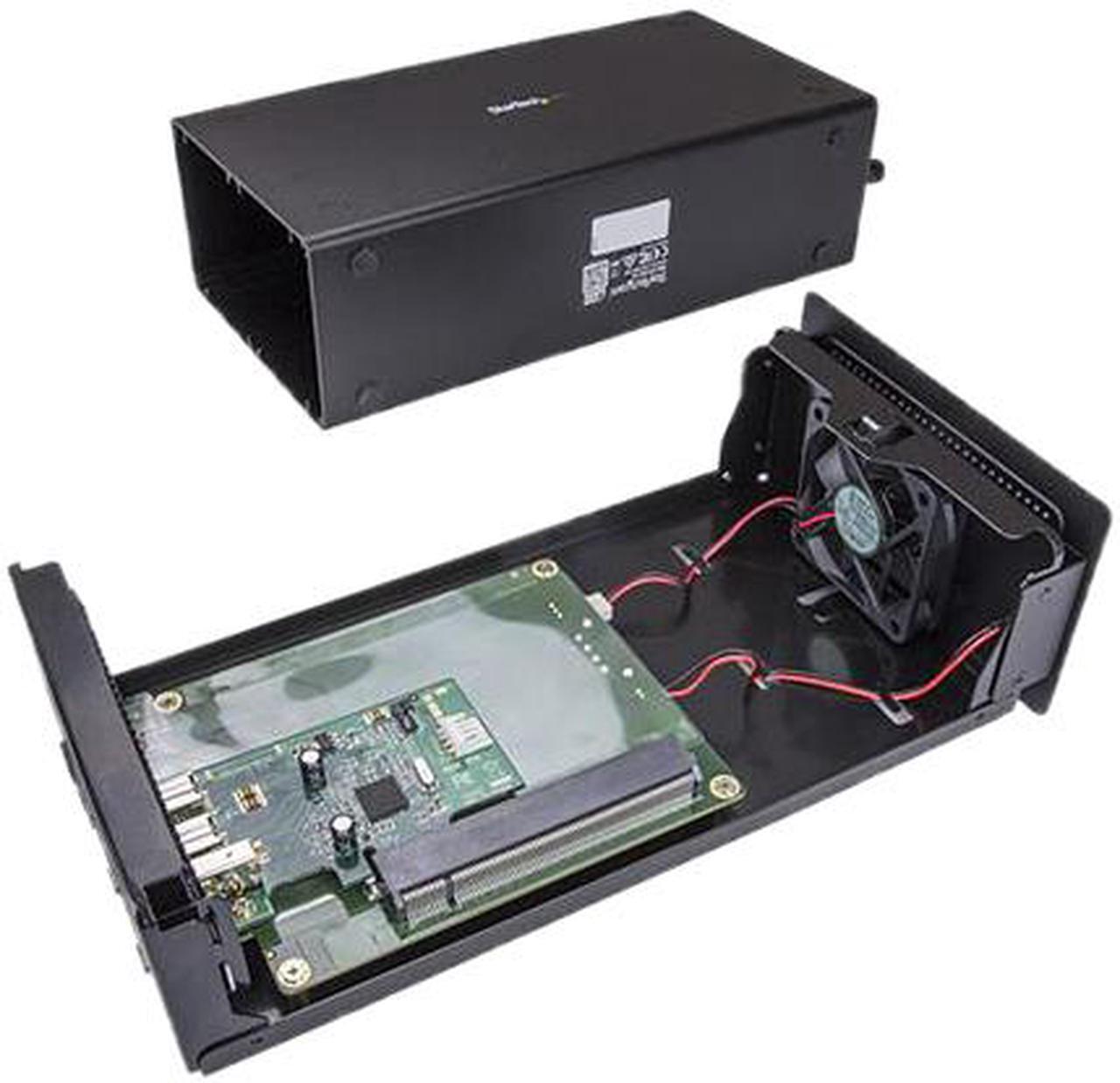

Easily swap PCIe cards with screwdriver
Thunderbolt 3 to FireWire 400 adapter / Thunderbolt 3 to FireWire 800 adapter / External PCI express enclosure / External PCI express slot / PCIe expansion slot / PCIe slot / Thunderbolt 3 expansion chassis / Thunderbolt 3 FireWire adapter / Thunderbolt 3 PCIe box / Thunderbolt 3 PCIe enclosure

Overview

Specs

Reviews

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 2 years
Limited Warranty period (labor): 2 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's Standard Return Policy. Read full return policy for details.

Color	Black
Type	Enclosure
AC Adapter	Yes
Material	Aluminum / Steel
Thunderbolt 3	Yes
Internal Interface	1 x LP4 (4 pin, Molex Large Drive Power) Male 1 x PCI Express x16 Female
External Interface	1 x FireWire 400 (6 pin, IEEE 1394a) Female 2 x FireWire 800 (9 pin, IEEE 1394b) Female 2 x Thunderbolt 3 USB-C (24-pin) Female 1 x DisplayPort (20 pin) Female
Fan	1 x 92mm Sleeve Bearing fan
Power	Center Tip Polarity: Positive Input Current : 2A Input Voltage : 100 ~ 240 AC Output Current: 5.417A Output Voltage: 12 DC Plug Type: N Power Consumption (In Watts): 65W Power Source: AC Adapter Included

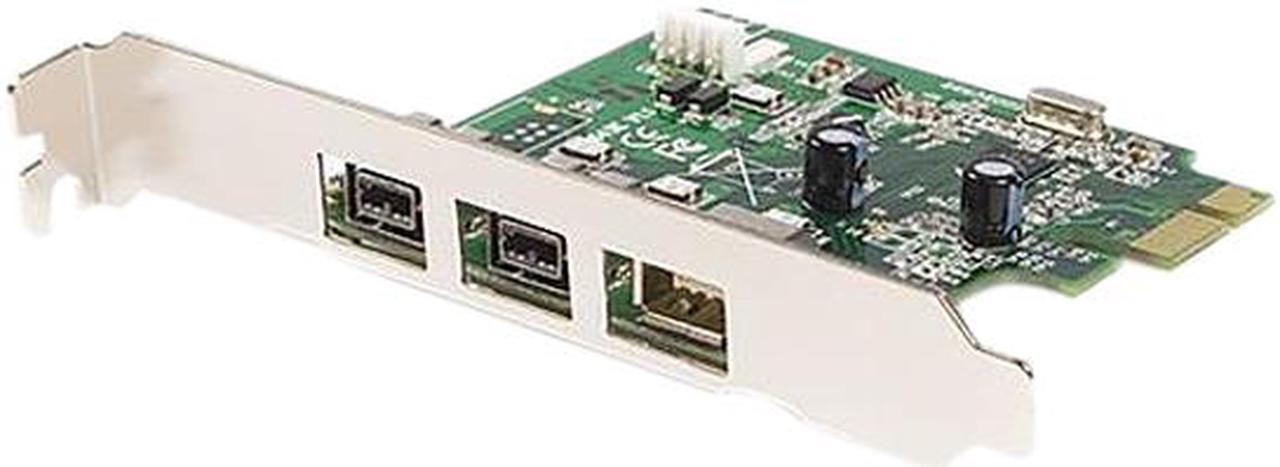

Specifications	The Thunderbolt 3 to 1394 FireWire adapter connects your FireWire peripherals to your Thunderbolt 3 computer. This adapter combines StarTech.com’s Thunderbolt 3 PCIe Expansion Chassis (TB31PCIEX16) and 1394 FireWire adapter card (PEX1394B3). The chassis uses Thunderbolt 3 technology, the fastest connection available, supporting your FireWire devices, plus one DisplayPort output and one additional Thunderbolt 3 port. Save on upgrade costs Use your legacy FireWire devices with your next-generation Thunderbolt 3 computer, without having to pay for upgraded peripherals. Increase productivity with Thunderbolt 3 Thunderbolt 3 is the fastest connection available. By avoiding performance bottlenecks, you can accomplish more in the same amount of time. With 40Gbps of throughput and support for other high-performance PCIe cards, you can swap the card in and out, to add the peripherals you need connected to a Thunderbolt 3 desktop or laptop computer. Install with ease Both hot-swap and backward compatible, you can assemble and connect this adapter in minutes. Install the PCIe card using only a Phillips type screwdriver, then plug and play with automatic driver installation. Bandwidth: 3.94 GB/s (x4 PCIe 3.0 ) Maximum Data Transfer Rate: 40Gbps (Thunderbolt 3) 800Mbps (Firewire) 400Mbps (Firewire) Type and Rate: Thunderbolt 3 - 40 Gbit/s

Dimensions	11.00" x 5.60" x 3.20"
Weight	3.70 lbs.

StarTech BNDTB1394B3 Thunderbolt 3 to Firewire Adapter - 1394 FireWire - External PCIe Enclosure / Chassis plus Card - with DisplayPort Monitor Port

Learn more about the STARTECH BNDTB1394B3

Customer Reviews of the STARTECH BNDTB1394B3

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Model
Brand	StarTech.com
Model	BNDTB1394B3

Item#: N82E16817707443
